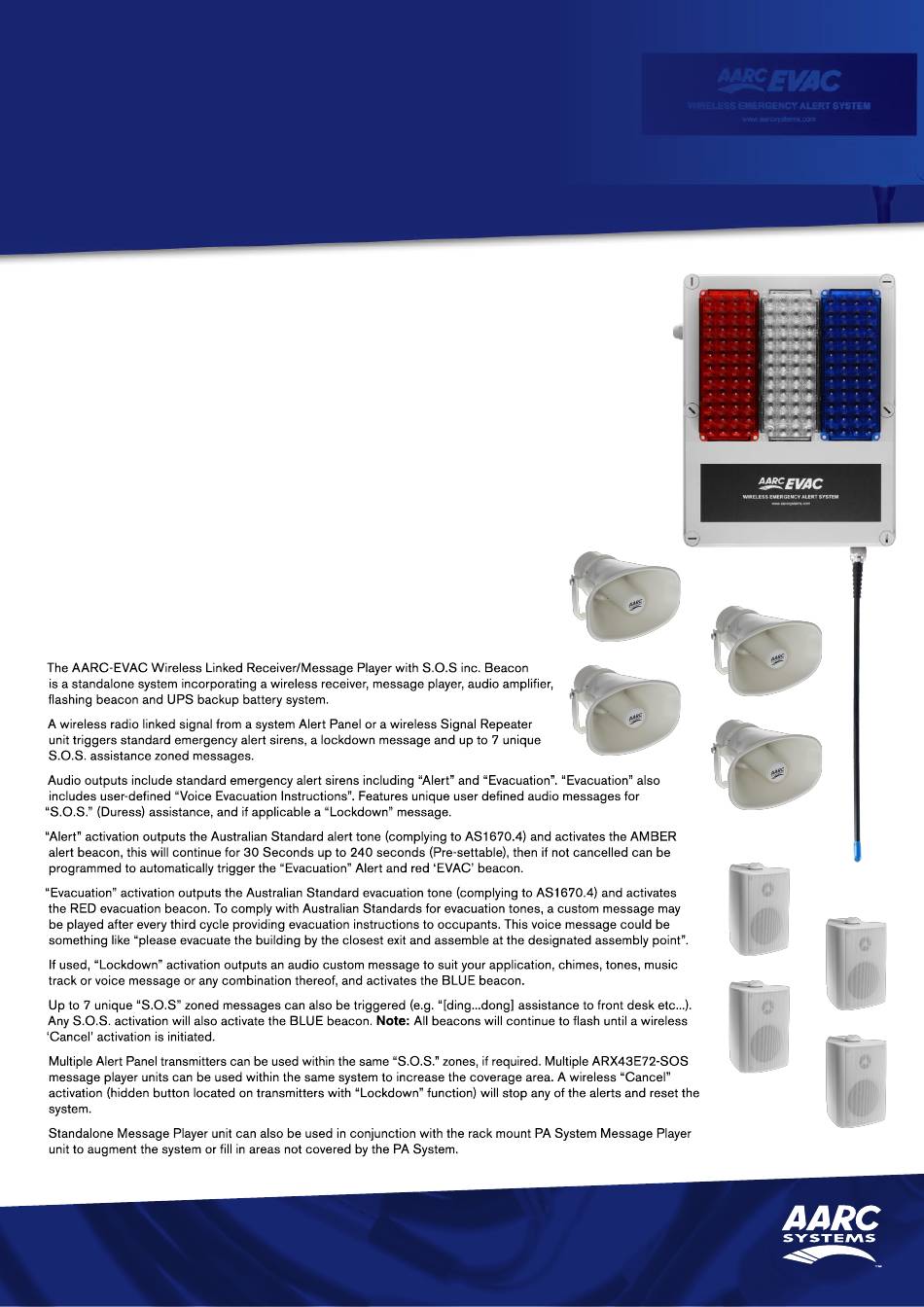

AARC-EVAC Indoor Standalone
Wireless Linked Message Player
& Message Player/Repeater Units
Installation & Operation Manual
Components Supplied
2 Speaker
1 x ARX43E72-FB
Message Player Unit with
Flashing Beacons
OR
1 x ARX43E72-FB-R
Message Player/Repeater Unit
with Flashing Beacons
1 x 15 VDC Power Supply
2 x 15 Watt Speakers*
1 x AARC Antenna
Also available:
No Audio
1 x ARX43E40-FB
Flashing Beacons
*A combination of Horn and Box Speakers as required.
aarcsystems.com
3 Speaker
1 x ARX43E73-FB
Message Player Unit with
Flashing Beacons
OR
1 x ARX43E73-FB-R
Message Player/Repeater Unit
with Flashing Beacons
1 x 15 VDC Power Supply
3 x 15 Watt Speakers*
1 x AARC Antenna
4 Speaker
1 x ARX43E74-FB
Message Player Unit with
Flashing Beacons
OR
1 x ARX43E74-FB-R
Message Player/Repeater Unit
with Flashing Beacons
1 x 15 VDC Power Supply
4 x 15 Watt Speakers*
1 x AARC Antenna
Advertisement
Related Manuals for AARC Systems AARC-EVAC
Summary of Contents for AARC Systems AARC-EVAC
- Page 1 AARC-EVAC Indoor Standalone Wireless Linked Message Player & Message Player/Repeater Units Installation & Operation Manual Components Supplied 2 Speaker 3 Speaker 4 Speaker 1 x ARX43E72-FB 1 x ARX43E73-FB 1 x ARX43E74-FB Message Player Unit with Message Player Unit with...
- Page 2 AARC-EVAC Wireless Alert Transmitters Installation & Operation Manual Installation Diagram Plastic Screw Locks Speaker Connection SPK1 Speaker Connection SPK2 Speaker Connection SPK3 Speaker Connection SPK4 Speaker Volume Control SPK1 Speaker Volume Control SPK2 Speaker Volume Control SPK3 Speaker Volume Control SPK4 1 of 4 Wall Mounting holes, these are pre-drilled.
- Page 3 AARC-EVAC Wireless Alert Transmitters Installation & Operation Manual Installation Instructions 1. Removing Front Cover Note: 7. Turning the unit on 2. Fixing to the wall Note: 3. Connecting to Power Supply 4. Alert to Evac Auto-Changeover Note: 5. Attaching the antenna Note: 6.
- Page 4 AARC-EVAC Wireless Alert Transmitters Installation & Operation Manual Maintenance The UPS Battery condition should be checked regularly for correct operation. This can be done by observing the battery condition indicator on the bottom of the unit (see below for details).
