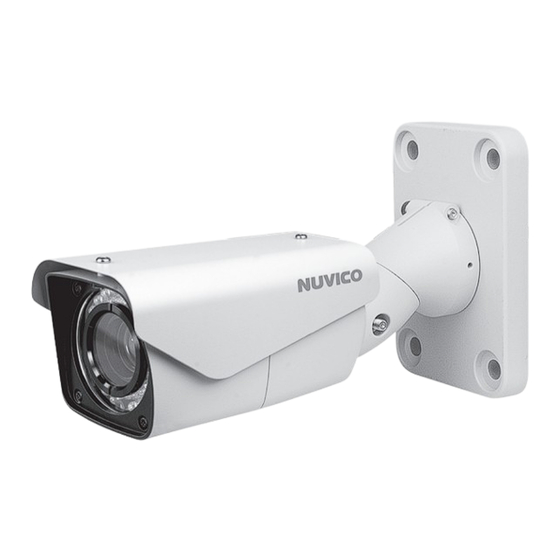

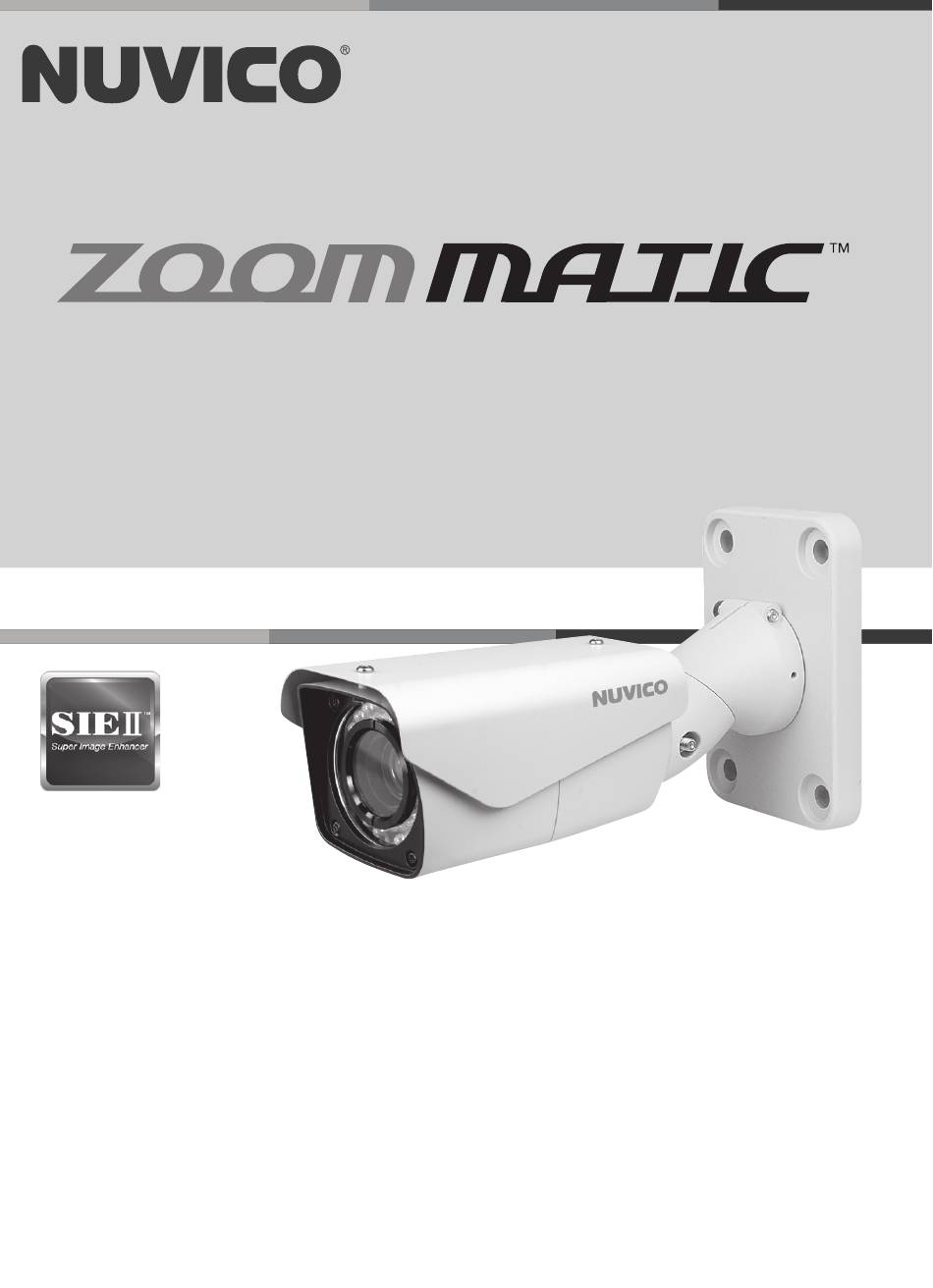

- Page 1 HIGH RESOLUTION Outdoor Integrated Camera CI-Z10N-L-CX / CI-Z10P-LA-CX INSTALLATION MANUAL...
-
Page 2: Disclaimer
NUVICO. • NUVICO makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the cameras, peripheral devices, or unapproved/... -
Page 3: Warning And Caution
Warning and Caution WARNING! TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OPENINGS ON THE EQUIPMENT. CAUTION! The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 4: Fcc Compliance Statement / Ce Compliance Statement
FCC Compliance Statement FCC INFORMATION : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. -
Page 5: Important Safeguards
Important Safeguards • Read these instructions. • Heed all warnings. • Follow all instructions. • Do not use this equipment near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 6: Table Of Contents
Table of Contents ..................... Disclaimer ..................Warning and Caution ......FCC Compliance Statement / CE Compliance Statement ................. Important Safeguards ..................Table of Contents ....................Introduction ............. Content Verification / Dimensions .................. Connections & Wiring ..................General Overview ........Connecting the Integrated Camera to the Controller ......... - Page 7 8.3 ALARM SETUP .................. 8.4 MOTION SETUP ................. 8.5 PRIVACY MASK ................... 8.6 D-ZOOM ............. 9. IR RADIATOR (LEVEL-1, LEVEL-2) ............. EZ-Coax™ (NUVICO Telemetry Control) ..........ZoomMatic™ Integrated Camera Accessories ..............Technical Specifications | NTSC ..............Technical Specifications | PAL...
-
Page 8: Introduction
• 10X A/F Optical Zoom Lens (3.8~38mm) 16X Digital Zoom • Day/Night Functionality with ICR • EZ-Coax™: NUVICO Up-the-Coax Telemetry Control • Brightlight Masking Block: BMB • Auto Focus & Auto Iris • 0.1 Lux (Color), 0.01 Lux (B/W), 0.0001 Lux (DSS On) •... -
Page 9: Content Verification / Dimensions
Content Verification Before installing the camera, please make sure that all of the following items are included in the box. ZoomMatic™ Series 1. ZoomMatic™ Integrated Camera 2. Sun Shield 3. Remote Controller 4. Installation Manual 5. Mounting Hardware Dimensions Unit: Inch (mm) 3.94”... -
Page 10: Connections & Wiring
Connections & Wiring Connecting the ZoomMatic™ Integrated Camera to the EZ-Coax™ (FIGURE1: SW2 #1 is ON) (FIGURE1: SW2 #1 is OFF) RS-485 Connection KEYBOARD CONTROLLER EZ-Coax™ BNC Connection Use minimum of AC 24V / 40VA power source. • Connect the VIDEO-OUT jack to the VIDEO-INPUT of the device. •... -
Page 11: Connecting The Integrated Camera To The Controller
Connections & Wiring Connecting the ZoomMatic™ Integrated Camera to the Controller Additional Controller Keyboard and a variety of external switching devices such as Multiplexers (MUXes) and Digital Video Recorders (DVRs) may be incorporated to accommodate the needs from a small to a large surveillance/security system. The below illustrates sample installation configuration KEYBOARD CONTROLLER... -
Page 12: Connecting The Integrated Camera Directly To The Dvr
Connections & Wiring Connecting the ZoomMatic™ Integrated Camera Directly to the DVR • Locate the RS-422 Rx+ & Rx- conductor wire from the ZoomMatic™ Integrated camera. • Connect the RS-485 Tx(+)/ Tx(-) of the DVR into Rx(+)/Rx(-) of the ZoomMatic™ Integrated camera. -
Page 13: Remote Controller Keys & Descriptions
Remote Controller Keys & Descriptions The ZoomMatic™ Integrated camera comes with a remote controller for ease of installa- tion and control. Gain access to the OSD menu to simply modify any feature settings, recall any programmed presets, modify the motion detection sensitivity, or change the IR LED intensity. -
Page 14: Adjusting The Lens & Setup Menu
Adjusting the Lens & Setup Menu 1. Adjusting Via Remote Control Point the remote controller to the camera to control the zoom. Remote controller may be used to enter and make changes in the OSD Setup Menu. 2. Adjusting Via Controller Keyboard Use the controller keyboard (CK-1000) to adjust the zoom by twisting the joystick. -
Page 15: Adjusting The 3-Axis Gimbal
Adjusting the 3-Axis Bracket Loosen the corresponding screws before attempting to make Pan, Tilt and Rotation adjust- ments. -
Page 16: Osd Menu Controls (On-Screen-Display)
OSD Menu Controls & Navigation 1. OSD MENU CONTROLS (On-Screen-Display) Enter Key - Used to access MAIN SETUP menu mode. Up / Down Key - Used to scroll through the desired sub-menu selection and to move the cursor up or down during the OSD menu. Left / Right Key - Used to adjust the desired menu selection, and to move the cursor left or right during the OSD menu. -
Page 17: Osd Menu Terms & Settings
OSD Menu Terms & Settings 2. FOCUS SETUP The ZoomMatic™ Integrated camera can be set up to automatically focus to the changing environment or just once at a preset field of view. (e.g., a man walking across the moni- tored area closer to the camera) IMPORTANT: Continuous use of the Auto Focus feature under heavy movement conditions will significantly shorten the lifespan of the lens. -
Page 18: Wb Setup (White Balance)
OSD Menu Terms & Settings 3. WB SETUP (White Balance) The WB SETUP is used to control the white balance under different illumination sources. Adjust this setting to calibrate the camera for correct color rendering. 3.1 MODE (AWC, ATW, INDOOR, OUTDOOR, MANUAL) •... -
Page 19: Control
OSD Menu Terms & Settings 3.2 CONTROL - WB Mode Control (LOCK, AUTO, CRLS, 3200°K, 5400°K, R/B CTRL) - This field displays the current CONTROL status of the WB mode. In the AWC LOCK mode, the user may control the white balance after pointing the camera to the desired location. Press Right Key will convert the field from ‘LOCK’... -
Page 20: Mode
OSD Menu Terms & Settings 4.1 MODE (AUTO, SHTFIX, IRISFIX, GAINFIX, MANUAL) • AUTO: The ALC mode and the camera will continuously monitor changes in the light- ing intensity and automatically adjust the Shutter Speed, Iris, and the Gain to the most optimal level. -
Page 21: Dnr (Digital Noise Reduction)
OSD Menu Terms & Settings 4.6 DNR - Digital Noise Reduction (OFF, LOW, HIGH) - The DNR improves picture quality by filtering out signal noise associated with night-time recording. It compares pic- tures from a frame with the one previous and removes noise grains not present before. The factory default is set to ‘OFF.’... -
Page 22: Blc Setup (Back Light Compensation)
OSD Menu Terms & Settings 5. BLC SETUP (Back Light Compensation) The BLC SETUP is used to control the various Back Light Compensation modes available in the ZoomMatic™ Integrated camera. BLC can assist in compensating for exposure problem associated with very bright backgrounds causing subjects to bloom or silhouette. The factory default is ‘OFF.’... -
Page 23: Bmb Mode Menu (Brightlight Masking Block)
OSD Menu Terms & Settings 5.3 BMB MODE MENU (Brightlight Masking Block) - The BMB masks out exces- sively bright areas within the frame and compensates the rest of the frame accordingly. To activate or deactivate specific areas to be masked by BMB, follow the simple instructions below. -
Page 24: Special
OSD Menu Terms & Settings 6. SPECIAL The Special Setup is used to control the DAY/NIGHT, SENSING, SHARPNESS, COMMUNI- CATION, ACCESS CONTROL, and FACTORY DEFAULT of the Integrated camera. 6.1 DAY/NIGHT (COLOR, BW, AUTO) - This function is used to control the color setting during daytime and night-time operation. -
Page 25: Communication
• BAUDRATE: Configure the camera baud rate. (2400, 4800, 9600, 19200, 38400, 57600) • PROTOCOL: Assign the protocol to the camera. (AUTO, EZ, NUVICO, PELCO) 6.5 ACCESS CONTROL (RMOCON, PW CHECK, CHANGEPW) - This function is used to set limitations to the remote control access and to set up a password for additional security measures. -
Page 26: Display
OSD Menu Terms & Settings 7. DISPLAY The Display Setup is used to set the CAMERA TITLE, CAMERA ID, FUNC NAME, ZOOM MAG., and FOCUS of the Integrated camera. 7.1 CAMERA TITLE - This function is used to turn the custom title ON or OFF on the main display. -
Page 27: Camera Id
OSD Menu Terms & Settings 7.3 CAMERA ID - This function turns the CAMERA ID assigned to the camera ON or OFF on the main display. 7.4 FUNC. NAME - This function turns the PRESET TITLE assigned to the camera ON or OFF on the main display. -
Page 28: Home Preset
OSD Menu Terms & Settings 8.1 HOME PRESET (FUNCTION, WAITING TIME, OPERATION) - This function recalls the predefined PRESET as the default function after a prolonged period of inactivity passes. Important: Please program a PRESET prior to designating the HOME PRESET. •... -
Page 29: Alarm Setup
OSD Menu Terms & Settings 8.3 ALARM SETUP (INPUT, OUTPUT, PRESET, HOLD TIME) - This function uses the Magnetic, PIR or other external sensor devices to signal the camera reacting to an event. Important: Please program a PRESET prior to designating ALARM action. •... -
Page 30: Privacy Mask
OSD Menu Terms & Settings • DETECT AREA: Specific areas of the frame can be monitored for movement. A grid of 64 blue squares will appear. Each square can be individually turned active or inactive for motion detection. Using the navigation keys (LEFT/RIGHT/UP/DOWN) on the remote, turn specific areas on the screen ON (Orange) or OFF (Green) for movement monitoring. -
Page 31: D-Zoom
OSD Menu Terms & Settings 8.6 D-ZOOM (Digital Zoom) - The Integrated camera is equipped with both optical zoom and digital zoom to allow for maximum magnification. Once set to ON, the camera will automatically digitally magnify the image after the optical magnification has reached its limit. -
Page 32: Ez-Coax™ (Nuvico Telemetry Control)
EZ-Coax™ (NUVICO Telemetry Control) Model numbers with “-CX” attachment indicates cameras equipped with EZ-Coax™. EZ- Coax™ is the NUVICO up-the-coax telemetry control that grants access to the camera OSD menu using only the coax cable already running from the camera. -
Page 33: Zoommatic™ Integrated Camera Accessories
ZoomMatic™ Integrated Camera Accessories The following are various mounting accessories available for the ZoomMatic™ Integrated camera. Universal Corner Mount Bracket Universal Pole Mount Bracket CA-CMB CA-PMB Junction Box Multipurpose Junction Box Enclosure CA-JB CA-JB2... -
Page 34: Technical Specifications | Ntsc
Power IR LED IR LED Distance Up to 150ft. LED Illumination Angle 80° Min. Focus Distance Camera Setup & Zoom Control IR Remote Controller, Controller Keyboard, NUVICO DVRs, EZ-Coax™ Presets Communication RS-485, EZ-Coax™ Sync System Internal Effective Pixels (HxV) 768(H) x 494(V) Scanning System 525 Lines. -
Page 35: Technical Specifications | Pal
Power IR LED IR LED Distance Up to 150ft. LED Illumination Angle 80° Min. Focus Distance Camera Setup & Zoom Control IR Remote Controller, Controller Keyboard, NUVICO DVRs, EZ-Coax™ Presets Communication RS-485, EZ-Coax™ Sync System Internal Effective Pixels (HxV) 752(H) x 582(V) Scanning System 625 Lines. - Page 36 S.I.E™ 2 and the NUVICO logos are registered trademarks of NUVICO. Version 1.0 © Copyright 2010, NUVICO. All rights reserved.
