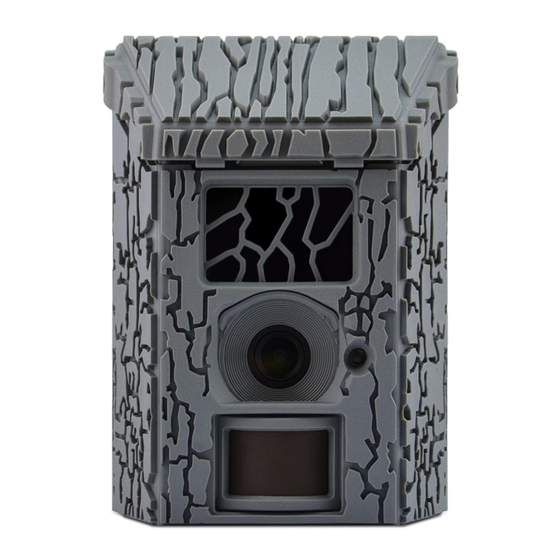

Lone Wolf Custom Gear UNDERCOVER Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

UNDERCOVER™ TRAIL CAMERA
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading

Summary of Contents for Lone Wolf Custom Gear UNDERCOVER

  • Page 1 UNDERCOVER™ TRAIL CAMERA INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    Contents INSTRUCTION MANUAL ........................ - 0 - Contents ............................- 1 - 1. Quick Start ..........................- 1 - 1.1 What in the Box? ......................- 1 - 1.2 How to Get the Camera Ready? ..................- 2 - 1.3 How to Setup the Camera? ..................... - 3 - 1.3 Camera Default Settingsin Red Letter ................

  • Page 3: Instruction Manual

    1. Quick Start 1.1 What in the Box? Trail camera x 1 Instruction manual x 1 Mounting strap × 1 Tree-Dimensional® ConcealmentKits include - 1 -...

  • Page 4: How To Get The Camera Ready

    1.2 How to Get the Camera Ready? 1. Insert the batteries Open camera lid and take out battery tray to insert the batteries. Note: 8 AA Alkaline or Ni-MH are recommended. For better performance, pls choose the “Battery Type” of the batteries in using. 2.

  • Page 5: How To Setup The Camera

    1.3 How to Setup the Camera? 1. Power on the Camera Long Press the ON/OFF button for 3 Seconds, the camera will be powered on; At this time ON/OFF LED is orange, also mode LED and battery indicator LED is also light up. After camera detect SD card, the LED will turn green.
  • Page 6 After added, click the device you’ve added, you will enter into the camera’s AIM Screen to view live stream. And you can effortlessly adjust settings, transfer and store images, create custom photo maps, and even aim your camera all from your smart phone! The cutting edge features included with the app operation without a doubt provides the most straight forward efficient trail camera experience possible.
  • Page 7 1.3 Camera Default Settingsin Red Letter Time Lapse Other Cam ID OFF/ Sensitivity Image Size Date/Time High/Middle/Low Auto Sync 5/8/12MP Cam Mode Photo/ Video Delay Time Lapse Digital Zoom TimeLapse OFF/ON HH:MM:SS 00:30:00 1X,2X,3X,4X Date Stamp Time Interval Battery Type Playback Rate D&T/ D/OFF OFF/ON...

  • Page 8: Whole View And Details Of Camera

    2. Whole View and Details of Camera 2.1 Figure 1: Front View of Camera; Power Indicator Light Mode button ON/OFF button Mode indicator light Battery indicator light 32 IR LEDs Light sensor Lens - 6 -...
  • Page 9 2.2 Figure 2: Side View of Camera; Tree-Dimensional® Concealment Kits Auto Lock Leveling System Quick Clip Attachment Bracket - 7 -...

  • Page 10: Introduction

    Tree-Dimensional® Concealment Skins that provide the highest level of camouflage available. The overwhelming amount of innovation comprised to bring you the Undercover™ Trail Camera will leave you with no doubt what will be capturing the images of your next hit list bucks.

  • Page 11: Power Supply

    IN APP ZOOM AND CROP - Zoom and crop your trail camera photos right within the app and save them directly to your phone. AUTO FORMAT - Choose to have your SD cards automatically format when inserting. 3.2 Power Supply 9-12V power supply to ensure camera well performance of all functions A.

  • Page 12: Attention

    Size 4 GB 8 GB 16 GB 32 GB Capacity Photo (pictures) 3350 6935 13210 27920 8 MP 2048 4205 8070 17061 12 MP 1310 2701 5190 10965 Video (hours) 640x480 04:01:48 08:20:44 16:05:45 33:56:02 02:50:42 05:52:35 11:38:43 24:09:16 01:58:31 04:27:27 08:30:21 18:04:52...

  • Page 13: Operation List

    Operation is the single most important part of running cameras. Forget about squinting to look at tiny screens or some ridiculous series of up down buttons to set or adjust options. With the Undercover™ APP by Lone Wolf you can effortlessly adjust settings from your smart phone! Settings...
  • Page 14 White Balance a) Auto b) Day light c) Cloudy d) Incandescent e) Fluorescent Multi-shot Programmable 1~5 photos per trigger Video On Video Size FHL-1080P (1920*1080), HD-720P (1280*720), WVGA (848x480) Video length 5s-60s Settings Programmable Options Sensitivity High, Middle, Low Higher sensitivity is 1) more sensitive to movements by smaller subjects; 2) longer detection distance;...

  • Page 15: Specification

    Digital Zoom 1X, 2X, 3X, 4X Stamp Imprints of programmed Logo camera ID, moon phase, temperature, date, and time on photo Battery Type Alkaline/ NI-MH Choose correct battery type of using batteries in camera makes camera perform better. Frequency 50HZ, 60HZ SD Cycle Select “ON”,, camera will continue to record photos/videos by deleting earliest photos or video clips.

  • Page 16: Trouble Shooting

    IR LED 32pcs, 850nm IR LED SD Card (4GB – 32GB) Memory SD Card cycle ON/OF Time Lapse Ambient Sensor Light, Temperature Shooting Numbers 1-5, 1 pic per 1 second Wireless Wi-Fi AP, 2.4 GHz Trigger Time 0.4-0.5S Recovery Time 1.5-3S Microphone Waterproof microphone with small pin hole pointed at ground...

  • Page 17: Night Vision Flash Range Doesn't Meet Expectation

    modes. 4. Please format the SD card with camera before using or when camera stops taking images. 6.3 Night Vision Flash Range Doesn’t Meet Expectation 1. Please check to make sure that batteries are fully charged or left power is enough; 2.
  • Page 18 under normal usage. To obtain warranty service, please contact us to determine the nature of problem before return the product under this warranty (with a written description of the problem and print samples) for repairing or exchanging. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
