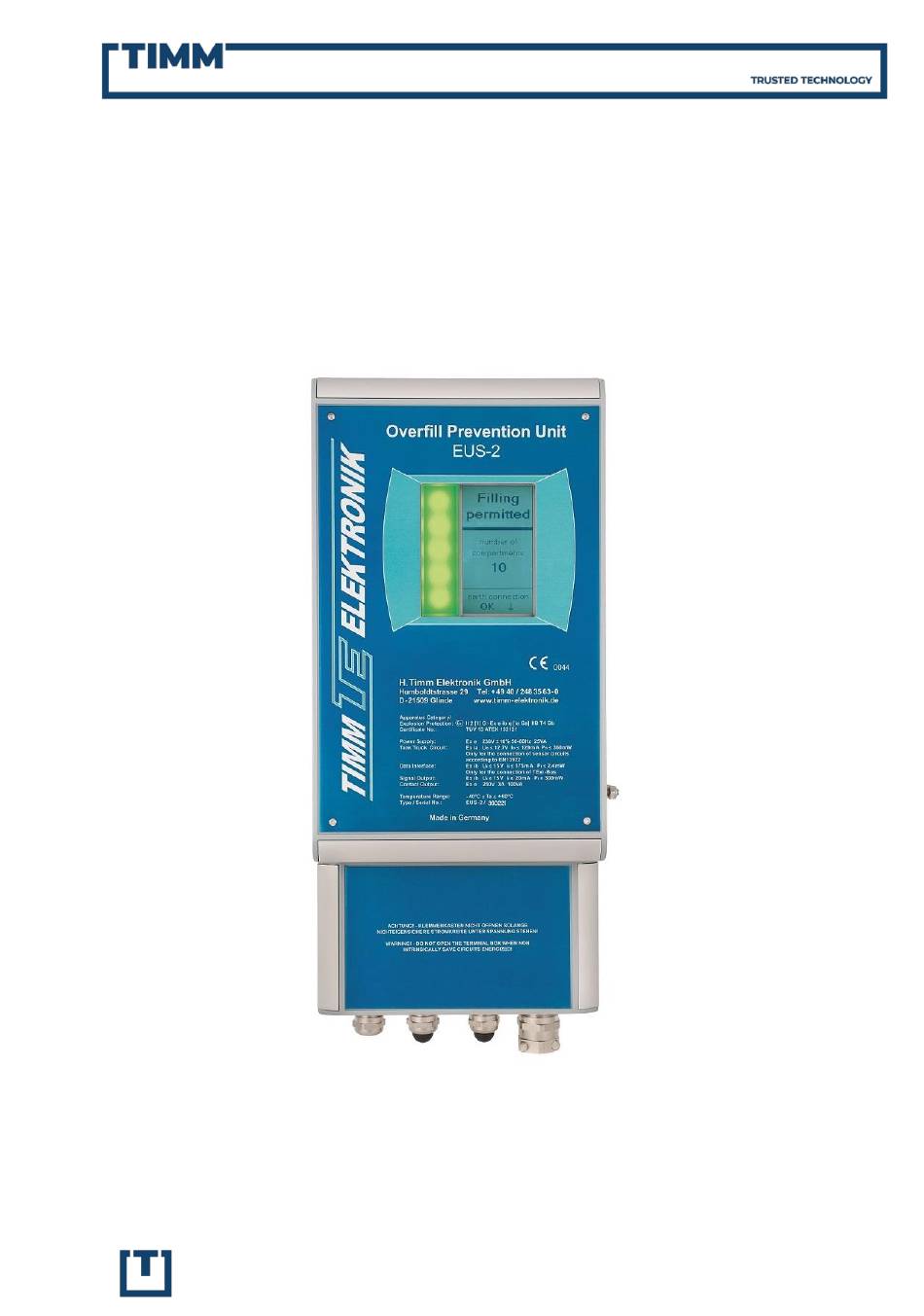

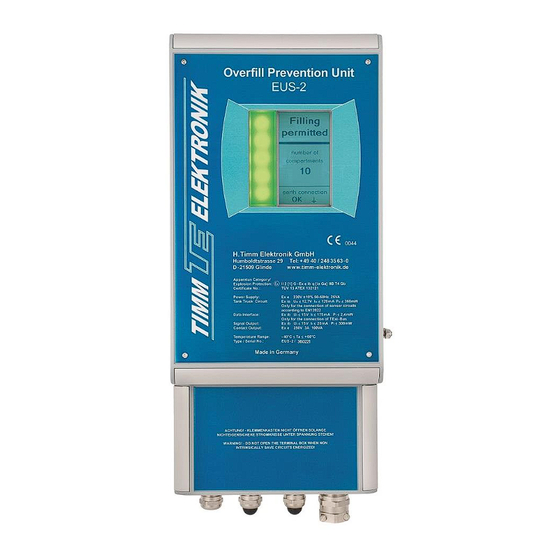

- Page 1 EUS-2 VERFILL REVENTION ONTROLLER Technical Description | Version 1.81 | English H. Timm Elektronik GmbH | Humboldtstr. 29 | 21509 Glinde | GERMANY...
-
Page 2: Table Of Contents
Coiled Cable ................................4 4.2. Disconnector Socket ............................4 4.3. Testing Equipment ............................5 Technical Specifications ............................. 6 Connection Diagram ............................. 7 International Approvals ............................8 Contact us ..................................1 H. Timm Elektronik GmbH | Humboldtstr. 29 | 21509 Glinde | GERMANY... -
Page 3: General Information
The level connected properly. Figure 1: Bottom loading with overfill prevention control by Timm`s control unit type EUS-2 info@timm-technology.de 13.03.2019 | V1.81 www.timm-technology.de... -
Page 4: Special Features
All safety related functions, internal com- and American Standards ponents and the external wiring are mon- The EUS-2 control unit is designed in full itored continuously by the device itself. compliance to the newest editions of Eu- Filling release is permitted only if periodic ropean ATEX and EMC Standards, Euro- self-testing operates properly. -
Page 5: Easy Configuration By Joystick
Six control outputs enable advanced op- site (e.g. of the configurable control out- tions for connecting the control unit ac- puts K3, K4 and E2), the EUS-2 unit fea- cording to individual customer needs: tures a unique joystick control. It is situ-... -
Page 6: Accessories
Overfill Prevention Controller EUS-2 | Technical Description Accessories Truck connector plug TIMM provides a variety of accessories for its Overfill Prevention Controller. Disconnector plug 4.1. Coiled Cable The coiled cables come in two lengths, with truck connector plugs according to... -
Page 7: Testing Equipment
Overfill Prevention Controller EUS-2 | Technical Description Figure 7: Disconnector socket unit 4.3. Testing Equipment The functioning of the control unit can easily get checked by using the special testing equipment. It is equipped with a socket for connecting to the truck con-... -
Page 8: Technical Specifications
Overfill Prevention Controller EUS-2 | Technical Description Technical Specifications 5.3. Control Output Circuits 5.1. Operating Data Contact Outputs Type of protection “Increased safety” Device category according to ATEX Ex eb (directive 2014/34/EU) Maximum values: 250 V AC, 3 A, 100 VA ... -
Page 9: Connection Diagram
Overfill Prevention Controller EUS-2 | Technical Description Connection Diagram L1, N, PE: Power supply 1 - 2: Closing contact output K1 Filling release 3 - 4: Closing contact output K2 Filling release 5 - 7: Switching contact output K3 Configurable... -
Page 10: International Approvals
Overfill Prevention Controller EUS-2 | Technical Description International Approvals In addition to the ATEX certificate, we also have Ex-approvals for the EUS-2 according to IECEx and EAC Ex (according to TR-CU 012/2011) for Australia, Oceania and the Eurasian cus- toms union. -
Page 11: Contact Us
Overfill Prevention Controller EUS-2 | Technical Description Contact us If you would like to contact us regarding offers and sales or technical support, our employees will be glad to be available for you on the following contact information. Dipl.-Ing. Andreas Brückner Dr.
