Summary of Contents for Gardner Denver MH-C2 HYDRAPAK

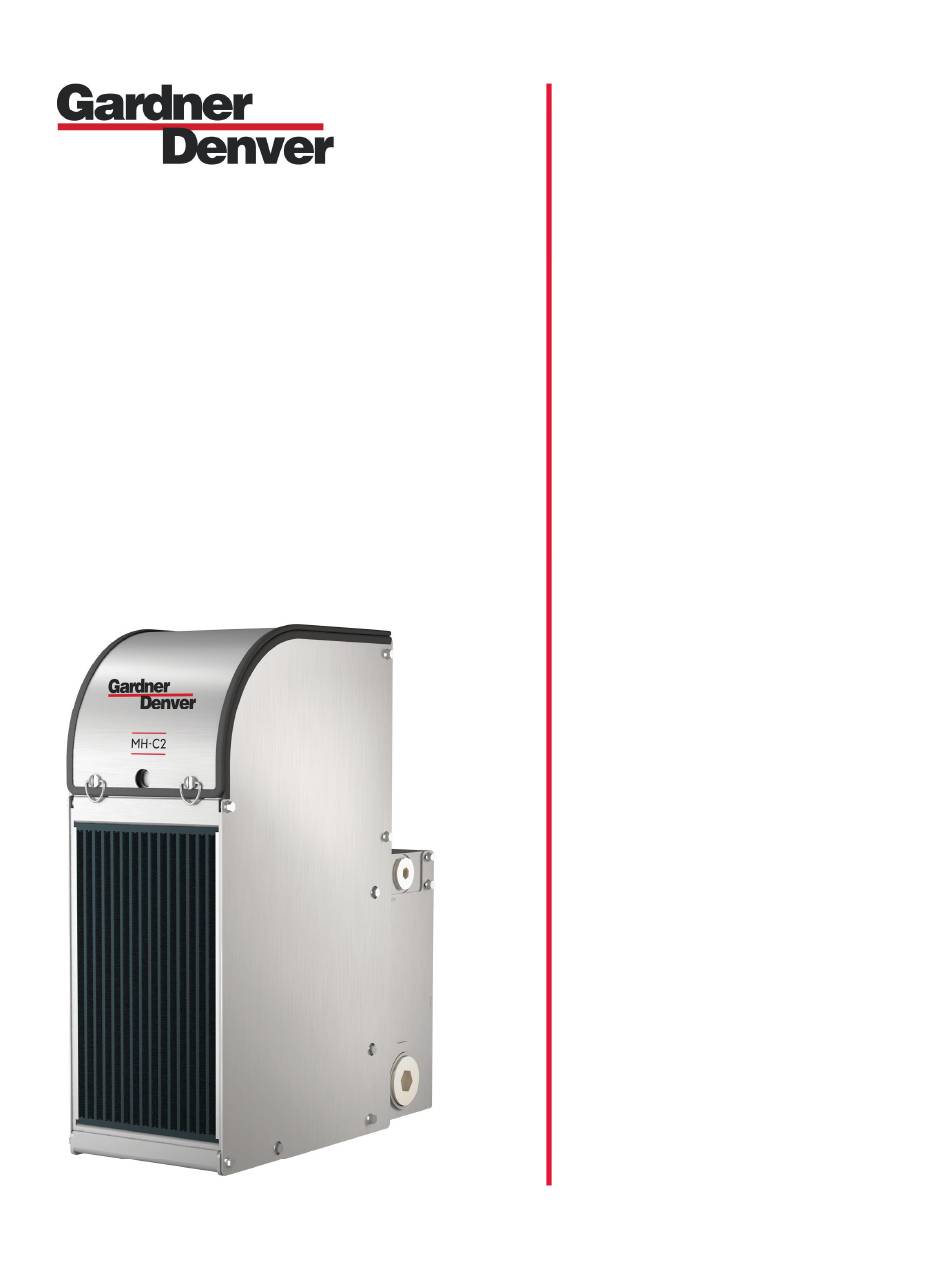

- Page 1 PARTS LIST OPERATING AND SERVICE MANUAL MH-C2 HYDRAPAK MOBILE HYDRAULIC COOLING SYSTEM 30 G.P.M. – 3500 PSI (5000 PSI optional) HYD-7-600 Version: 01 September 17, 2014...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Your Key To Trouble Free Service ..................3 Maintain Hydrapak Reliability And Performance ..................4 Instructions For Ordering Repair Parts ..................... 4 Foreword ..............................5 Safety Instructions ........................... 6 Section 1, Equipment Check ........................7 Section 2, Installation..........................8 Section 3, Initial Startup Procedure ...................... - Page 4 INDEX Equipment Check, Section 1 ......7 Mounting ............8 Hydraulic Hoses & Fittings ....... 8 Parts List Section 5 ........14 Initial Startup Procedure, Section 3 ....12 Safety Instructions ........... 6 Installation, Section 2........8 Storage ............7 Introduction Your Key To Trouble Free Service 3 Warranty ............
-
Page 5: Introduction Your Key To Trouble Free Service
The purpose of this manual is to help you properly install, operate and maintain your Gardner Denver® Hydrapak. It is essential that you review all sections of this manual in preparation for installing your Hydrapak. Follow the instructions carefully and you will be rewarded with trouble-free Gardner Denver®... -
Page 6: Maintain Hydrapak Reliability And Performance
When ordering parts, specify Hydrapak MODEL and SERIAL NUMBER (see nameplate on unit). Rely upon the knowledge and experience of you AUTHORIZED DISTRIBUTOR and let them assist you in making the proper parts selection for your Hydrapak. To Contact Gardner Denver® or locate your local distributor: Visit: www.contactgd.com/mobile... -
Page 7: Foreword
FOREWORD â Gardner Denver Hydrapak are the product of advanced engineering and skilled manufacturing. To be assured of receiving optimum service from this machine, the owner must exercise care in its operation and maintenance. This book is written to give the operator and maintenance department essential information for day-to-day operation, maintenance and adjustment. -
Page 8: Safety Instructions
SAFETY INSTUCTIONS Failure to observe these SAFETY INSTRUCTIONS could result in death or serious injury. · Do not work under the vehicle when engine and/or PTO are running. · Do not work on the hydraulic system when engine and/or PTO is running. ·... -
Page 9: Section 1, Equipment Check
STORAGE Your Gardner Denver® Hydrapak was packaged at the factory with adequate protection to permit normal storage for up to six (6) months. If the unit is to be stored under adverse conditions or for extended periods of time, the following additional measures should be taken to prevent damage. -
Page 10: Section 2, Installation
SECTION 2 INSTALLATION MOUNTING Drilling clearance holes for ½” bolt size is required to mount the Hydrapak (see bolt pattern on page 11). Mounting hardware includes rubber isolation washers, flat washers, lock washers, and hex huts. HYDRAULIC HOSES & FITTINGS All high pressure hoses &... - Page 11 Hoses must have proper support near the Hydrapak to reduce loading from hose and fluid weight. Unsupported hoses pull on the welded connection fittings of the reservoir and may result in reservoir stress fractures and shortened hose life. Proper installation of the hoses should include a slight bend in the hoses near the connections. This allows them to flex, reduce vibration stress and hose shrinkage under load.
- Page 12 FIGURE 2-1 – AIR FLOW DIRECTION AND OUTLINE...
- Page 13 FIGURE 2-2 – AIR FLOW DIRECTION AND OUTLINE...
-
Page 14: Section 3, Initial Startup Procedure
SECTION 3 INITIAL STARTUP PROCEDURE This startup procedure should be followed during the initial installation and after any shutdown periods or after the Hydrapak has been worked on or moved to new location. NOTICE Two people are required for initial start up procedure. ·... -
Page 15: Section 4, Maintenance
SECTION 4 MAINTENANCE Change hydraulic oil and filter every 6 months Check oil level each week with system OFF. Oil should be visible in lower ½ of sight glass. Visually check the system each week – all fittings, hoses, and Hydrapak mounting. Grease P.T.O. -
Page 16: Section 5, Parts List
SECTION 5 PARTS LIST – MH-C2 See page 15 for Parts List. HYD-7-600 Page 14... - Page 17 Order by Part Number and Description. Reference Numbers are for your convenience only. MODEL MODEL MODEL 704010100 704010104 704010100 704010102 704010105 Ref. 704010103 Description Qty. MH-C2 MH-C2 MH-C2 RESERVOIR ......................CC1118064 CC1118064 CC1118064 SCREW ........................BB1126663 BB1126663 BB1126663 RECPTACLE, 1/ 4 TURN ..................BB1126665 BB1126665 BB1126665...
-
Page 18: Warranty
GENERAL PROVISIONS AND LIMITATIONS Gardner Denver®, Inc. (the “Company”) warrants to each original retail purchaser (“Purchaser”) of its products from the Company or its authorized distributor that such products are, at the time of delivery to the Purchaser, made with good material and workmanship. No warranty is made with respect to: Any product which has been repaired or altered in such a way, in the Company’s judgment, as to affect the product adversely. - Page 20 For additional information, contact your local representative or visit: www.contactgd.com/blowers ©2014 Gardner Denver, Inc. Printed in U.S.A.
