Novar RTS-UVC Installation Instructions

Supply-air temperature sensor

Supply-Air Temperature Sensor (RTS-UVC)

Installation Instructions

Description

DOC. #560051000—A 7/30/04

The Novar Controls Supply-Air Temperature Sensor (RTS-UVC; Figure 1) is a

precision electronic sensor designed for use with the Novar Controls Unit

Ventilator Controller (UVC), Electronic Thermostat Controller (ETC), Heat

Pump Controller, and Heat Pump Controller Plus. The sensor is mounted in the

supply airstream of the controlled heating and/or cooling equipment and uses a

two-wire signal cable to send its temperature signal to the module.

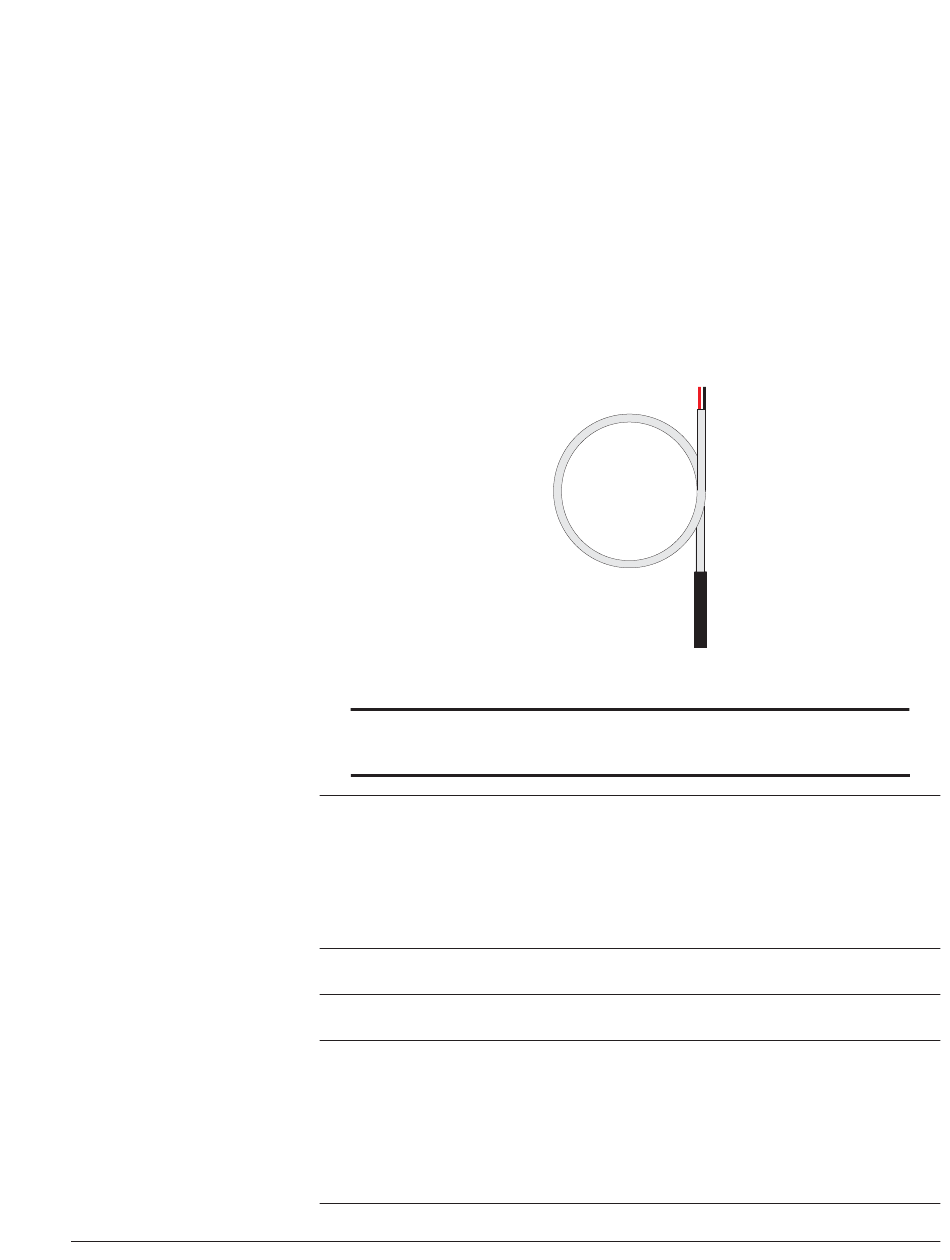

Figure 1. RTS-UVC Supply-Air Temperature Sensor

NOTE! The sensor is permanently calibrated at the factory. It

cannot be adjusted in the field.

Wire Length:

Wire gauge:

Sensor tip diameter:

Range:

20° to 144°F (–7° to 62°C)

The sensor should be mounted in an area where the air streams are well mixed to

prevent a "stratified" temperature reading. The sensing tip and at least 6 inches

of the wire leading to the tip should be mounted in the supply airstream of the

controlled equipment. Tie-wraps or other suitable mounting hardware can be

used to secure the sensor.

6 feet (with the sensing element at the tip of the wire)

The wire length can be extended up to 100 feet if

necessary.

Minimum 22-gauge wire.

1/4 inch

Table of Contents

Do you have a question about the RTS-UVC and is the answer not in the manual?

Page 1 Supply-Air Temperature Sensor (RTS-UVC) Installation Instructions Description The Novar Controls Supply-Air Temperature Sensor (RTS-UVC; Figure 1) is a precision electronic sensor designed for use with the Novar Controls Unit Ventilator Controller (UVC), Electronic Thermostat Controller (ETC), Heat Pump Controller, and Heat Pump Controller Plus. The sensor is mounted in the supply airstream of the controlled heating and/or cooling equipment and uses a two-wire signal cable to send its temperature signal to the module.
Page 2 UVC/ETC SUPPLY AIR TEMPERATURE WIRE Figure 2. RTS-UVC wiring connections Model and Part Number Use the part number shown in Table 1 to order the necessary Novar Controls part. Table 1. Novar Controls Part Numbers PRODUCT MODEL NO. PART NO.
