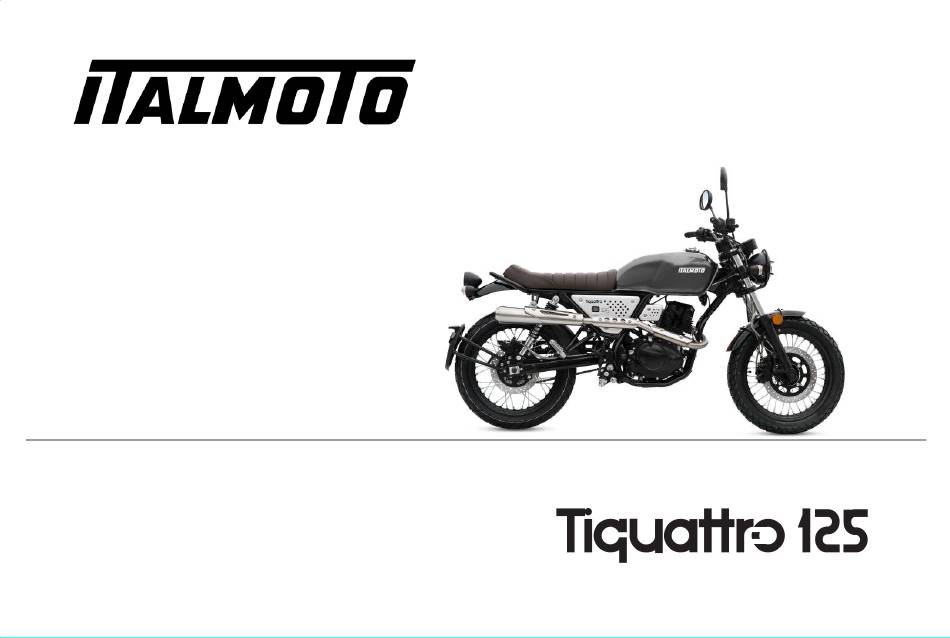

  • Page 1 Owner's Manual...
  • Page 3 Preface Thank you for purchasing our Tiquattro 125 electronic fuel injection motorcycle, it will offer you a pleasant and safe driving. Driving a motorcycle is one of the most exciting sport. For safety reason, you should read this owner's manual carefully and following these instructions before you drive.
  • Page 4 Important Notice 1.Driver and passenger This motorcycle is designed for no more than one driver and one passenger. 2.Road condition for driving This motorcycle is only suitable for driving on roads. 3.Please read this manual carefully. The run-in time of engine is necessary, it will you’re your motorcycle more durable and stable.

  • Page 5: Special Notice

    Special Notice Warning: The motorcycle must equip the right fuse for driving, it is not allowed to use other fuse or without fuse. Otherwise it may cause damage to the vehicle or fire. Fuse position: Beside battery. Fuse specification: The main cable fuse is 15A, others are 10A. The fuse failure is normally by vehicle circuit problem, before change fuse, should check the situation of vehicle.

  • Page 6: Table Of Contents

    Context Preface Important Notice Driving in slope ............12 Special Notice Using brake and stop ..........1 2-13 Information of safe ..............1 Checking and maintenance ..........14 Safe driving ..............1 Agenda of maintenance ........... 1 4-15 … …… … ……… … …… … ……… … …… … ………… Clothes Oil position and change..........

  • Page 7: Safe Driving

    Safety information Safety Regulation: Clothes: Before driving must check vehicle, in case of accident or 1. For safety reason, driver must wear helmet, glass and damage parts. boot, gloves and racing suit. Passenger should also wear 2. Driver must have a legal driving license, and is not helmet.

  • Page 8: Motorcycle Series Number

    Motorcycle series number Vehicle Identification Number (VIN) and engine number is for motorcycle registration. Please record your number for future use. VIN number is graved on the vehicle handle bar on the right side ① , Engine number is engraved on the engine crankcase on ②...

  • Page 9: Part Description

    Parts description 20 15 13 12 11 (1)Left mirror (3)Left side switch (2)Clutch lever (4)Ignition switch (6)Right side switch (5)Speedometer (7)Right mirror (8)Front brake lever (9)Throttle grip (10)Fuel tank (11)Oil cover (12)Rear brake pedal (13)Front footrest (14)Rear footrest (15)Rear brake (16)Front brake (17)Side stand (18)Shift gear pedal...

  • Page 10: Agenda Of Maintenance

    Parts description 15 20 14 13 12 11 (1)Left mirror (3)Left side switch (2)Clutch lever (4)Ignition switch (6)Right side switch (5)Speedometer (7)Right mirror (8)Front brake lever (9)Throttle grip (10)Fuel tank (11)Oil cover (12)Rear brake pedal (13)Front footrest (14)Rear footrest (15)Rear brake (16)Front brake (17)Side stand (18)Shift gear pedal...

  • Page 11: Speedometer

    (5)Speedometer Speedometer (1)Turning light indicator It shows your driving speed. (6) Odometer When the left turning light is on, the indicator blinks. This is to record the distance of all driving. (7) Gear position indicators When the right turning light Indicate the engine’s gear position.

  • Page 12: Operation Of Parts

    Operation of parts “ ”position: In case of thieves, when you park, please use this function. Turn the handle bar to left, press key ●Keys down and release the key, then turn key to “ ”position, it This vehicle has two keys, it's u- sed to start motorcycle and open will lock the handlebar.

  • Page 13: Right Grip

    ④ Turning light switch Warning: ”, the left side turning light will Turning switch to left“ The “engine off” switch should be used only for emergencies. the switch right “ ” ,the flash. Turning right side When the vehicle still slide, please don't stop the engine, turning light will be flashing.

  • Page 14: Fuel Tank

    ●Fuel tank Notice: When the speedometer’s low fuel lever warning light is on , Fuel Euro IV version: please add gasoline immediately. First open the anti-dusty Other version: Unleaded fuel min. 95 Octane ① cover as , then enter the key and turn as clockwise, pull out the fuel tank cap with key.

  • Page 15: Rear Brake Pedal

    ●Rear brake pedal ●Rear shock absorber Press down rear brake pedal (see The main component of this picture). When the brake pedal is vehicle's rear shock absorber working, the taillight will be on. including spring and liquid ●Side stand damper,this shock absorber is adjustable according to different Side stand is on the left side, when park motorcycle, please make sure side stand in the right position.

  • Page 16: Information Of Gasoline And Oil

    Engine running in Gasoline and oil information Top speed Gasoline Please use lead-free gasoline. Euro IV version: E5 Other While new motorcycle is new, during the first 1500 km, do not version: Unleaded fuel min. 95 Octane. make engine run at a too high speed or make sudden Caution: accelerations.

  • Page 17: Checking Before Driving

    Before driving, please let oil lubricate sufficiently Checking item Points Before driving, please keep engine in idle situation for at 1) Stable least one minute, in order to have lubrication of engine. 2) Turning flexible Handle bar 3)No loosing First maintenance The first 1,000 km service is very important work.

  • Page 18: Driving Motorcycle

    Driving motorcycle Using gear shift Engine start Gear shift system will make engine driving smoothly. Driver Please turn the key to “ ” position, and the engine should change gear according to the driving speed. “ ” position, put gear in switch on right handle bar on Slope driving the neutral, the gear indicator “...
  • Page 19 Caution: Unexperienced drivers always want to use just the rear brake. This will make brakes abased very fast and brake distance will be very long. Warning Only using front brake or rear brake is dangerous, you may slip down or lose control. Especially in wet conditions you should pay attention while using brakes.

  • Page 20: Checking And Maintenance

    Checking and serviced maintenance The follow chart show the mileage for programmed service. When reach the mileage, you must follow the instruction to check and make maintenance. Turning system, engine, electronic system, side stand and wheels are key important parts. It is necessary to have a professional technician handling these parts.
  • Page 21 Maintenance Odometer (KM)(Remark 2) period Everyday Maintenance 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000 check before 1000 2000 3000 4000 5000 content riding ： 、 、 Every1000km Driving chain(Remark 3) Friction disc 、 、 、 、 Brake system Brake Front headlight beam adjustment...

  • Page 22: Oil Position And Change

    ● ① Oil level and change oil Take out the oil scale, oil drainage bolt and gasket, Check the engine oil before ride daily. drain out the oil completely, install the gasket and oil Must keep oil level in the middle of MAX drainage bolt, tightening torque: 30N.m.

  • Page 23: Spark Plug

    ●Spark plug Adjust the free stroke of throttle grip according to the 0.6-0.7mm following steps. Using small metal brush or spark plug cleaner Remove the throttle cable anti- to clean carbon on the spark plug in the first dust cover. 1000 km driving, and do it after every 4000 ①...

  • Page 24: Idle Adjustment

    ●Driving chain 5-15mm The life of driving chain depending on your maintenance. Not proper maintenance will make its life shorter. Driving chain adjustment: Every 1000 km adjust driving chain to If clutch cable lever adjusts to maximum and make the degree of chain droop as 10- is still not correct, please adjust again 20mm.

  • Page 25: Brake

    ●Brake same line. To help you doing this adjustment, there's basic scale on the swing arm and every chain adjustment, they can This vehicle front and rear brake are all disc brake. Correct operation for brake is very important of safe driving. It should match and as reference from beginning to end.

  • Page 26: Tire

    (3) Check brake pad condition. Brake oil level When the brake pad already have been abrased, the brake Warning: cylinder oil will go If brake system or brake pad need to be changed, ask a to the oil pipe automati- cally, so the brake cylin- professional dealer.

  • Page 27: Seat

    ① Warning: (1) Remove the left side cover , you ② will be able to see the air filter Please do not try to repair any damaged tire. It may affect the (2) Remove the side cover bracket ③ wheel balance and stability. A not correct air pressure will (3) Remove the 3 bolts ④...

  • Page 28: Catalyst

    ●Catalyst Connecting fuel pipes, please In order to meet the homologation standards, this vehicle follow the drawing. muffler has a catalyst. ● Parts lubrication Catalyst contains rare metal, it will clean the harmful exha- Proper lubrication will keep your usting air which include Co, oxycarbide and oxynitride. Af- Motorcycle safe and every part ter chemical treatment, those will change to Co and oxygen.

  • Page 29: Battery

    ●Battery First time use, follow these steps: Battery is located under the seat. This vehicle battery is Take off the seal paper on the top of battery, and add special electrolyte maintain-free type. During the first time use, please electrolyte into battery and close the cover; wait for 30 ask your dealer to add electrolyte, in future it doesn’t need to minutes.

  • Page 30: Fuse

    ●Fuse change If from both side (left and right side) bubbles do not come out, pat slightly to the battery bottom 2 or 3 times, and check The fuse box under the seat of driver, on the side of battery. if any bubble comes out again.

  • Page 31: Headlight

    LED ●Bulb change light, if needed to change, please When change broken bulb, use original Italmoto bulb. If the contact your dealer. specification is not the same, it will bring problem to the circuit. Suggest you change bulb in your dealer's shop.

  • Page 32: Parking Information

    Front, rear turning light bulb change Caution: (1) Turn the lamp cover in clockwise direction, take out If Gasoline stay stored for long time it might get ruined, it will bulb to change R 10w, 12v 10w bulb. be very difficult to start the engine. (2) Assemble back.

  • Page 33: Specification

    Specification Frame Size&Weight Front suspension……………………………………Hydraulic shock Length………………… ……………Upper license plate 1940mm Rear shock absorber…… ……………………Hydraulic monoshock Lower license plate 1995mm Brake method …… ………………………………………………CBS Width… … ……… … ……… … ……… …… …… … …………760mm Front brake…………………………………………………………Disc Height………………… … ……………… ……… … ………1060mm Rear brake…………………………………………………………Disc Wheel base……...

  • Page 34: Electronic Circuit

    ,,,. • .,, . LII Vf C/ll 1171 r.,11 U.l l/1 f/1 l ' i I "' ( ' "" , - , - , � , · · - 1 1i:u 1 • ,un11 11l ç, l t ! IIUlllll.flS"Ull <...

  • Page 35: Warranty And Service Data

    WARRANTY Customer Copy Frame no. We hereby certify that this vehi- cle has been manufactured in compliance with the assem- Engine no. bly instruction and inspected according to the predelivery checklist. The customers sta- tes that he or she has taken Date of Delivery note of this, and has also recei- ved the delivery instructions.
  • Page 36 WARRANTY Dealer Copy Frame no. We hereby certify that this vehi- cle has been manufactured in compliance with the assem- Engine no. bly instruction and inspected according to the predelivery checklist. The customers sta- tes that he or she has taken Date of Delivery note of this, and has also recei- ved the delivery instructions.
  • Page 37 Italmoto S.r.l., and complete with all the eventual optional accessories requested by the Client. Customer Signature Stamp and Signature of the Dealer...
  • Page 38 Italmoto S.r.l., and complete with all the eventual optional accessories requested by the Client. Customer Signature Stamp and Signature of the Dealer...
  • Page 39 PRE-DELIVERY INSPECTION Dealer Date Engine Oil Trasmission Model Gear Oil Break Liquid Front Break Rear Break Air Cleaner Note Trasmission Bels Spark Other...
  • Page 40 Maintenance Service Maintenance Service Maintenance Service 1000km/600mi or 6 month 4000km/2500mi or 12 month 8000km/5000mi or 24 month tamp tamp tamp Km/mi Km/mi Km/mi Date Date Date ignature ignature ignature Note Note Note...
  • Page 41 Maintenance Service Maintenance Service Maintenance Service 10000km/6000mi 12000km/8000mi 16000km/10000mi tamp tamp tamp Km/mi Km/mi Km/mi Date Date Date ignature ignature ignature Note Note Note...
  • Page 42 Maintenance Service Maintenance Service Maintenance Service 20000km/12000mi 22000km/14000mi 25000km/16000mi tamp tamp tamp Km/mi Km/mi Km/mi Date Date Date ignature ignature ignature Note Note Note...
  • Page 44 Italmoto is a Brand by: Italiana Veicoli Srl - Rome, Italy...
