Summary of Contents for Simac Joy-IT RB-Camera-IR-PRO

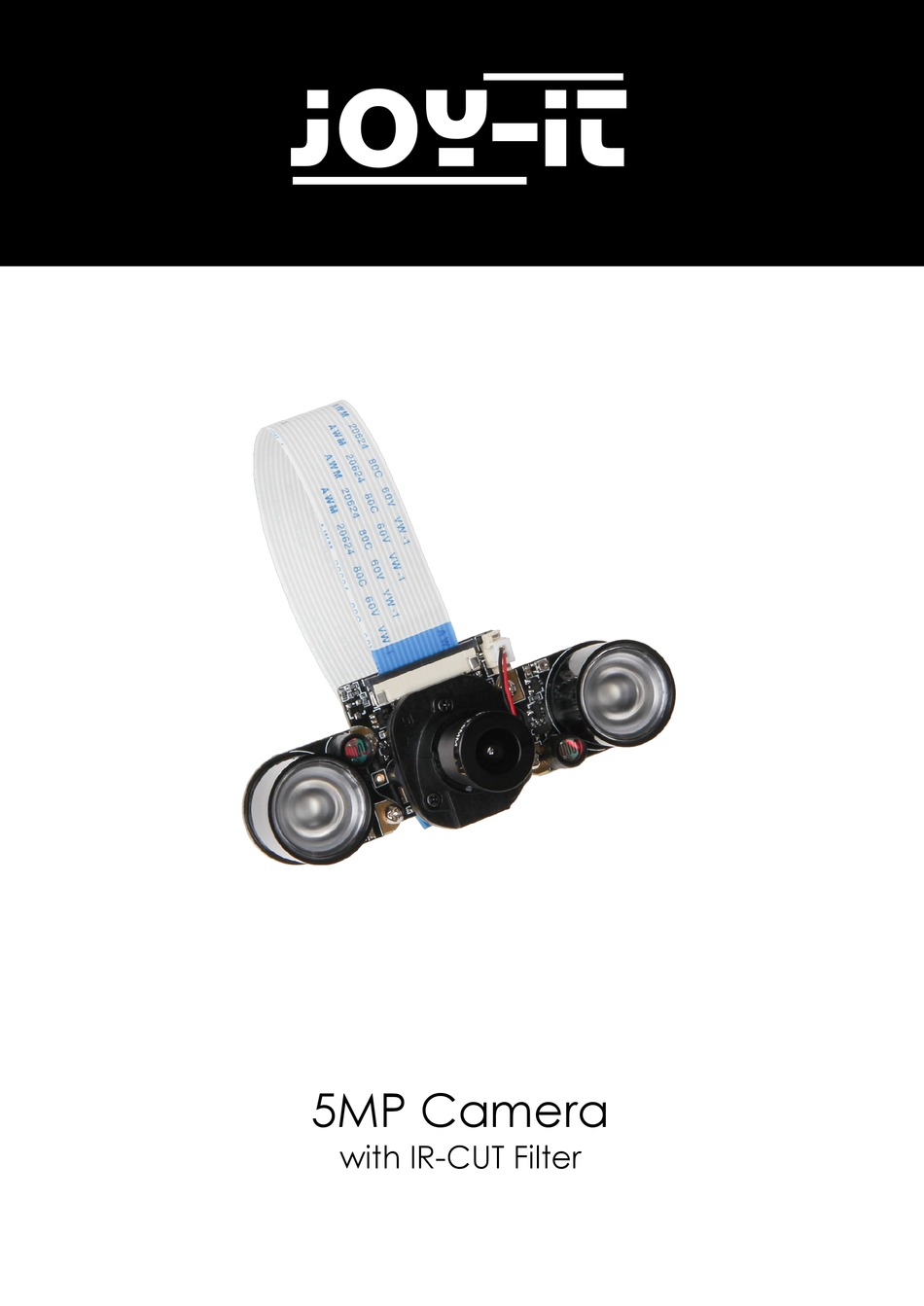

- Page 1 5MP Camera with IR-CUT Filter...
-
Page 2: Table Of Contents
5MP Camera with IR CUT Filter TABLE OF CONTENTS Introduction Overview and Connection Installing the system Installing the camera Using the camera Taking pictures Taking videos Activating/Deactivating the IR CUT-Filter Security- and data protection information Other informations EU-Declaration of conformity Support Published: 16.07.2018 Copyright by Joy-IT... -
Page 3: Introduction
5MP Camera with IR CUT Filter INTRODUCTION Dear customer, thank you for choosing our product. In the following we have listed what has to be considered during commissioning. OVERVIEW AND CONNECTION The IR-PRO camera is a high-resolution camera for your Raspberry Pi, which can be equipped with two infrared LED modules. -
Page 4: Installing The System
5MP Camera with IR CUT Filter Now connect the module to the CSI interface of your Raspberry Pis using the ribbon cable provided. INSTALLING THE SYSTEM If you are already using the latest Raspbian software on your Raspberry Pi, you can skip this step and proceed immediately to the next step. -
Page 5: Installing The Camera
5MP Camera with IR CUT Filter INSTALLING THE CAMERA First open a terminal window and start the Raspberry Pi configuration menu by entering the following command: sudo raspi-config In the menu that now opens, navigate to the Advanced Options menu. Here you select the option Camera and activate it. -
Page 6: Using The Camera
5MP Camera with IR CUT Filter USING THE CAMERA TAKING PICTURES The following console command can be used to capture images with the camera: raspistill –o image.jpg The image is then saved under the name image.jpg in the user directory (/home/pi). TAKING VIDEOS Videos can be recorded with the following command: Raspivid –o video.h264 –t 10000... -
Page 7: Activating/Deactivating The Ir Cut-Filter
5MP Camera with IR CUT Filter ACTIVATING/DEACTIVATING THE IR CUT-FILTERS The IR CUT filter uses the built-in infrared LEDs to provide good images even in a very dark environment, or even at night. There are two ways to deactivate the filter (e.g. for day recordings): KONFIGURATION VIA THE SETTINGS Open the config.txt file with the following command: sudo nano /boot/config.txt... -
Page 8: Security- And Data Protection Information
5MP Camera with IR CUT Filter SECURITY– AND DATA PROTECTION INFORMATION Keep the operating instructions and notes! If the device is passed on to third parties, it must be provided. Use this device only for the respective area of application and according to the operating instructions. ... -
Page 9: Other Informations
Possibility of return at our company during opening hours: Simac GmbH, Pascalstr. 8, 47506 Neukirchen-Vluyn, Germany Possibility of return in your area: We will send you a parcel stamp with which you can return the device to us free of charge. -
Page 10: Eu-Declaration Of Conformity
5MP Camera with IR CUT Filter EU-DECLARATION OF CONFORMITY Manufacturer: Simac GmbH Pascalstr. 8 47506 Neukirchen-Vluyn Article name: RB-Camera-IR-PRO Declares that the product is in compliance with the essential requirements of the following directives when used as intended: EMV-Richtlinie 2014/53/EU & 2014/35/EU, RoHS-Guideline 2011/65/EU... -
Page 11: Support
5MP Camera with IR CUT Filter SUPPORT We also support you after your purchase. If there are any questions left or if you encounter any problems please feel free to contact us by mail, phone or via our ticket-support-system on our website. E-Mail: service@joy-it.net Ticket-System: http://support.joy-it.net Phone: +49 (0)2845 98469 –...
