Summary of Contents for Freshly Squeezed FS 12

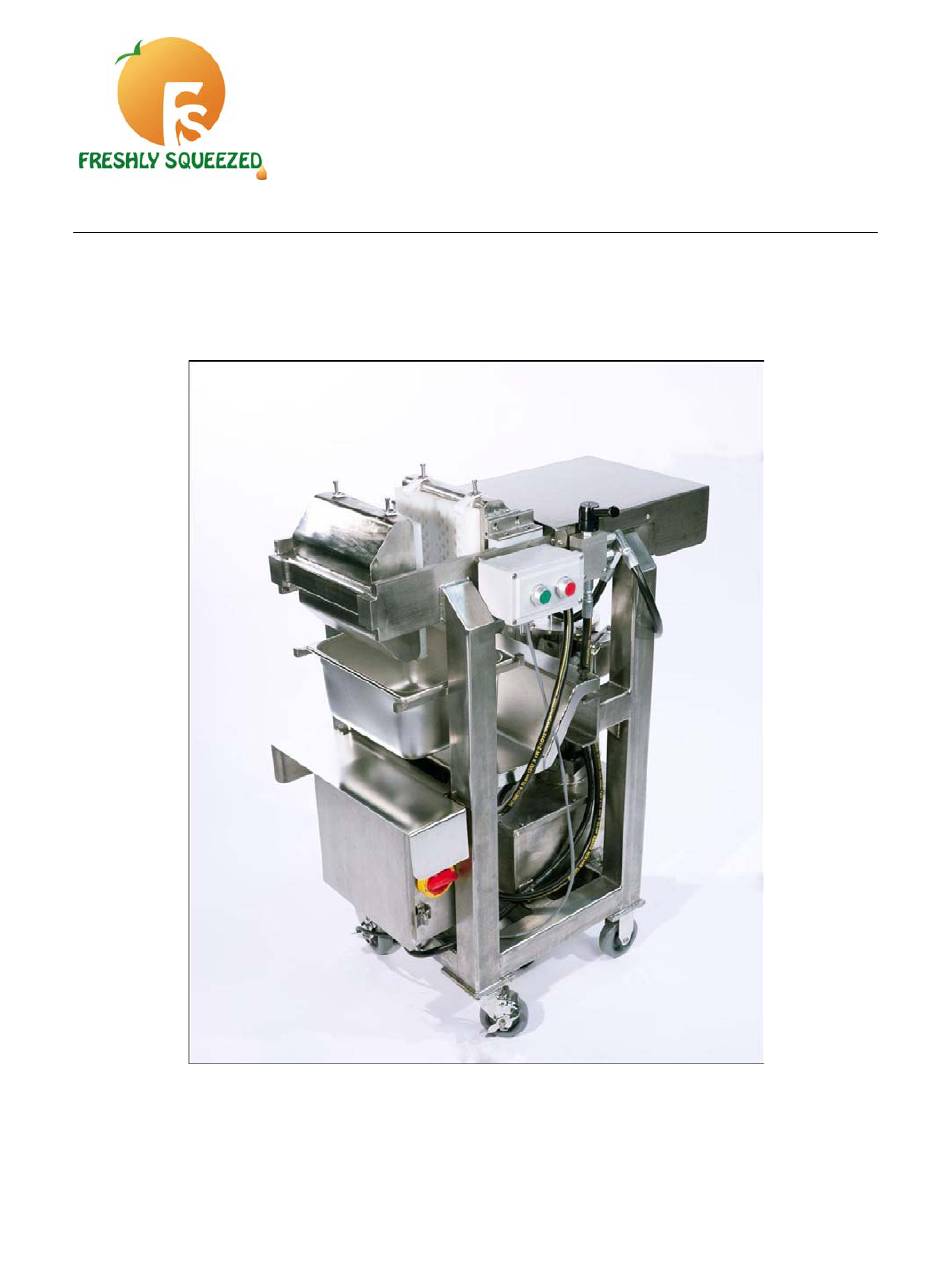

- Page 1 Freshly Squeezed 12 Manual Page 1 of 15 FS 12 INSTRUCTION MANUAL Freshly Squeezed http://www.drinkfreshlysqueezed.com Tel: 800-997-5352 http://www.juicingequipment.com...
- Page 2 Freshly Squeezed 12 Manual Page 2 of 15 WARNINGS 1.) PLEASE READ MANUAL THOROUGHLY PRIOR TO OPERATING EQUIPMENT. 2.) VERIFY THAT THE ELECTRICAL SERVICE IS CORRECT. INCORRECT ELECTRICAL SERVICE WILL VOID THE WARRANTY. 3.) PLEASE TRAIN ALL OPERATORS OF THIS EQUIPMENT PRIOR TO USE.
-
Page 3: Specifications
Freshly Squeezed 12 Manual Page 3 of 15 SPECIFICATIONS FS 12 7800 lbs of Pressure 110/115V– Single Phase 25 Amps Standard Wall Outlet 100% Sanitary Construction Wash-down – See Instructions for Washing Procedure Safety Guards Weight = 600 lbs Dimensions: 32”L x 21”W x 44”H Freshly Squeezed http://www.drinkfreshlysqueezed.com... - Page 4 Freshly Squeezed 12 Manual Page 4 of 15 SAFETY INFORMATION 1. The Press has safety guards covering the hydraulic cylinders. Never remove these guards during operation. Freshly Squeezed http://www.drinkfreshlysqueezed.com Tel: 800-997-5352 http://www.juicingequipment.com...
- Page 5 Freshly Squeezed 12 Manual Page 5 of 15 OPERATING INSTRUCTIONS 1.) Prior to use, please read instruction manual. 2.) Uncrate Press 3.) If oil is low in reservoir—needs to be added 4.) Roll Press into production area. 5.) Place Juice Collection Tray into indicated position.
- Page 6 Freshly Squeezed 12 Manual Page 6 of 15 9.) The green button powers the machine, the red button turns it off. Note: The press is designed to run continuously. It is not necessary nor recommended to turn on and off the press during operation.
- Page 7 Freshly Squeezed 12 Manual Page 7 of 15 10.) Keep the press closed until there is only a slight drip of juice coming from the press bag. Once you hear a “whistling sound,” switch the black lever to the neutral position “N.” Leave in the neutral position until the juice has stopped dripping.
- Page 8 Freshly Squeezed 12 Manual Page 8 of 15 12.) Remove the press bag from its position and empty the cake. 13.) Replace Press Bag into its position. 14.) Fill Press Bag with ground or shredded produce. 15.) Repeat the above steps (3 – 14) to continue making juice.
- Page 9 2.) Remove Press Bags and clean appropriately per the procedure in this manual. 3.) Wash down Procedure for Press a. Prior to washing the unit down, Freshly Squeezed recommends covering the control panel with a plastic bag or plastic wrap.
- Page 10 Page 10 of 15 b. Wipe and Hose down the press with low water pressure supply (such as a hose from a sink). Freshly Squeezed recommends using a detergent that is bleach free, phosphate free, perfume free, and dye free.
- Page 11 Note: Bags will take on the colors of the pressed produce. This is normal. 4. Wash bag(s) using a green, residue free detergent in a washing machine. Freshly Squeezed recommends using a detergent that is free bleach phosphates synthetic dyes perfumes 5.
-
Page 12: Maintenance
Freshly Squeezed 12 Manual Page 12 of 15 MAINTENANCE The Freshly Squeezed equipment is designed to have a minimum amount of maintenance. The equipment should remain trouble-free for many years by following these checks. DAILY 1. Prior to plugging in the equipment, confirm that the plug is dry. - Page 13 ELECTRICAL ENCLOSURE 1. If it is desired to open the electrical enclosure, please ensure that it is closed prior to use. 2. The Freshly Squeezed Unit has programming. Tampering with the program will void any warranty. Freshly Squeezed http://www.drinkfreshlysqueezed.com...
-
Page 14: Troubleshooting Guide
Freshly Squeezed 12 Manual Page 14 of 15 Trouble Shooting Guide ERROR SOLUTION a. Ensure that the unit is plugged into Press does not turn on the correct electrical source. b. Ensure main electrical switch is c. Ensure circuit breakers are in the “on position”... - Page 15 Freshly Squeezed 12 Manual Page 15 of 15 Thank you for purchasing this FRESHLY SQUEEZED product. We strive to offer the best service in the industry. Please call (800) 997-5352 with any questions Freshly Squeezed http://www.drinkfreshlysqueezed.com Tel: 800-997-5352 http://www.juicingequipment.com...
