Summary of Contents for JRI SPY IP Series

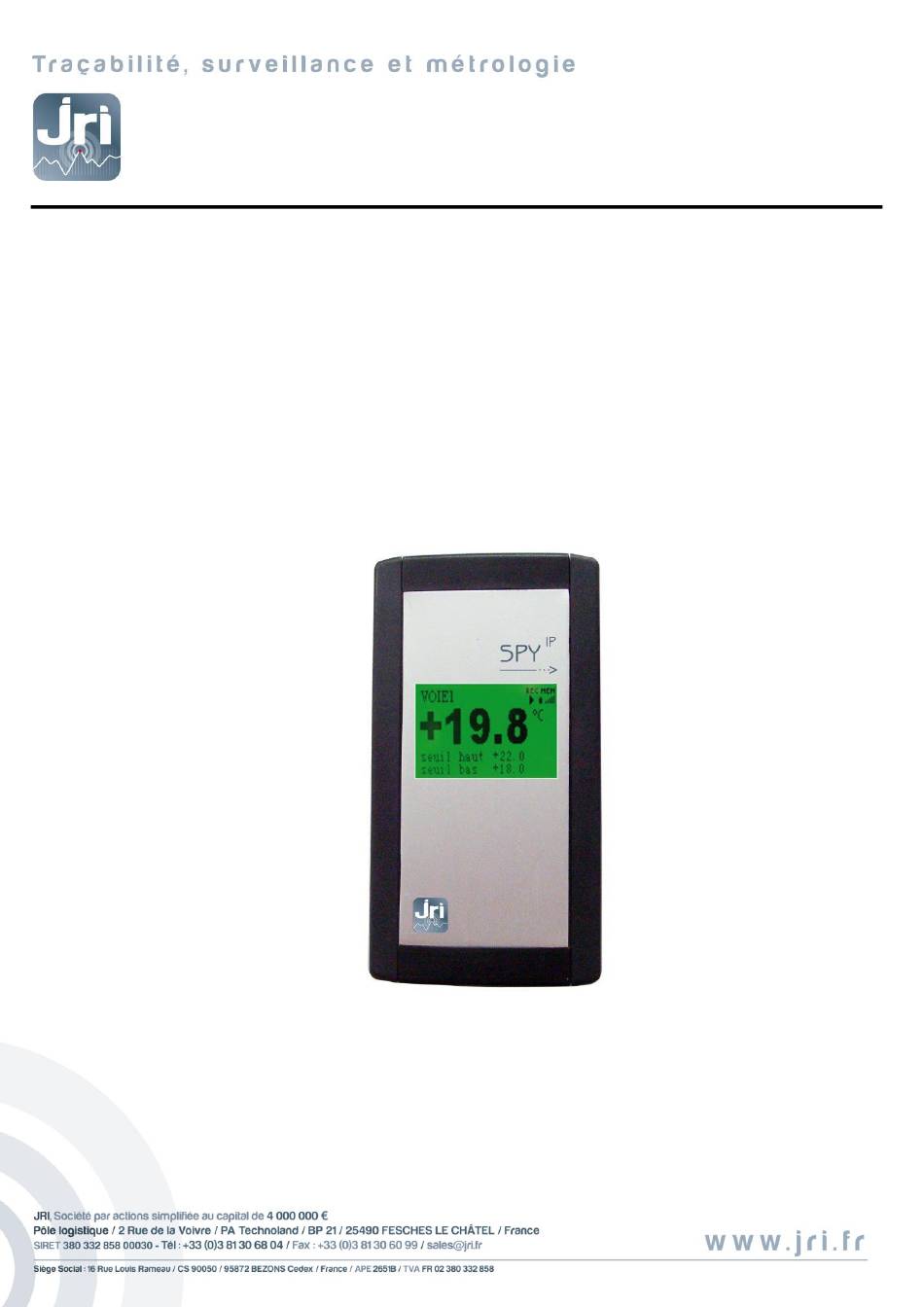

  • Page 1 USER MANUAL SPY IP 10486F...
  • Page 2: Table Of Contents

    Target value ................................15 Immediate ................................. 15 Memory full ................................15 ..............................16 EMORY MANAGEMENT ................................ 16 LARM ANAGEMENT ..............................16 ASSWORD ANAGEMENT CLEANING ................................16 VII. RESETTING ................................16 VIII. WARRANTY ................................17 MAINTENANCE CONTRACT ............................17 ENVIRONMENT PROTECTION ........................... 17 ©JRI...
  • Page 3: Presentation Of The Spy Ip

    For use with POE power, the source of this power must be strictly in accordance with safety requirements. In general, JRI disclaims all liability with respect to damages arising out of or in connection with any use other than those recommended in this manual.
  • Page 4: Installation

    TELNET command to test the network communication (the ping command is not powerful enough): Disable the Sirius communication task, plug in the SPY IP and enter the “Telnet@IP@700” command. The following window will open if access is successful. ©JRI...
  • Page 5: Installation Of The Wall Mounting Bracket

    SPY IP. • Check the lease time set in the DHCP server. Favour a short lease time to renew the IP addresses of disconnected devices. 3) Installation of the wall mounting bracket 1m50 4) Additional information a) Installation ©JRI...
  • Page 6: B) Connections

    Logical input for impulse or frequency Male plug end Female connector on Dry contact input on the SPY IP the sensor cable Masse (front view) d) Wiring Rear view of the connectors 0-1V Impulse or 4-20mA Resistive sensor Voltage input frequency input input input ©JRI...
  • Page 7: E) Connecting The Probes

    Connecting the probes JRI recommends using the cable with the reference number 00949 for connecting equipment which is not provided with a compatible socket f) Battery backup: Minimum battery backup time is 6 hours with a 3.6V -730 mAh rechargeable battery.
  • Page 8: Characteristics

    Protection Internal fuse 125V – 1A** Compliant with DBT 2004/108/CE EN 61326-1 (July 2006) Compliant with DBT 2006/42/CE EN 61010 (January 2011) (*) depending on the type of probe (**) replacement by return of the unit to the factory ©JRI...
  • Page 9: Using The Spy Ip

    Zone 2 - Device Status  Mains power supply detected:  No mains power supply: the back light turns off to save battery power  Full Memory Stop + memory capacity:  Rollover memory:  Network detected:  No network: ©JRI...
  • Page 10: B) Zone 3 - Start Modes

    Back to previous screen/main screen Configuration Go to next choice Alarm settings Back to previous choice History Apply Profile choice Stop buzzer 4) Backlight colours Technical alarm probe error Pre-alarm No power supply triggered Threshold alarm Inhibited Alarm triggered de seuil ©JRI...
  • Page 11: Screen Navigation

    Back to measurement display a) Main menu Select the desired zone by pressing the relevant icon b) Menu Configuration The SPY IP can only be programmed via the Sirius software. However, network parameters and measurement adjusting can be set using the touchscreen ©JRI...
  • Page 12: C) Device Status Menu

    The different channels of the recorder are completely independent. The functioning of the recorder depends on the configuration of the channels which is carried out using the Sirius software. The main modules to be configured are:  Start modes  Off modes  Logging interval  Alarm management ©JRI...
  • Page 13: Start Modes

    Immediate, Pushbutton, Programmed start delay, Target value, Change of state of one of the other channels a) Immediate (default mode in Sirius) The channels set with this start mode will start recording as soon as the recorder is plugged in. ©JRI...
  • Page 14: B) Programmed Start Delay

    SPY IP will start recording again. The programmed « off mode » will appear in the bottom right-hand corner (zone 5) Target value Programmed stop delay Push-button Memory Full ©JRI...
  • Page 15: A) None

    This command is only accessible in Sirius and stops the recording of all the channels. The SPY IP switches all channels to “push-button” off mode. f) Memory full The measuring channels configured with this mode will stop recording when their memory is full. The following message will appear: "MEMORY FULL". ©JRI...
  • Page 16: Memory Management

    You can clean the device by using a soft cloth duster. DO NOT use water! VII. RESETTING To reset the device, insert a straigthened paper clip or something similar into the small hole on the right side of the SPY IP. ©JRI...
  • Page 17: Warranty

    JRI shall not in any event be liable to the Buyer for any indirect or consequential loss or damage costs or expenses whatsoever which might arise out of or in connection with the supply of the product or its consequent use.
