12/18/2017
Show
ROBOTIS e-Manual v1.29.00
U2D2

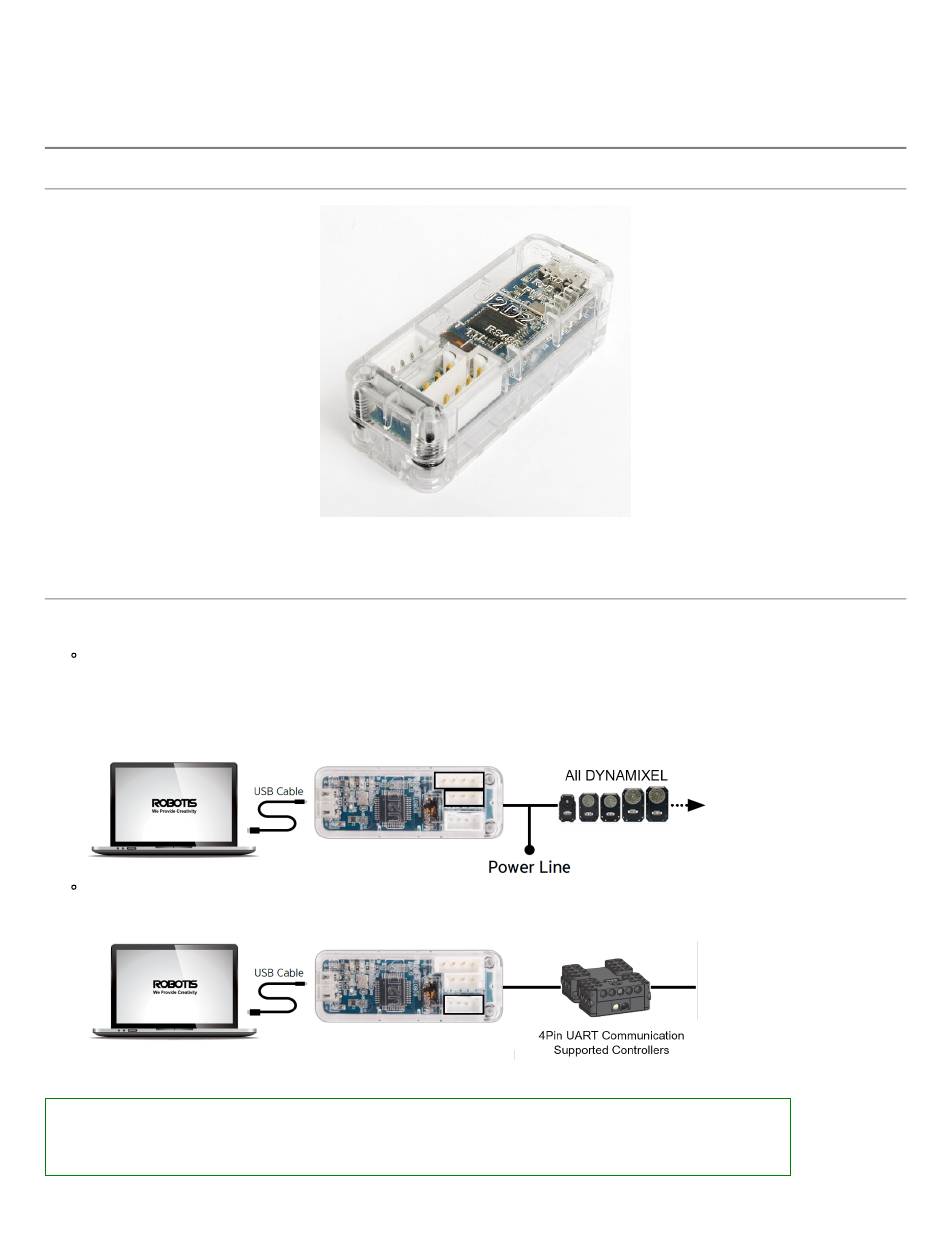

Product Image

Product Usage

U2D2 is a small size USB communication converter that enables to control and operate DYNAMIXEL with PC.
PC to DYNAMIXEL
U2D2
can be connected to the USB port of the PC with the enclosed USB cable. It supports both 3Pin TTL connector and 4Pin RS-485 connector to
link up with various DYNAMIXELs.
DYNAMIXEL.
Be careful as recommended voltage for each DYNAMIXEL could be vary by model.
Please refer to e-Manual for recommended supply voltage and power connection with various power supplies.
PC to UART
U2D2 is able to connect ROBOTIS controllers that support 4Pin UART communication such as OpenCM9.04, CM-150 and CM-200 to the PC with
the enclosed USB cable.
In case of unstable communication with U2D2, check if there is a reference voltage difference in the communication.
Please check PC and other devices are grounded properly.
Failing to do so might cause damages on the U2D2.
http://support.robotis.com/en/product/auxdevice/interface/u2d2.htm
[U2D2]
U2D2 does not supply power to DYNAMIXEL, therefore, an external power supply should provide power to
U2D2
Home
>
Product Information
>
Robot Parts
>
Interface
> U2D2
1/6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U2D2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Robotis U2D2

  • Page 1 Please refer to e-Manual for recommended supply voltage and power connection with various power supplies. PC to UART U2D2 is able to connect ROBOTIS controllers that support 4Pin UART communication such as OpenCM9.04, CM-150 and CM-200 to the PC with the enclosed USB cable.

  • Page 2: Specifications

    12/18/2017 U2D2 Specifications Dimensions : 48mm x 18mm x 14.6mm Weight : 9g Available Ports - 3Pin TTL Level : TTL Communication supported DYNAMIXEL - 4Pin RS-485 : RS-485 Communication supported DYNAMIXEL - 4Pin UART : Controllers that support 4Pin UART(such as CM-150 and CM-200)
  • Page 3 U2D2 Supply Power U2D2 does not supply power to DYNAMIXEL, therefore, an external power supply should provide power to DYNAMIXEL as below. Before connecting DYNAMIXEL to an external power supply, please check the recommended voltage for DYNAMIXEL. Caution for Power Supply - For a stable power supply, it is recommended to use ROBOTIS controller or SMPS2Dynamixel.
  • Page 4 12/18/2017 U2D2 Pinouts Exchanging Communication Data When data is transmitted from the USB port in PC to peripheral devices(Tx), all connected device will receive an identical data. On the other hand, when data is received from one of the peripheral devices(Rx), it will be automatically converted as USB communication and sent to the PC.

  • Page 5: Additional Features

    : R+ Motion 2.0 can be used when downloading Motion file to the controller. R+ Manager 2.0 : R+ Manager 2.0 is used to connect controllers or DYNAMIXELs and update firmware or test the control table.. ROBOTIS homepage (http://www.robotis.com) 2. Dynamixel Workbench Dynamixel Workbench supports Linux environment to test control table of DYNAMIXEL.
  • Page 6 12/18/2017 U2D2 2. Caution for Assembly - Bolt for Mount Hole : M2 Tap bolt - Mount Hole Depth : Valid depth 4.7mm, Depth from the surface 5.5mm Error Report ROBOTIS Copyrights (c) 2010 All rights reserved. http://support.robotis.com/en/product/auxdevice/interface/u2d2.htm...
