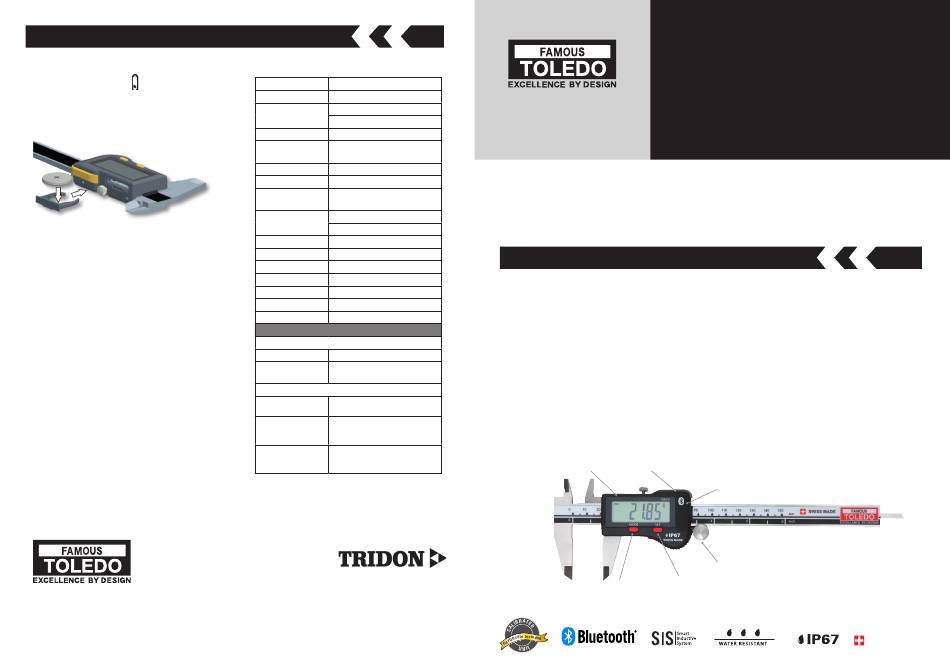

TRIDON TOLEDO Vernier Caliper User Manual

Additional Information

Battery Infromation
• The display of the symbol indicates low
battery power and battery replacement is
required.
To replace battery:

Maintenance

• Always keep the Vernier Caliper in a dry
environment and locked in its designated
storage case when not in use. To protect
against rust.
• Do not close the measuring spindle with the
anvil when not in use. Keep an open distance of
1-2 mm
• Do not use aggressive products (alcohol,
trichloroethylene or others) to clean the
plastic parts
• Do not keep the micrometer in places exposed
to sun, heat or humidity.
• Important: Dry the instrument thoroughly after
exposure to moisture. This will guarantee
correct performance and operation
For further technical information please contact Tridon Customer Service on 1300 362 263
322400 MAN © Copyright TRIDON AUSTRALIA PTY. LTD. 2016
A.C.N. 001 398 698 Reproduction of this manual in part or full is not permitted without written approval. Illustrations in this manual are
for identification purposes only and there may be slight variations between the illustration and actual product. Whilst every effort has
been made to ensure that the information contained in this catalogue is accurate at the time of printing, TRIDON AUSTRALIA PTY LTD will
not accept responsibility should any inaccuracies be contained herein.
Specifcations
Measuring Range 150mm/6"
Resolution 0.01mm/0.0005"
Maximum Error 100mm: 20µm
100-300mm: 30µm (DIN862)
Repeatability 10µm/0.0005"
Maximum Slider
2.5m per Sec/100" per Sec
Speed
Display Refresh Rate > 10 Seconds
Data Output Bluetooth ® 4.0 2.4Ghz
Mean Power
45µA
Consumption
Bluetooth® OFF: 8000h
Battery Life
Bluetooth® ON: See Autonomy
Working Temperature +5°C to +40°C
Storage Temperature -10°C to +60°C
Weight 175g
IP Specification IP 67 (IEC60529)
Radio Frequency 2.4 Ghz
Robustness FHSS
Latency < 6ms
Bluetooth ® Specifcations
Range:
Open Space: ≤ 15m
Industrial
1 - 5m
Environment:
Autonomy:
Up to 2 months (always connected
Continuous
with 4 values)
Up to 5 months (this instrument
Saver sends value only when the
position has changed)
Up to 7 months (value is sent
Blind/Push from the instrument (button) or
requested from the computer)
TOLEDO IS A REGISTERED
TRIDON BRAND
Bluetooth
Vernier Caliper
Digital
User Guide

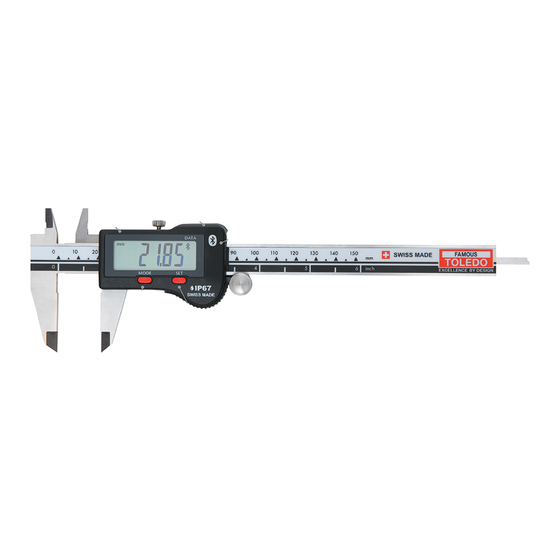

Congratulations on your purchase of the Toledo Bluetooth
features the most modern technology with in-built Bluetooth
This Digital Vernier Caliper can be used in conjunction with the Toledo Bluetooth
receiving dongle or app to enable complete wireless connectivity with PC, Android and iOS systems.

General Overview

• Precision instrument with built-in Bluetooth ® Wireless Technology to enable direct data output to synchronised
devices E.g. PC, Smart Phone, Tablet
• Water protected for heavy-duty work with coolants and lubricants, protection rating IP67 according to IEC 60529
• Extra-large and bright digital display
• Auto wake up and Auto off functions
• Wireless transmission range up to 15m
• Maximum error: 20µm
• Powered by standard CR2032 button cell battery (3 years life per battery)
• Supplied in heavy duty storage case with foam insert and firm locking clip
• Bluetooth ® software sold separately
• Made in Switzerland
Battery (CR2032) Data/Favourite Button
Mode Button Set Button
322400
®
Metric & Imperial 150mm/6"
® Vernier Caliper. This precision instrument
® 4.0 transmitter.
software and
®
Bluetooth ®
Thumbwheel
SWISS MADE
