Summary of Contents for Accele DVR-720P

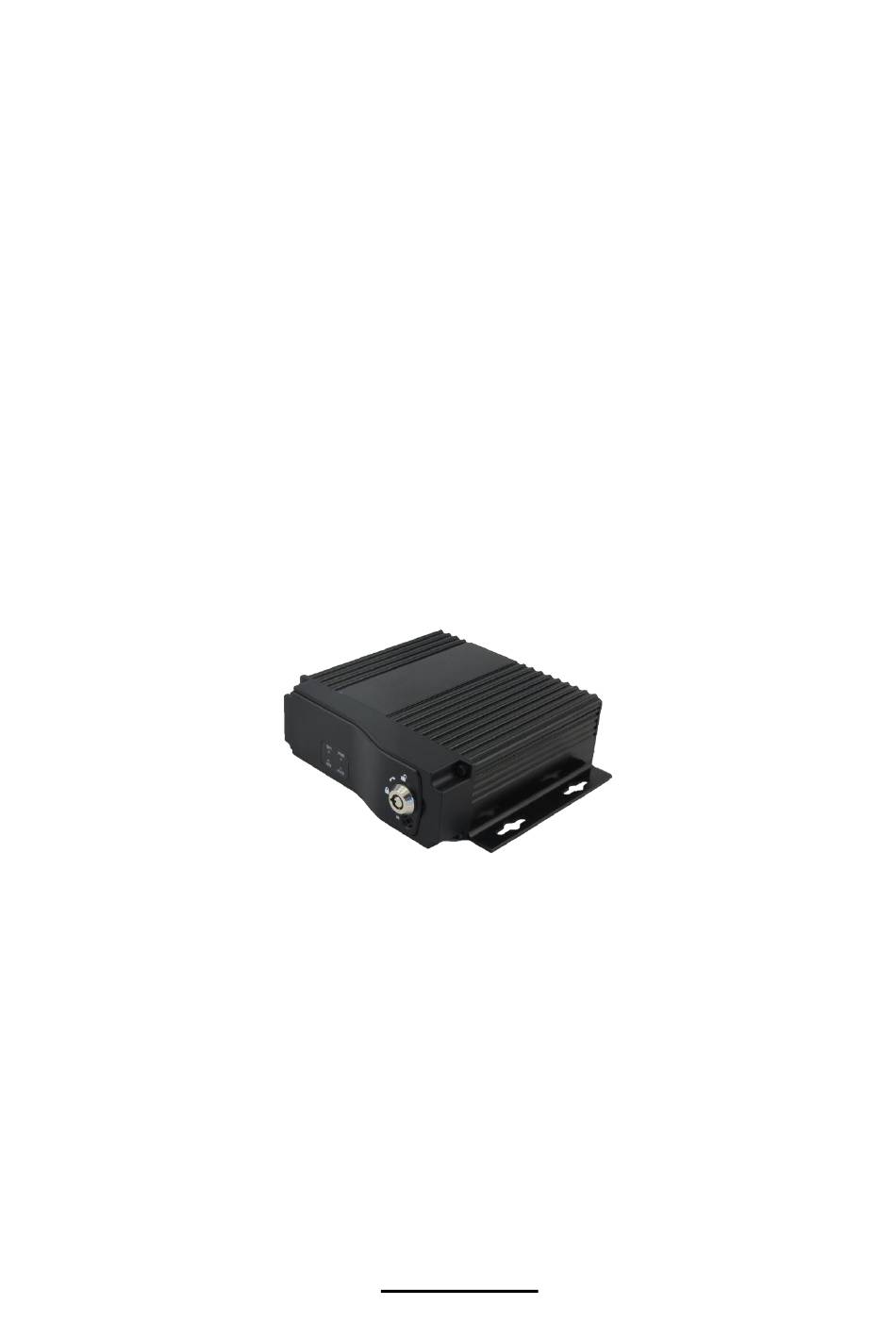

- Page 1 Accele High Definition Mobile DVR DVR-720P USER MANUAL Version 1.6...
- Page 2 Safety Tips & Instructions Before installing and using, please read the following warnings carefully. The Accele Mobile DVR-720P uses a DC power supply; voltage input range is 8V-36V. Please be sure to pay attention to 12V and GND when connecting the power. Backwards connections could cause DVR to short-circuit.
- Page 3 Accele HD Mobile DVR-720P USER MANUAL INTRODUCTION Hello and congratulations on your purchase of the Accele HD Mobile DVR system. This manual will explain in-depth, the features, functions, and specifications of the Accele HD Mobile DVR-720P. This system allows the user to connect up to four (4) recording and listening devices, simultaneously record content, play back previously recorded content via the device without removing storage medium, and also set-up timed recordings.
-
Page 4: Table Of Contents
Accele HD Mobile DVR-720P USER MANUAL TABLE OF CONTENTS 1. System Introduction 1.1. Product Features 1.2. Appearance 1.3. Remote Controller 1.4. Front Panel 1.4.1. LED Indicator 1.5. Back Panel 1.6 Product Introduction 2. Main Functions 3. Parameter Sheet 4. Operation Interface Setup 4.1 User Log-In... - Page 5 Accele HD Mobile DVR-720P USER MANUAL 5. Device Installation 5.1 Power Cable Connection 5.2 Audio/Video Interface Definition 5.3 Power Interface Pin-Out 6. TROUBLESHOOTING...
-
Page 6: System Introduction
Feature Details: HIS Solution, H.264 Compression Mode, Many stream recording, 4CH Video+2CH Audio Input, Compatible with 720P Accele AHD High Definition and Standard Definition Analog Camera inputs. Professional Power Design for all kinds of Vehicles, 10-36V DC Wide Voltage, Over-load, Over-voltage, Short Circuit, Reverse Polarity Protection, Suitable for all kinds of vehicles. -
Page 7: Appearance
Accele HD Mobile DVR-720P USER MANUAL 1.2. Appearance Front and Back View of DVR-720P: Device front view Device back view... -
Page 8: Remote Controller
Accele HD Mobile DVR-720P USER MANUAL 1.3. Remote Controller Function Picture Power and Standby Button To enter system s e t t i n g s . [0－9] keys: In the setting mode, 0-9 is used to select The number of menu items. In playback mode, the key 1,2,3,4 to select single channel playback, ESC Button for 4-channel playback. -
Page 9: Front Panel
Accele HD Mobile DVR-720P USER MANUAL 1.4. Front Panel 1.4.1. LED Indicators [PWR] Power LED: LED light means system is powered on. [VLOS] Video Indicator: LED On - Video Loss; LED Off - Video Normal [SD1] SD Indicator: ... -
Page 10: Product Introduction
Accele HD Mobile DVR-720P USER MANUAL 1.6 Product Introduction Please make sure that you have read this manual prior to installing and using. Device Power Connection: ★ Switched Recorder Wire Connections★ Red cable - Connect to vehicle constant 12v; Yellow cable - Connect to Ignition switch Black cable - Connect to vehicle Chassis Ground ★... -
Page 11: Main Functions
Accele HD Mobile DVR-720P USER MANUAL 2. Main Functions Main Sub-Item Description 4Channel video + 4Channel Audio recording synchronously； Video Channel Support 720P(1280*720),D1(704*576),HD1(704*288),CIF（352*288）； Resolution Image Quality 0-7 levels, 0 is the highest level. Overlays information such as date time and vehicle ID... -
Page 12: Parameter Sheet
Accele HD Mobile DVR-720P USER MANUAL 3. Parameter Sheet Item Parameter Linux Language English/Others (can be customized) Video Compression H.264 Compression Mode Overlays information such as date time and vehicle ID Graphical User Setup system parameters with the remote control. - Page 13 Accele HD Mobile DVR-720P USER MANUAL Adaptive wide power input, features Voltage Over-load, Short Circuit Power and Reverse Polarity Protection. Supports timed power setting and Management features Time-delay power off Voltage & Voltage Input DC:+8V ~ +36V Power +12V@2.5A，+5V@2.5A Voltage Output...
-
Page 14: Operation Interface Setup
Accele HD Mobile DVR-720P USER MANUAL 4. Operation Interface Setup 4.1 User Log-In When the password switch is set to “Off”: Pressing Login will provide access to the main menu. When the password switch is set to “On”: Pressing Login will provide access to the Login menu. -
Page 15: Video Search
Accele HD Mobile DVR-720P USER MANUAL 4.3.1 Video Search **** Color display indicates video file exists for current day and time **** “Search Date”: Press the number key to enter date, default is current date. “Start Time”: Press the number key to enter date, default is 00:00. -
Page 16: Power Management
Accele HD Mobile DVR-720P USER MANUAL 4.4.1 Power Management This menu is to setup Power management modes and power distribution "Power mode": press the number keys to select the type, the default is ignition mode. "Delay Off": Press the number keys to enter the time, the default is 5 minutes, can be set to 1440 minutes "Screen time”: Press the number keys to enter the time, the default is 60 minutes, can be set to 0-... -
Page 17: Rec Setup
Accele HD Mobile DVR-720P USER MANUAL 4.5 REC Setup Recording setup menu includes: Basic setup, Main stream, Sub stream, Mirror Recording, Time recording, Disk management 4.5.1 Basic Setup This menu is to setup the basic audio and video parameters "Video Type": PAL / NTSC, press [OK] key to select. -
Page 18: Main Stream
Accele HD Mobile DVR-720P USER MANUAL 4.5.3 Main Stream This menu is to setup the speed, resolution & quality of each video channel. "Enable": open or close the channel of pre-recording function, press [OK] key to select. "Resolution": CIF, HD1, D1 and 720P resolution for choosing, press [OK] key to select. -
Page 19: Disk Management
Accele HD Mobile DVR-720P USER MANUAL 4.5.6 Disk Management When there are multiple disks, disk priority may be changed. "REC": Setup main video or sub video in disk. "Priority": Setup the priority of different memory, enabling loop recording, function missing video recording. -
Page 20: System Info
Accele HD Mobile DVR-720P USER MANUAL 4.7 System Info System Info has 3 parts for detailed information; View by menu or by Pressing INFO *********************************************************************************** Press F2 for Quick Setup *********************************************************************************** [19]... -
Page 21: Device Installation
Accele HD Mobile DVR-720P USER MANUAL 5. Device Installation 5.1 Power Cable Connection DVR uses DC power supply, Working Voltage: 8V - 36V. ★ Switched Recorder Wire Connections Power in (RED) Power in (Black) Power - Power + ACC in (Yellow) Red cable: Positive;... -
Page 22: Audio/Video Interface Definition
Accele HD Mobile DVR-720P USER MANUAL 5.2 Audio/Video Interface Definition The device supports channels AV1-AV4 via screw-on Aviation Connectors. Device port pins definition Camera port pins definition 5.3 Power Interface Pin-Out The DVR Power Interface Pin-Out is as follows: [21]... -
Page 23: Troubleshooting
Accele HD Mobile DVR-720P USER MANUAL 6. Troubleshooting DVR is not receiving power or not Powering up Verify that the power adapter cable is plugged into the DVR and wired to a reliable power source. If the DVR is wired to an ignition source, check that the ignition is set to the ON position.
