Summary of Contents for Termal Hokkaido XRV Mobile BMS

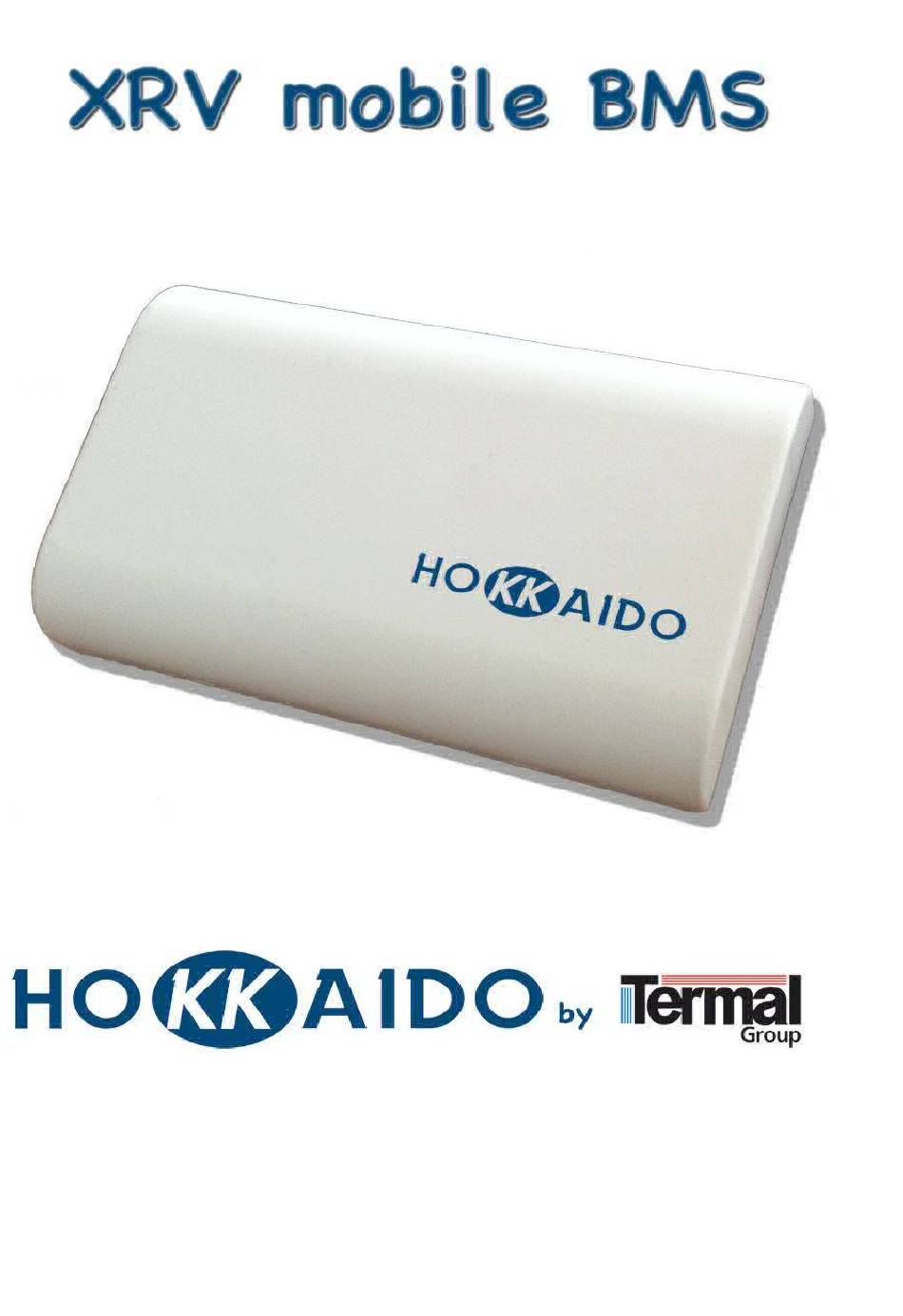

- Page 1 Installation & User Manual...
- Page 2 Manuali in altre lingue, o per altre piattaforme si possono trovare all'indirizzo http://www.hokkaidobms.eu/manual Manuals in other languages, or other platforms can be found at http://www.hokkaidobms.eu/manual...
-
Page 3: Warning For The Installer
Warning for the Installer Please read carefully the instructions contained in this Manual, as they provide important information about safe installation, use and maintenance. After removing the package, check the integrity of the unit. The system must be in accordance with current safety standards. -
Page 4: Installation
Installation Open the appliance, remove the terminal cover and fasten it to the wall or on a mounting box using the appropriate screws. Power supply The power supply must be AC 90~220V 50/60Hz. WARNING !!! Wrong connection of power supply can seri- ously damage the unit. - Page 5 Systems with indoor units series 1 or 2 : connect the bus to the indoor units as shown in Fig. 2 Systems with all indoor units series 4 and outdoor units series XRV Plus : connect the bus X-Y-E as shown in Fig 2/1 Connect the appliance directly to the master outdoor unit, checking that the...
-
Page 6: First Configuration
First configuration When powered, the centralized control emits a double beep if it is configured to connect in a local Wi-fi (default), or a single beep if it is configured to connect in a network with Wi-fi mo- dem. After a few seconds, another beep is emitted to indicate that the centralized control is ready to operate. - Page 7 Download “Hokkaido 2.0” software from www.hokkaidobms/download. Connect to “Hokkaido_XRV” network and launch the app. Enter the “Network” screen and deactivate the button “Use sensor network”. Fill in the fields with the appropriate data of your router, and press “Set”. Now the centralized controller will beep and will connect to your network.
- Page 8 Panel The operating state is displayed for each unit connected. A) Update the list of indoor units. B) Modify the operating parameters of all indoor units C) Select the indoor units on which to execute the changes (after you have made your selection, press “Set”, see the following paragraph Operation Settings) D) Double click to change the settings of a single unit...
-
Page 10: Operation Settings
Operation Settings In the Operation Settings screen ( see Fig. 5 ), some controls may be enabled or disabled if the settings are related to a single unit or to multiple units. A) Set operation mode B) Set fan speed C) Set min. -
Page 13: Weekly Scheduling
Weekly Scheduling A) Modify – the columns are the following : Hour Minutes Temperature Operation mode ( * no changes ) Ventilation ( * no changes ) B) Add the scheduling to the list. C) Cancel all changes and go back to the previous screen D) Save changes and go back to the previous screen Press the N button ( Fig. -
Page 15: Operation Settings For All Units
Operation Settings for All Units In the screen of operation settings for all units, there are 2 con- trols which are not available for single settings, and that allow the following functions : A) activate / deactivate the remote controls B) lock operating mode, select operating mode and press “Set”... - Page 17 Settings This screen allows to set the operating parameters of central- ized controller. A) Enable/Disable the password required when you want to carry out modifications (default password “Hokkaido”) B) Allows to change the password C) Enable/Disable the management of centralized control- ler from web portal D) Enable/Disable the alarm in case of error units E) Set the time of automatic update of the indoor units’...
- Page 18 If you press “G”, a user name and a password are required with which the registration on web portal has been carried out. The registration is possible only if the web function has been activated, and the sensor has sent at least once its operating parameters.
- Page 19 Therefore, before using this function, please activate web con- nection in the “Setting” screen and wait for at least 15 min. By activating this function, the active sensor is linked to your account previously created on web site (see the following chapter).
- Page 21 Network This screen allows to set the network parameters and to select the type of connection. A) Enable/Disable sensor network. Enables to connect the centralized controller in a local Wi-fi. This mode is needed when – for any reason – the sensor’s connection to your network is lost (eg if you change your router).
- Page 22 Web Site The web site for the management of centralized controller is at the address www.hokkaidobms.eu From the menu you can activate your account which will allow you to manage the centralized controller also through the spe- cial section on site. Once you have registered and carried out the “login”, you will find yourself in a situation similar to that applications (iOS or Windows) where it is possible to control and modify the set-...
-
Page 23: Technical Specifications
Technical Specifications ON/OFF and operation mode Room temperature with min et max limits of setting Fan speed, flap direction Lock of remote control and lock of operation mode Weekly Timer with max 59 settings Access by password ... -
Page 24: Information On Disposal And Recycling
Information on Disposal and Recycling Questo simbolo indica che il prodotto deve essere smaltito nel rispetto delle leggi e delle normative locali che regolano lo smaltimento dei rifiuti tossici. Quando il prodotto raggiunge la fine del proprio ciclo di vita utile, portalo nel punto di raccolta stabilito dalle autorità... - Page 25 Bologna - Italy Version 0.9 www.hokkaidobms.eu www.hokkaidoitalia.it...
