Summary of Contents for CamTours K4

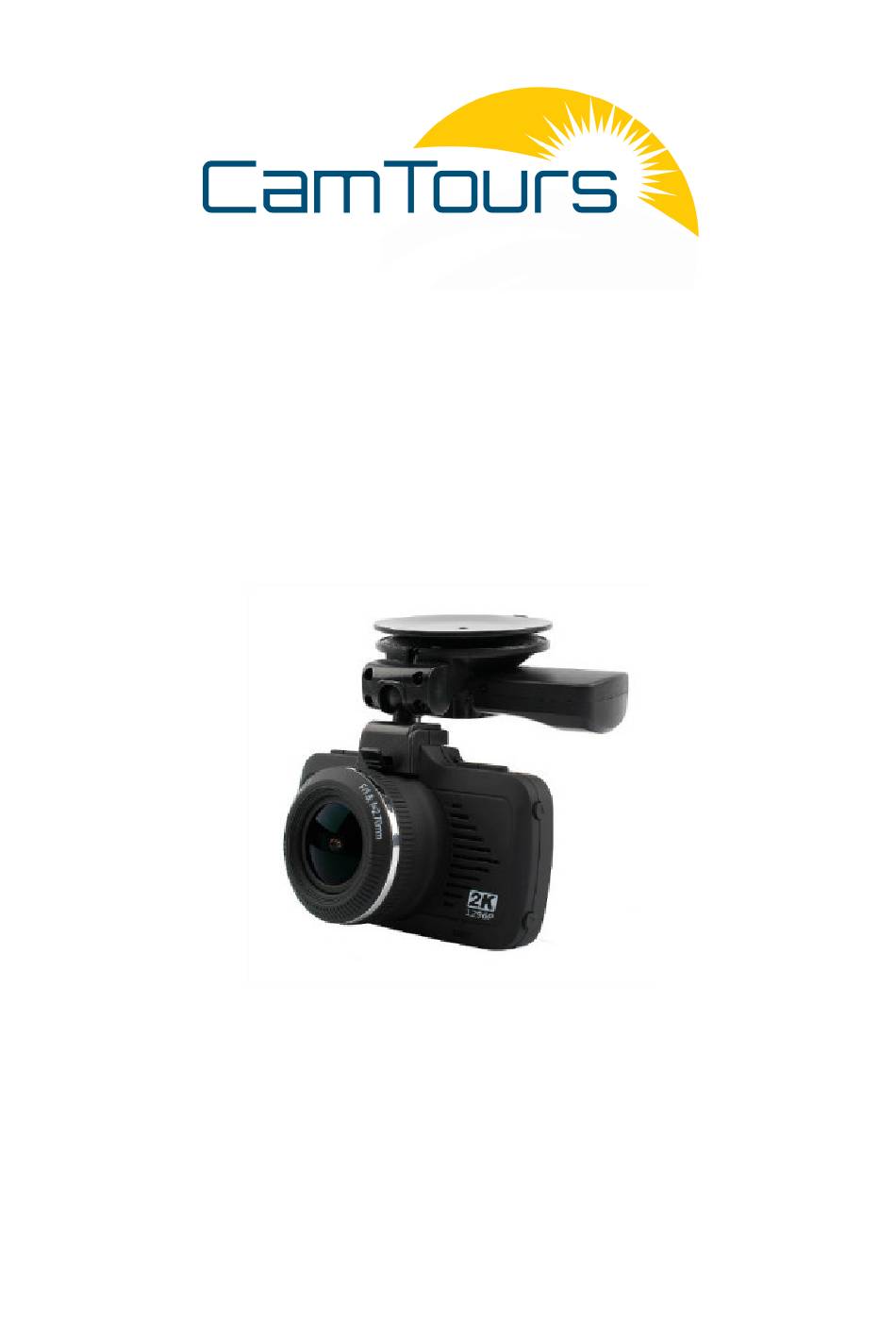

Page 1 K4 DASHBOARD CAMERA USER MANUAL 1 ...
Page 2: Contents And Features
Will Alert you of speed cameras. Database covers most cities in the UK. LED indicator Indicator Meaning Charging when K4 is On turned off. Blue light Off ...
Page 3 FEATURED ACCESSORIES Camera Body Suction Cup/GPS Module In Car Charger USB Data Cable ...
Page 4 K4 STRUCTURE 1. Power Button 9. Power port 2. MENU B utton 10. SD Card port 3. UP button ...
Page 5: Routing The Power Cable
SETTING UP YOUR K4 DASH CAM Routing the power cable: 1. Use the supplied in-car Charger 2. Hide the cable along the headliner and Cable. down the A pillar. ...
Page 6 ATTACHING THE SUCTION MOUNT AND DASH CAM - When the power cable has been routed place the suction cup behind the rear view mirror. -...
Page 7: Function Instruction
7. Displays the Remaining/Used Memory on the SD card. Charging indicator light. When the K4 is not plugged in it will display a Battery indicator. 8. The Battery is for backup purposes. If the K4 suddenly ...
Page 8 This symbol means GPS Disabled. When the GPS is enabled the red cross will disappear. 10. The K4 can take up to a few minutes to successfully obtain a GPS signal. An audible notification will be heard ...
Page 9 recording when ever the camera picks up motion. When the K4 is Not Recording the Mode button (M) can be used. This will toggle through the three different modes on the Camera - Recording mode, Picture mode and Preview mode. ...
Page 10: Recording Mode
also use the G-sensor to provide a watchful eye over your vehicle when you are not there. To start the parking monitor simply press the screen save button. This will then put the K4 on idle and use very little power. ...
Page 11: Picture Mode
PICTURE MODE In Picture mode still images can be taken. Increasing and Decreasing EV will adjust the screens brightness level Below are the button functions for when in Picture mode. ...
Page 12: Preview Mode
PREVIEW MODE Normal Folder Event Folder The files in this folder will The files in this folder will be locked. automatically be overwritten Locking ...
Page 13 PREVIEW MODE (WATCHING YOUR FOOTAGE) Below are the button functions for when your footage is playing. ...
Page 14 Menu Options Information Volume 0 - 9 Adjust K4 speaker volume. Overspeed Off, 60 KPH ~ 140KPH Will sound alarm if in excess of selected speed. ...
Page 15 Menu Options Information 1920x1080 30fps, Resolution Default : 1920x1080 2304x1296 30fps, 2560x1080 30fps, 1280x720 30fps, 1280x720 ...
Page 16 Menu Option Information Date/Time Setup MM/DD/YYYY Date/Time can be HH:MM adjusted. GPS will sync time. Frequency 50Hz, 60Hz Screen Frequency AE Meter ...
Page 17 WDR Wide Dynamic Range is an advanced photosensitive image processing technology. Videos processed by WDR will be clear even when recorded in a strong contrast of light and shade environment. The image will not be overexposed or dark. ...
Page 18: Lane Departure Warning System (Ldws)
LANE DEPARTURE WARNING SYSTEM (LDWS) With the GPS and LWDS feature enabled the K4 dash camera can see lane markings on the road to warn you when your vehicle drifts from the current lane. The warning is an audible and visual ...
Page 19 Connect the Dash cam to your PC using the supplied Data cable or use an SD card adapter. The K4 automatically transfers over the installation file onto the SD card when you starting using it. ...
Page 20: Customer Support
CUSTOMER SUPPORT CAMTOURS is dedicated to providing the best possible service. To contact us please visit our website at www.camtours.online Download Firmware for Speed Rating changes and speed camera database updates at www.camtours.online/downloads ...
