Page 1 Compatible PROPRIETARY INFORMATION The information contained in this document is the property of MULTITEL INC. Except as specifically authorized in writing by MULTITEL INC., the holder of this document shall: Keep all information contained herein confidential and shall protect same in whole or in part from disclosure and dissemination to all third parties and;...
Page 2: Table Of Contents
SMX-48BI’s binary input channels configuration ..............48 3.8.8 SMX-24AI’s analog input channels configuration ..............49 3.8.9 3.8.10 SMX module specific binary channel configuration ............. 51 SNMPGET MODULES (16) ......................52 3.9.1 SNMPget modules configuration ..................53 © 2018 Multitel – FUSION User Manual v4.82...
Page 3 Reset energy counter ......................62 3.15.6 Reset communication statistics for one module ..............62 3.15.7 Unlatch SMX module, event fusion (FxEx), event card (CxEy) or group (Gx) ...... 62 3.15.8 Initialistion of chronometer and watthour ................63 3.15.9 View or reset an occurrence counter .................. 63 USER INTERFACES ....................
Page 4 8.1.2 SMX module specifications ....................140 8.1.3 SMX module installation....................141 8.1.4 SMX-48BI back panel review ................... 142 8.1.5 SMX-24AI back panel review ................... 142 8.1.6 Powering the SMX modules ..................... 142 © 2018 Multitel – FUSION User Manual v4.82...
Page 5 Uploading the SMX module code ..................149 DOOR ACCESS CONTROL (4) ....................150 8.2.1 System description ......................150 8.2.2 HID card reader setup into FUSION ................. 151 8.2.3 Access Control Channels ....................152 8.2.4 Schedule Channels ......................153 REMOTE MODBUS DISPLAY (RMD) ..................155 8.3.1...
Page 6 INSTALLATION ...................... 193 11.1 PREPARING TO INSTALL FUSION ..................193 11.1.1 Equipment supplied by Multitel ..................194 11.1.2 Required tools and/or material not supplied by Multitel ............. 194 11.2 MOUNTING FUSION ....................... 195 11.2.1 Airflow management ......................195 11.2.2 Rack mounting ......................... 195 11.2.3...
Page 7 14.6 IP NETMASK ........................... 236 14.7 PRIVATE IP NETWORKS AND THE INTERNET ..............236 14.8 NETWORK REQUEST FOR COMMENTS (RFC) ..............236 APPENDIX B - SNMP INFORMATION ..............237 INDEX ........................239 © 2018 Multitel – FUSION User Manual v4.82...
Page 8 Figure 2 - FUSION Internal Overview ....................... 20 Figure 3- Front panel overview (16 LED shown) ....................21 Figure 4 - FUSION front panel without and with LED ..................22 Figure 5 - Communication ports overview ......................24 Figure 6 - Stable process typical response ...................... 112 Figure 7 –...
Page 9 USER MANUAL Figure 568 - Calibration menu for SMX-24AI analog channels ................. 226 © 2018 Multitel – FUSION User Manual v4.82...
Page 10 Table 44 - BM[x] Configuration Parameters ..................... 111 Table 45 - PID[x] Configuration parameters ..................... 112 Table 46 - COUT[x] Configuration Parameters for Multitel protocol ..............115 Table 47 - COUT[x] Configuration Parameters for TRAP SNMP protocol............116 Table 48 - COUT[x] Configuration Parameters for email protocol..............117 Table 49 - COUT[x] Configuration Parameters for ASCII/ TL1 protocol ............
Page 11 Table 91 - Expansion shelf I/O card specifications................... 191 Table 92 - Power connector definition ......................198 Table 93 - Maximum distances between the transducers and FUSION & SMX modules ........204 Table 94 – FUSION and SMX-24AI typical scaling values ................205 Table 95 - Connecting a DC voltage input .......................
Page 12 USER MANUAL Table 111 - Most common FUSION Mnemonics and their SNMP IDs .............. 238 © 2018 Multitel – FUSION User Manual v4.82...
Page 13 Telnet and SSH G. Lafond, Eng. deactivation, stop counting possibility for DEL channels, DELV channels and HVAC algorithm, new RS-485 connector, FUSION wall mounting instructions. Addition of Smart Module Expansion (SMX-48BI), new signal BFDISP, configuration of the SNMPGet channel refresh rate in...
Page 14 Calibration in Farentheit, Broken Wire Detection for FUSION Binary input channels and removed the following functions: DC PLANT, RECTIFIER algo, EQUALIZE algo, HISTOGRAM, HVAC algo, BATTERY AGING algo and PVA function.

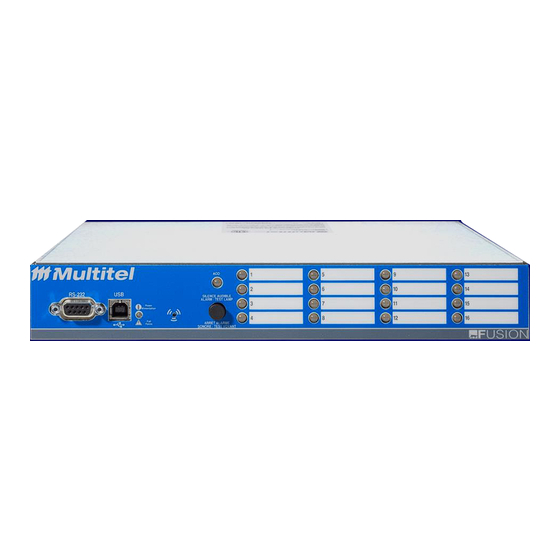

Page 15: Introduction
Contact Multitel service for the list of available accessories. FUSION is an integral part of the Global Solution Offerings from Multitel. In an effort to enhance Power Network reliability, safety and visibility, FUSION is entirely supported by FIRM Suite , a comprehensive Enterprise Level Management Software.
Page 16 Ethernet connection or SNMP trap. A user-friendly HTTP(S) interface is used to access and operate the FUSION monitoring device. It provides an easy way to gain access to real-time I/O channels and derived channels statuses, statistics, graphs, HMI views and overall device configuration.
Page 17: Quick Reference Information
QUICK REFERENCE INFORMATION At Multitel we believe that the information contained in the User Manual is essential for a global understanding of the FUSION device. However, as for many high-tech products, reference to the table of contents can be laborious for users who do not require knowing everything related to the functionality of the product.
Page 18 *Automatic Backup Mode can be activated in the System Configuration Parameters. (See section 3.3) However, Multitel recommends keeping the use of this mode to a minimum in order to reduce the number of times data is written to the EEPROM memory.
Page 19: Customer Service Contact
1.4.1 Customer Training Multitel offers customer training on all of its Monitoring Device products. For information please call 1-888-685-8483 (418-847-2255) © 2018 Multitel – FUSION User Manual v4.82...
Page 20: Fusion Components
2.1.2 EXP I/O cards Multitel offers 4 different types of EXP I/O cards. Looking at Figure 2, we can see that only two EXP I/O cards can be loaded into a FUSION (loaded at the factory by qualified personnel). The cards are named EXP1, EXP2, EXP3 and EXP4.
Page 21: Optional Front Panel Module
Power/Fail LED This LED provides information on the FUSION operation. At start up, the LED displays a red colour indicating that the device is booting up. This step only lasts a few seconds. When the boot up is completed, the LED will display solid green indicating that the system is ready and operating properly.
Page 22: Smart Module Expansion (Smx-48Bi And Smx-24Ai)
It communicates with the FUSION using the Modbus RTU protocol. The picture on the right shows a front view of the SMX-48BI & FUSION. This module is an addition to the already diversified and flexible FUSION’s data acquisition capability.
Page 23: Expansion Shelf Or Expansion Module 1U1S With I/O Cards
MLINK connector located on the back panel. An additional 15 I/O cards be added to a maximum 30 I/O cards using the RS-485 serial port located on the back panel. See the FUSION Expansion User Manual for a detailed explanation of each card type (ANALOG, EVENT and OUTPUT).
Page 24: Communication Ports
COMPONENTS 2.4 COMMUNICATION PORTS FUSION offers a wide variety of local and remote communication ports as network interfaces for easy access to real time information. FUSION is also able to multi-task in that it can communicate with several users simultaneously while maintaining all its monitoring and control tasks.
Page 25: Fusion Setup
(Refer to section 4.1HTTP(S) INTERFACE (HTTP PROTOCOL) for a complete description of all menus) To configure any of FUSION’s mnemonics click Config on the top menu. Changes can only be made with Supervisor level rights and the function must be enabled in order to be configured. To change a parameter click on the Edit button and enter the change in the rectangle field next to the actual parameter value.
Page 26 FUSION FUSION SETUP FUSION Module’s configuration parameters for analog input M2A1: When parameter changes are completed click Exit in the upper left part of the screen to exit the Config mode. NB: when the user is in Config mode no other user is allowed into this mode at the same time.
Page 27: Users And Access Levels
HTTP(S) Interface under Derived channels from the top menu. For added protection, the "Viewer" and "User" access levels are disabled when the FUSION unit is shipped from the factory. The "Supervisor" access level is the only access level login initially available and the protection will be automatically de-activated when a first user is configured.
Page 28: Alarm Priority Levels
FUSION FUSION SETUP 3.2 ALARM PRIORITY LEVELS FUSION alarms enable the user to quickly view monitoring and control points in the system. There are five priority levels: 1. CRItical: Immediate attention 2. MAJor: Follow up within a specified time 3. MINor: Next time in during regular business hours 4.
Page 29: General System Parameters
FUSION SETUP 3.3 GENERAL SYSTEM PARAMETERS General System Parameters Configuration is one of the first things required to be done when configuring FUSION using Config from the top menu (Supervisor access only). Select the General System Parameters on the left submenu area and a list of programmable parameter will be available for configuration.
Page 30: Network Time Protocol (Ntp)
Two NTP servers can be for redundancy to increase reliability if one of the servers was to fail. After power up, FUSION connects automatically to the NTP server 1; if the server fails to respond, FUSION will try with server 2 an hour later.
Page 31: Time Offset From Utc
The time offset from UTC (Universal Time Coordinated) must be specified by the user as the NTP server sends the UTC time to its clients. e.g. in Québec city where Multitel’s main office is located, the offset is -5 hours for normal time and -4 hours for Daylight Savings Time.
Page 32: Exp Card Configuration
Although EXP I/O card are factory configured, users with Supervisor level access can enable or disable the installed cards. Select Config from the top menu and choose Fusion - I/O Channels on the left submenu. Click on F[x] to enable or disable the card. A list of channels will be displayed on the HTTP(S) interface for enabled cards.
Page 33: Analog Input Channel Operation (Hybrid)
When using a combination of SMX modules, MODBUS modules and SNMPget modules the capacity of the FUSION device can be expanded to hundreds of Analog Input Channels per installation. Each SMX module is configured as M[x] module in the Module submenu. Each ANALOG card is configured as a C[x] module in the I/O Cards submenu.
Page 34: Analog Input Channels Configuration
To configure FUSION I/O channels using the HTTP(S) interface click on Config from the top menu (Supervisor access only) and choose Fusion - I/O Channels on the left submenu. Click on the FxAy channel to be configured. A list of programmable parameters will be displayed.
Page 35: Binary Input Channels (Exp1, Exp2, Exp3, Exp4 And Smx-48Bi)
FUSION’s binary input channels are use to detect that change in equipment or system operation. Usually, a relay contact sends a ground signal to a specific binary input channel and FUSION detects the ground signal and triggers an action according to pre-programmed conditions. For some types of detections (e.g.
Page 36: Binary Input Channels Configuration (Dry Contact Input)
To configure parameters associated with the corresponding FUSION’s binary input channel (FxEy), click on Config from the top menu (Supervisor access only) and then choose Fusion - I/O Channels on the left submenu. The F[x] module has to be enabled in order to view the available channels. Click on the FxEy channel to be configured.
Page 37: Binary Output Channels (Exp1, Exp2 And Exp4)
Default Activation Level Ground Margin Each Binary Input Channel is terminated on the FUSION’s back panel. With this type of channel, an alarm can be generated between the equipment or sensor when the FUSION binary input channel goes open. Further support is available from Multitel’s application engineering department.
Page 38: Binary Output Channel Operation
To configure parameters associated with the corresponding binary channel (FxOy), click on Config from the top menu (Supervisor access only) and then choose Fusion - I/O Channels on the left submenu. In order to view available channels the F[x] module has to be enabled. Click on the FxOy channel to be configured. A list of programmable parameters will be displayed.
Page 39: Triggered Mode
E.g. If TH1 F102 is the triggering source; the pulse duration is 10 seconds the output channel signal F1O2 would look like: Example of a configured FUSION binary input channel: © 2018 Multitel – FUSION User Manual v4.82...
Page 40: Smx And Generic Modbus Modules (64)
MODBUS RTU protocol over its MLINK or RS-485 communication port or both simultaneously. Up to 64 modules can be connected to a single FUSION, a maximum of 32 modules for each MLINK and RS-485 port. The MODBUS modules can be networked between the two ports as long as there is no Multitel Expansion Shelf configured.
Page 41 The Time out parameter is used to check on the slave response time. If the device fails to respond within the pre- set time for 3 consecutive try or if FUSION detects 3 Time out communication errors in data transfer a Binary Fail signal...
Page 42: Binary Fail Signal Associated With The Generic Modules
4 digits, 4=auto Bit mask is used to read and extract a specific bit from the Bit Mask Modbus register. FUSION considers first bit to be 0. The bit None mask must be a value specific between 0 and 15.
Page 43: Generic Module's Binary Input Channels Configuration
Parameters Description Default Value Disabled, Enabled or None. When none is selected, it will Channel state None not appear in the configuration file. Name Channel identification (Up to 40 characters) Not Programmed © 2018 Multitel – FUSION User Manual v4.82...
Page 44: Generic Module's Analog Output Channels Configuration
Not Logged, Informational Minor, Major or Critical. Bit mask is used to read and extract a specific bit from the Bit Mask MODBUS register. FUSION considers first bit to be 0. The None bit mask must be a value specific between 0 and 15.
Page 45: Table 14 - Mxry Configuration Parameters For A Generic Module
The binary condition to be sent to Bit 2 of the corresponding Enter the link analog output register. Type H for help specific to the Not Programmed channel for Bit 2 channel selection. … … … © 2018 Multitel – FUSION User Manual v4.82...
Page 46 Type H for help specific to the Not Programmed channel for Bit 15 channel selection. Example of a configured generic module’s analog output channel (ANALOG TYPE): Example of a configured generic module’s analog output channel (BINARY TYPE): © 2018 Multitel – FUSION User Manual v4.82...
Page 47: Generic Module's Binary Output Channels Configuration
The occurrence counter is used to tally the number of valid Reset Occurrence state changes. Permission to reset occurrence counter: Yes counter or No (For possible triggering sources refer to section 3.13.) Example of a generic module’s binary output configuration: © 2018 Multitel – FUSION User Manual v4.82...
Page 48: Smx Module Configuration
The SMX communication speed is selected on the module’s front panel using one rotary labeled “SPEED”, refer to section for that matter. Make certain the FUSION RS-485 or MLINK port and all MODBUS modules daisy chained must be configured with the same communication speed to operate properly.
Page 49: Smx-24Ai's Analog Input Channels Configuration
±50mV for shunt DC current measurement  Temp for temperature measurement  23Vrms for RMS AC voltage measurement  ±10Vdc for DC voltage measurement  1.4Vrms for RMS AC current measurement (compatible to 0-333mV CTs) © 2018 Multitel – FUSION User Manual v4.82...
Page 50: Table 18- Mxay Configuration Parameters For A Smx-24Ai
Using the SMX modules, Expansion Shelves, ANALOG Cards, MODBUS modules and SNMPget modules the user can expand the FUSION’s default capacity from 4, up to more than 1500 analog input channels per © 2018 Multitel – FUSION User Manual v4.82...
Page 51: Smx Module Specific Binary Channel Configuration
3.8.10 SMX module specific binary channel configuration The following binary fail channels have been introduced to report back to FUSION a SMX failure condition. By default, the binary channels are disabled and each channel name are preprogrammed and cannot be edited. To configure these channel, use the Config menu and select Module in the left sub menu.
Page 52: Snmpget Modules (16)
When specific binary channels are enabled, they will be monitored and made visible in FUSION. For example, FUSION can be configured to trigger a local audible alarm or/and generate an SNMP trap to a final destination to enable advance diagnostics and remediation.
Page 53: Snmpget Modules Configuration
3.9.1 SNMPget modules configuration Up to 16 SNMPget modules can be configured in FUSION. For each module, there are 24 analog input channels and 24 binary input channels. To configure parameters associated with the SNMPget[x], click on Config from the top menu (Supervisor access only) and then choose SNMPget on the left submenu.
Page 54: Snmpget's Analog Input Channels Configuration
One or many software thresholds can be associated to each analog channel in order to generate alarms and enable controls. Refer to section THRESHOLDS (1500). Example of a configured SNMPget module’s analog channel: © 2018 Multitel – FUSION User Manual v4.82...
Page 55: Snmpget's Binary Input Channel Configuration
The occurrence counter is used to tally the number of valid Reset Occurrence state changes. Permission to reset occurrence counter: Yes counter or No Example of a configured SNMPget module’s binary input channel: © 2018 Multitel – FUSION User Manual v4.82...
Page 56: Ping Alarms (32)
3.10 PING ALARMS (32) PING is a computer utility used to test device accessibility on an IP network. FUSION can be configured to PING remote or local network elements. FUSION can monitor up to 32 different remote devices or network elements using the PING feature.
Page 57: Audible Alarms (Option)
The AUDIBLE alarm function is used to program a list of alarms that will trigger the audible alarm located on the FUSION’s front panel. Up to 500 triggering sources can be programmed. Click on Config from the top menu (Supervisor access only) and then choose AUDIBLE Alarm on the left submenu.
Page 58: Triggering Sources
Table 30 - Triggering source possible logical status Status Description The source is inactive. (F1O1 = OFF; indicates that output #1 on FUSION is inactive.) The source is Not Available (this may happen if a card failed and values cannot be read).
Page 59: List Of Binary Fail Signals (Bf)
3.13.2 List of binary fail signals (BF) Binary Fail (BF) channels are FUSION internal failure alarms. The following BF channels may also be used as triggering sources. These alarm levels are Informational. Table 32 - List of all Binary Fail (BF)
Page 60: Setting Date And Time
3.14 SETTING DATE AND TIME Users can change the Date and Time of their FUSION. Click on System Information from the top menu and then click on Date and Time on the left submenu. Select the Clock set button and a window will appear asking to enter new date and time in the pre-defined format.
Page 61: Reset Operating Parameters
Communication ports configuration will not be erased when operating parameters are reset. All other parameters will be reset to default values. The system will reboot. This is used for training or demo units to return FUSION to its initial factory configured state.
Page 62: Reset All Occurrences Counters
Triggered Statistics files will be erased. Confirmation is required to reboot the system. If Cancel is chosen FUSION returns to the Reset submenu and the reboot is not activated. If OK is chosen FUSION will reboot and after a few minutes FUSION’s home page reappears.
Page 63: Initialistion Of Chronometer And Watthour
3.15.9 View or reset an occurrence counter FUSION provides an occurrence counter for all software functions whenever possible. The occurrence counter is used to count the number of times a binary condition is activated (e.g. binary input channel activation, a relay output operation, threshold activation, a programmable delay triggered).
Page 64: User Interfaces
HTTP(S) interface. 4.1.2 Login into the HTTP(S) interface To login into FUSION’s HTTP(S) interface, type the user name and password. Access rights are the same as for any other FUSION interface. For network security reasons, if an invalid username or password is entered when trying to login, the following message will be displayed: Unable to login.
Page 65 USER INTERFACES If the Human Machine Interface (HMI) view is already loaded into FUSION the home page will show the selected view. Otherwise the Alarms menu will be displayed as the home page. HMI view selection is done in the General system parameters configuration (section 3.3).
Page 66: Menus Description
FUSION USER INTERFACES FUSION’s HTTP(S) interface, showing the I/O channels page: 4.1.3 Menus description Table 33 - Menus description for HTTP(S) interface Main Submenu Description Menu All Active Alarms Displays all currently active alarms in a chronological order. Critical Displays only the Critical alarms in a chronological order.
Page 67 Displays enabled channels consecutively for each AWH[x] Watthour – up to 10 channels function configured. File Enables the user to download the following files: Download Transfer Configuration, ACC Configuration, History log, System © 2018 Multitel – FUSION User Manual v4.82...
Page 68 Enables the user to view the NTP configuration. SNMP Enables the user to view the SNMP protocol configuration. Enables the user to view and change the FUSION Date Date and Time and Time. Enables the user to perform various function or parameter Reset reset.
Page 69 An HMI Image is a graphical view of alarm status and measured values which represent a specific or general HMI views site application. These can be loaded to FUSION with the file transfer function (see section HMI view). User defined Triggered Statistics...
Page 70: Alarms, Views, I/O Channels And Derived Channels
These top menu items enable the USER to visualize: alarms, programmed views, I/O channels and derived channels information in real time. Following are some illustrations of these FUSION’s HTTP(S) interface pages. First, the Alarms page (FUSION’s home page when no HMI is loaded):...
Page 72: Graphic And Daily Statistics For Mnemonics Representing Analog Values
(Each max. and min. average values are evaluated every hour, only the daily max and min are kept with time stamp) © 2018 Multitel – FUSION User Manual v4.82...
Page 73: History For Mnemonics Representing Binary Values
Following is an example of what the user will see when clicking on a binary mnemonic, the GT3E1 channel (SNMPget module 3, binary channel 1): 4.1.7 File transfer The download page: For information on how to export files to Excel, refer to section 5.6. © 2018 Multitel – FUSION User Manual v4.82...
Page 74 FUSION USER INTERFACES The Upload page: IMPORTANT: - Uploading a file is not possible when another user is in Config mode. The File management page: © 2018 Multitel – FUSION User Manual v4.82...
Page 75: System Information
USER with no Supervisor access that has no access to the Config mode. Following is a view of a configured Ethernet port: Version and memory/CPU The software and hardware release numbers and statuses for each hardware component of the FUSION can be polled using the Version submenu. The Version Submenu...
Page 76 FUSION USER INTERFACES The Memory/CPU submenu may be used to view FUSION’s remaining memory capacity. It provides information of the remaining capacity percentage for the following type of memories: - Read Only - Read Write - RB (Read Write Battery Backup) - Configuration (Memory range allowed for the configuration file) It also provides processor total utilization percentage and also FUSION’s CPU derived channel processing.
Page 77 Setting Date and time The user can change the Date and Time of the FUSION device. Use the Date and Time submenu and click on the Clock set button and a window will appear asking the user to enter the new date and time in a pre-defined format.
Page 78 FUSION USER INTERFACES The Event Analog Value Submenu enables a user to view the voltage presence for each FUSION binary input channels For Reset submenu, refer to section 3.15 © 2018 Multitel – FUSION User Manual v4.82...
Page 79: Links
If the home page function has been enabled in the "General System Parameter" function, the selected HMI file is displayed as the FUSION’s home page. All Images under the HMI views are available even if the home page function is disabled.
Page 80 FUSION USER INTERFACES Following are some examples of HMI view applications: © 2018 Multitel – FUSION User Manual v4.82...
Page 82: Charts (Line Charts)
The Charts function on the top menu of the HTTP(S) interface enables the user to display the preconfigured Triggered statistics files content on a on-line chart graph. The following images explain how it works. First, the chart representing TSTAT2 file: © 2018 Multitel – FUSION User Manual v4.82...
Page 83: Command Line Interface (Ascii Protocol)
Although the HTTP(S) interface is generally used for connection to the FUSION, the Command Line Interface may also be utilized for temporary connection to FUSION. This enables the user to view the status of critical parameters such as voltage, current, temperature and equipment alarms or other parameter statuses. Depending on user access rights the user can make changes to operating parameters such as communication settings or I/O channel settings and to perform basic tests.
Page 84: Logout Sequence
Any user can log out at any time by using the “Escape” key to reach the prompt “>” and by typing the “DISC” command. For security reasons, FUSION is equipped with an inactivity timer that monitors user activity. If the timer expires FUSION will automatically terminate the communication session. On a modem connection, this feature eliminates expensive telephone bills if the connection remains up for a long duration.
Page 85: Table 35 - Display Commands For Different User Levels
View daily data logs for analog channels View file information ESTATE[-R] View event channel states HIST View binary data logs Display remaining memory capacity MODREAD Read a value from a module register © 2018 Multitel – FUSION User Manual v4.82...
Page 86: Table 36 - Utility Commands For Different User Levels
List file in the system and allow to delete one of them restricted restricted RESET Reset for different functions Begin XMODEM transfer of a configuration file to UPLOAD the unit [-R]: Corresponds to a continuous refresh of all displayed values on screen. © 2018 Multitel – FUSION User Manual v4.82...
Page 87: File Transfer
Uploading the Configuration File: The FUSION configuration file can be sent to a device for an update using the “UPLOAD” command. Once this command is entered, the user must then upload a CSV file using the XMODEM protocol. Once the file transfer is complete, the “ERRFILE”...
Page 88: Statistics And Log Files
STATISTICS AND FILES 5 STATISTICS AND LOG FILES FUSION can be configured so that the user can download and view historical and statistical data. All files are CSV format ("Comma Separated Value") and are compatible with most commercially available spreadsheets on the market such as Microsoft Excel.
Page 89 Select the TSTAT[x] file to be download and the retrieved files can then be opened into a Microsoft Excel spreadsheet. Following is an example of a TSTAT2 file exported into Excel. File Configuration Parameters © 2018 Multitel – FUSION User Manual v4.82...
Page 91: Setting The Bstat1 Protected Triggered Statistics File
BM1 or !BM3 are possible triggering source. All possible triggering sources are listed in Table 31 Table Triggering source When the triggering source goes OFF, the recording is ended. It will continue recording with another OFF to ON transition. © 2018 Multitel – FUSION User Manual v4.82...
Page 92: Setting Daily Statistic Files List
To download Daily Statistics from FUSION click on File Transfer from the top menu and then choose Download on the left submenu. Select Daily Statistics file or Daily Statistics file all channels and the retrieved files can be opened into Microsoft Excel.
Page 93: Setting Peak Statistics
To download the Peak statistics file click on File Transfer from the top menu and then choose Download on the left submenu. Select Peak Statistics and open the file with Microsoft Excel. © 2018 Multitel – FUSION User Manual v4.82...
Page 94 Reset on the left submenu. Choose either Erase Peak Statistics for one channel or Erase Peak Statistics for all channels. Peak statistics are stored in volatile memory and are not saved during a power loss but will be saved during a system reboot. © 2018 Multitel – FUSION User Manual v4.82...
Page 95: Displaying History Data Files
5.2 DISPLAYING HISTORY DATA FILES The FUSION system supports two types of historic files used to record events: the history log file and the system log file. These files are setup to work together with a SYSLOG server (refer to section 9.5.15...
Page 96 STATISTICS AND FILES History Log file in Excel To reset the History log file, click on System Information from the top menu and then choose Reset on the left submenu. Select History log file. © 2018 Multitel – FUSION User Manual v4.82...
Page 97: The System Log File
To download the System Log file, click on File Transfer from the top menu and then choose Download on the left submenu. Select System Log (SYSLOG) and open the file in Microsoft Excel. © 2018 Multitel – FUSION User Manual v4.82...
Page 99 FUSION STATISTICS AND FILES IMPORTANT: - Data is stored in non-volatile memory and will remain available if the device is depowered however, the memory is dependent on the on-board lithium 3.3Vdc battery. © 2018 Multitel – FUSION User Manual v4.82...
Page 100: Configuration File
On/Off buttons etc. More than one image file can be loaded into FUSION using the File Transfer from the top menu and Upload from the left submenu up to a maximum of 1 Megabyte. The number of files that can be uploaded to the FUSION depends upon the complexity of the images themselves.
Page 101: Note File
The NOTE File is provided for engineering and field staff to add special notes, inventory information or site specifics into an easily accessible file. The information written in this file is transferred to the FUSION unit only through the upload of a file in CSV format.
Page 102: Exportation To Microsoft Excel
When a file is selected for download the user is asked to Open or Save the file or Cancel the activity. Files downloaded from FUSION are CSV format and are compatible with most commercially available spreadsheets on the market such as Microsoft Excel.
Page 103: Automation Functions
In exceptional cases if the equation is too complex and too long to execute, FUSION will also request the user to enter it again.
Page 104: Groups (200)
AUTOMATION FUNCTIONS 6.2 GROUPS (200) FUSION can generate hundreds of alarms. A special function is designed to “Group” together similar types of alarms (environmental, power etc.). The group function can also assist in building a specific complex controlling algorithm. Groups enable user to create logic equations consisting of one or many sources up to a maximum of 25.
Page 105: Programmable Delays And Programmable Delay Values (128)
6.3 PROGRAMMABLE DELAYS AND PROGRAMMABLE DELAY VALUES (128) FUSION can manage up to 128 programmable delays and delay values. 6.3.1 Programmable delays A delay is a triggering source activated by another triggering source and configured with a pre-set activation delay and a delay duration timer.
Page 106: Keepalive
Programmable delay can also be used to trigger a Callout on a periodic basis in order to validate the communication link between the FUSION and the final destination server. If ever the Keepalive is not is To generate a periodic “Keepalive callout”, configure a programmable delay DEL[x] as follow: a.
Page 107: Delay Application Examples
Suppose that DEL1 is enabled, the delay duration is set to 40 seconds, the activation delay is set to 0 seconds, the triggering source is F1E1. The first example displays the 15 sec 12 sec 9 sec F1E1 retriggerable option. Pulse = (15+12) + 40 sec DEL1 © 2018 Multitel – FUSION User Manual v4.82...
Page 108 F1E1. The activation delay is 0. In this case, DEL1 will turn ON at the same time as F1E1. It will stay ON for 40 seconds, no matter how long F1E1 stays ON. 15 sec F1E1 F1E1 50 sec Pulse = 40 sec DEL1 Pulse = 40 sec DEL1 © 2018 Multitel – FUSION User Manual v4.82...
Page 109: Time Set Points (Tsp) (64)
6.4 TIME SET POINTS (TSP) (64) FUSION offers 64 Time Set Points, TSP[x]. A TSP is a cyclic trigger source activated by the system clock. The TSP stays ON as long as the user-programmable temporal coordinate matches the system clock. TSPs can be used in conjunction with an output relay to periodically start a device, perform a callout, or as a maintenance reminder.
Page 110: Tsp Application Examples
HTTP(S) interface under the Derived channels top menu. To control a Binary Manual, click the On/Off button (if the USER has the right access level). Following is a View with two Binary manuals. © 2018 Multitel – FUSION User Manual v4.82...
Page 111: Pid Controllers (8)
Proportional action: The error is multiplied by a gain G. This part determines the reaction to the actual error. • Integral action: The error is integrated and divided by a gain Ti. This part determines the reaction based on the sum of recent errors. © 2018 Multitel – FUSION User Manual v4.82...
Page 112: Figure 6 - Stable Process Typical Response
Wikipedia The Free Encyclopedia: http://wikipedia.org/wiki/PID_controller FUSION provides 8 PID functions. Each PID function is individually programmable. Click on Config from the top menu (Supervisor access only) and then choose PID on the left submenu. Click on one of the 8 PID[x] to be configured.
Page 113 . Deactivated when =0 Delay, in seconds, for the stabilisation of the reference Reference channel (process) signal. It is activated after a FUSION start-up or stabilisation delay after a change in the reference channel parameter. Select: 0 to 600 seconds.
Page 114: Application Example Of A Pid
24°C. The selected reference channel (process value) is M1A1, the room ambient temperature. The output of the regulator will act on a switch to turn the heater on and off. © 2018 Multitel – FUSION User Manual v4.82...
Page 115: Software Functions
7.1 CALLOUTS (32) FUSION provides 32 programmable channels for callouts and each callout can be configured with a name. A list of up to 50 triggering sources or alarm levels can be sent to the selected output port (RS-232/USB front or RS- 232, RS485 rear panel, Ethernet or Modem port(if available)).
Page 116: Trap Snmp Protocol
Ethernet port only. NOTE: FUSION is limited to sending SNMPv3 traps to only one SNMP Manager, thus security parameter configured in the destination #1 to destination #5 of “SNMP protocol” section will not be used.
Page 117: Email Protocol
This parameter will show on the screen only if the Trigger list option has been selected (parameter above). Triggering source Sources with alarm level Not logged will not trigger a callout. Up to 50 triggering sources may be selected. © 2018 Multitel – FUSION User Manual v4.82...
Page 118 The occurrence counter is used to tally the number of Reset Occurrence valid state changes. counter Permission to reset occurrence counter: Yes or No Example of SMTP (Email) Callout triggered by “Critical” alarm level and mnemonic BM18 has been filtered © 2018 Multitel – FUSION User Manual v4.82...
Page 119: Ascii/Tl1 Protocol
Each Channel can be associated with an alarm level type: Alarm Level Info Not Logged, Informational Minor, Major or Critical. Protocol chosen to send the callout. Select: Multitel, Trap Protocol Multitel SNMP, eMail or ASCII/TL1 Enter the Callout message. The message can include an Message intelligent message text (see 7.1.5) Maximum of 255...
Page 120: Ascii/Ack Protocol
This Callout protocol is available for the Dialup bridge specific function. The purpose is to exchange reliably alarm information between two FUSIONs. The protocol is raw text with a proprietary form of acknowledgment when data is exchange between a Distant FUSION and a Host FUSION. It is only used with the Dialup bridge feature described in section 7.2...
Page 121: Intelligent Text Message And Partial Tl-1 Messages
So, <90oF is a major and >=90oF is critical. Once the temp drops back below the threshold, G30 clears and the temp value is no longer displayed in Netcool. The same could be done for battery run down voltage during commercial AC power Failure. © 2018 Multitel – FUSION User Manual v4.82...
Page 122: Keepalive
(8) Distant FUSIONs. The purpose of these channels is to enable a Host FUSION to receive and process raw text message of Callouts coming from Distant FUSION installed in remote locations where there is no IP presence. With this feature, raw text alarm messages content from Distant FUSION can be transformed in a SNMP trap by the Host FUSION and sent to a final destination server like a Centralized Alarm Management Platform at the NOC.
Page 123: Dialup Bridge Application Example
The Host FUSION receives the text message over the new “ASCII/ACK callout protocol” and transposes the integrality of the message content into an email or a SNMP trap to a final destination server. The Host FUSION modem protocol must be set to “ASCII/ACK” in order to received the Callouts orinated by Distant FUSION (See...
Page 124: Figure 8 - Dialup Bridge Reference Diagram
IP addresses of all the FUSION involved. Use the above figure as a guideline. We recommend starting the configuration with the Host FUSION and moving on to each of the Distant FUSION.
Page 125 DEL[x] channel will re-initialized the countdown timer. Thus, the objective is for each Distant FUSION to report back to the Host FUSION on a periodic basis, if no callout is received, the corresponding DB channel ou COUT channel will not reset the DEL(x) and the DEL(x) will expire and corresponding DEL(x) will become true and will be use to trigger a warning message (Ex.: SNMP trap) to advise the NOC of a malfunction in...
Page 126 Distant FUSION are reporting to the same Host FUSION is it recommended not to synchronised the programmable delays to report all at the same time. Setup the keepalive in the Distant FUSION (This step is not necessary if no keepalive strategy is setup in the Host FUSION.).
Page 127: Figure 9 - Dialup Bridge Example
Distant FUSION to the same speed selected. Step#8 - Configure one or more callout COUT[x] to report alarms from the Distant FUSION to a Host FUSION. c. Name = Enter a significant name like “Alarm bridge from TAMPA12345 FUSION”.
Page 128: Thresholds (1500)
FUSION SOFTWARE FUNCTIONS The Host FUSION will complete the actual callout and will pass to the next callout, there is no special process for higher level of priority in the course of action, it is first come, first serve. Q2. Is the Keepalive strategy required for the dialup bridge to operate?
Page 129: Table 53 - Th[X] Configuration Parameters (Occurrence Counter)
Reset Occurrence The occurrence counter is used to tally the number of valid counter state changes. Permission to reset occurrence counter: Yes or No Example of threshold menu in HTTP(S) interface © 2018 Multitel – FUSION User Manual v4.82...
Page 130: Threshold Application Examples
Group G12 is created with the logic equation: TH6 OR TH7. G12 is activated each time the temperature goes over or under the set limits. Another Threshold TH20 is configured using the number of occurrences as the activation mode and G12 as the triggering source. © 2018 Multitel – FUSION User Manual v4.82...
Page 131: Views (32)
To display a programmed View on the HTTP(S) interface select Views located on the top menu. The left sub- menu displays all available programmed views. Click the one to be configured. A Programmed View © 2018 Multitel – FUSION User Manual v4.82...
Page 132: Chronometers (10)
FUSION SOFTWARE FUNCTIONS 7.5 CHRONOMETERS (10) A chronometer channel enables the user to time certain events. (E.g. generator usage) FUSION has 10 chronometer channels: ACHR[x]. These channels are displayed on the HTTP(S) interface under the Derived channels menu. Each ACHR[x] channel is individually programmable. Click on Config on the top menu (Supervisor access only) and then choose Chronometer on the left submenu.
Page 133: Watthour Channels (Awh) (10)
7.6 WATTHOUR CHANNELS (AWH) (10) FUSION can calculate the energy consumption of a DC power plant. The user can set up and (and also reset) various energy counters specific to each power plant application and architecture using the Current, Voltage and Watthour channel.
Page 134: Arithmetic Application Example
Equation: F1A1*100 +CONST14/10-20*2.5 “H” for help, max 225 characters or 25 terms Power Usage Effectiveness (PUE) calculation is another example. Configuration parameters for AAR16: See section 7.8.1 for another arithmetic channel application example. © 2018 Multitel – FUSION User Manual v4.82...
Page 135: Constant Channels (32)
7.8 CONSTANT CHANNELS (32) These channels enable FUSION to save constant values as references to be used in arithmetic computation or as a set point channel for a Proportional Integral Differential (PID). E.g. AC Mains entrance capacity in Amps, Fuel Tank Capacity in gallons or liters, DC System Capacity in Amps, UPS capacity in kW, energy price per kilowatt/hour, HVAC Capacity and so on.
Page 136: Duty Cycle/Average Channels (10)
(when there is no value on the separator’s left side, the corresponding field is ignored; but when there is no value on the separator’s right side, the actual value representing the field is taken). For both formats, separators are mandatory. © 2018 Multitel – FUSION User Manual v4.82...
Page 137: Configuration Examples For The Computation Start Time Coordinate Parameter
One example of the use of a Duty Cycle/average channel could be the HVAC Daily Usage. In this example, we want to know the percentage of time the HVAC system is switched on over a 24 hour period. © 2018 Multitel – FUSION User Manual v4.82...
Page 138: Lookup Table Channels (4)
RF transmitter frequency, thus measurement imprecisions can be obtained between the real power output value and the FUSION measured value. Thus a Lookup table channel can be configured to correct the offset along the measurement range. For an example, the following correspondence table can be configured...
Page 139: Lead/Lag (4)
(2) days. After that period, HVAC B will stop and HVAC C will operate for the two (2) next days. The operation will then restart with HVAC A and so on. While this happen, the FUSION will generate alarms stating that LL1E1, LL1E2 or LL1E3 is now in operation.
Page 140: Specific Applications
FUSION can support a maximum of 32 modules, of either MODBUS or SMX modules on each of the EIA-485 port located on the FUSION back panel. Thus 32 modules on the RS-485 port and 32 modules on the MLINK port for a total of 64 modules all together.
Page 141: Smx Module Installation
SMX module can be installed to the right of the FUSION as illustrated below (See B). The shelf used to support the SMX module also serve the purpose of fixing the FUSION in the rack. This enables the maximum I/O density in a single rack space.
Page 142: Smx-48Bi Back Panel Review
(daisy chained) the power source to all SMX modules. If doing so, consider 200mA@ 48Vdc / SMX module. For maximum reliability, power each SMX module to a redundant fuse panel independently. Use #24 to #18 AWG to wire the SMX power source. © 2018 Multitel – FUSION User Manual v4.82...
Page 143: Smx Modbus Setup
2. Blinking orange twice for Feed_B The LG, FEED_A or FEED_B faults can be reported back to FUSION using the extra binary input channel named M(x)S1 to M(x)S5. These channels are available in the CONFIG menu for each SMX binary input module. Look at the bottom of the web page.
Page 144 FUSION module configuration. IMPORTANT NOTICE: The SMX MODBUS address and the FUSION module reference number may be different, therefore a blank space has been provided on the SMX front display to designate the associated FUSION module number. Default Setting...
Page 145: Figure 12 - Smx Typical Modbus Setup
MODBUS address configuration, we recommend using the following MODBUS arrangement, see image below. This is not mandatory, it is a suggestion in order to minimize the impact on your FUSION operating parameter configuration. Set the SMX module’s communication speed according to the actual MODBUS network.
Page 146: Smx Modbus Wiring
Be sure to connect the IN-, IN+, terminals accordingly, respect the polarity, otherwise MODBUS communication will not take place. The front display is equipped with LED which provides error code for easier trouble shooting. MODBUS wiring to the FUSION is also discussed in the installation section 11.8.
Page 147: Smx-48Bi Alarm Connector (J3) "Wiring
BIX or 66 block. Using a 25 pair Telco Cable (Not provided), the 48 binary inputs of a FUSION can be routed to a block in minutes. This makes it a time saving element when making legacy RTU replacement in existing Telecommunication centers.
Page 148: Smx-24Ai Analog Input Wiring
The following table provides the cross reference between the analog input channel mnemonics and the J1 to J6 connector’s pins. For detailed information on analog input operation, see section 3.5. Figure 16 – SMX-24AI analog input channel connector pinout © 2018 Multitel – FUSION User Manual v4.82...
Page 149: Uploading The Smx Module Code
In the case of an upload interruption, before it was completed, the SMX module stays in the BOOTLOADER and waits for a new code. The SMX module is then in fault, the FUSION cannot read the data. When the updgrade is completed and one or few SMX modules reside in the BOOTLOADER, retry to submit the firmware again.
Page 150: Door Access Control (4)
8.2.1 System description The FUSION has the ability to control the entry to a telecom site or the access to specific rooms within a telecom site. FUSION interfaces with existing proximity card readers as long as they operate on the standard Weigand 26-bit security protocol.
Page 151: Hid Card Reader Setup Into Fusion
Only users with supervisor access can see and download this file to add or remove accesses related to HID card code numbers. The file is available in FUSION, even when empty. The following example of an ACC configuration file explains in more details the main components of the file.
Page 152: Access Control Channels
8.2.3 Access Control Channels FUSION provides four (4) Access Control Channels. Each of these channels is associated with an proximity card reader installation comprised of an HID card reader, the BARIX X8 I/F module, door contact and/or locking meachanism).
Page 153: Schedule Channels
In order to give or restrain access according to a specific schedule, a SCH[x] derived channel is used together with the HID card code number for validation in the ACC Configuration file. FUSION offers 32 Scheduling channels. Each of these channels can be activated only once within a 24 hour time frame.
Page 154 The occurrence counter is used to tally the number of valid Reset Occurrence state changes. Permission to reset occurrence counter: Yes counter or No Example of a programmed schedule on the HTTP(S) interface: © 2018 Multitel – FUSION User Manual v4.82...
Page 155: Remote Modbus Display (Rmd)
COMMUNICATION 8.3 REMOTE MODBUS DISPLAY (RMD) As an accessory to the FUSION, this Remote Modbus Display can be used to remotely show critical parameters such as environmental conditions, power and cooling capacity ratios, plant/battery voltages and load currents of DC power systems.
Page 156: Application Example
A Binary Fail signal, BFDISP, is activated when the configured Modbus Display is unavailable. 8.3.1 Application example In this example, the four (4) lines configured in FUSION are displayed on the Remote Module Display. The units are the ones configured in the channel linked to the selected lines.
Page 157: Communication
Telnet and SSH protocols can also be deactivated by a user with supervisor access by setting a specific parameter in the "General System Parameters" function (see section 3.3). 9.1 FRONT RS-232 AND USB PORT Since most recent laptops are no longer provided with serial ports FUSION is now equipped with both RS-232 and USB ports. RS-232 port: The RS-232 serial port located on the front panel card is used mainly for local access.
Page 158: Port Configuration
Procomm Plus When the laptop is properly connected to the FUSION USB port an additional (COM“x”) port will appear from the available COM port selection. Select this port, set speed to 115200 baud and then you will connect to FUSION.
Page 159: Rear Rs-232 Port
X.25 Network PAD or interface intelligent systems such as Generator Controller, UPS, HVAC system or any other systems equipped with a RS-232 serial port and an ASCII command-line interface. Multitel suggests a rack mounted and certified 56kbps external modem powered by 48 volts. Table 68 - Rear RS-232 connector definition (DB-9F)
Page 160: External Modem Connection
3. Adjust the FUSION and peripheral equipment baud rate (2400 baud recommended). 4. Adjust the communication protocol to 8N1 and the baud rate (2400 baud recommended). 5. Dial the FUSION phone number, establish the communication and at the prompt (>>>), type the “HUB” command.
Page 161: Port Forwarding Protocol
Figure 18 – Pass through peripheral intelligent connections (HUB command) 9.2.4 Port Forwarding Protocol Port Forwarding or port mapping is a protocol supported by the FUSION which enables the FUSION to emulate a basic ROUTER port forwarding functionality. Thus, a user or host application/service can be redirect to any FUSION serial port (Except the MLINK and MODEM port) by Telnetting the FUSION’s IP and pre-configured port...
Page 162: Rear Mlink (Rs-485) And Rs-485 Ports
TCP keepalive is supported by the FUSION and transparent to the user, it can be used by the host computer to verify that the FUSION at the remote end of the connection is still available.
Page 163: Table 71 - Mlink Connector Definition (Rj-12)
(may be used as terminal) Each MODBUS Module on the MODBUS RTU communication bus is allocated a unique address. In FUSION, each one of these devices is configured as a MODULE. For more information on how to configure modules, see section SMX and Generic MODBUS MODULES (64).
Page 164: Modbus Connector
Expansion Shelves can be connected to these ports. 9.3.1 MODBUS connector When cabling MODBUS devices back to the RS-485 port of FUSION, it may be convenient to use the “MODBUS connector” to convert the RJ-12 connector type to a screw type terminal.
Page 165: Modbus Modules
Because customer requirement needs for monitoring vary, FUSION is designed to be easily and efficiently adapted to different monitoring needs. FUSION can be set up to perform many different applications using the variety of commercially available MODBUS modules. E.g. Energy Management, AC power measurement, Power Quality measurements, Building automation and many others.
Page 166: Modbus Rtu Protocol
(PVC) with a PVC-type Packet Assembler-Disassembler (PAD) as the communication interface. The back panel RS-232 or RS-485 port may be used to connect one end of the PAD to FUSION. The other end is normally a special connection to the X.25 network. Specific considerations may be required upon installation and configuration.
Page 167: Rear 56K Modem (Optional)
The modem is IC-03 and FCC part 68 compliant. The 56k modem provided is only compatible with regular analog telephone lines (POTs lines). It will not work on PBX digital lines. 1. Connect one end of the modular cable supplied with FUSION to the RJ11 jack designated “MODEM” at the back of the unit.
Page 168: Modem Configuration
The Dialup bridge is a machine to machine protocol and therefore the Command Line Interface commands used by human to interface with the FUSION are no longuer available to users. To revert back, use the Ethernet port or local USB/RS-232 to modify the MODEM Port protocol.
Page 169: Rear Ethernet Port
(straight-through or crossover) and configures the appropriate connection which eliminates the need for crossover cables to connect FUSION with a PC. For Auto-MDIX to operate correctly the speed on the interface and duplex setting must be set to "auto".
Page 170: Figure 21 - Ethernet Connection
There are two (2) LEDs on the RJ45 connector to indicate the network status and the communication activity. Name Colour Status LINK Not lit No TCP/IP connection LINK Solid Green TCP/IP is detected ACTIVITY Lit Green Ethernet activity ACTIVITY Not lit No Ethernet activity © 2018 Multitel – FUSION User Manual v4.82...
Page 171: Tcp/Ip Stack Protocol (Dns)
NTP servers, SNMPget modules, Ping function, Callout function, SMTP Email protocol function, Radius and Syslog servers. So, when you type a domain name instead of an IP address, FUSION looks up the name on an available DNS server and resolves it to its IP address.
Page 172: Tcp Port Configuration
The IP address must be set to a unique value in the network. (See APPENDIX A – IP ADDRESS AND SUBNET MASK). The default IP address for FUSION is 192.168.1.1 The network administrator/manager will provide the IP address and port number dedicated to FUSION 10BaseT/100BaseT connection. Since FUSION can only address one application the Telnet terminal is commonly assigned TCP port number 23 (standard port value for Telnet communications).
Page 173: Ethernet Cellular Router
Mega to Giga bytes data transfer volumes for their respective territories. If the FUSION is to be used from a mobile station it is important to note that getting close to the border regions of neighbouring countries could create roaming connections to one of their networks and thus will affect the price plan package.
Page 174: Snmp Protocol
A standard Management Information Base (MIB) for FUSION is available by contacting Multitel Customer Service. www.multitel.com FUSION supports SNMP v1 \ v2c \ v3 (GET, WALK and TRAPs) based on RFC standards applicable to this protocol. The information provided in this section is structured for users knowledgeable of the SNMP protocol.
Page 175: Snmp Trap
A "Cold Start Trap" is sent when FUSION boots up. Traps by specific alarm levels are sent by the FUSION callout function when the triggering condition is true. Each trap sent contains "Variable Binding" which is detailed information related to the alarm sent (e.g. product name, alarm level, identifying the related OID, symbol, name of alarm occurrence, message configured in the callout, hours the alarm).
Page 176: Snmp Protocol Configuration Parameters
None SNMPv3 Authentication Password This parameter is available for configuration only if the MD5 protocol has been selected at SNMPv3 Privacy Protocol None the SNMPv3 Authentication Protocol. Select: None, DES or AES © 2018 Multitel – FUSION User Manual v4.82...
Page 177: Snmp Parameter View On The Http(S) Interface
SNMP on the left submenu. 9.5.11 Email protocol (SMTP) FUSION can send callouts via email. Up to four (4) email addresses can be configured along with a subject and a message for the callout. To configure the Email protocol, click on Config from the top menu (Supervisor access only) and then choose EMAIL protocol on the left submenu.
Page 178: Ssl Protocol (Https)
Upload on the left submenu. It is then possible to load the SSL Private Key and SSL Certificate. For accessing FUSION’s HTTP(S) interface when HTTPS mode is enabled type the IP address in the browser address bar the browser will automatically be redirected from HTTP to HTTPS. Certificate validation will be exchanged for authentication and HTTPS will appear in the address bar.
Page 179: Ssh Protocol
With this message, SSH is warning you that it doesn’t know about this host yet. It shows you the fingerprint of the FUSION’s public key; if you know what the fingerprint should be, it allows you to verify the host match. If you answer YES, it sends you its public key and the next time you establish an SSH connection, there will be no warning.
Page 180: Radius Protocol
FUSION can communicate with a RADIUS server to identify users on a centralized database. When the RADIUS protocol is deactivated or the RADIUS servers (primary and backup) not available, FUSION uses its own internal database. It is therefore recommended to keep at least one supervisor access configured in FUSION.
Page 181 This file is easily readable and editable using a simple text editor; once edited you have to add the following line at the end of the file: $INCLUDE dictionnary.multitel Following is a copy of the Multitel’s RADIUS dictionary file (this file is available on the Multitel’s CD-ROM disc). #_*_text_*_ # Multitel dictionary # $Id: dictonary.multitel v1.0...
Page 182: Syslog Protocol
Local use 7 (local7) For FUSION specific application, the system log file and history file are set to be compatible with the SYSLOG protocol. Every messages logged into these files are also send to the SYSLOG server when enabled. The server does not send an acknowledgment of the receipt message and there is no coordination between transmitter and ©...
Page 183 FUSION COMMUNICATION receiver; so even if the protocol is enabled in FUSION and there is no server connected, messages will be sent and there will be no failure messages in FUSION. Following is a table with the facility and severity codes used with FUSION’s history and system log files.
Page 184: Table 83 - Syslog Protocol Configuration Parameters
<14> and comes from the System log file (system). In FUSION, to configure the SYSLOG protocol, click on Config from the top menu (Supervisor access only) and then choose SYSLOG protocol on the left submenu. Table 83 - SYSLOG protocol Configuration Parameters...
Page 185: Specifications
Mechanical dimensions do not include the mounting bracket, wiring or back panel extension accessory. 10.2 ELECTRICAL FUSION is powered by a DC Power Input. AC supply is possible only through an AC/DC converter. Please contact Multitel Customer Service to get more information about the use and specifications of the required AC/DC converter for the specific application requirement.
Page 186: Environmental
10.3 ENVIRONMENTAL FUSION meets or exceeds the following operating temperatures. It is recommended that ventilation holes be kept clear during regular maintenance routines for better airflow circulation. The maximum operating altitude of FUSION is 7000ft (2000m).
Page 187: Electrical Safety
The prod 10.4.2 RoHS Compliancy As of June 2015, the FUSION and SMX modules are compliant with the new RoHS Directive. The new Directive officially known as Directive 2011/65/EU. The RoHS Directive restricts the use of Lead (Pb), Mercury (Hg),...
Page 188: Fusion & Smx Module's I/O Channels
(turn ON/OFF) specific equipment operations. The table below illustrates the specifications for each I/O channel type found on these Hybrid I/O cards and the SMX-48BI. The SMX-48BI is a FUSION expansion module which provides up to 48 binary inputs. See Binary Input specification for detailed specifications that relates to this module.
Page 189: Communication Ports
Connector 3.5mm Plug in connector Configuration 2 wire/4 wire Connector RS-485 Name Isolation 1.5kV Protocol MODBUS RTU Echo Full duplex Emulation None 1200, 2400, 4800, 9600, 19,200, 38,400, Baud Rate 57,600, 115,200 © 2018 Multitel – FUSION User Manual v4.82...
Page 190: Modbus Modules
Communications is only available on RS-485 and MLINK communication ports over a half-duplex (two wires + common). • As per RS-485 standards, Multitel recommends not exceeding 600ft between the FUSION and the MODBUS modules. • Standard baud rates are 9600 and 19200, but adjustable up to 115200 baud •...
Page 191: Expansion Shelf I/O Cards
32 user-programmable SPST Rated load: 2A @ 30 Volts micro-relays. Maximum operating voltage 220 Volts  1 Power/Fail LED and Fail Maximum operating current: 3 Amps relay. Maximum switching capacity: 60 Watts © 2018 Multitel – FUSION User Manual v4.82...
Page 192: Date And Time Precision
10.9 DATE AND TIME PRECISION FUSION is equipped with a Real-Time clock that keeps track of the date and time (century, year, month, hour, minutes, and seconds). It includes a Battery Backup circuit that keeps time even when the power is off. Other timekeeping functions include Alarm and Watchdog, and a calibration register where higher accuracy is required.
Page 193: Installation
FUSION is a scalable system as it provides a set of hybrid I/O channels and a wide variety of Network Interfaces. I/O channel expansion is possible using the Expansion Shelf and Intelligent I/O Cards or using MODBUS modules through the serial communication bus (MODBUS RTU) and SNMPget modules via an IP network.
Page 194: Equipment Supplied By Multitel
 Terminal lugs (fork type or others) #22-16  In-line fuse holders (to protect FUSION from signals connected to the shunts or to any point other than ground Multitel ordering code : FSBL-TL)  Fuses, 2 amp. and ½ amp.
Page 195: Mounting Fusion
FUSION chassis and the short side of the bracket to the framework. To mount the chassis in a 23" framework screw the short side of the brackets to the FUSION enclosure and the long side to the framework. The front end of the chassis is aligned with the framework with holes at 1" center or with holes at ½"...
Page 196: Figure 25 - Fusion Rack Installation
FOR 1" OR 1 1/4" SPACING If you have acquire the FUSION with the SMX shelf. All the installation material is provided for a 19” or 23” rack installation. Note that the “centered bracket” are not provided when this option is selected.
Page 197: Wall Mounting
Multitel reserves the right to change and or modify the wall mount bracket specification without notice. 11.2.4 Chassis ground Once FUSION is installed in the rack the chassis must be connected to a reliable ground source. The ground wire shall be installed in accordance with local electrical safety standards. •...
Page 198: Wiring Power Input
11.2.5 Wiring power input FUSION is powered by a continuous -48Volt DC power source. The monitor is equipped with A & B feed positions for power redundancy. Both feeds must be powered; otherwise a system error will be generated unless the “FEEDA/FEEDB lost detection”...
Page 199: Wiring I/O Channels
#20, #22 or #24 AWG stranded wires. Binary Input and Relay Output should be wired with #22 or #24 AWG solid wires. The following tables describe the connections required for FUSION I/O channels and SMX-48BI and SMX-24AI.
Page 200: Figure 28- I/O Channels Pin-Out Fusion Option Exp1
FUSION INSTALLATION Figure 28- I/O channels pin-out FUSION option EXP1 Figure 29 - I/O channels pin-out FUSION option EXP1-EXP2 Figure 30 - I/O channels pin-out FUSION option EXP1-EXP3 © 2018 Multitel – FUSION User Manual v4.82...
Page 201: Figure 31 - I/O Channels Pin- Out Fusion Option Exp1-Exp4
FUSION INSTALLATION Figure 31 - I/O channels pin- out FUSION option EXP1-EXP4 Figure 32 - I/O channels pin-out FUSION option EXP3 Figure 33 - I/O channels pin-out FUSION option EXP3-EXP3 © 2018 Multitel – FUSION User Manual v4.82...
Page 202: Figure 34 - I/O Channels Pin-Out Fusion Option Exp3-Exp4
FUSION INSTALLATION Figure 34 - I/O channels pin-out FUSION option EXP3-EXP4 Figure 35 - I/O channels pin-out FUSION option EXP4 Figure 36 - I/O channels pin-out FUSION option EXP4-EXP4 © 2018 Multitel – FUSION User Manual v4.82...
Page 203: Cabling And Wiring Distance
Not following these recommendations may: damage the product, result in noisy signals or lead to false alarms. Such problems will result in technician dispatches. © 2018 Multitel – FUSION User Manual v4.82...
Page 204: Table 93 - Maximum Distances Between The Transducers And Fusion & Smx Modules
In that case, these parts or accessories are replaced by equivalent products. Contact Multitel service for the list of available accessories. Table 93 - Maximum distances between the transducers and FUSION & SMX modules Type of...
Page 205: Wiring Analog Input Channels
FUSION & the SMX-24AI analog channel. FUSION can be configured with up to eleven (11) analog input channels where ten (10) are hybrid channels and one (1) is specific to humidity measurements. The SMX-24AI can be configured to measure twenty-four (24) hybrid channels.
Page 206: Connecting A Dc Voltage Input
INSTALLATION 11.4.1 Connecting a DC voltage input FUSION performs measurements in differential modes. Use the 65Vdc or 10Vdc front end to measure diverse DC voltage such as -48V plant voltage, battery string voltage, mid-point string voltage, start battery voltage, etc.
Page 207: Connecting A Shunt To Monitor Dc Current
Stranded wires 24 AWG or larger should be used for this connection • Positive lead is connected to positive pin connector and negative lead is connected to negative pin connector. Make certain the analog channel front-end is assigned to ±50 mV. © 2018 Multitel – FUSION User Manual v4.82...
Page 208: Connecting Dc Current Transducer
(black and white lead) using twisted pair of #24 AWG stranded wire. Ensure that that the proper analog input front end (10Vdc) is set before connecting the input signal. An improper signal may permanently damage the equipment. © 2018 Multitel – FUSION User Manual v4.82...
Page 209: Connecting Temperature Probes
However the temperature measurement can only be performed using specific temperature probes available from Multitel. They are ideal for remote installation as they are immune to voltage drop and noise over long distances due to their high impedance.
Page 210: Figure 42 - Ambient Temperature Measurement (M-4107)
4. Perform the configuration of the analog input channel (refer to the user manual of the monitoring device). 5. Configure alarm thresholds as needed for the application. Figure 42 - Ambient temperature measurement (M-4107) © 2018 Multitel – FUSION User Manual v4.82...
Page 211: Figure 43 - Sealed Battery Temperature Measurement (M-4103)
Note: Do not use this probe to measure outside temperature. For good adhesion the surface must be clean and dry. It should be cleaned prior to installation to eliminate and surface grease or oil. © 2018 Multitel – FUSION User Manual v4.82...
Page 212: Figure 45 - Exterior Temperature Measurement (M-4115)
Figure 45 - Exterior temperature measurement (M-4115)  Probe cable should be run inside ductwork for protection.  Connect the probe black wire to the negative pin and the red wire to the positive pin of the connector. © 2018 Multitel – FUSION User Manual v4.82...
Page 213: Connecting A Humidity Sensor
11.4.5 Connecting a humidity sensor Relative humidity measurement is made possible using a specific sensor that is available from Multitel. The Sensor should be installed away from cold or heat sources such as ventilators or rectifier cooling fans. The sensor is not affected by repeated condensation and provides high reliability and long term stability.
Page 214: Connecting Ac Current Transducer
Ensure that that the proper analog input front end (1.4Vrms) is set before connecting the input signal. An improper signal may permanently damage the equipment. Figure 47 - Single phase AC current measurements © 2018 Multitel – FUSION User Manual v4.82...
Page 215: Connecting Ac Voltage Transformer
Connect the FRAME GROUND to the SDTA using #14 AWG cable. • Connect the "OUTPUT" of the SDTA to the corresponding analog input channel on FUSION using #24 AWG stranded wire or larger. Ensure the selected Hybrid Analog Input Channels have the 23Vrms front end programmed. Improper signals may permanently damage the equipment.
Page 216: Figure 49 - Single Phase 240 Volt Measurement
FUSION INSTALLATION Figure 49 - Single phase 240 volt measurement © 2018 Multitel – FUSION User Manual v4.82...
Page 217: Wiring Binary Input Channels (Dry Contacts)
Multitel cannot guaranty that the input impedance from third party equipment would be compatible with the FUSION, even with a diode. So, in case of uncertainty, Multitel offers its services to help clarify the situation. Figure 50 - Binary Input channel detection circuit Figure 51 - Binary input channel connections ©...
Page 218: Wiring Binary Output Channels (Relay)
11.6 WIRING BINARY OUTPUT CHANNELS (RELAY) FUSION can control the operation of micro-relays to start/stop the operation of systems such as generators and HVAC systems. The relay may also be used to issue discrete alarms for local telemetry systems. A total of 6 relays are available.
Page 219: Figure 53 - Two Wire Rs-485 Subnet
RS-485 wiring can be complex when multiple devices are connected. When running wires for long distances, RS- 485 networks should always be wired in a bus (or daisy-chain) configuration. The bus should start at the FUSION and then be run to each meter in turn. Branches and “home-run” wiring (i.e. each module is wired back to FUSION individually) should be avoided.
Page 220: Fusion Start-Up
If no problems occur during step 1 the software is then loaded. When an Expansion Shelf is present FUSION will transfer the software to all the I/O cards. This may take a few seconds. During this procedure the FUSION Power/Fail LED indicator will display green while the I/O card LED will display yellow.
Page 221: System Operation Checklist
Does the front panel LED operate as required? Before leaving the site ensure that the CD ROM is stored close to the FUSION device and that access to the device and alarm reception at the surveillance center is configured and functioning correctly.
Page 222: Maintenance
FUSION or SMX-24AI signal processing circuits. A printout report is shipped with each individual FUSION or SMX-24AI module and this information must be kept available for future reference. It is good practice to save or record the factory calibration settings in the event that the provided report are lost.
Page 223: Figure 546 - Fusion And Smx-24Ai Signal Processing Circuit
FUSION MAINTENANCE Figure 546 – FUSION and SMX-24AI signal processing circuit Tools required for calibration: • 3½ digit multi-meter or better. • ½ digit clamp-on ammeter. • Laptop computer using a direct RS-232 cable, USB cable or Ethernet cable. •...
Page 224: Fusion Analog Step-By-Step Calibration Procedure (Exp1 & Exp2)
 23Vrms. The FUSION software calibration is performed on a selected chanel basis, but in reality the modification of the Zero and Gain compensation value impacts the Front End. Thus every channel configured with that Front End will also be affected.
Page 225: Calibrating The Humidity Channel (Fusion Only, F1A5)
For FUSION analog, press “4” and enter the higer end value, 2. To adjust automatically the gain compensation value, press “G” for the FUSION analog 3. To “fine tune” the Gain compensation value manually, press the “<” and “>” keys.
Page 226 For more detailed information on the Command Line Interface, go to the section 4.2. The calibration menu differs between the FUSION analog channel and SMX- 24AI, however the process is the same. >Calibration 1–analog fusion (FxAy)
Page 227: Calibration Report
Proceed to the next channel/Front End to be calibrated. 12.1.5 Calibration report Use the “CALIBR” command to display a detailed calibration report for the selected item (FUSION analogs or SMX-24AI channels). This report displays programmed EXP card analog channels and Expansion Shelf I/O card analog channel calibration values.
Page 228: Troubleshooting
12.2 TROUBLESHOOTING This section provides a list of the problems that may occur and the possible causes for these problems. If a problem cannot be diagnosed and/or solved with this section contact the Multitel’s Customer Service at mailto:support@multitel.com or at (418) 847-2255.
Page 229: Fusion Power/Fail Led
12.2.2 FUSION POWER/FAIL LED This LED informs the user of any type of FUSION failure. This LED is located next to the USB port on the front panel. Table 90 and 91 describe possible causes and solutions for the various colours and flashing sequences of the POWER/FAIL LED.
Page 230: Smx Module Troubleshooting
Warning, SMX system in test mode Wait few seconds times Flashing orange 7 Warning, SMX configuration not received Verify SMX module addressing times Flashing orange 8 Warning, SMX code executing ( Wait few seconds times BOOTLOADER) © 2018 Multitel – FUSION User Manual v4.82...
Page 231 Verify module type, SMX firmware Invalid message, possible TX error, bad version, address conflicts and format, function code not recognized by the communication speed before SMX module. contacting Multitel Customer Services. © 2018 Multitel – FUSION User Manual v4.82...
Page 232: Expansion Shelf - I/O Card Problem (Analog, Event Or Output)
Table 106 - Specific problems: Analog card FAIL LED Colour Possible cause Solution Flashing red 7 times Timer error Modify configuration Flashing red 8 times Low battery Replace the 3.3 V Battery © 2018 Multitel – FUSION User Manual v4.82...
Page 233: Memory Backup Battery Replacement
The battery life is approximately 10 years. When the battery gets low the POWER/FAIL indicator will flash red 3 times. The battery should be replaced at this point. Please Contact Multitel Customer Service for assistance with this task. The required battery model is: CR2032.
Page 234: Abbreviations
LED: Light Emitting Diode WLAN: Wireless local Area Network Low Float VRLA: Valve Regulated Lead Acid battery LRE: Logic Return Equalizer XMODEM: Simple File Transfer Protocol LVD: Low Voltage Disconnect Analog Input © 2018 Multitel – FUSION User Manual v4.82...
Page 235: Appendix A - Ip Address And Subnet Mask
These addresses, called "class E", are reserved. 14.4 NETWORK ADDRESS The host address with all host bits set to "0" is used to address the network as a whole (e.g. in routing entries). © 2018 Multitel – FUSION User Manual v4.82...
Page 236: Broadcast Address
However the network is not connected to the Internet and there are plans to connect to the Internet or the network is connected to the Internet and FUSION will be operated on an Intranet one of the sub networks below should be used.
Page 237: Appendix B - Snmp Information
FUSION SNMP TRAP DESCRIPTIONS IN TERM OF OIDS The following tables describe the six different Traps types sent by the FUSION. Table 107 and Table 109 provide the different Trap type descriptions while Table 108 and Table 110 describe the variable descriptions sent with the Traps.
Page 238 MIB DOME MULTITEL. When sending the Walk command to the FUSION it will return only the active mnemonics. Please note that to calculate the complete information from 3402..which is given in a table below in relation with TH.., the reference of 34020000 for TH1 can be taken by adding the number of the TH minus 1.
Page 239: Index
COMRS485 ............162 HTTPS ............... 176 configuration file............99 Hubbing ............. 158 CONST[x] ........... 121, 122, 135 HUMIDITY CHANNEL ........223 constant ..............135 humidity measurement ........211 CSV format ............87 initialise Chronometer .......... 61 © 2018 Multitel – FUSION User Manual v4.82...
Page 240 Version ............... 74 Real-Time clock ..........190 views ..............130 Register address ..........45 VISMAJ ............... 56 RESET ..............58 VISMIN ..............56 Reset Chronometer channels ........61 volatile memory ............ 96 Retriggable ............106 Watchdog ............190 © 2018 Multitel – FUSION User Manual v4.82...
Page 241 FUSION INDEX Watthour .............133 WIRING DISTANCE ........... 201 WEB page refresh rate ........28 XMODEM .............86, 177 © 2018 Multitel – FUSION User Manual v4.82...
