Summary of Contents for Pacifica AutoClean AC7 Mars

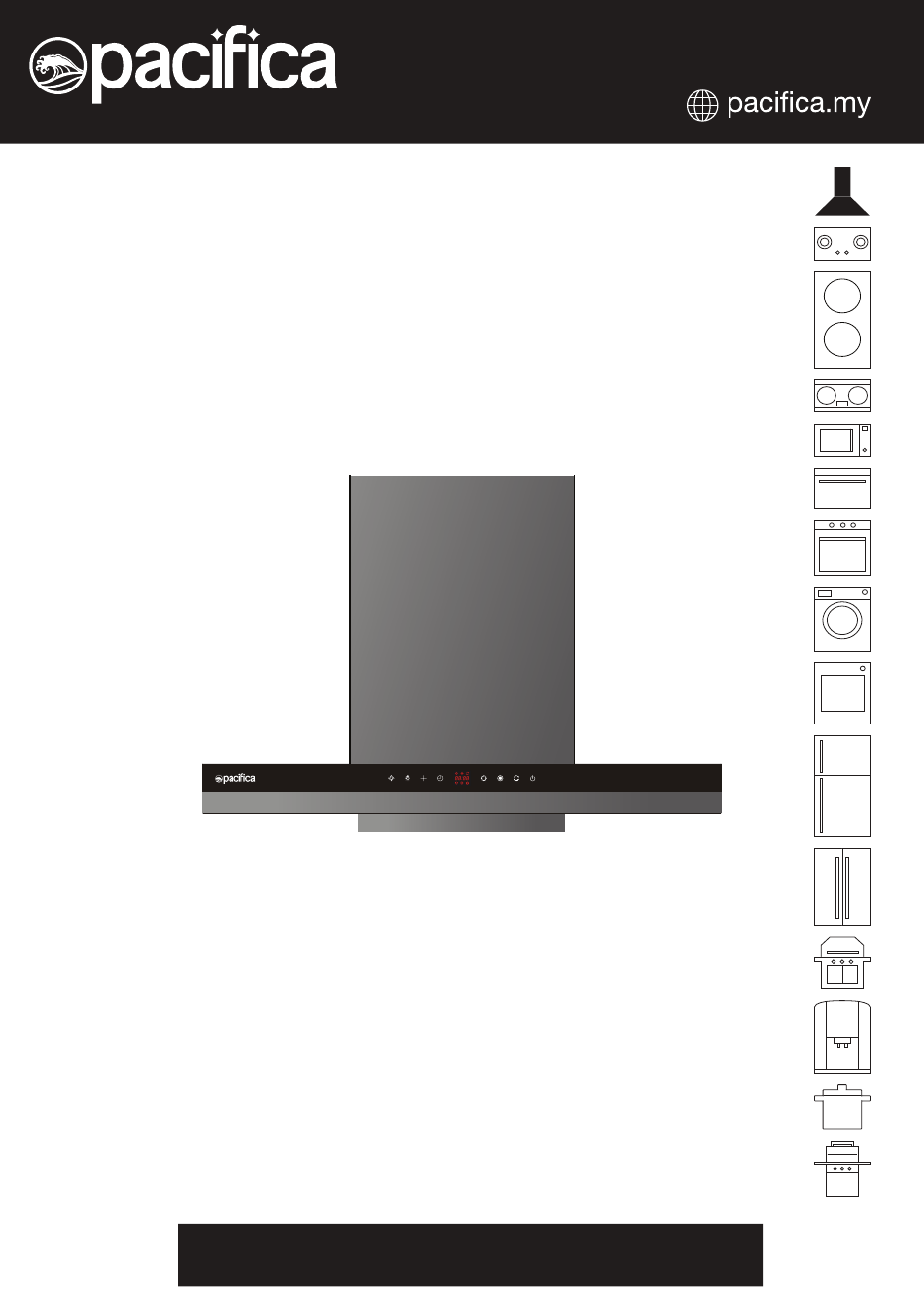

- Page 1 AC7 Mars AutoClean Chimney Hood KEEP IN A SAFETY PLACE Before operating this hood, Please read the instruction carefully...
-
Page 2: Parts Name
Parts Name On / Off S/Steel Flue Switch Air Chamber LED Light S/Steel Oil Cup Baffle Filter... -
Page 3: Packing List
Packing List Items Items AutoClean Cooker Hood Adjustable duct connector User manual Screw Warranty card Duct cover bracket Marking label STA4 x 10 Screw Aluminium soft ducting M4 x 8 Screw Oil cup Small bottle/amy mild detergent Cooker hood bracket Water jar Aluminium tape Connector... - Page 4 Warm Reminder Closely follow the instructions set out in this manual. not complying with the instructions in this manual, is declined. The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use. The hood can look different to that illustrated in the drawings in this booklet.
-
Page 5: Ducting Version
Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost(s) only in extreme situtations. -
Page 6: Installation
Installation The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 67cm from gas hob/electric hob or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to. INSTALATTION GUIDE provided must carefully observed and install by experienced and qualified installers only. - Page 7 Expansion wall plugs are provided to secure the hood to most types of walls.ceilings. However, a qualified installer mus verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall.
-
Page 8: Control Panel Indication
Control Panel Indication Switch ON/OFF - Touch one time to select 7 function/modes available on the control panel, as per following & its function. Smart Air Circulation - Air changing in every 5 hours after switch on, with low speed or you may on this function after cooking to have air change Booster Fan (3 minutes) - This mode allow high spped suction to channel hot air, grease, ordour for 3 minutes. -
Page 9: Check List
Check List Recomended checking/solution If you found any unsual issue, please stop using and unplug the power socket, and check according to the following information. Problems Reason Check/Solution Plug in the outlet not connected Pls switch on the plug All machine function Plug has no power Pls call the electrician to check &... -
Page 10: Maintenance
Maintenance MAINTENANCE ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. Cleaning The cooker hood should be cleaned regularly (at least once a week (AutoClean) baffle filter once 2 weeks) internally and externally. -
Page 11: Product Information
Product Info & Dimension Product Information Model No. Voltage Frequency Motor input power Airflow Dimension Noise Net weight Input power Ducting (W x D x H) Level Smell/odour Grease Static LED Light Air Pressure reduce efficency separating Pressure AC7 Product Dimension (Unit:mm) - Page 12 Sole Distributor: Ge Green Sdn. Bhd. Menara Lien Hoe (HQ) Lot 18.2, 18th Floor, Menara Lien Hoe, 8, Persiaran Tropicana, 47410 Petaling Jaya, Selangor.
