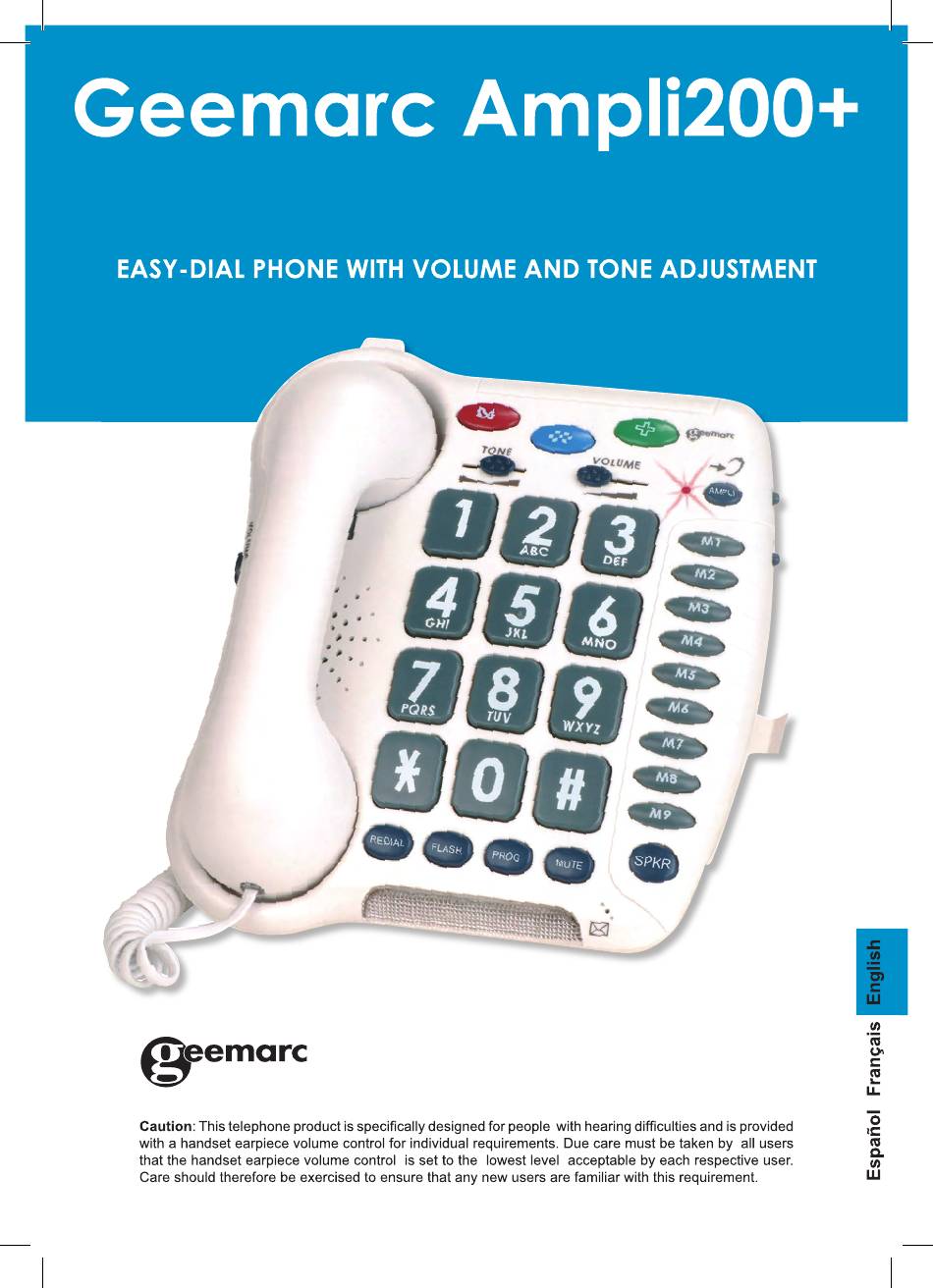

Geermarc Ampli200+ User Manual

Easy-dial phone with volume and tone adjustment

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ampli200+ and is the answer not in the manual?

Questions and answers

Summary of Contents for Geermarc Ampli200+

  • Page 2: Table Of Contents

    CONTENTS DESCRIPTION SETTING UP - Connecting the telephone - Alarm and ring options - Ringer settings - Tone/Pulse switch (T/P) - Time break recall switch (600/100) - Hotel message waiting switch - Wall mounting USING THE PHONE - Answering incoming calls - Volume and tone receiving - Making a call - Last number redial...
  • Page 3: Description

    DESCRIPTION Tone and volume adjustment automatically Hotel message switch activated each time you hang-up the phone Shaker socket (*) 12 V DC adaptor socket Line socket Headset socket (*) 3 priority numbers Tone reception Key to activate tone adjustment and volume Clip for wall adjustment function mounting...
  • Page 4: Setting Up

    SETTING UP 1 - CONNECTING THE TELEPHONE - Connect the handset cord - Open the battery door by unscrewing the retaining screw. Insert 4 x AAA alkaline batteries. Snap the battery door in place. In case of power failure, batteries are required for the ring. - Connect the line cord .
  • Page 5: Tone/Pulse Switch (T/P)

    SETTING UP Middle High Melody 1 Melody 2 6 (by default) Melody 3 If you don’t like the ringer melody,you can choose a new one by changing the settings as follow: - Lift the handset. - Press PROG button. - Press button.
  • Page 6: Wall Mounting

    SETTING UP 7 - WALL MOUNTING To wall-mount your telephone,slide out the clip, turn around and slide back into the wall mounting position (located in the base unit, just below the ear piece).This will ensure that the handset stays firmly in position. Make 2 holes in the wall 80mm apart, insert the wall plugs and the wall mounting screws.
  • Page 7: Using The Phone

    USING THE PHONE 1 - ANSWERING INCOMING CALL Without headset: - When an incoming call is received, the phone will ring, to answer the call lift the andset and speak. - On completion of the call, carefully replace the handset in the cradle to release the line.
  • Page 8: Making A Call

    USING THE PHONE TONE Treble Bass +10dB max +10dB max Normal Volume +20dB max Normal 15dB 35dB 15dB 3 - MAKING A CALL Without headset: - Lift the handset. - Await the dial tone and dial required number. - On completion of the call,carefully replace the handset in the cradle. With headset (option): - Press the SPKR button.
  • Page 9: Last Number Redial

    USING THE PHONE In handsfree mode - Press the SPKR button. - Await the dial tone and dial required number. - On completion of the call, press the SPKR button to release the line. - If your correspondent doesn’t answer your call, press the SPKR button again to release the line.
  • Page 10: Storing Telephone Numbers

    USING THE PHONE 7 - STORING TELEPHONE NUMBER Your phone can store12 direct memories including 3 priorities numbers (21 digits maximum for each memory). For example, the 3 priority P1, P2, P3 memories allow you to store the 3 numbers below: It is recommended to - Local,Police station, store these numbers...
  • Page 11: Dialling Stored Number

    USING THE PHONE 8 - DIALLING STORED NUMBER - Lift the handset and await the dial tone. - Press appropriate button M1, M2, ..., or M9 or one of the 3 priorities P1, P2, P3 numbers , the stored number will be dialled automati cally.
  • Page 12: Regulatory Compliance

    REGULATORY COMPLIANCE Part 68 of FCC rules information - This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company.
  • Page 13 REGULATORY COMPLIANCE Opening the equipment or any attempt to perform repairs will void the war- ranty. For service or repairs, call 248-577-5400 - Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation for information. If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this telephone equipment does not disable your alarm equipment.
  • Page 14: Guarantee

    GUARANTEE Sonic Alert warrants the phone against any defect in materials or workman- ship for the period of one year from the date of purchase. Should you experience a problem, contact our customer service depart- ment. Be sure to save your sales receipt as proof of purchase date should you need warranty service.
  • Page 15 GUARANTEE Simply send the Ampli200+ (postpaid) and a copy of your sales slip as proof of purchase to: Sonic Alert Inc., 1050 E. Maple Road, Troy MI 48083 IMPORTANT : YOUR RECEIPT IS PART OF YOUR WARRANTY AND MUST BE RETAINED AND PRODUCED IN THE EVENT OF A WARRANTY CLAIM 1050 East Maple Rd.
