sunsei CC25000 Operating Instructions

CHARGECONTROLLER CC25000
Operating Instructions

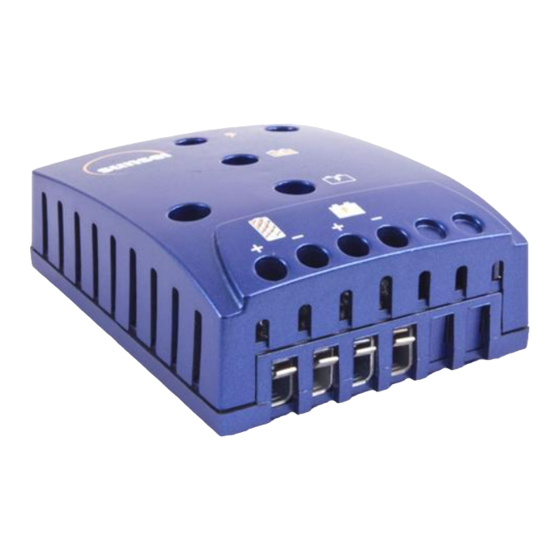

The Sunsei™ CC25000 is a highly reliable charge controller that
is ideal for Sunsei™ SolarChargers up to 25A. It will effi ciently
charge your batteries and provide years of protection from
overcharging. This protective care will prolong your battery life
and reduce maintenance requirements.

PRODUCT FEATURES

IDEAL SOLAR CHARGING
Compatible – Works with almost all types of batteries
>
and solar panels in 12V and 24V confi gurations
>
Effi cient – Over 98% effi ciency at full current
>
Full Charging – Ensures that the batteries are always
>
topped off
>
Battery Safe – Charging method maximizes battery life
>
Reduced Maintenance – From healthy charging and
>
reliable operation
>
OVER-CHARGE PROTECTION
High Voltage Limiting – Floats battery at safe voltage
>
when battery is full
>
Robust Circuitry – Control function 100% solid state
>
HIGH RELIABILITY
Simple, rugged electronics – Low component count &
>
streamlined design ensure long-term reliability
>
FEATURES
Two stage charging – Boost and fl oat charge using pulse
>
width modulation (PWM) control
>
12V and 24V systems – Operation for batteries and solar
>
panels, automatic voltage detection
>
Temperature compensation – Adjusts battery voltage limits
>
with temperature
>
LED display – Built-in battery voltage and charge function
>
indicator by LED display
>
Advanced digital control – Uses pulse width modulation
>
(PWM) control
>
Reverse leakage protection – Prevents power loss at night
>
Incorrect Wiring Protection – Reverse battery and solar
>
panel protected, surge protection
>
Terminal Block – For sound and easy wire connections
>

PARAMETERS

Nominal Voltage
Array Voltage, Max (Voc)
Charging Current, Continuous (Ip)
Operating Voltage at Battery,
Min Charging starts at :
Current Consumption
Quiescent (Night)
Boost Charge Voltage (2 hours)
Float Charge Voltage
Regulation Accuracy
Voltage Drop, Array to Battery
Operating Temperature Range
Dimensions
Weight
UNITS Sunsei™ CC25000
Volts 12 or 24
1
Volts 30 or 50
Amps 25
Volts 7 or 17 2
Milliamps <4
Volts 14.5 or 29
Volts 13.7 or 27.4
±0.150
Volts
< 220 mV
Volts
ºC (ºF)
-40 to 50 (-40 to 122)
inches (mm)
3.1x3.9x1.25 (80x100x32)
lbs. (kg)
0.40 (0.18)
1 Array voltage of 50V can only be applied with a 24V battery,
otherwise the unit will be damaged.
2 If the battery is lower than 17V, the charger will recognize it
as a 12V battery.

RELATED SYSTEM EQUIPMENT

TM
The Sunsei CC25000 is an integral part of a solar electric
power system that includes a solar panel, a battery and a
load.
SOLAR PANELS ("photovoltaic (PV) array", "solar modules"):
The Sunsei TM CC25000 is compatible with all makes and
models of photovoltaic solar panels.
The entire solar array's open circuit voltage (Voc) cannot
exceed 30V with a 12V battery or 50V with a 24V battery (the
sum of the Voc of all solar panels in series). Also, the solar
array's peak operating current (Ip) cannot exceed 25A. (This
is the sum of the peak operating currents (Ip) of all the solar
panels in parallel).
Install all panels with the correct series-parallel confi guration
to ensure proper system voltage and current.
The Sunsei TM CC25000 circuitry uses a MOSFET transistor to
eliminate leakage of the battery power into the solar panels at
night. No additional protection is needed.
OTHER CHARGING SOURCES: Systems with an additional
source of charging (alternator, battery charger, etc.) can
operate with a solar array and a Sunsei
charging sources need to connect directly to the battery on
independent lines and have their own form of over-charge
protection.
Sunsei TM CC25000 FOR NON-SOLAR APPLICATIONS:
These units will only operate with solar electric panels. Do not
use to regulate other power sources, such as a hydro or wind
generators/alternators or AC battery chargers. These charging
sources can damage the controller and/or the generating
equipment.
BATTERIES: The Sunsei
charging of standard lead-acid batteries that are normally
used in recreational vehicles, boats and remote stand alone
systems. These include wet cell batteries (with fi ller caps),
sealed, maintenance-free and gel-cell batteries. Automobile
batteries can also be charged, but these batteries are rarely
used as the primary battery in a solar system. Install all batteries
with the correct series-parallel confi guration to ensure proper
system voltage and current.
SYSTEMS WITH TWO BATTERY BANKS: When solar
charging two separate battery banks, a switch can be installed
to allow manual selection of one battery or the other.
BATTERY ISOLATORS: In installations that use a diode
battery isolator with two batteries, the Sunsei
needs to connect directly to one of the batteries or an output
from the isolator.
TM
CC25000. All
TM
CC25000 provides the proper
TM CC25000
