ZERO EMI ULTRA LIGHT NAVIGATION FIXTURE
2 NAUTICAL MILE

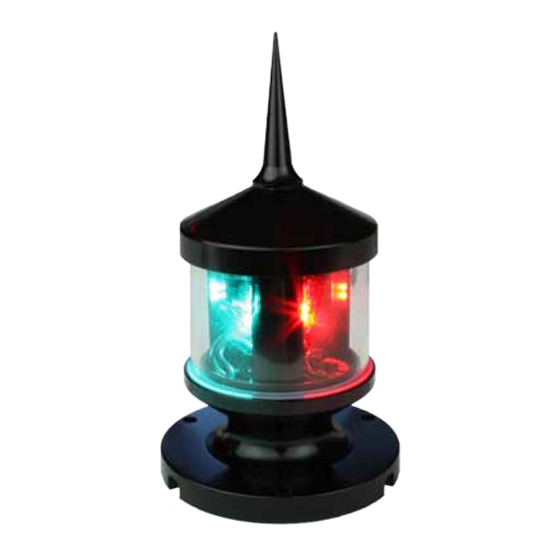

Introducing the new LLB-53Bx Series Navigation Fixtures that
produce zero EMI for the most sensitive equipment.
In keeping with AIS advances, Lunasea Lighting has developed a new
masthead light that utilizes Active Current Control technology that is
only available in 12-volt version. The masthead lamp eliminates all
high frequency noise without compromising optical capability or
mechanical and electrical speci cations.
Lunasea's Tri-color/Anchor/Flash and Anchor/Flash LED navigation
models have the added features that you asked for, and more.
This lightweight xture, made of machined aluminum weighs just
140 grams (4.9 ounces). We've added emergency ash, auto
daylight turno for anchor, and a removable bird spike. The
waterproof connector is only 0.38 inch wide for easier cable routing.
The glass lens assures excellent light transmission for the life o the
product. 3 year warranty.
• Anodized Machined Aluminum
• Ultra-light Weight, only 4.9 Ounces
• Miniature Waterproof Connector
• Glass Lens
• Maintains Full Brightness as low as 10VDC
• Three Wire Hookup
• Removable Anti-Bird Spike
• Threaded hole can mount Davis
• Daylight Sensor automatically turns o Anchor Light during Day
Voltage Range:
Power Consumption:
Light Output:
Enclosure:
Wiring:
Infrared Light Sensor
www.lunasealighting.com
Technical Data
Part #
LLB-53BK-01-00
Navigation Tri / Anchor Light / Flash
Certified USCG
COLREG 72 & ABYC-A16
Windex on top of light
TM
12VDC
5 Watt
2NM
Machined Aluminum
Removable Aluminum Bird-Spike
3 Wire
Daylight Auto-off for Anchor
(does not effect running or flash)
Advertisement
Table of Contents
Related Manuals for Lunasea LLB-53BK-01-00
Summary of Contents for Lunasea LLB-53BK-01-00
- Page 1 Introducing the new LLB-53Bx Series Navigation Fixtures that produce zero EMI for the most sensitive equipment. In keeping with AIS advances, Lunasea Lighting has developed a new masthead light that utilizes Active Current Control technology that is only available in 12-volt version. The masthead lamp eliminates all high frequency noise without compromising optical capability or mechanical and electrical speci cations.
- Page 2 NOTE: WHEN TESTING BE SURE TO BLOCK EXTERNAL LIGHT TO TEMPERARILY DISABLE AUTO ANCHOR TURN OFF Cover “Green” starboard side of lens to test daylight sensor. DIMENSIONS REMOVABLE 1.5 INCH MOUNTING (38MM) (FRONT) 3.1 INCH (79MM) cable in relation to screw 2.5 INCH (65MM) WATERPROOF CONNECTOR 0.38 INCH (9.7MM) 2.45 INCH (62MM) LLB-53BK-01-00 Rev2...
- Page 3 WARNING: When printing below template please measure results for accuracy before drilling holes. Printer may do scaling leading to wrong hole placement.
