Summary of Contents for Gyswshh Winbox P1 APEX

  • Page 1: Table Of Contents

    Winbox P1 APEX Instruction Manual Content: I Key Mapping Diagram II Device Connection(wireless mode) III Application Method of PS4 Console IV Application Method of Switch Console V Application Method of X1 Console VI Instruction of Function Keys VII COOV Manager of IOS / Android...
  • Page 2 I Key diagram...
  • Page 3: Device Connection(Wireless Mode)

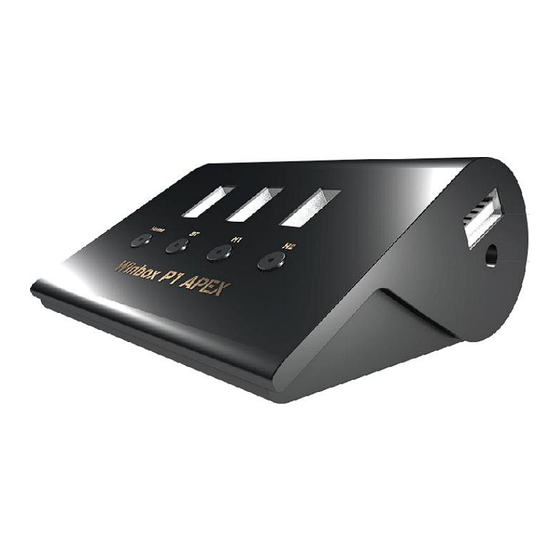

    ⑨: USB Interface(Connecting mouse/Joypad and so forth) ⑩: USB Interface(Connecting mouse/Joypad and so forth) II Device Connection Winbox P1 APEX exclusively supports three Wireless modes. Wireless A Mode: P1 APEX wirelessly connects Console Wireless B Mode: P1 APEX wirelessly connects IOS/Android APP(This...
  • Page 4: Application Method Of Ps4 Console

    The Joypad Matching Keys under Wireless C Mode: III Application Method of PS4 Console The factory default is USB cable mode:Connecting Keyboard, Mouse / Joypad with PS4 Console Disconnecting PS4 original Joypad bluetooth, the method: “ Setting - A、 Peripheral Device - Bluetooth Device - Disconnecting the Joypad”(or applying different PS4 account)
  • Page 5 D. After the indicator cycle flashing, waiting for 3 to 5 seconds and then pressing the Home key on Winbox P1 APEX (some PS4 machines shall be held for 1 second),After the Home button LED is always on, you can use the mouse and keyboard to control the PS4 .
  • Page 6: Application Method Of Switch Console

    2. Keyboard Mouse / Joypad Wirelessly Connecting PS4 Framework (Wireless A Mode,Users need to go to the official website to download and manually brush in this proprietary firmware.) User pairing (required for first time use only): 1. Run PS4 and connect P1 APEX to PS4 with USB cable. 2.
  • Page 7 (or USB interface of OTG wire). E. After the indicator cycle flashing, waiting for 3 to 5 seconds and then pressing the Home key on Winbox P1 APEX, After LED Lights of Home Key light, you could control Switch by keyboard and mouse.
  • Page 8 B. After entering into“System Settings-Controllers and Sensors-Disconnect Controllers” disconnecting original. C. Connecting the Winbox P1 APEX with Switch USB interface by presented special cable (or USB interface of OTG wire). D. After the indicator light flashes, wait 3-5 seconds. Press the Home button on the Winbox P1 APEX.
  • Page 9: Application Method Of X1 Console

    1. The factory default is USB cable mode:Keyboard mouse / Joypad wired connection X1 Console A. Inserting original X1 Joypad into Winbox P1 APEX USB interface by USB Joypad cable B. Inserting keyboard, mouse into the USB interface of Winbox P1 APEX.
  • Page 10 Home key on Winbox P1 APEX. After LED Lights of Home Key light, you could control Xbox one by keyboard and mouse. Connecting Keyboard and Mouse Connecting Third-party Joypad VI Statement of Function Keys Home Key: The Home Key function equals to PS4 Joypad...
  • Page 11 1. Pressing H1 key once and loosing (H1 yellow LED lamp is lighting constantly) 2. Pressing keyboard / mouse key once 3. Pressing Joypad key once (the Joypad is connected with P1 APEX by cable) 4. After finishing the setting, pressing H1 key once to quit from the setting model (H1 yellow LED lamp is extinguished)(you also could exist the setting model by pressing H1 after setting all) Clear All: pressing H1 key(H1 blue LED lamp is lighting constantly);then...
  • Page 12: Coov Manager Of Ios / Android

    All keys could record except from HOME key. VII COOV Manager of IOS / Android This software could provide the mobile side setting for Winbox P1 APEX and other COOV Bluetooth Device including changing keys, upgrading, recovering, sharing and mouse senior setting functions. All processes are real-time online debugging Application.
  • Page 13: Double Function

    Or you also could set it through PC COOV assistant. 2.Quadruplet Key Mapping The default of Winbox P1 APEX is general keyboard and mouse key setting.At the same time, P1 APEX has quadruplet key mapping setting which are respectively key “F1, F2, F3, F4”. The default is F1 key. Before selecting the key mapping, please select F1/F2/F3/F4 firstly and then pressing H1 to map.
  • Page 14: Default Key And Mouse Configuration

    The ballistic trajectory migrating downward (slightly): “【”key The ballistic trajectory migrating upward (slightly):“】”key For example, pressing F6 once to turn on Reduce Recoil, you could repeatedly turn on and adjust the trajectory migrating effects by the four keys “-”, “+”, “【”, “】”...
  • Page 15: Firmware/Script Update

    1.Entering into the official website (www.mycoov.com) to download and then decompress the newest firmware package to the computer desktop. 2.Holding H2 and then inserting Winbox P1 APEX by the special cable simultaneously. After loosing H2, “copy and replace” the file “firmware.bin”...
