Summary of Contents for THORLABS 2SCM1-DC

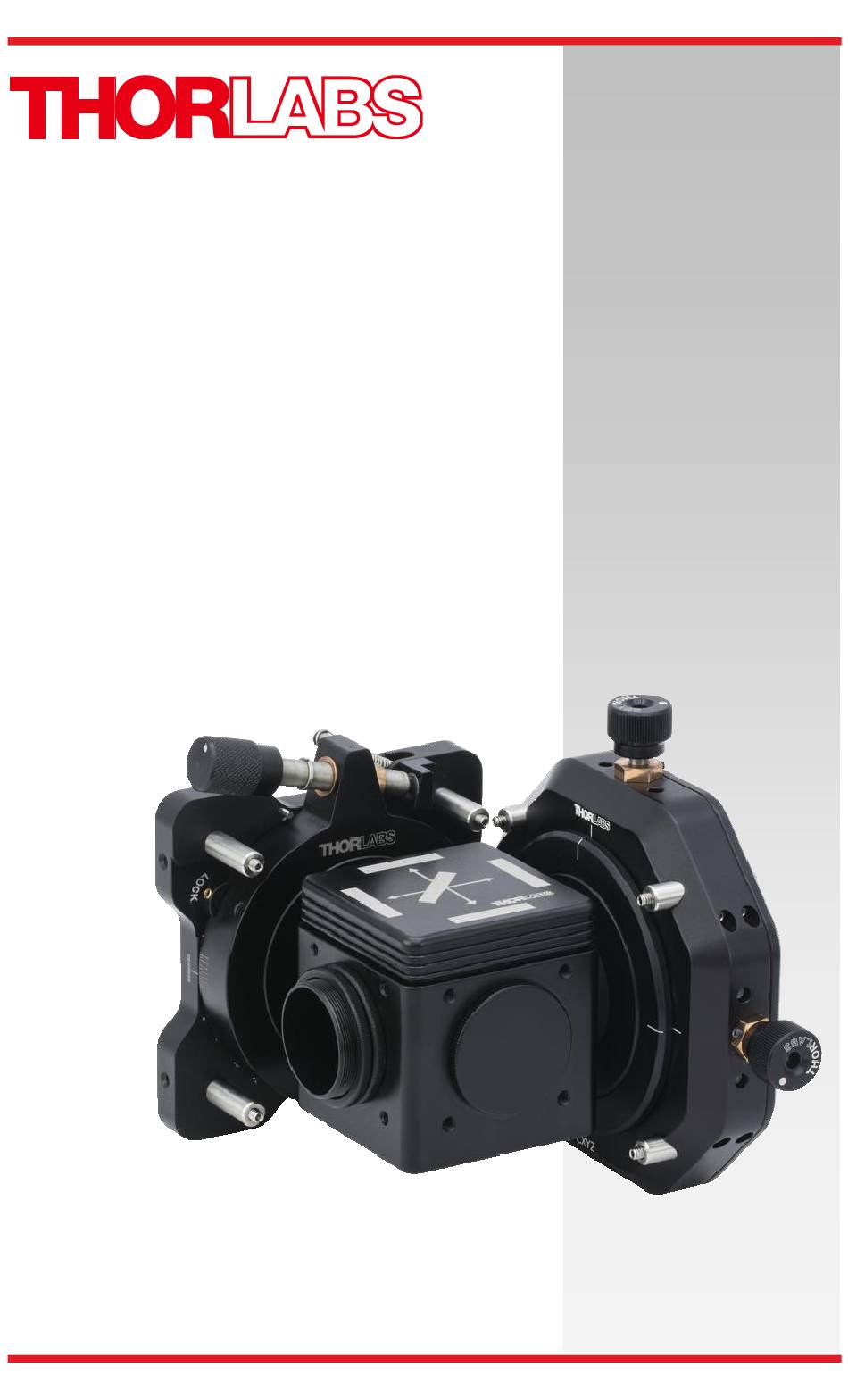

- Page 1 2SCM1-DC Two Camera Mount User Guide...
-
Page 2: Table Of Contents
2.1. Installation ..............4 2.2. Alignment ..............5 Chapter 3 Running ThorCam Software with the Overlay Feature . 6 Chapter 4 Mechanical Drawing ............7 Chapter 5 Regulatory ................. 8 Chapter 6 Thorlabs Worldwide Contacts......... 9 Rev. B, July 23, 2018 Page 1... -
Page 3: Description
Chapter 1 Description The Thorlabs’ Scientific Imaging Two Camera Adapter, 2SCM1-DC, is a two-way Camera Microscope Mount, which can be used in a variety of ways to simultaneously image the output of a microscope split by a dichroic mirror to two cameras. - Page 4 Two Camera Mount Chapter 1: Description Figure 2 Diagram showing a sample configuration for using the 2SCM1-DC. Rev. B, July 23, 2018 Page 3...
-
Page 5: Alignment And Adjustment
Thorlabs sells the removable insert separately if you have a need to swap in different filter sets (item # DFMT1). Alternately, Thorlabs offers plate beamsplitters in a 25 mm x 36 mm size, which can be utilized in place of a dichroic filter. -
Page 6: Alignment
Two Camera Mount Chapter 2: Alignment and Adjustment 2.2. Alignment Open the ThorCam Software. A small window will pop up telling you how many cameras you have connected. It should register two available cameras; if they are not both showing up, hit the refresh button. Make a note of the serial number assigned to the two cameras so you can identify which is capturing the transmitted image and which is capturing the reflected image. -
Page 7: Running Thorcam Software With The Overlay Feature
Two Camera Mount Chapter 3: Running ThorCam Software with the Overlay Feature Chapter 3 Running ThorCam Software with the Overlay Feature You should see “2 cameras” in the 1st ThorCam screen. If you don’t see them, keep hitting the “refresh” button, until they both show up. -
Page 8: Mechanical Drawing
Two Camera Mount Chapter 4: Mechanical Drawing Chapter 4 Mechanical Drawing Rev. B, July 23, 2018 Page 7... -
Page 9: Regulatory
Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 10: Thorlabs Worldwide Contacts
Two Camera Mount Chapter 6: Thorlabs Worldwide Contacts Chapter 6 Thorlabs Worldwide Contacts technical support sales inquiries, please visit www.thorlabs.com/contact for our most up-to-date contact information. Rev. B, July 23, 2018 Page 9... - Page 12 www.thorlabs.com...
