PROMIX SHERIFF-1 premium Operating Manual

30.08.2017
OPERATING MANUAL
TU 3428 – 003 – 80210527 – 14
PATENT OF INVENTION
1.

APPLICATION

Electromechanical lock "Sheriff-1 premium" is designed for locking hinged doors, opening inward and outward, with a possibility of
remote opening them with the controllers of access control systems, audio and video door phones, code access panels. The lock
design and the method of installation allow you to place the lock indoor and outdoor of protected premises.
2.

OPERATING CONDITIONS

Climatic operating conditions:
- ambient air temperature: from -40 to +50° ;
- relative air humidity not more than 95% at 35° and with lower temperatures without condensation and frost formation;
- installing indoors in any type of doors;
- resistance to the environmental exposure complies with GOST 15150-69:UHL2.
3.

TECHNICAL SPECIFICATIONS

The lock "Sheriff-1 premium" is produced in the normally open type (or fail-safe), the lock remains open when the voltage
supply is off and is closed when the voltage supply is on. The lock has two integrated sensors: of the door position and of the lock
status.
Integrated sensor of the door position consists of the reed switch placed on the lock case and the magnet placed on the
movable bush of the lock and moved by the deadbolt. The reed switch contacts are open when the door is open (the deadbolt is out
of the lock) and are closed when the door is closed (the deadbolt abuts to the lock).
Integrated sensor of the lock status consists of the reed switch fixed to the electromagnet coil of the lock. The reed switch
contacts are open when the voltage supply is off, and are closed when the current flows on the coil.
Thus, if insert consistently both sensors in the circuit, then the circuit will be closed only when the deadbolt is in the lock (the
door is closed) and the lock draws current (the status is closed).
Holding force, kg, no less than
DC voltage supply, V
Current consumption (12V), m , not
more than
Lock weight, kg, not more than
Dimensions (W H L), mm
Four wire cable and power cable
length, m
Reliability of operation cycles, not
less than
* Note: 1. The lock in this delivery set (see Para. 4) is designed to be mounted on the door with the door stop width more than 25,5mm
and the door leaf thickness 25-45mm. To mount the lock on the door with other dimensions needed to use the Additional
fixation set (see the Operating Manual).
2. The length of the bolt
(shorten the bolt if needed).

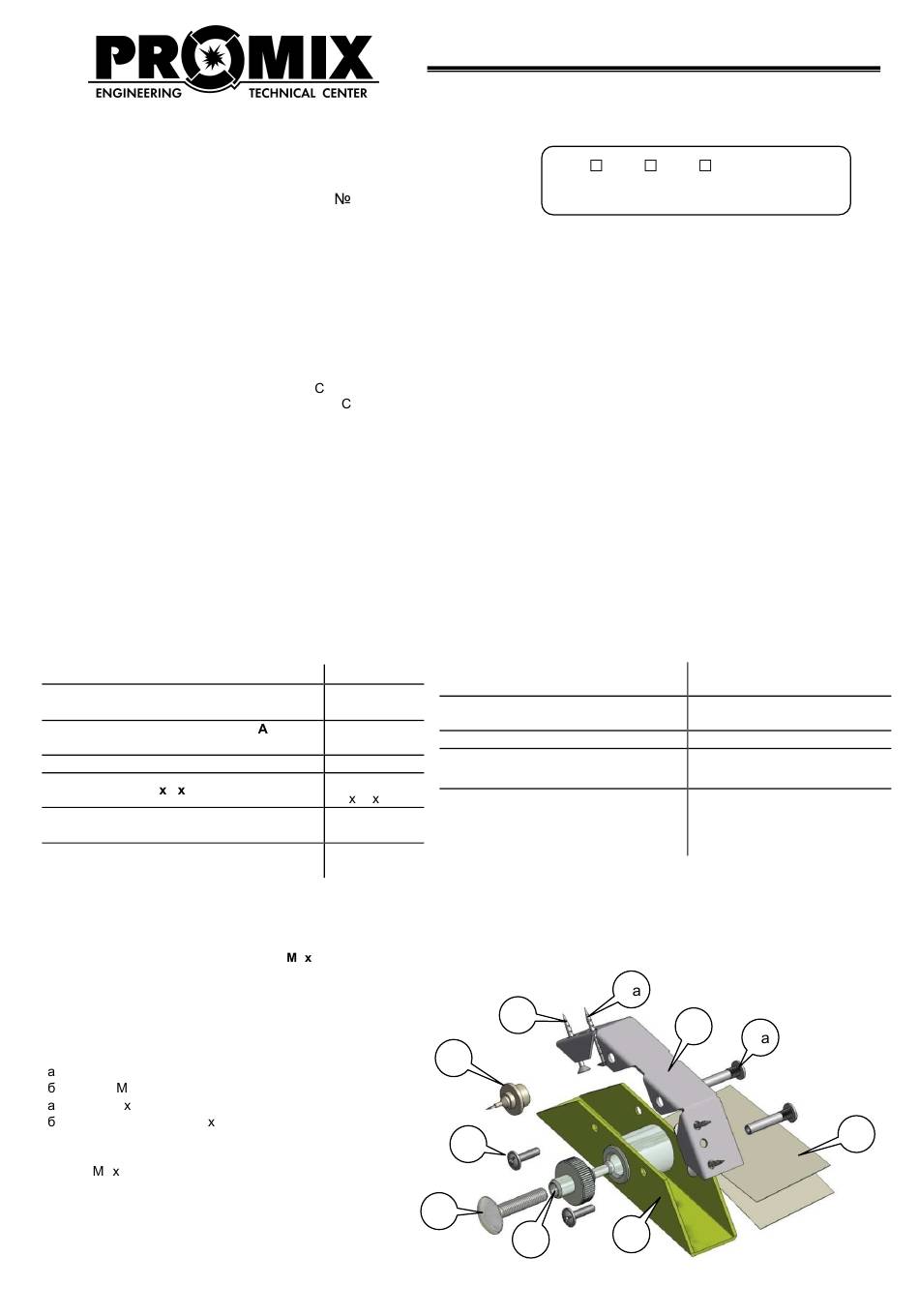

4.

DELIVERY SET

1 – Lock
2 – Bracket
3 – Binder bolt M4 for lock fixing
3 – Screw 4
4 – Screw 4 30 for bracket fixing
4 – Countersunk screw 4 30 for bracket
fixing
5 – Deadbolt assembly
6 – Bolt 8 35 for deadbolt fixing
7 – Template for brackets fixing
8 – Marking tool
9 – Operating manual
10 – Additional fixation set
Check completeness of the delivery set while purchasing.
Subsequently, the company-manufacturer does not accept any claims over completeness of the delivery set.
238261
The maximum current of the reed
400
switches, A, not more than
The maximum voltage of the reed
10 - 15
switches, V, not more than
Product type
105
0.3
Door leaf thickness, mm
34 30 130
Possible adjustments
0.3
400, 000
deadbolt
8 35 for fixing (without head) should be less than the thickness of the door on 3-7mm
1 pc.
1 pc.
8
2 pcs.
2 pcs.
2 pcs.
2 pcs.
3b
1 pc.
1 pc.
1 pc.
1 pc.
6
1 pc.
1 pc.
SHERIFF-1 premium
ELECTROMECHANICAL LOCK
Color: white, silver,
Production date:
4
4b
1
5
brown
0.5
36
normally open
25-70*
of the locking bolt length;
automatic deadbolt
alignment in the lock
opening
2
3
7
