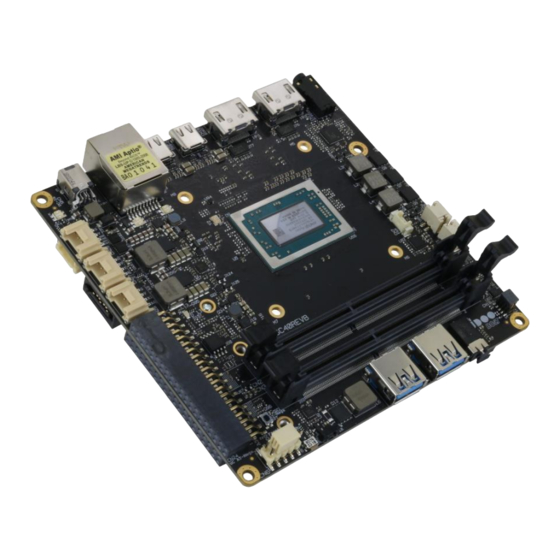

UDOO BOLT
Next-gen Open hardware SBC with the
AMD Ryzen Embedded V1000 Processors

Advertisement

loading

Related Manuals for Udoo Bolt

Summary of Contents for Udoo Bolt

  • Page 1 UDOO BOLT Next-gen Open hardware SBC with the AMD Ryzen Embedded V1000 Processors...
  • Page 2 To get the required assistance for any and possible issues, please contact us using the dedicated web form available at http://www.udoo.org/customer- care/open.php. Our team is ready to assist. BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 3: Table Of Contents

    M.2 Connectivity Slot: Socket 1 Key E Type 2230 ......................................36 3.3.9 M.2 NVMe Slot: Socket 3 Key M Type 2280 ......................................... 38 BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 4: Table Of Contents

    North Bridge Configuration submenu ..........................................62 Security menu.............................................. 64 4.5.1 Secure Boot submenu ..............................................64 BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 5: Table Of Contents

    Accessories ..............................................69 5.1.1 M.2 Dual network modules ............................................69 5.1.2 I/O Expansion board ..............................................69 BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 6: Rohs Compliance

    Safety • Electrostatic discharges • RoHS compliance • Terminology and definitions • Reference specifications BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 7: Warranty

    All changes or modifications to the equipment not explicitly approved by SECO S.p.A. could impair the equipment s functionalities and could void the warranty BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 8: Information And Assistance

    1.3 RMA number request To request a RMA number, please visit UDOO web-site. On the bottom of the page, please select “Customer Care”, click on the “Open a New ticket” button and. A RMA Number will be sent within 1 working day (only for on-line RMA requests).

  • Page 9: Safety

    Avoid handling the warm and moving parts (like the fan) and generally the printed circuit board while it is powered CE and FCC certification retained using only the UDOO BOLT qualified Power Supply Unit (19V Brick Power Adapter). When not using UDOO BOLT qualified Power Supply, use 19VDC (min 60W power) PSUs certified for your country (make sure that the power cable is less than 3 mt.

  • Page 10: Fcc Certification

    19VDC (min 60W power) PSUs certified for your country (make sure that the power cable is less than 3 mt. long). SECO S.p.A. Model: UDOO BOLT V3; UDOO BOLT V8 BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 11: Ised Certification

    Canada et annuler l’autorité de l’utilisateur quant au fonctionnement de l’équipement. This device complies with RSS-210, ICES-3(B)/NMB-3(B) BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 12: Terminology And Definitions

    Open Graphics Library, an Open Source API dedicated to 2D and 3D graphics Operating System BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.
  • Page 13 Host Controller Interface, Host controller for USB 3.0 ports, which can also manage USB 2.0 and USB1.1 ports BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 14: Reference Specifications

    USB 2.0 and USB OTG http://www.usb.org/developers/docs/usb_20_070113.zip USB 3.0 http://www.usb.org/developers/docs/usb_30_spec_070113.zip xHCI http://www.intel.com/content/www/us/en/io/universal-serial-bus/extensible-host-controler-interface-usb-xhci.html?wapkw=xhci AMD Ryzen Embedded V1000 https://www.amd.com/en/products/embedded-ryzen-v1000-series BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 15: Block Diagram

    • Introduction • Technical specifications • Electrical specifications • Mechanical specifications • Block diagram BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.
  • Page 16 Arduino Leonardo compatible platform, all wrapped into one. The UDOO BOLT can mount a Dual-Core Quad-Thread or a Quad-Core eight-thread SoCs, base frequency 2.3 or 2.0 GHz, Turbo boost at 3.2 or 3.6 GHz, with 64-bit instruction set and very low TDP. This single chip solution includes the memory controller, which gives support for up to 32GB of DDR4 memory on two SO- DIMM Slots, also capable of supporting ECC memory.

  • Page 17: Technical Specifications

    Gigabit Ethernet LAN interface ® Microsoft Windows 10 M.2 Key E Slot for optional Wireless modules Any Linux distribution for X86 64-bit platform M.2 Key B Slot for optional 2x GbEthernet ** Environmental temperature, measured using UDOO BOLT Standard heatsink with Fan...

  • Page 18: Electrical Specifications

    Batteries supplied with UDOO BOLT are compliant to requirements of European Directive 2006/66/EC regarding batteries and accumulators. When putting out of order UDOO BOLT, remove the batteries from the board in order to collect and dispose them according to the requirement of the same European Directive above mentioned.

  • Page 19: Power Consumption

    Internal Stress Test Tool, package power set at specific TDP 1.411A 1.480A 1.348A 1.634A BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 20: Power Rails Naming Convention

    _DSW: Deep Sleep Well voltage, i.e. power rails that remain active also when the _ALW voltages have been turned off, in a state very similar to the Mechanical Off (G3) but with the possibility of awakening of the module upon a very limited set of events. It is not supported by UDOO Bolt firmware, however.

  • Page 21: Mechanical Specifications

    The printed circuit of the board is made of twelve layers, some of them are ground planes, for disturbance rejection. BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 22: Block Diagram

    HDMI 2.0 Redriver M.2 Key B slot mux/demux DDR4 SO-DIMM DDR4 SO-DIMM Memory Memory BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 23: Connectors Description

    • Introduction • Connectors overview • Connectors description BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.
  • Page 24 3.1 Introduction On UDOO BOLT board, there are several connectors located on the upper plane. Standard connectors are placed on the same sides of PCB, so that it is possible to place them on a panel of an eventual enclosure.

  • Page 25: Connectors Overview

    CN18 M.2 SATA/PCI-e Slot (Socket 2 Key B type 2242 or 2260) IR Receiver BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 26: Connectors Description

    1000Mpbs connection, when the LED is Off then 10Mpbs or no connection is available. LED D160 (Left LED) shows ACTIVITY presence. Activity LED Link LED BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 27: Usb Ports

    USB ports The AMD Ryzen Embedded V1000 family of Processors used on UDOO BOLT board can manage up to five USB SuperSpeed (i.e., USB 3.1 compliant) ports and six High Speed (i.e. USB 2.0 compliant) ports. There is only one dedicated High Speed port, the other five ports are shared with the SuperSpeed ports, i.e. they can be used either by USB 2.0 or USB 3.0.
  • Page 28 USBC0_SSTXA+/USBC0_SSTXA-: USB Super Speed Port #1 transmit first differential pair. When used for DP Alternate mode, this pair carries out Display Port #3 Differential pair #2. BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.
  • Page 29 VBUS_C3: USB-C Port #3 VBUS power rail. Can be used both for powering client devices with a 5V voltage (power source mode) or to power the whole board using an USB-C power adapter (power sink mode). BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 30: Hdmi Connectors

    HDMI0_SCL: DDC Clock line for HDMI port #0. Output signal, electrical level +5V with a 1k87Ω pull-up resistor. HDMI0 BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.
  • Page 31 Always use HDMI-certified cables for the connection between the board and the HDMI display; a category 2 (High-Speed) cable is recommended for higher resolutions, category 1 cables can be used for 720p resolution. BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 32: Audio Interfaces

    (coaxial optical cable with 3.5mm jack, like in the picture). Signal Headphone Out Left Channel RING Headphone Out Right Channel SLEEVE GND BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 33: Buttons / Led Header

    FP PWR_N/SLP_P: Power/Sleep messaging LED terminal 2 with 510Ω pull-up resistor to +5V_ALW voltage. Connect it to the other extremity of the dual-color power LED above mentioned. BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 34: Sata Connectors

    Mating connector: JST PHR-4 crimp housing with JST SPH-002T-P0.5L crimp terminals. Maximum allowed power consumption for this connector is 1A. +5V_RUN BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 35: M.2 Sata/Pci-E Slot: Socket 2 Key B Type 2242/2260

    NVMe modules plugged in CN17slot and the connectivity modules plugged in CN16 slot). It is PCIe0_Clock+ a 3.3V_RUN active-low signal. BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 36: M.2 Connectivity Slot: Socket 1 Key E Type 2230

    PLT_RST#: Reset Signal that is sent from the SoC to all PCI-e devices available on the board PCIe4_Tx+ BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.
  • Page 37 WiFi functionalities of any connectivity module plugged in CN16 Slot. +3.3V_ALW +3.3V_ALW BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 38: M.2 Nvme Slot: Socket 3 Key M Type 2280

    SoC makes GFX_Tx0- available the reference clock. GFX_Tx0+ PLT_RST# GFX_REQ# BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 39: Fan Connector

    FAN_TACHO_IN: tachometric input from the FAN to the embedded microcontroller, +3.3V_RUN electrical level signal with 10kΩ pull-up resistor. BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 40: Arduino Interface

    ATmega32u4 microcontroller. TXLED 5V_OUT 5V_OUT BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 41: Grove Connectors

    #1 engraved on the connector. Cables designed for GROVE sensors will fit into these connectors without needing any change. BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 42: Embedded Controller I/O Header

    FANOUT0: EC PWM #0 Output Signal, electrical level +3.3V_DSW. EC_UART_CTS#1 EC_UART_CTS#0 FANTACH0: EC FAN Tachometric #0 Input signal, electrical level +3.3V_DSW. BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.
  • Page 43 EC_UART_RTS#1: EC UART #1, Handshake signal, Request to Send (output) line, +3.3V_DSW electrical level. BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 44: Ir Receiver

    3.3.14 IR Receiver The UDOO BOLT board embeds an IR receiver, which allows using a remote control when the board is placed in an enclosure (like, i.e., on Set Top Boxes). The Infrared Receiver is SMD Type, p/n TSOP75238TR, and works with 38kHz carrier frequency.
  • Page 45 • Chipset menu • Security menu • Boot menu • Save & Exit menu BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 46: Uefi Bios Setup

    It is possible to reset the UEFI BIOS Setup to Factory Defaults by using the dedicated switch available on module. Please check par. 3.3.15. BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 47: Main Menu

    Note: The time is in 24-hour format. For example, 5:30 A.M. appears as 05:30:00, and 5:30 P.M. as 17:30:00. The system date is in the format mm/dd/yyyy. BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 48: Advanced Menu

    See submenu Embedded Controller Firmware Information USB-C Port Controller See submenu USB-C Port Controller Information BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 49: Amd Cbs Submenu

    UMC Common Options submenu Menu Item Options Description DDR4 Common options See submenu DDR4 memory BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.
  • Page 50 Configurations may not be supported by your OPN. Enabled Disable/Enable Audio Codecs input signals SDIN0 Audio Codecs Disabled BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.
  • Page 51 FCH Common Options submenu Menu Item Options Description SATA Configuration Options See submenu SATA Configuration Options BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 52: Amd Pbs Submenu

    Create a new RAM disk with the given starting and ending address. Discard and exit. Discard & Exit BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 53: Battery Failure Manager Submenu

    Auto will support both with the default set to TPM 2.0 devices if not found, TPM 1.2 devices TPM 2.0 will be enumerated BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 54: Acpi Settings

    Enable or Disable individually the video interfaces USB-C1 (CN9) DP State Enabled USB-C0 (CN8) DP State BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.
  • Page 55 Hotplug Inboard Compliance Mode Enabled / Disabled If enabled, forces the port into Compliance mode. BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 56: S5 Rtc Wake Settings Submenu

    Sets the day of month for Wake on Alarm event. Valid range s from 1 to 31, error checking will be done against month/day/year combinations that are not valid. BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 57: Cpu Configuration Submenu

    Re-enable Bus Master Attribute disabled during PCI enumeration for PCI Bridges after SMM has been locked BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 58: Network Stack Configuration Submenu

    Media detect count [1..50] Number of times that the presence of media will be checked BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 59: Csm Configuration Submenu

    4.3.15 NVMe configuration submenu NVMe Device Options Settings, depend on NVMe Devices found in the system. BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 60: Usb Configuration Submenu

    Device power-up delay in seconds [1..40] Delay range in seconds, in one second increment BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 61: Main Thermal Configuration Submenu

    4.3.21 USB-C Port Controller Display only screen, shows information about the USB-C port controller firmware. BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 62: Chipset Menu

    By selecting this item, an information screen with all information related to the memory module plugged in Socket 1 Configuration Socket #x will appear BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.
  • Page 63 Enables or disables Channel Interleaving. Memory Clear Enabled/ Disabled Enables or disables memory clear function. BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 64: Security Menu

    See submenu Enable expert users to modify Secure Boot Policy variables without full authentication BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.
  • Page 65 Delete OS Recovery Signatures 3. EFI PE/COFF Image (SHA256) Key Source: Factory, External, Mixed BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 66: Boot Menu

    • Advanced menu → CSM Configuration submenu → “Video” must be set to Legacy BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 67: Save & Exit Menu

    Attempt to Launch the EFI Shell application (Shell.efi) from one of the available filesystem devices BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.
  • Page 68 • Accessories BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.

  • Page 69: Accessories

    1x Pin male connector for the 16x Keyboard Scan signals • 4x5 Buttons matrix BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.
  • Page 70 52100 Arezzo - ITALY Ph: +39 0575 26979 - Fax: +39 0575 350210 www.udoo.org BOLT UDOO BOLT User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by L.V. Copyright © 2019 SECO S.p.A.
