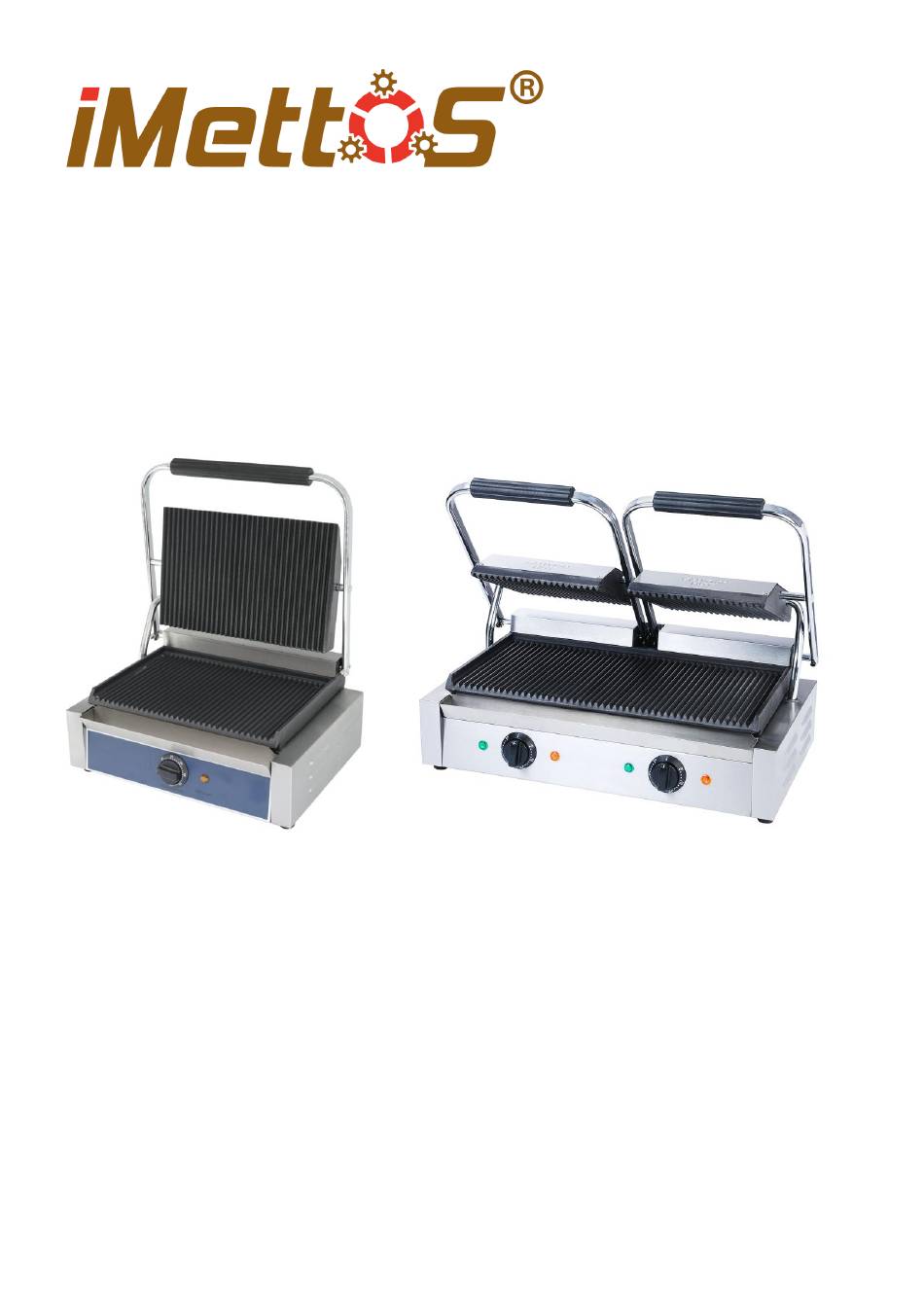

- Page 1 Electric Contact Grill Instruction Manual Model:PG-SA/PG-SF/PG-SC/PG-MA/PG-MB/PG-MC/PG-2SA/PG-2SF/PG-2SC Please read this instruction manual carefully before operating this equipment...
- Page 2 Safety Tips Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.
- Page 3 • Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires. • To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.
- Page 4 Warning! Any refitting and wrong installation, adjustment and maintenance can lead to property loss and causality. Please contact the supplier if user needs to adjust it and all these should be done by trained special professionals. Warning! For your safety sake, do not put or store any flammable liquid, gas or other objects around the product.
-
Page 5: General Information
General information Electric Contact Grill is designed and developed by the company with combination of the advantage of both foreign and domestic similar products and achieves advantages such as fashionable design, reasonable structure and convenient operation and maintenance and durability. The temperature of the griddle pan can be regulated in a certain scale according to different cooking requirements. -
Page 6: Basic Parameter
Contact Grill single Contact Grill single Contact Grill single Contact Grill single Contact Grill single Name Upper ribbed/lower Upper/lower ribbed Upper/lower smooth Upper/lower ribbed Upper/lower smooth smooth Model PG-SA PG-SF PG-SC PG-MA PG-MB 220~240V 220~240V 220~240V 220~240V 220~240V Voltage 50/60Hz 50/60Hz... - Page 7 Contact Grill double Contact Grill double Contact Grill double Contact Grill double Name Upper/lower ribbed Upper/lower smooth Upper ribbed/lower smooth Upper smooth/lower ribbed Model PG-2MA PG-2MB PG-2MC PG-2MD 220~240V 220~240V 220~240V 220~240V Voltage 50/60Hz 50/60Hz 50/60Hz 50/60Hz Power 4.4KW 4.4KW 4.4KW 4.4KW Temperature...
- Page 8 WARNING! ● This product is a commercial machine and it must be operated by trained cook. ● Do not dismantle and refit the machine. Do not lift the upper module plate with sudden force and tilted installation. The dismantlement and alteration can cause serious accident happens. ●...
- Page 9 place the food on it. Close the plates and press the handle lightly. Keep an eye on the food until it is suitably done. 6. When temperature reaches the setting degree, temperature controller can cut off power supply automatically. At the same time, yellow indicator is off and green indicator is on. It shows that electricity heating tube stops working for next turn.
- Page 10 2. Fuse is burned. 2. Change fuse. Aforementioned troubles are just for reference. If any fault occurs, please cease using and turn to professional technicians for check and repair. I. Circuit Diagram PG-SA PG-SF PG-SC PG-MA PG-MB PG-MC...
- Page 11 PG-2SA PG-2SF PG-2SC PG-2SD PG-2MA PG-2MB PG-2MC PG-2MD HL1, HL3----POWER INDICAOTR HL2, HL4----HEATING INDICATOR SA, SA1, SA2----TEMPERAUTRE CONTROLLER E----GROUND CONNECTION SB, SB1, SB2----TEMPERAUTRE CONTROLLER EH1, EH2, EH3, EH4----HEATING WIRE THE SHELL OF THIS MACHINE MUST BE EARTH GROUNDED FOR SAFETY SAKE. THANKS FOR YOUR COOPERATION.
- Page 12 J. Daily Check Everyday notice the situation of the machine before or after using. Before using Whether the machine is tilted? Whether the power cord is old, broken or damaged? Whether the control panel is damaged? Whether there is strange smell? After using Whether the upper and lower module plate cannot be heated at the same time?
- Page 13 Declaration: The structures of PG-SA/PG-SF/PG-SC/PG-MA/PG-MB/PG-MC are different, the differences are: The upper and lower module plate of PG-SA and PG-MA are ribbed; the upper and lower module plate of PG-SF and PG-MB are smooth. The upper and lower module plate of...
- Page 14 Declaration: The structures of PG-2SA/PG-2SF/PG-2SC/PG-2SD/PG-2MA/PG-2MB/PG-2MC/PG-2MD are different, the differences are: The upper and lower module plate of PG-2SA and PG-2MA are ribbed; the upper and lower module plate of PG-2SF and PG-2MB are smooth. The upper and lower module plate of PG-2SC and PG-2MC are upper ribbed and lower smooth. The upper and lower module plate of PG-2SD and PG-2MD is upper smooth and lower ribbed.
-
Page 15: Waste Disposal
WARRANTY iMettos warrants to the original purchaser of every new product, under normal and proper use and maintenance service as specified by iMettos and upon proper installation and start-up in accordance with the instruction packet supplied with each unit. iMettos’ obligation under this warranty is limited to a period of two (2) year from the date of original installation. - Page 16 Limited www.imettos.co.uk...
