Summary of Contents for Fortunati GPad Lite

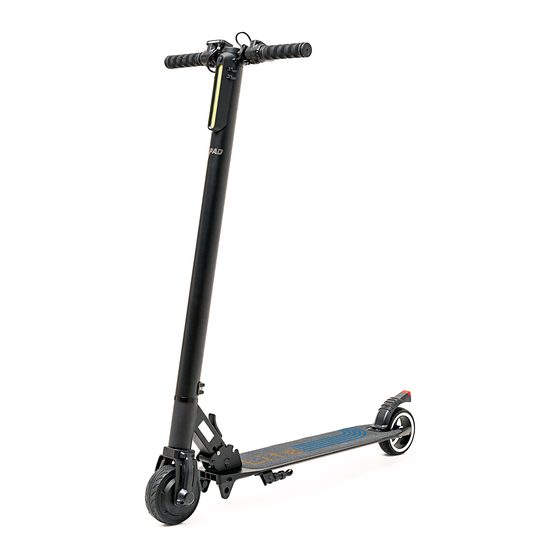

- Page 1 User Manual Electric Kick Scooter GPad Lite I GPad Lite Max...
- Page 2 Congratulations on your new e-scooter! Before using your GPad scooter for the first time, please read this user manual to guarantee safe assembly and operation. It will help you stay safe and keep your scooter in good working order. GPad scooters can be used by adults and children of 14 years or more. Please read the Warnings section of this manual to see if any limitations or restrictions apply to you.
- Page 3 1. In the Box Headlight Right ON/OFF Electric brake Left Bell Throttle Charger Input Unlock lever Mechanical brake...
-
Page 4: Handlebar Assembly
2. Handlebar Assembly The package contains two handlebar grips. Attach the two grips by screwing them into the handlebar. NB! Make sure to fit the correct one to each side. Adjust the display, throttle, and brake lever angle: loosen the screws of the display and brake levers using the hex keys included in the package. - Page 5 3. Folding Step by Step Unfolding Folding Place the scooter on the floor and pull the Pull the unlock lever outward (1) unlock lever (1) Lower the handlebar slowly downwards Slowly lift the handlebar (2) The scooter is in its riding position when The scooter is in its folded position when the rod clicks into its nest the rod clicks into its nest...
- Page 6 4. Charging Remove the charging port cover Plug the adapter into the charging port Plug the adapter into the mains outlet Check the indicator light on the charger: red – charging, green – full Remove the charger from the charging port and the mains when full Replace the charging port cover.
- Page 7 5. ON/OFF and Display Menu To activate the scooter, press and hold the ON/OFF button. To change gears, use the Gear Up and Gear Down buttons. To select display options, press the ON/OFF button for 1 second. You can choose between: •...
- Page 8 6. Scooter Status and Settings The main view of the display shows the battery indicator, speedometer, gear (1–3), and the odometer or another option picked by the user. The display is equipped with a backlight. If the battery level is low, stop riding, turn off the scooter, and fully recharge the battery. Riding the scooter with a low battery level causes the scooter performance to fall and decreases its acceleration, speed, and braking efficiency.
-
Page 9: Warnings And Recommendations
7. Light A LED light is located in front of the T-bar. To switch it on or off, press the button above it. Using the light is recommended when riding in the dark or under poor visibility. 8. Brakes The electric front brake lever is located on the left handlebar. The rear wheel cover functions as the emergency foot brake. - Page 10 Your local regulations may classify the e-scooter as a motorized vehicle. When using the e-scooter, • you must follow all applicable laws (including, without limitation, those applicable to traffic, pedestrians, parking, and charging), including any helmet laws in your country. Before each use, the rider should carry out a basic safety check on the e-scooter, including checking •...
- Page 11 Do not carry items when riding as this can alter your balance and cause accidents. • You must not use any mobile phones, text messaging devices, portable music players, or other • devices that may distract you from operating the e-scooter safely. Do not use the e-scooter under the influence of alcohol, drugs, or other coordination inhibiting •...
- Page 12 Ensure the speed is safe to the rider and others alike, and always be ready to stop immediately when • operating. Be cautious and always keep a safe distance between you and other people or vehicles when riding. The level of charge power remaining in the e-scooter decreases with use (over time and distance •...
- Page 13 10. Liability The rider (or the rider’s parent if the rider is under 14 years old) of this e-scooter is solely and fully • responsible for the safe operation of the e-scooter at all times. • The rider is aware that the use of the e-scooter involves both obvious and unexpected risks, dangers, and hazards that may result in injury or death of the rider or others and/or property damage, and that such risks, dangers, and hazards cannot always be predicted or avoided.
- Page 14 11. How to Ride the Electric Scooter • • Before the first ride - charge the e-scooter to 100%. • Place the scooter on level ground. • Activate the scooter by holding down the ON/OFF button on the right side of the display. •...
-
Page 15: How To Charge
• User’s weight: the heavier the user, the shorter the range. • Temperature: riding the scooter in a very cold or hot environment impacts the range. • Riding speed and style: smooth and steady riding extends the range. Accelerating and manoeuvring aggressively decreases the range. -
Page 16: Storing And Cleaning
14. Storing and Cleaning Charge the scooter to 50%-60% before storing it for off-season or any longer period. Charge it again to 50%-60% every 2-3 months. When not in everyday use, it is recommended to store the scooter at 15- 25°C. - Page 17 Make sure the battery is charged at regular intervals, even if you do not use the e-scooter for a long period of time. Doing so prevents damage to the battery caused by low voltage over an extended period. Precautions for the battery: The battery consists of Li-ion cells and chemical elements hazardous to your health and the environment.
-
Page 18: Product Specification
16. Product Specification Parameter GPad Lite GPad Lite Max Max speed* 23km/h 25km/h Range* Up to 10km Up to 15km Climbing ability* 10° Max load 100kg Brakes Electronic brake, rear foot brake Shock absorber Front suspension Motor power 24V/250W Tyres 5.0 inch... -
Page 19: Warranty Card
Warranty Card The warranty for the electric kick scooter is valid for 1 year. The warranty for the battery is valid for 6 months. Model: ___________________________ Warranty valid from: ________________________________ Retailer’s stamp, name, and signature: ______________________________________________________ The warranty covers all malfunction and issues with the components of the e-scooter or other problems caused by faulty manufacturing. - Page 20 Many products and a variety of options and extras with fast delivery from the regional logistics center; Maintenance, warranty, and spare parts with local aftersales support. www.gpad.ee Distributor in Europe: Fortunati Group EU, www.fortunati.eu...
