Summary of Contents for Golf Geum Technology EDM01

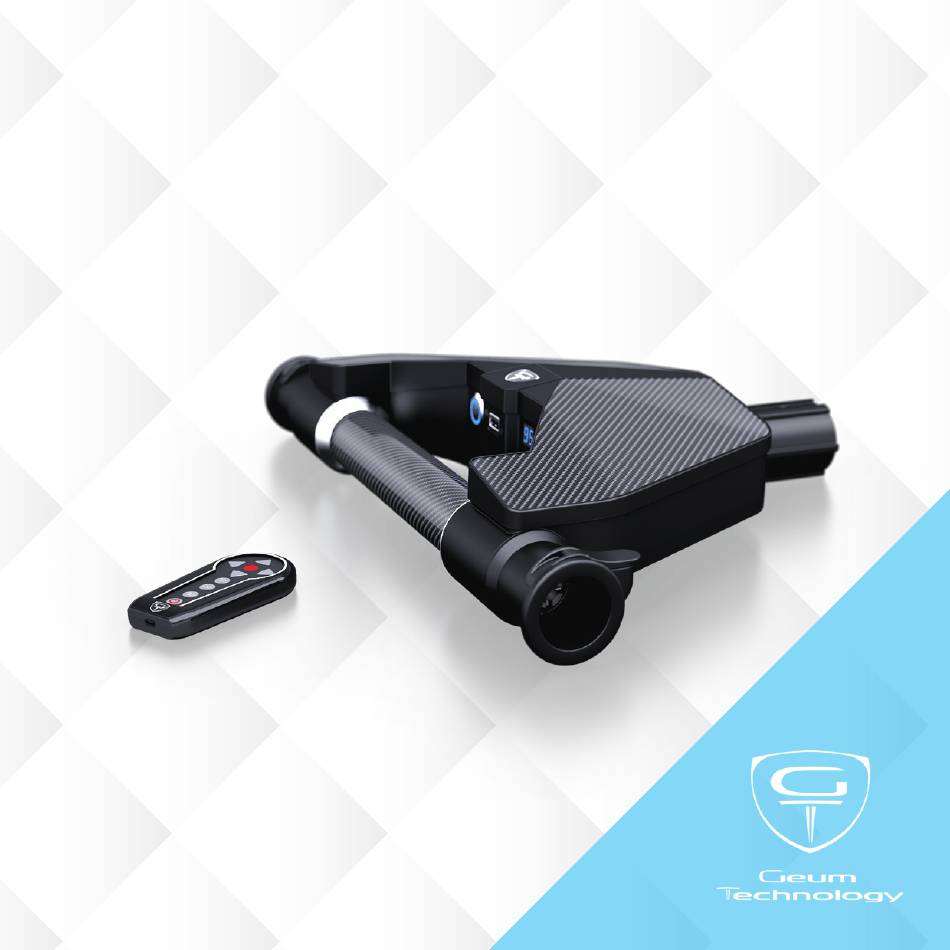

- Page 1 Electric drive module User manual Model EDM01...
- Page 2 DECOLT GRAND Inspired by logic...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Refer to the Users Manual for your Decolt Grand trolley. This Electric Drive Module (EDM) is designed for use in the Golf Geum Technology (GGT) Decolt Grand golf trolley ONLY and in accordance with this Operating Manual. Any other use is not approved by GGT, will void warranty and GGT will bear no liability for resulting damage or loss to any party, direct or indirect. - Page 4 DESCRIPTION OF EDM Main ON/OFF switch Wheel lock USB connector for charging of remote control Opening for holding the electric drive Charging connector for electric drive Battery charge indicator (%) Wheel lock...
- Page 5 DESCRIPTION OF REMOTE CONTROL Forward (5 speeds) Left turn Stop Reverse (2 speeds) Indicator of charging and signal transmission Pre-set distance of 10, 20 and 30 meters Main ON/OFF switch Micro USB connector for charging from EDM Right turn Battery charge indicator, Green – charged, Red - discharged Magnet for attachment to the trolley...
- Page 6 FITTING AND STARTING ELECTRIC DRIVE MODULE EDM and Remote Control must remain powered OFF until securely installed in trolley and all three wheels are fitted. Refer to Decolt Grand user manual. Do not insert hands/arms or any body parts through wheels while mounting onto EDM, or after mounted.
- Page 7 OPERATING EDM EQUIPPED TROLLEY Comply with all safety instructions on Page 4. To increase forward speed press Forward button repeatedly. 5 presses is maximum speed. To stop trolley, press Stop button. To reverse trolley, press Reverse button. A second press increases reverse speed. Turn left –...
- Page 8 PAIRING REMOTE CONTROL TO EDM01 In the event of loss of communication between remote control and EDM01, or use of a new remote control with your EDM it may be necessary to “re-pair” the connection. Connect remote control into the EDM using USB cable.
- Page 9 CALIBRATION OF GYROSCOPIC SENSOR If EDM01 tends to turn when commanded forward, it might be necessary to recalibrate the sensors that control straight movement. Connect remote control to the EDM using USB cable. Turn EDM ON. Turn remote control ON.
- Page 10 ELECTRIC DRIVE – ASSEMBLY...
- Page 11 Attach wheels to the electric drive. Wheel lock is in the engaged position. Wheels will latch into the first free-wheel position. Prepare the bag without the front wheel. Hold the bag with one hand so that you can reach axle lock with your fingers. Using your other hand, hold the electric drive by inserting 2 fingers in the ope- ning on the drive unit.
- Page 12 Attach the front wheel – see section “Three-wheel version – assembly”. Now the trolley is still in manual version as the wheels are locked in the first free-wheel position and therefore are not connected to the electric drive. You can use this setup to manually push the trolley and maneuver in busier areas such as in front of the clubhouse.
- Page 13 Once you are ready to use the electric drive, put the wheel lock lever up and push the wheels further into the electric drive. In order to fully lock them into the drive, you need to turn the wheels slightly while pushing in.
- Page 14 Safety Features of the EDM01 TECHNICAL DATA AND OPERATING The EDM01 is fitted with an on-board gyroscope to ensure straight line operation on slopes. Gyroscope is factory calibrated. In the event the trolley is not operating in a straight line on sloped surface, it is ne- cessary to recalibrate the gyroscopic sensor - see instructions on page 9.
-
Page 15: Problem Solving
The trolley is very hard to Turn OFF EDM01. push with EDM01 fitted. Trolley may be pushed manually with drive mode engagedand EDM01 turned OFF – or engage free-wheel mode.Turned OFF – or engage free-wheel mode. Turn ON EDM01 The trolley does not maintain Check behaviour of trolley on level surface. - Page 16 HELP DESK web: www.golfgeum.com tel: +420 774 127 877 e-mail: info@golfgeum.com facebook: https://www.facebook.com/golfgeum/ Quote serial number – on base of EDM01 Graphic by Golf Geum Technology s.r.o. 2018/01...
- Page 17 www.golfgeum.com...
