BALANTINE WALL-MOUNT FAUCET INSTALLATION
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing bathroom fixtures and
plumbing. Signature Hardware accepts no liability for
any damage to the floor, walls, plumbing, or personal
injury during installation.
For the following installation instructions for your new
Wall-Mount Faucet, it is assumed that any old fixtures
have been removed and the water supply lines have
been relocated to the proper installation location.
Unpack and inspect the item for damage. If any
damage is found, contact our
Customer Relations team at 1-866-855-2284.
GETTING STARTED
Ensure that you have gathered all of the required
materials that are needed for the installation.
Shut off the main water supply where the new faucet
is being installed.

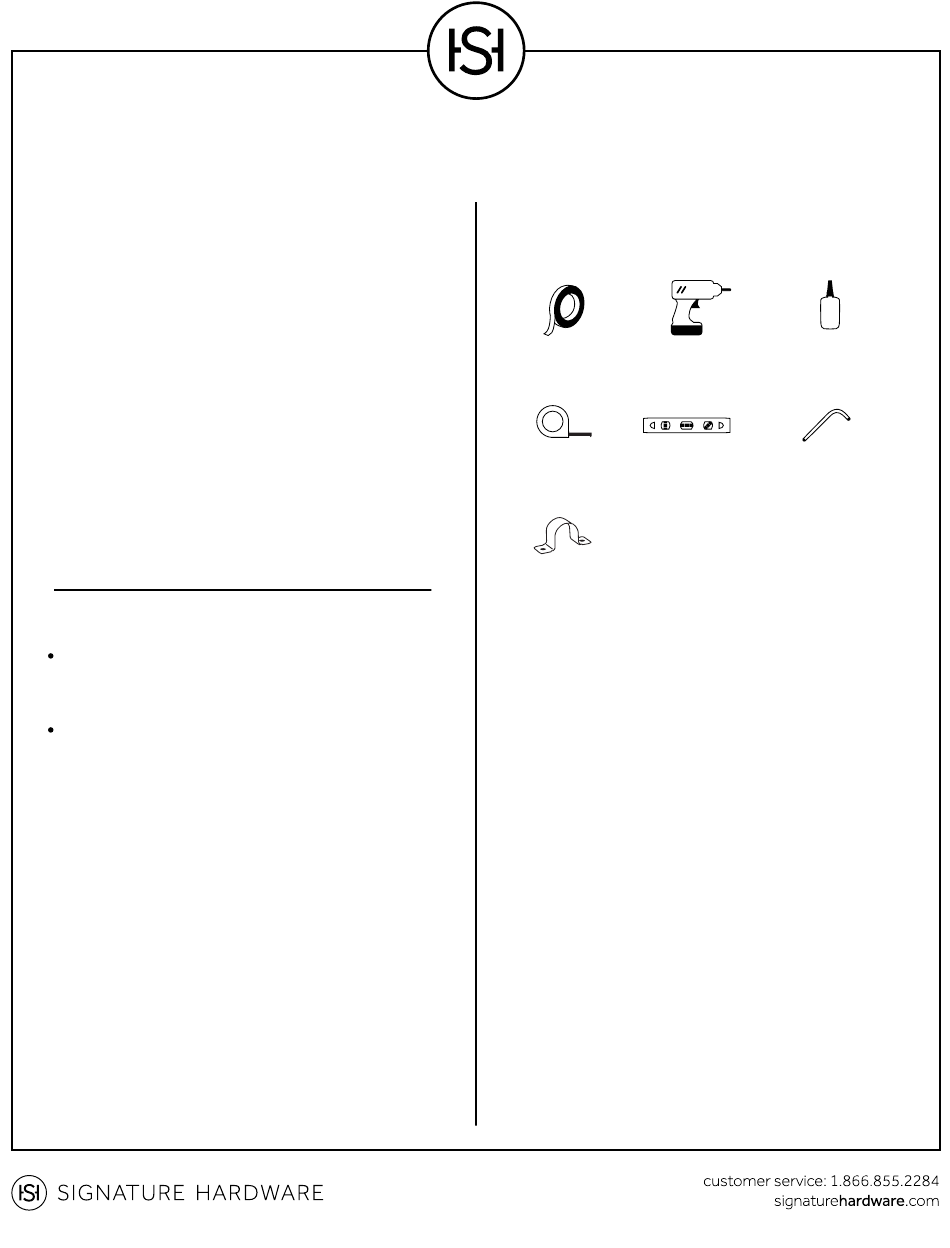

TOOLS AND MATERIALS:
Plumber's Tape
Drill
Tape Measure
Level
Pipe Clamps
Ballantine Wall-Mount Faucet Installation Instructions
SKU(s): 911574, 911575
Thread Sealant
Hex Wrench
1
Advertisement
Related Manuals for Signature Hardware Ballantine 911574
Summary of Contents for Signature Hardware Ballantine 911574
- Page 1 BEFORE YOU BEGIN TOOLS AND MATERIALS: We recommend consulting a professional if you are unfamiliar with installing bathroom fixtures and plumbing. Signature Hardware accepts no liability for any damage to the floor, walls, plumbing, or personal injury during installation. Plumber’s Tape...
-
Page 2: Installation
BALANTINE WALL-MOUNT FAUCET INSTALLATION INSTALLATION 1. Prepare for installation by installing wood blocking 3. Attach the main water lines to the valve. Apply between the two studs where the faucet will mount. thread sealant or plumber’s tape to the threaded connection to ensure a watertight seal. - Page 3 BALANTINE WALL-MOUNT FAUCET INSTALLATION 4. Once your finished wall has been completed, slide the 6. Attach the hot and cold handles to the valve stems, decorative ring onto the base of the spout. Attach the as shown. Ensure that the hot handle is on the left, and spout to the installed valve body.
-
Page 4: Drain Installation
BALANTINE WALL-MOUNT FAUCET INSTALLATION DRAIN INSTALLATION 2. Apply plumber’s tape to the threading on the 1. Dissasemble the drain assembly and lay the parts aside, in the same order they were removed. See the tailpiece, then reattach the tail piece to the pop-up illustration below as a reference if needed. - Page 5 BALANTINE WALL-MOUNT FAUCET INSTALLATION 6. Thread the lock nut onto the drain flange. Hand 4. Insert the drain flange and tailpiece through the top tighten until secure, then finish tightening with a basin of your sink’s drain hole. wrench once the drain is properly aligned. Important: Be careful not to overtighten, which could crack a porcelain sink or stone countertop.
