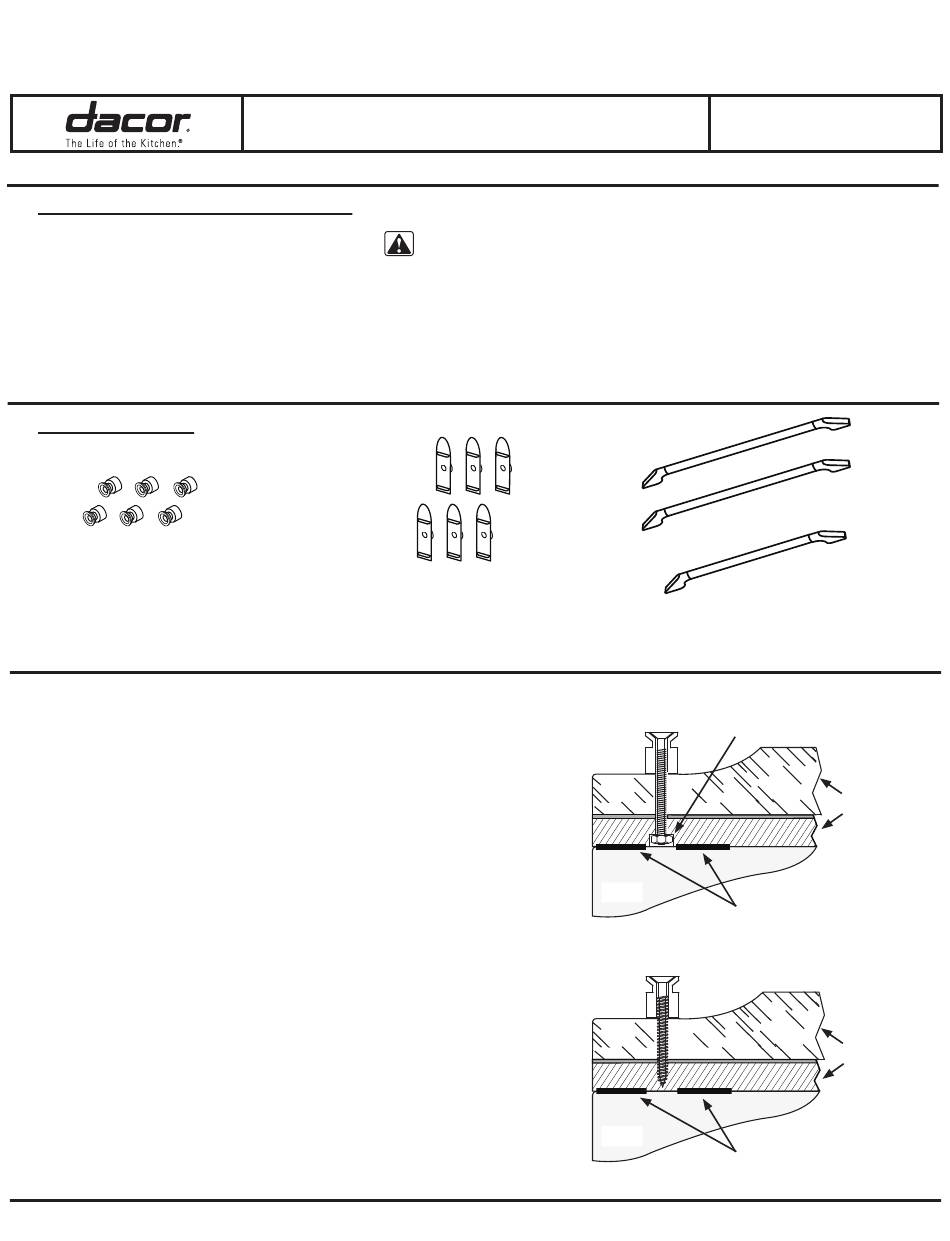

Dacor Epicure PN AFE36H3 Series Installation Instructions Manual

REFRIGERATOR MODELS: EF36BNF,
EF36BNNF, IF36BNNF, PF36BNDF and PF36BNNF

Tools and Materials Required

The following items are not provided with the
kit and are required for proper installation.
•
3/32" Allen wrench (not supplied)
•
T20 Torx driver (PF36 series only)
•
Thin double sided tape (IF36 series only)
•
Fasteners for attaching the handle mounting studs (IF36 series only), size and
type varies with door panel configuration, see step 1 for further information

Parts Included

PN 102987
Epicure Handle
Mounting Studs** (6)
** Required for IF36 and PF36 series refrigerators only
For PF36 series refrigerators, skip to step 5. For EF series refrigerators, skip to step 9.
Step 1 Model IF36BNNF only: This kit does not include
the necessary handle stud mounting screws
because the required fastener length varies with
the total thickness of the custom panels. The panel
craftsman must determine and obtain the proper
stud mounting fasteners required for the
application prior to installing the panels on the
refrigerator.
Notes See Dacor document 100504 for complete custom
panel construction information.
The handle mounting studs accommodate #10
flat head screws/bolts. Bolting the studs into place
on the panel is highly recommended for long term
stability.
If using bolts, the nut must be countersunk into the
panel (see diagram).
The inner edges of the two upper refrigerator doors
must be secured to the door using thin double
sided tape. See step 3 for additional details.
Epicure Handle Kit,
®
PN AFE36H3XX*
CAUTION: To avoid damage to the refrigerator or handle
components, do not use power tools. Use hand tools
only for disassembly and assembly.
PN 102988
Epicure Handle Mounting
Bushings*** (6)
*** Required for PF36 series refrigerators only
INSTALLATION
INSTRUCTIONS
*Where XX indicates the handle end finish
(2 Large, PN 102865)
(1 Small, PN 102985)
Epicure Style Handles (3)
Countersink nut
Stud
Door
Thin double sided tape
Mounting the Stud Using a Nut and Bolt
(recommended)
Stud
Door
Thin double sided tape
Mounting the Stud Using a Wood Screw
Part No. 102986 Rev. F
Custom
door panel
assembly
Custom
door panel
assembly
