- Page 1 C7 Display Instruction Manual Program 3.0 UN_Dealer Version 1 APPEARANCE A Better Display. A Smart Display. Easy View 4” Display Panel. Superior Anodizing Aluminum Alloy Frame. PMMA Waterproof Cable Housing. Easy Control with Large Buttons.
- Page 2 2 FUNCTIONS 4.1 PAS level selection 4.2 Error code indicator Section 4 4.3 SET operation 3.1 Backlight indicator Section 3 3.2 Speed indicator 3.3 KM/H and MPH Section 2 2.1 Current indicator ON/OFF Section 1 DOWN 6.1 Distance indicator 6.1.1 ODO Section 6 6.1.2 Time 6.1.3 Trip 1...
-
Page 3: Full View Area

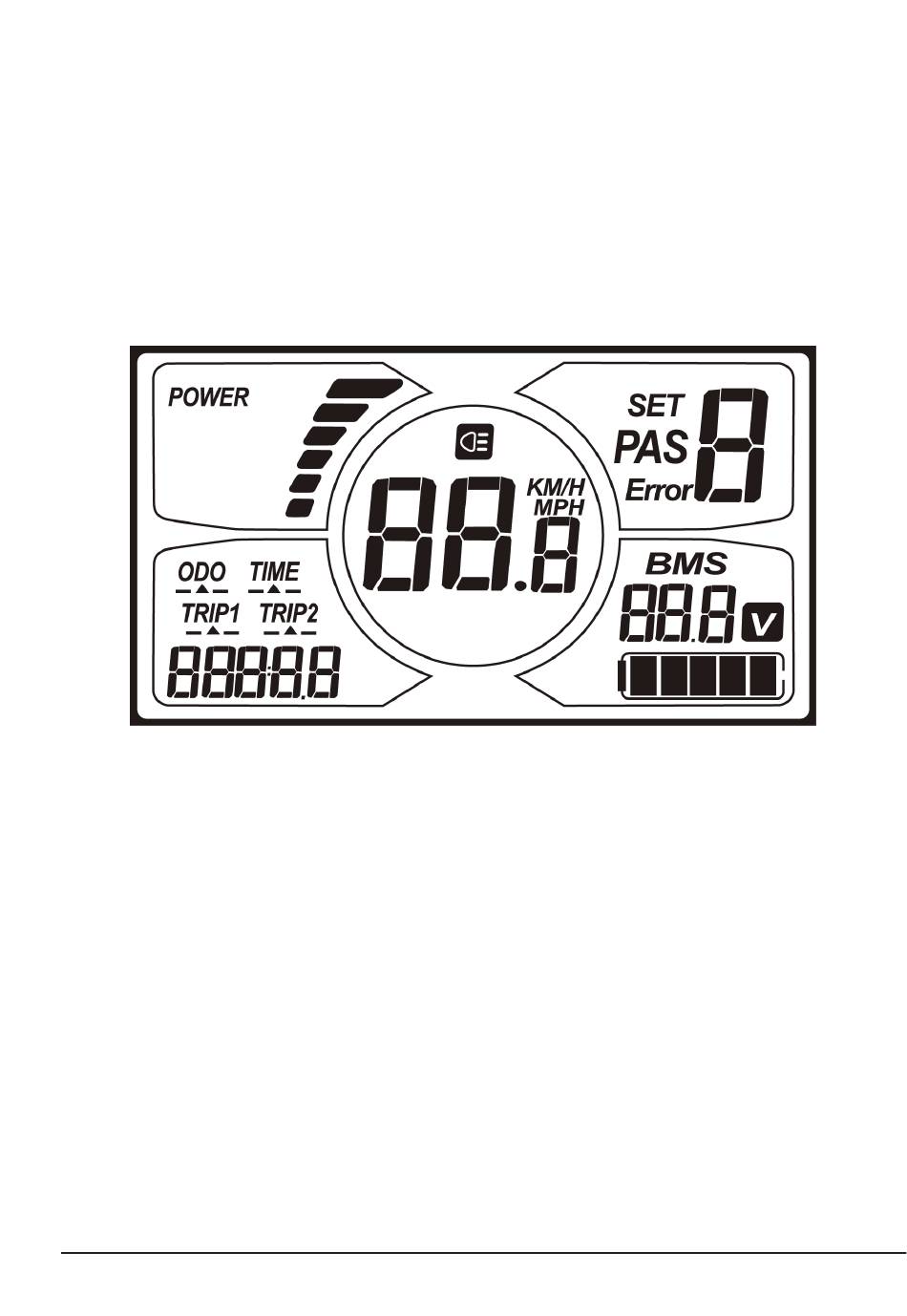

FULL VIEW AREA NORMAL VIEW AREA With the display on, the default indicators are riding mode, trip 2, speed, PAS level, and battery indicator as shown in the figure below. Press SET to change the display information. -
Page 4: Section 1: On/Off
Section 1: ON/OFF Press ON/OFF to activate the display. With the display on, press ON/OFF for 2 seconds to turn off power. With the display off, there is no battery power consumption. The leakage current is no more than 2μA. ※... -
Page 5: Section 4: Operation
3.2 SPEED INDICATOR The central area displays the current riding speed of the E-bike. The speed display is as below. 3.3 KM/H and MPH Selecting KM/H or MPH for the speed and mileage will switch all indicators to the selected unit of measurement. Section 4: OPERATION 4.1 PAS LEVEL SELECTION Press UP (+) or DOWN (-) to change the PAS level and thus change the power output of the motor. - Page 6 ※ The display cannot return to normal status until the problem is solved; the E-bike’s electric components will not operate if there is an error in the system. However, the bike can still be operated conventionally (without electric assistance). ※ Hold ON/OFF and SET at the same time to show the error code. 4.3 WALK MODE Hold DOWN (-) for 2 seconds to enter the power-assisted walk mode.
- Page 7 4.4.1 KM/H and MPH Hold UP (+) for 8 seconds to enter the unit of measurement selection mode, then press UP (+) or DOWN (-) to switch between KM/H and MPH and press SET to confirm and exit. 4.4.2 Trip Distance Press the SET button for 2 seconds to clear Trip 1.
- Page 8 5.1.1 Battery Residual Capacity Indicator The battery capacity indicator has five segments, each segment representing 20% of battery capacity. When the battery is full, the five segments are all lit. If the battery is low, the battery display area will flash, indicating that pedal assis- tance will soon cease and that the battery needs to be recharged.
-
Page 9: Error Code Table
3 ERROR CODE TABLE Each error code corresponds to a specific fault in the system. Take the E-bike to your dealer to have the error resolved. Error code Definition Normal Current error or MOS (semiconductor) damaged Throttle error (detection after turning on) Motor missing phase (losing power) Hall signal error (electromagnet in incorrect position) Brake error (detection after turning on)
