Filamento Valto Quick Start

VALTO
• RF occupancy sensitive to at least 15 meters (50 feet)
• Daylight sensor
• Tri-level dimming
• Custom IR remote control to 20 meters
• Each sensor controls its own light
• Four preset scenes for ease of programming
WARNING: Do not use controls with ballast operations

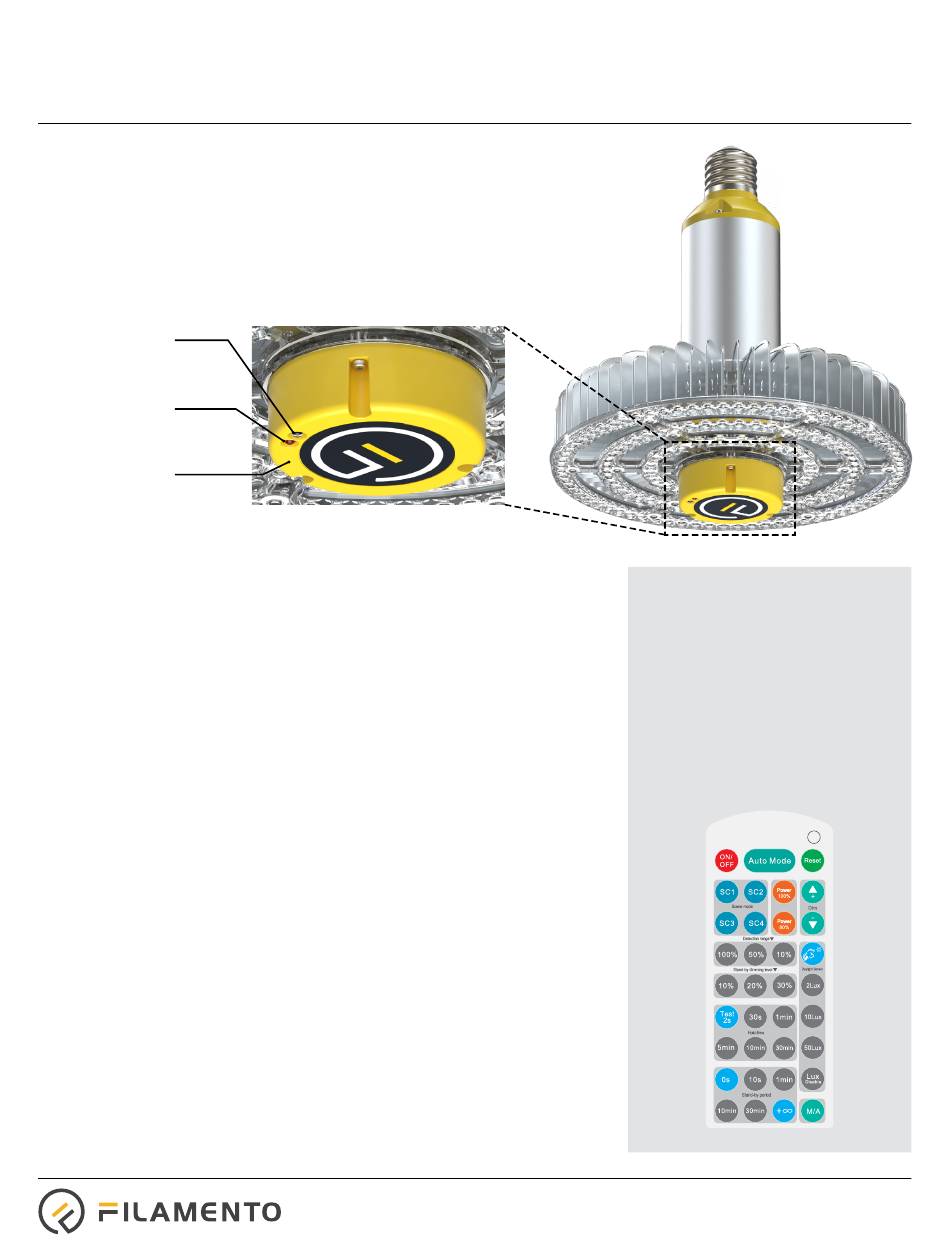

Ambient light sensor
Infrared sensor to
communicate
with remote
Radio Frequency (RF)
sensor behind cap to
enable occupancy sensor
Occupancy and Daylight Sensing
The occupancy sensor is capable of detecting motion up to at least 49 feet
(15 meters away using Radio Frequency (RF) technology. RF sensors work in high
temperature environments as well as in fully enclosed fixtures, unlike traditional
PIR sensors. The sensor is compatible only when operating from direct AC
line voltage.
Sensor can control the light output to three levels of light: maximum level,
a dimmed light level and off. They have the ability to program two periods of
selectable waiting times: hold-time and stand-by period. Using the daylight sensor
to detect ambient light, the fixture can turn itself off, regardless of occupancy status.
These levels, as well as motion sensitivity and hold times, are user programable
using the IR remote control. The IR remote has been custom designed for operation
in high-bay applications and will control the sensor at least 66 feet (20 meters) away.

Quick Start Instructions

• The sensor is integral to the luminaire and is installed in the front cap at
the factory.
• The sensor will work right out of the box with the default factory setting scene
of "SC1"
• The factory default "SC1" is:
• 20 minutes of hold time at maximum power when unoccupied
• After 20 minutes, the light will dim to 10% and does not switch off
• Daylight sensor is disabled.
• The use of the IR remote control is only necessary if the user wishes to configure
the sensor away from the "SC1" default.
• The sensor can be quickly set to three other preset scenes using the IR remote
control, see scene mode on page two.
