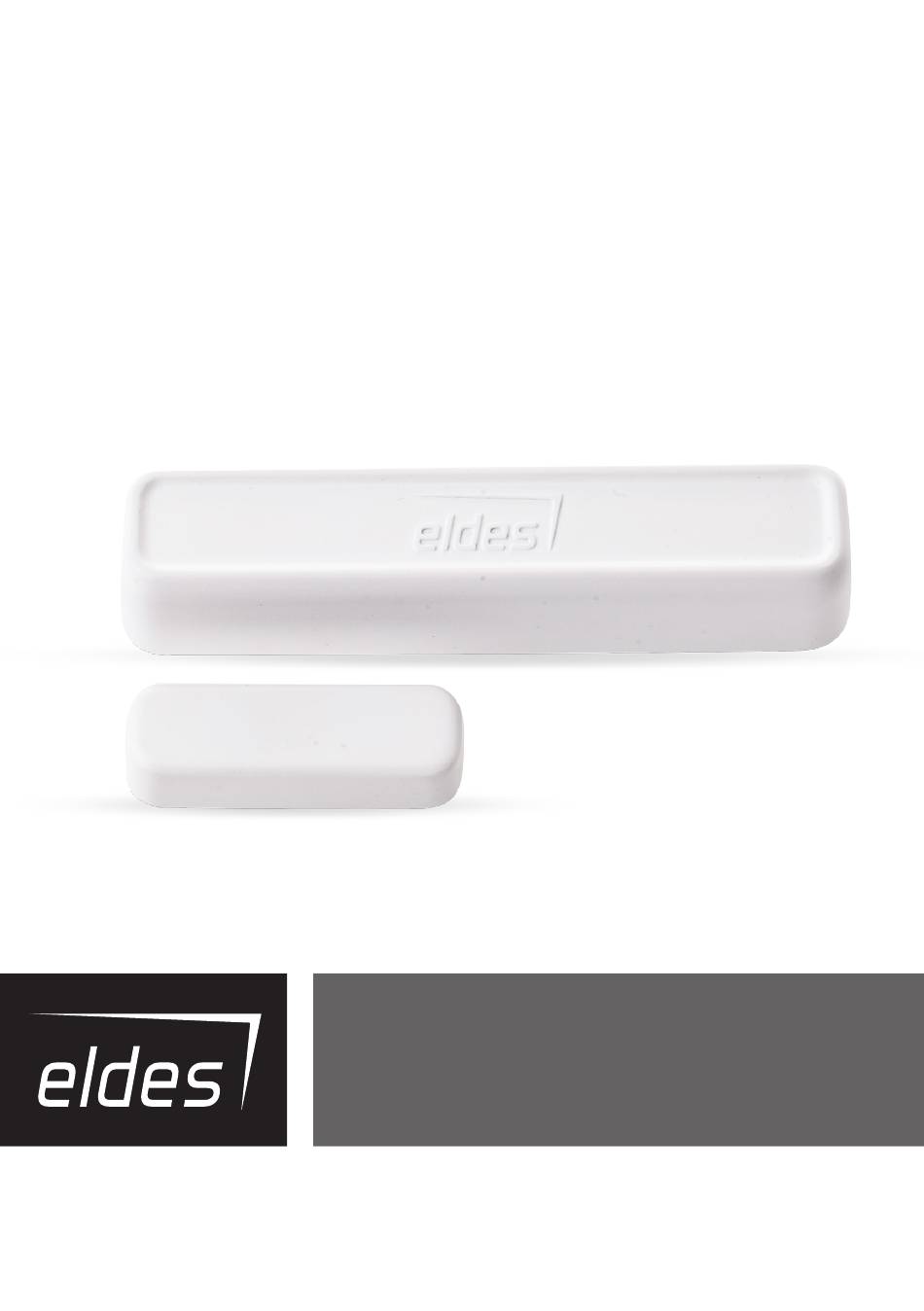

  • Page 1 EWD2 WIRELESS MAGNETIC DOOR CONTACT/ SHOCK SENSOR/FLOOD SENSOR...

  • Page 2: Contents Of Pack

    ELDES Configuration Tool software or by sending a corresponding SMS text message to ELDES alarm system. It is possible to connect up to 16 EWD2 devices to ESIM264, EPIR2 and EPIR3 alarm system systems, while to ESIM364 alarm system - up to 32 EWD devices at a time.

  • Page 3: Front Side

    NOTE: Before installing the wireless device, we highly recommend to refer to RADIO SYSTEM INSTALLATION AND SIGNAL PENETRA- TION manual located at www.eldes.lt/download Remove the cover of EWD2 enclosure. Press and hold Insert a screwdriver or any other tool and push it down 2.
  • Page 4 Wire up the external digital sensor (if any) or flood sensor (if any) to Z and COM terminals, otherwise do not perform any wiring. If flood sensor EFS1, which is compatible with EWD2, is to be wired, please refer to the following wiring diagram and configure EWD2 using ELDES Configuration Tool software (see 4.
  • Page 5 Pull up here other tool and push it down 8. Screw in the magnet to the door or window frame and ensure that the magnet is fixed at the same height as the EWD2 magnet detector. RESET 20 mm max 9.
  • Page 6 13. Upon the successful binding process, EWD2 device icon becomes visible in Wireless Device Management section as well as Battery Level and Signal Level. If the attempt to bind is unsuccessful, try to move EWD2 closer to the ELDES alarm system and bind anew.

  • Page 7: Battery Replacement

    PCB supervising the front cover in case it is illegally opened (see Fig. No. 1). • the other one located on back of the PCB supervising the back side of the enclosure in case the EWD2 is illegally detached from the wall (see Fig. No. 1).

  • Page 8: Restoring Default Parameters

    “ELDES UAB” will not take any responsibility regarding personal or property or revenue loss while using the system. “ELDES UAB” liability according to local laws does not exceed value of the purchased system. “ELDES UAB” is not affiliated with any of the cellular providers therefore is not responsible for the quality of cellular service.
  • Page 10 Made in the European Union www.eldes.lt...
