Summary of Contents for Otone SoundBase II
-
Page 2: Table Of Contents
Contents Important Safety Instructions ....................2 Safety ......................................2 Important Safety Instructions ....................3 Identifying the Parts ......................4 Main Unit ....................................4 Remote Control ..................................5 Preparations........................... 5 Prepare the Remote Control .............................5 Replace the Remote Control Battery ..........................5 Placing TV or Monitor ................................6 Connections ........................... -
Page 3: Important Safety Instructions
Important Safety Instructions The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude as to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Important Safety Instructions
Important Safety Instructions Warning 1 The battery (batteries or battery pack) must not be exposed to excessive heat such as sunshine, fire or similar. 2 Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply. -
Page 5: Identifying The Parts

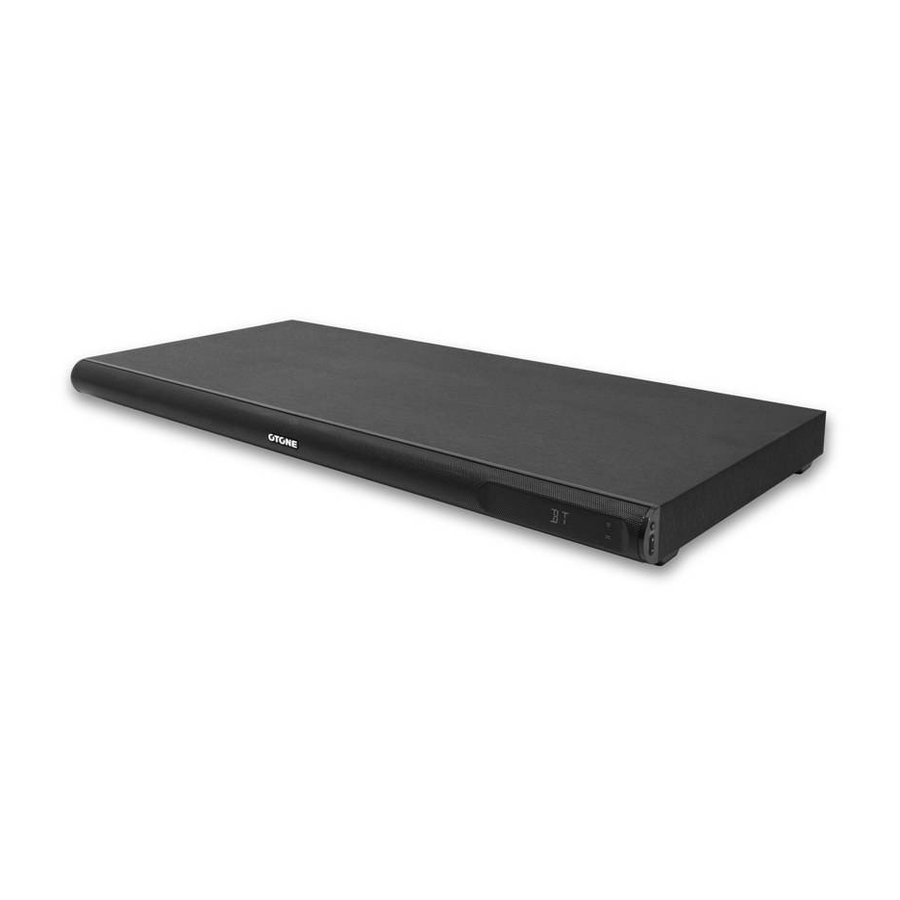

Identifying the Parts Main Unit Back view N o b Speakers Display Panel Remote Control Sensor /SOURCE button Switch the unit between ON and STANDBY mode. Select the play function. VOL+/VOL- button Adjust the volume. AC~ Socket Connect to power cord. AUX Socket Connect to an external audio device. -
Page 6: Remote Control
Remote Control Switch the unit between ON and STANDBY mode. 2 SOURCE Select the play function. Skip to previous/next track in H / G BLUETOOTH mode. Play/pause/resume playback in Bluetooth mode. VOL+/VOL- Adjust the volume. 4 PAIR Activate the pairing function in BLUETOOTH mode and disconnect the existing paired Bluetooth device. -
Page 7: Placing Tv Or Monitor
Do not heat or disassemble batteries. • • Never throw them in fire or water. Do not carry or store batteries with other metallic objects. Doing so could cause batteries to short • circuit, leak or explode. Never recharge a battery unless it is confirmed to be a rechargeable type. •... -
Page 8: Connect To Aux
To enjoy the ARC function, make sure your SoundBase's HDMI OUT socket is connected by an HDMI 1.4 cable to the HDMI OUT TV (ARC) socket of your ARC-compliant TV. Then, just use your TV remote control to adjust the volume output (VOL +/– and MUTE) of the connected audio device. Tips: •... -
Page 9: General Operation
Connecting the unit to any other power source may cause damage to the unit. Unwind the mains cable to its full length. Connect the mains plug to a mains socket. Make sure the mains plug is fully inserted into the mains socket. The mains plug/appliance coupler is used as the disconnect device, the disconnect device must remain readily operable. -
Page 10: Adjust Brightness Of Display Panel
Adjust brightness of display panel Press the DIMMER button on the remote control repeatedly to select different levels of brightness for the display panel. Set the Clock The built-in clock show the correct time in the display. 1 In STANDBY mode, press and hold the CLOCK button on the remote control, the hour indicator blinks. -
Page 11: Bluetooth Operation
2 The system has entered pairing mode. Or press the PAIR button on the remote control to be discoverable. 3 Activate your Bluetooth device and select the search mode. “OTONE SoundBase II” will appear on your Bluetooth device. 4 Select “OTONE SoundBase II” in the pairing list. Display panel shows “BT” while the pairing succeeds. -
Page 12: Troubleshooting
Troubleshooting To maximise your safety, never try to repair the system yourself. If you encounter problems when using this unit, check the following before requesting service. No power Ensure that the AC cord of the SoundBase is connected properly. Ensure that there is power at the AC outlet. Remote control does not work Before you press any function buttons, first select the correct source. -
Page 13: Specifications
Specifications General Power requirements ........................AC220-240V~ 50/60Hz Power consumption ................................18W Power consumption of standby mode ........................< 1 W Output power RMS ............................15w x 2 + 30W Total harmonic distortion ..........................1%(1kHz, 1W) Audio input sensitivity ..............................700mV Frequency response ............................40Hz - 20KHz Dimension (W x H x D) ..........................
