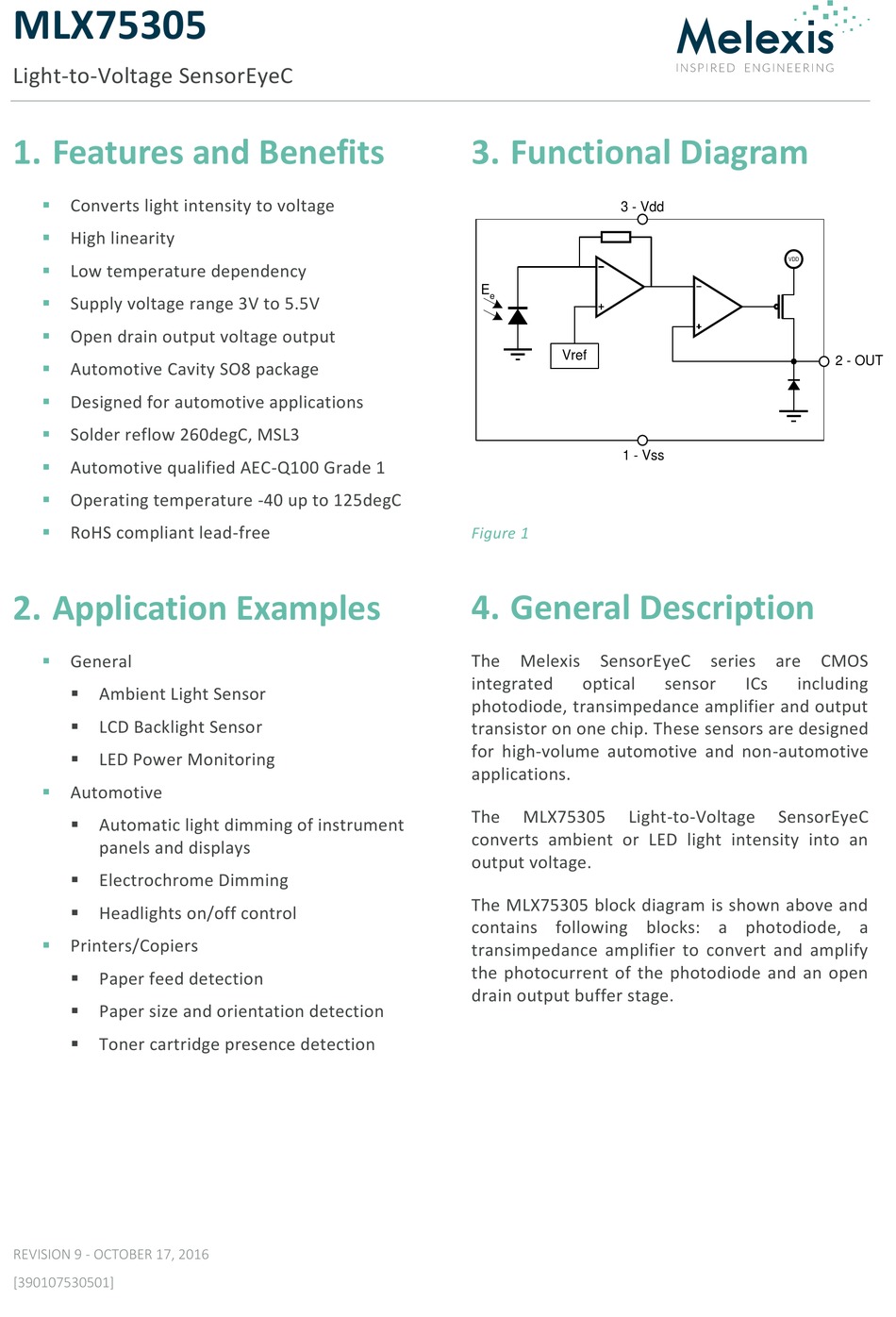

Melexis SensorEyeC Series General Description Manual

MLX75305
Light-to-Voltage SensorEyeC

1. Features and Benefits


Converts light intensity to voltage

High linearity

Low temperature dependency

Supply voltage range 3V to 5.5V

Open drain output voltage output

Automotive Cavity SO8 package

Designed for automotive applications

Solder reflow 260degC, MSL3

Automotive qualified AEC-Q100 Grade 1

Operating temperature -40 up to 125degC

RoHS compliant lead-free

2. Application Examples


General

Ambient Light Sensor

LCD Backlight Sensor

LED Power Monitoring

Automotive

Automatic light dimming of instrument
panels and displays

Electrochrome Dimming

Headlights on/off control

Printers/Copiers

Paper feed detection

Paper size and orientation detection

Toner cartridge presence detection
REVISION 9 - OCTOBER 17, 2016
[390107530501]

3. Functional Diagram

3 - Vdd
E
e
Vref
1 - Vss
Figure 1

4. General Description

The Melexis SensorEyeC
integrated optical
photodiode, transimpedance amplifier and output
transistor on one chip. These sensors are designed
for high-volume automotive and non-automotive
applications.
The MLX75305 Light-to-Voltage
converts ambient or LED light intensity into an
output voltage.
The MLX75305 block diagram is shown above and
contains following blocks: a photodiode, a
transimpedance amplifier to convert and amplify
the photocurrent of the photodiode and an open
drain output buffer stage.
VDD
series are CMOS
sensor ICs including
SensorEyeC
2 - OUT
