Summary of Contents for ERECA CAM RACER

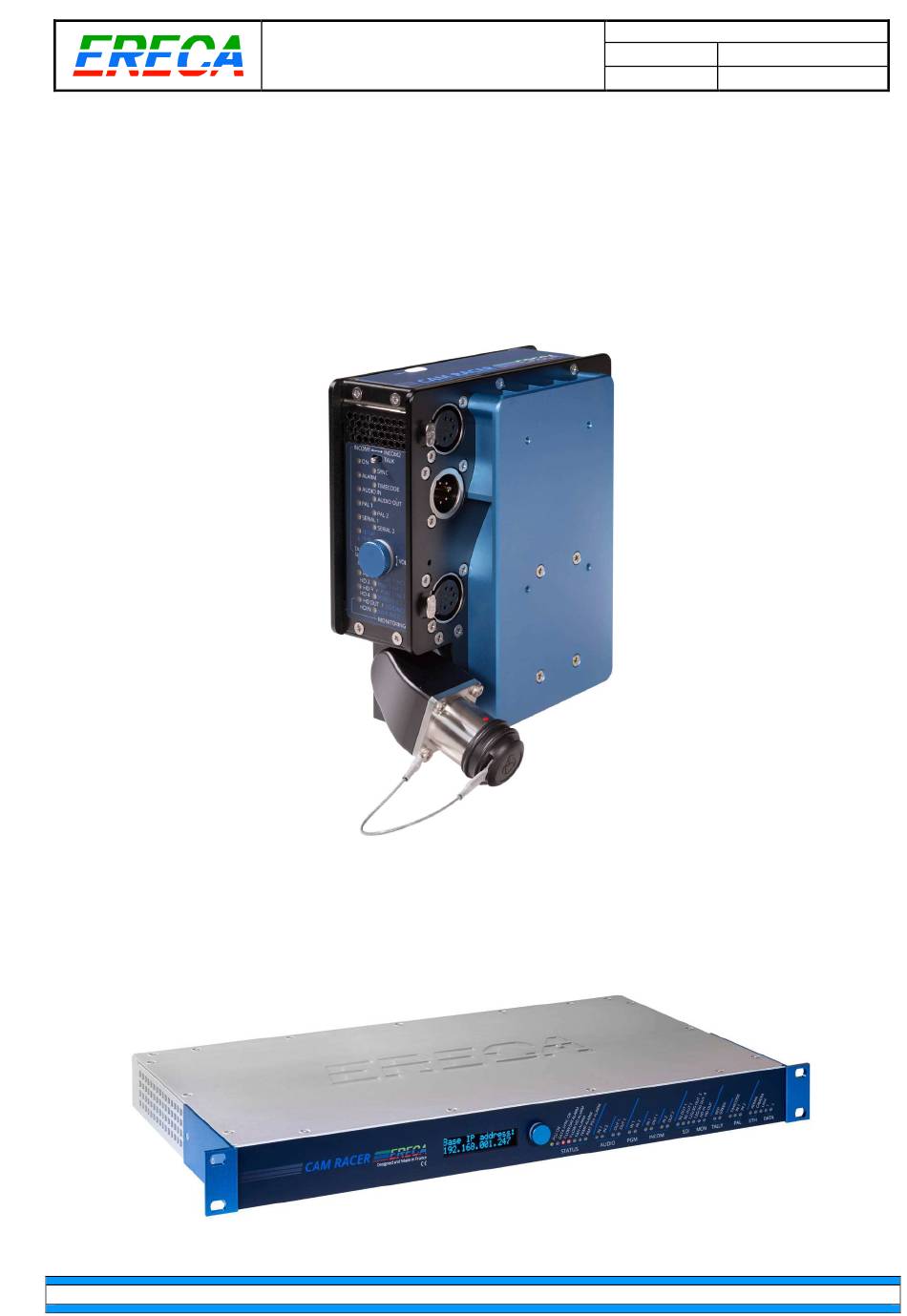

- Page 1 MT STAR AG Indice : 1 18/10/2016 12G-SDI Dockable optical fiber transmission unit for HD / 3G / 4K / 8K Camera. TECHNICAL PRESENTATION ERECA SAS 75 rue d'Orgemont, 95210 SAINT GRATIEN France Tel +33 1 39 89 76 23 www.ereca.fr...
-
Page 2: Table Of Contents
General configuration ........................23 3.5.2 IP address ............................. 23 3.5.3 Settings protection ......................... 23 3.5.4 Change password ......................... 24 TECHNICAL SPECIFICATIONS ....................... 25 ERECA SAS 75 rue d'Orgemont, 95210 SAINT GRATIEN France Tel +33 1 39 89 76 23 www.ereca.fr... -
Page 3: Cam Racer Overview
Cinema applications. It is composed of a camera dockable transmitter and a 1RU basestation receiver. 1.1 KEY FEATURES The following key features makes the CAM RACER a product of choice for all kind of production from HD to 8K applications. -
Page 4: Detailed Description
The basestation integrates a single mains power supply and two fans for thermal management. 2.1 CAMERA UNIT CONNECTORS LOCATION Right side connectors. Audio XLR’s. Bottom. ERECA SAS 75 rue d'Orgemont, 95210 SAINT GRATIEN France Tel +33 1 39 89 76 23 www.ereca.fr... -
Page 5: Basestation Connectors Location
Note: The HDMI audio is not re embedded in the Monitoring SDI signal transmitted to the basestation. ERECA SAS 75 rue d'Orgemont, 95210 SAINT GRATIEN France Tel +33 1 39 89 76 23... -
Page 7: Rj45 Data1 On Base Station
1: GND (Shield for serial channel) 2: Red Tally input (Short to ground to trig) 3: RX RS 422 – (Cam racer electrical OUTPUT) 4: TX RS 422 – (Cam racer electrical INPUT) 5: TX RS 422 + (Cam racer electrical INPUT) -
Page 8: Intercom Pinout
5: Channel 2 Input +. 1: Channel 1 Output +, 2: Channel 1 Output -, 3: Ground, 4: Channel 2 Output -, 5: Channel 2 Output +. ERECA SAS 75 rue d'Orgemont, 95210 SAINT GRATIEN France Tel +33 1 39 89 76 23 www.ereca.fr... -
Page 9: Optionnal Connector
Serial data RS 232/422/485. • Connector socket is Hirose HR10A-10R-12S (mate with HR10A-10P-12P), pinout is a follows: 1: RX RS 422 – (Cam racer electrical OUTPUT), 2: RX RS 422 + (Cam racer electrical OUTPUT), 3: Ground, 4: Intercom 2 Mic input +,... -
Page 10: Lanc Connector
Tip is Lanc signal and Ring is +5V output trough a 10 Ohms serial resistor for remote control power. The 10 Ohms serial resistor is also fitted in the cam racer Head unit, we suggest to leave the ring unconnected in your cable. -
Page 11: Display Unit
In this mode rotating the “Blue” button will adjust the global listen volume of the Intercom headset 1. ERECA SAS 75 rue d'Orgemont, 95210 SAINT GRATIEN France Tel +33 1 39 89 76 23... - Page 12 PGM1 INC2: Listen level on PGM1 input, • SIDE INC2: Adjust sidetone level for headset 2 (Need to be in talk position). • The drawing below illustrate this mode. ERECA SAS 75 rue d'Orgemont, 95210 SAINT GRATIEN France Tel +33 1 39 89 76 23 www.ereca.fr...
-
Page 13: Basestation
Optical power received by HD2 video receiver, • Optical power received by HD3 video receiver, • Optical power received by HD4 video receiver. • ERECA SAS 75 rue d'Orgemont, 95210 SAINT GRATIEN France Tel +33 1 39 89 76 23 www.ereca.fr... - Page 14 Note1: “IN” means a signal entering the base station, “OUT” a signal going out of the basestation. Note2: The state of each led may be affected by the audio mixing programmed in the unit. ERECA SAS 75 rue d'Orgemont, 95210 SAINT GRATIEN France Tel +33 1 39 89 76 23...
- Page 15 Any data activity on the LANC jack will lit the led regardless the protocol. The “DATA” leds are lit if any activity on the corresponding serial channel. ERECA SAS 75 rue d'Orgemont, 95210 SAINT GRATIEN France Tel +33 1 39 89 76 23...
-
Page 16: Remote Power Section
(camera startup, accessory startup) may draw too much power regarding the loss of the installed SMPTE cable. In this case the CAM racer will detect power drop and will switch on the battery and come back on the remote power supply to save battery energy. -
Page 17: Audio Mixer
17 / 2.6 AUDIO MIXER The Cam racer basestation audio section provides a small mixer that enables to send to each internal audio channel transmitted to the camera (Intercom1, Intercom2, Audio1, Audio2) a mix of the 6 physical input sources (Intercom1, Intercom2, Pgm1, Pgm2, Audio1, Audio2). -
Page 18: Separate Intercoms
WEB MANAGEMENT Full control and setup of the Cam racer transmission can be done trough the web server. As described in the previous sections some settings can be done directly on the units by the “blue” button, in this case the buttons settings will take precedence on the web page control. -
Page 19: Status Page
Data Fiber alarms (Optical receiver unsynchronized, Optical power monitoring on the Main • and spare fiber, Defective laser on Data transmitter). Video Fiber alarms (Optical power monitoring and defective laser on Video transmitter). • ERECA SAS 75 rue d'Orgemont, 95210 SAINT GRATIEN France Tel +33 1 39 89 76 23 www.ereca.fr... -
Page 20: Measures Page
The laser overcurrent is a preventive information, it indicates something wrong and that the unit need service asap but should be still able to transmit data for the current event. ERECA SAS 75 rue d'Orgemont, 95210 SAINT GRATIEN France Tel +33 1 39 89 76 23... -
Page 21: Settings Page
Electret or Carbon (8 V / 470 Ohms polarization), • Fully static with 48V phantom power (CAUTION: Take care of your Headset MIC). • ERECA SAS 75 rue d'Orgemont, 95210 SAINT GRATIEN France Tel +33 1 39 89 76 23 www.ereca.fr... -
Page 22: Volumes Settings Sub Section
Lanc protocol selection (Legacy / RCV-100) – Works only with RC-V100. • Turn Composite 1 input to high impedance, • Disable all the leds on the cam racer unit. • 3.4.4 SAVE RECALL User can Download / Browse / Import configuration from the corresponding buttons. Files are saved on the memory of the user computer. -
Page 23: Configuration Page
Important: For the stage racer product to validate changes done on this page, it’s mandatory to type in the password (“ereca” as default) in the “validate the change section” and click on “commit change” button. To revert to default type in “ereca” password and click on “initial values”. -
Page 24: Change Password
3.5.4 CHANGE PASSWORD Simply type twice the new general password in the “Modification of password” section and validate with the commit changes procedure. ERECA SAS 75 rue d'Orgemont, 95210 SAINT GRATIEN France Tel +33 1 39 89 76 23 www.ereca.fr... -
Page 25: Technical Specifications
1 RU 19” rack, depth 250mm excluding connectors, weight 3000 grams. Operating Temp range: From -20 to + 60°C. (Avoiding direct sun exposition). ERECA SAS 75 rue d'Orgemont, 95210 SAINT GRATIEN France Tel +33 1 39 89 76 23 www.ereca.fr...
