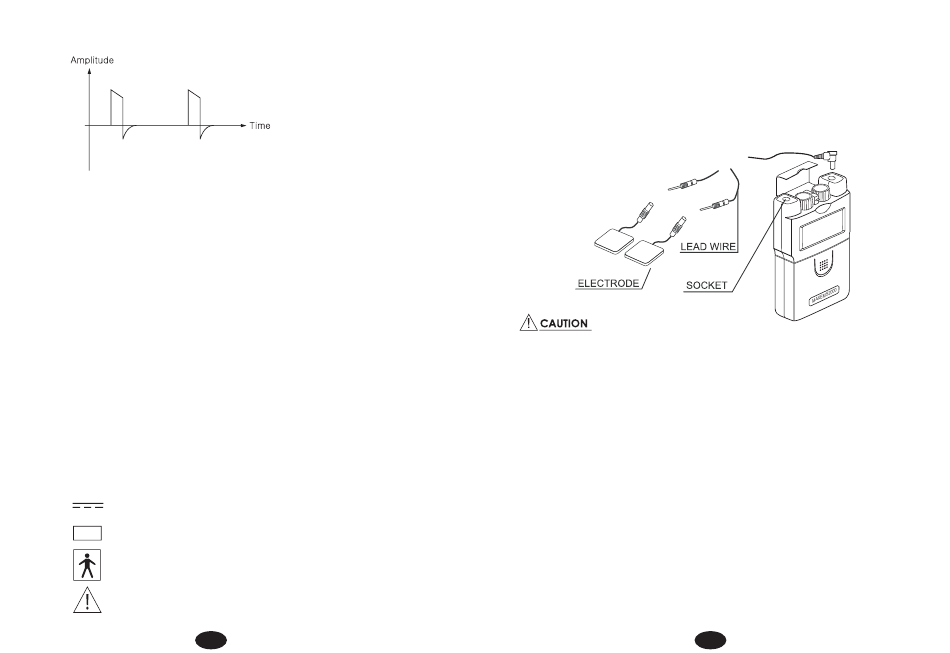

1. Waveform
Asymmetrical biphasic pulse
Pulse Rate: 5, 30, 100 Hz (load: 500 ohm)
Pulse Width: Fixed at 250us (load: 500 ohm)
Contraction Time: Adjustable, 1-30 seconds (load: 500 ohm)
Relaxation Time: Adjustable, 1-45 seconds (load: 500 ohm)
Power supply: 9V Battery (type: 6F22)
Chapter 9: ACCESSORIES
Each MAXEMS 1000 set is completed with standard accessories and standard
labels as given below.
1. Electrodes
2. Electrodes Leads
3. 9V Battery, type 6F22
4. Instruction manual
5. Carrying Case
Chapter 10: GRAPHIC SYMBOLS
1. Direct current
SN
2. Serial number
3. Type BF applied part
4. Caution, consult accompanying documents
4 pieces
2 pieces
1 piece
1 piece
1 piece
6
Chapter 11: ATTACHMENT OF ELECTRODE LEAD WIRES
The wires provided with the system insert into the jack sockets located on top of
the device. Holding the insulated portion of the connector, push the plug end of
the wire into one of the jacks (see drawing); one or two sets of wires may be used.
After connecting the wires to the stimulator, attach each wire to an electrode. Use
care when you plug and unplug the wires. Jerking the wire instead of holding the
insulated connector body may cause wire breakage.
Do not insert the plug of the patient lead wire into the AC power supply socket.
Chapter 12: LEAD WIRE MAINTENANCE
Clean the wires by wiping with a damp cloth. Coating them lightly with talcum
powder will reduce tangling and prolong life.
Chapter 13: ELECTRODE OPTIONS
Your clinician will decide which type of electrode is best for your condition. Follow
application procedures outlined in electrode packaging to maintain stimulation and
prevent skin irritation. Use of legally marketed adhesive EMS electrodes is recommended.
EMS electrode must satisfy below specification.
1. Carbon film: standard carbon film
2. Gel: biocompatible adhesive hydrogel
3. size: more than 4.9cm² area.
4. AC impedance: less than 2K ohms
7
