- Page 1 PX257-OC PX257-RE DMX/Relay Interface 8ch User manual...
-
Page 2: Table Of Contents
6 Programming scheme................19 7 Connection scheme.................20 8 Dimension....................24 9 Technical data..................24 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-4 BDO register number000005972 www.pxm.pl... -
Page 3: Description

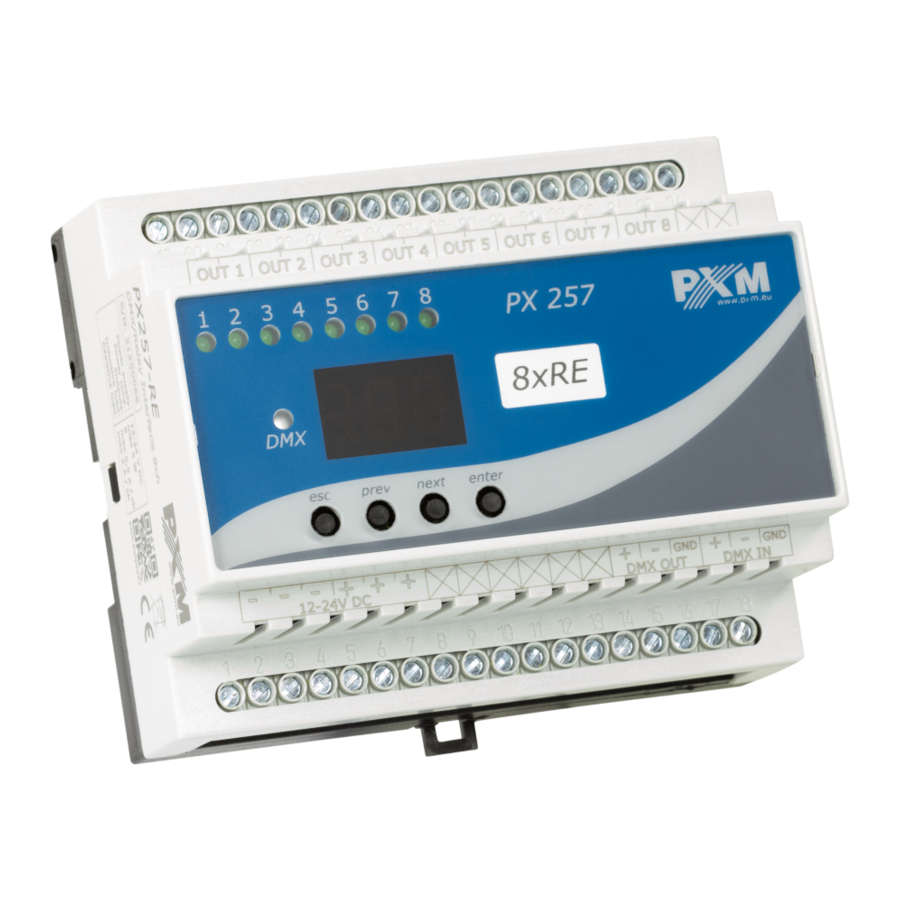

Description PX257 is a device made in two versions: 8 Relay Module and Switch 8x1.3A OC. It is used for switching on and off stage lighting and theatrical effects as well as architectural lighting equipment using the DMX-512 signal. The module incorporates a set of 8 relays that control on / off outputs. The PX257 OC version is an 8-channel digital DC switch, featuring maximum single circuit switching load of 1.3A. -
Page 4: Safety Condition
Safety condition The PX257 is a device powered with safe voltage 12 – 24V DC; however, during its installation and use the following rules must be strictly observed: 1. The device may only be connected to the 12 – 24V DC power supply (stabilized voltage) with current-carrying capacity compatible with technical data. -
Page 5: Connectors And Control Elements
Connectors and control elements a) “Relay” version of PX257 outputs outputs control diodes display DMX signal control diode control buttons power supply DMX-512 DMX-512 12 – 24V DC output input... -
Page 6: Device Programming
b) “OC” version of PX257 outputs Device programming After you switch on the module, its display shows the program version for a brief moment. To access the main menu, press “enter”, and the display will show Adr. Press “prev” or “next” to select the appropriate menu and press “enter”... -
Page 7: Button Features
4.1 Button features – goes back to the previous MENU level or discards changes made prev – scrolls to the previous feature on the same MENU level or decreases the parameter's value next – scrolls to the next feature on the same MENU level or increases the parameter's value enter –... - Page 8 ON A GROUP BASIS Using the “next” or “prev” keys, set the desired DMX address by selecting values from 1 to 512 and press “enter”. The address thus set will be assigned to the first channel, subsequent DMX addresses will be assigned to subsequent channels.
-
Page 9: Reaction Of The Device To Dmx Signal Interruption
4.4 Reaction of the device to DMX signal interruption In the you can configure the response of the device to DMX signal interruptions. Available options include: Pr1, Pr2, Pr3, Pr4 – 4 built-in programs – a scene that can be programmed –... -
Page 10: Complementary Outputs
Spd – this option allows the user to adjust program speed within the range of 0.1 – 60 seconds. SCENE Sc – allows you to select a static scene, what means to activate selected outputs. To select all outputs responsible for a static scene, press the “enter” button, then use the “next”... - Page 11 disabled). Using the buttons “next” or “prev” it can be changed time delay in the range of 0.1 – 5s. When control is performed using the DMX signal, the device operates in the following way: Input DMX channels Outputs number 1 –...
- Page 12 output that is switched on is the one whose DMX channel was first to be enabled. The same as in on1 mode its possible to change the time between disable one of output in pair and enable the second output in pair. By way of example: The action of switching on the first DMX channel will cause the first output to be switched on.
- Page 13 An example of connecting an electric motor with two directions of rotation to device PX257 230 V AC direction 1 direction 2 OUT 7 OUT 8 power supply 12 - 24 V DC DMX controller NOTE: If you want to connect an electric motor to the device, it has to be connected to paired outputs (e.g.
-
Page 14: Hysteresis Thresholds
4.6 Hysteresis thresholds The device can employ hysteresis which prevents relay contact vibration during switching on and off. Two hysteresis thresholds are applied, one for switching to the on position, the other – to the oFF position. If the lower hysteresis threshold is below the upper one, a normal characteristic is obtained. -
Page 15: Default Settings And Memory Errors
ALL – setting a lower and upper hysteresis threshold for all the eight channels at the same time (in the range of 0 – 255) Ch1 – Ch8 – setting a lower and upper hysteresis threshold for individual channels 4.7 Default settings and memory errors If you have any difficulty accessing the device menu, e.g. - Page 16 To restore the device to its default settings, press and hold the “prev” key while switching on the device. One of the messages that will be displayed will say dFl, which means successful restoring to default settings (the “prev” key has to be held down while powering on the device, until the dFl message is displayed).
- Page 17 Please note that after restoring to default settings, all the operating parameters of the device will revert to the following ones: DMX address: 1 • complementary outputs: off • no signal operating mode: off • • hysteresis thresholds: ON = 141, OFF = 115 The device incorporates an embedded memory controller.
-
Page 18: Dmx Signal Connection
DMX signal connection PX257 have to be connected to DMX line in serial mode, with no branches on DMX control cable. That means that DMX line, from the signal source, must be connected to DMX IN pins of PX257 and later, directly from DMX OUT pins to the next device in DMX chain. -
Page 19: Programming Scheme
Programming scheme ENTER ENTER ENTER NEXT NEXT NEXT ENTER ENTER NEXT NEXT NEXT ENTER NEXT NEXT ENTER NEXT NEXT ENTER NEXT NEXT NEXT NEXT ENTER ENTER NEXT NEXT NEXT ENTER ENTER NEXT NEXT ENTER ENTER ENTER ENTER ENTER NEXT NEXT NEXT NEXT ENTER... -
Page 20: Connection Scheme
Connection scheme a) version PX257–OC LOAD LOAD LOAD LOAD LOAD LOAD LOAD LOAD NOT CONNECTED +12 ~ 24V... - Page 21 Each output in PX257 is a open collector, its inner construction is shown on picture below. for inductive loads, use protection diode, e.g. 1N4007 Inside the device at each outputs is protective thermistor PTC 1.3A, which one in case of breakdown (short circuit, overload), during the increase of resistance the temperature will rise the thermistor will disconnect.
- Page 22 b) version PX257–RE – with low load 230 V AC power supply 12 - 24V DC Chaser Scene % 100 100 % effect (e.g. lamp) DMX controler...
- Page 23 c) version PX257–RE – at high load, use a contractor with connected external power supply to receivers 230 V AC 230 V AC power supply 12 - 24V DC Chaser Scene % 100 100 % effect (e.g. lamp) DMX controler...
-
Page 24: Dimension
Dimension 105 mm 60 mm Technical data type PX257 number of DMX channels power supply 12 – 24V DC 130mA for 24V DC current consumption 250mA for 12V DC number of output channels outputs load capacity (version RE): - resistive load max. - Page 25 / through DMX weight PX257-OC 0.2kg PX257-RE 0.3kg width: 105mm dimensions height: 60mm depth: 86mm...
- Page 26 Podłęże, 04.04.2019 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: DMX/Relay Interface 8ch Product code: PX257-OC PX257-RE meets the requirements of the following standards, as well as harmonised standards:...
