NavLinkz DVBT450 User Manual

Car-use dvb-t diversity receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DVBT450

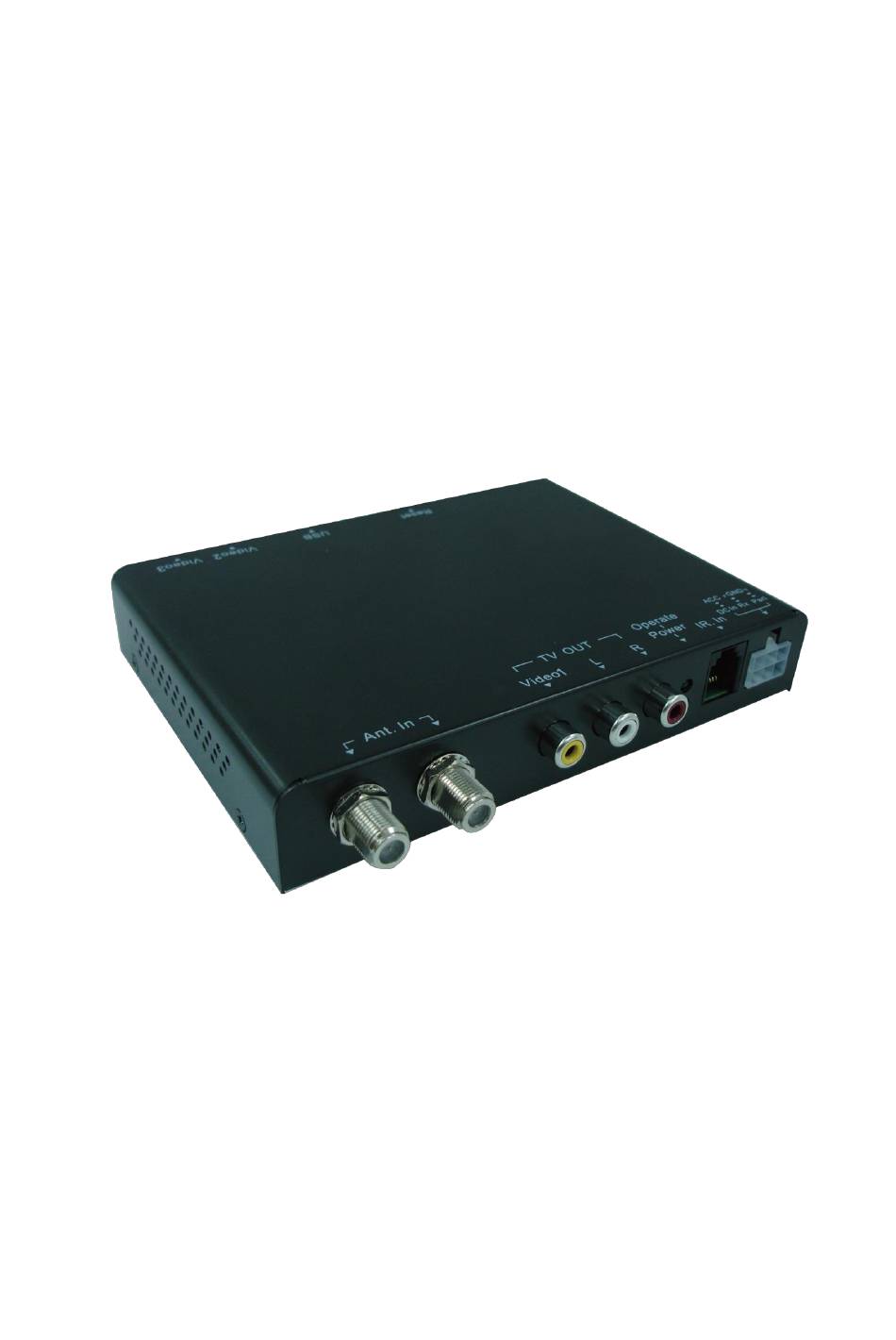

Car-use DVB-T Diversity Receiver
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVBT450 and is the answer not in the manual?

Questions and answers

Summary of Contents for NavLinkz DVBT450

  • Page 1 DVBT450 Car-use DVB-T Diversity Receiver User Manual...
  • Page 2 The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk at electric shock to persons. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK –...
  • Page 3 Precaution Preface On Safety Do not attempt to install or service your DVB-T receiver by yourself. Installation or servicing  by people without training and experiencing in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock or other hazards.

  • Page 4: Table Of Contents

    Table of Contents Using the Menu ................10 I.1. Home Menu ................... 10 II. Quick Guide for First-time User ............11 2.1 DVB-T TV Watching ..............11 2.2 DVB-T Radio Listening ..............13 2.3 Record Function ................14 2.4 Movie Watching ................16 2.5 Music Listening ................
  • Page 5 Unit Description & Installation Guide Front Panel USB port: For reading USB memory stick. Power: “Power” LED indicates if the 12V or 24V power supply has been successfully applied to the in-car DVB-T receiver . Operation: The “Operation” LED indicates if this unit is receiving a signal. IR In: Port for connecting the infrared receiver module.
  • Page 6 Warning: Make sure all Power Cables are connected correctly. Red: Must be connected to ACC or IGN (+) Yellow: Must be connected to Vehicles 12V/24V battery (+) Constant Supply. (Fused 3 Amp) Blue: Optional +12V output to power up powered active antennas. (IMPORTANT: Please cut and insulate this blue wire if it’s not being used) Black: Must be connected to Vehicles chassis / Ground Green: Must be connected to vehicles Hand Brake Wire: (if connecting to front monitor in vehicle)
  • Page 7 Antenna Connection DVB-T reception will vary from vehicle to vehicle and you may have to try several mounting positions to determine which position provides the strongest signal in your vehicle. We recommend for one antenna to be mounted at the front and one at the rear of the vehicle.
  • Page 8 Remote Control Operations Button name Function POWER Select power-on or stand-by MUTE Mute control SOURCE No Function PREVIEW Enter preview mode in DVB-T TV AUDIO Select second language and stereo audio ENTER To enter the selected channel number EXIT Exit the current setup Digital keys RECALL Return to the last selected channel...
  • Page 9 Accessories o Power Harness (Cable) o Remote control o AV cord o IR Receiver Module. o USB extension cable (optional) o 2 x Active Antenna’s (optional)

  • Page 10: Using The Menu

    I. Using the Menu I.1. Home Menu This is the home menu screen. From here you can select video playback mode, music playback mode, picture viewing mode, DVB-T TV mode, DVB-T Radio mode, and the settings menu. Use [CH▲] and [CH▼] buttons to select the desired item then press the [OK] button.

  • Page 11: Quick Guide For First-Time User

    II. Quick Guide for First-time User 2.1 DVB-T TV Watching Step 1: Turn on the unit 1. Turn on the vehicles ACC or IGN. (Or Start the vehicle) 2. When the unit has power, the POWER LED indicator will illuminate RED. 3.
  • Page 12 Step 3: Press [OK] button to enter the scan setup. Step 4: Select your own OSD Language, your located region, whether it’s summer time at present. 1. Use [CH▲]/[CH▼] buttons to highlight the item. 2. Use [VOL] button to set the highlight item. 3.

  • Page 13: Dvb-T Radio Listening

    2.2 DVB-T Radio Listening 1. Press [CH▲]/[CH▼] buttons to select the Radio item and then press [OK] button to enter the radio mode. 2. Press [CH▲]/[CH▼]buttons to select your preferred radio channel. 3. The radio service will instantly start.

  • Page 14: Record Function

    2.3 Record Function NOTE: Mikado3M supports both DVB-T TV and DVB-T Radio recording. 1. During TV or Radio mode, press [REC] to start recording TV/Radio programs. When unit is start recording, icon will appear on the upper left screen & the timer menu (disappear in 10 sec without control) will appear on the lower left screen simultaneously.
  • Page 15 Important notes: A recorded program will be stored in a default folder named as “Recorded_TV”. The file types will be “.mpg” file for TV program and “.mp3” file for Radio. The file is named as (Channel Name) + (RecordedDate_RecordedTime) iii. Maximum file size of FAT/FAT32 is 4 GB, so if the file exceeds this size, it will cut the recorded file into 2 parts.

  • Page 16: Movie Watching

    2.4 Movie Watching Mikado3M can support mpg, dat, vob, and avi (MPEG4ASP, XVid, Div 4.0/5.0) format video files. The section below will explain how you can play a video file stored on your USB Storage device. After selecting movie playback mode on the home screen, file browser screen will appear.

  • Page 17: Music Listening

    2.5 Music Listening Mikado3M supports mp3 and wav format audio file. The section below will explain you how to quickly play a music file stored on USB device. 1. After selecting music playback mode on the home screen, file browser screen will appear.

  • Page 18: Photo Viewing

    2.6 Photo Viewing Mikado3M supports jpeg, bmp, and gif picture file. The section below will explain you how to view a picture file stored on USB device. 1. After selecting photo viewing mode on the home screen, file browser screen will appear.
  • Page 19  Photo Viewing – Advanced Functions  Rotating picture Press [VOL] button to rotate the picture clockwise, press [VOL] button to rotate it counterclockwise.  Slideshow Press [PLAY/PAUSE] to start/stop photo slideshow.  Zoom 1. When viewing a picture, presses [OK] button to active the zoom function. 2.

  • Page 20: Technical Settings

    Technical Settings 3.1 System Settings This is the system settings menu screen. Users can adjust the country/language setting, the sound setup, display, time, and proceed to a software upgrade. Use [CH▲] and [CH▼] buttons to highlight the desired item and press [OK] button to select one. ...
  • Page 21  III.1.3. Sound Setup To select a sound effect and set up the equalizer. 1. Press [CH ▲ ]/[CH ▼ ] buttons to highlight the item you want to adjust. 2. Press [VOL] button and use [CH▲]/[CH▼] to scroll up and down the options.

  • Page 22: Dvb-T Tv/Radio Menu

    3.2 DVB-T TV/Radio Menu After entering the DVB-T TV or Radio service, press [MENU] button to make the menu appear. By navigating the different options, you can have access to the program list, the channel management, the automatic channel search function, the DVB-T audio settings, the channel info, the subtitle function, the teletext, and the parental lock.
  • Page 23 chosen channel. 3. Press [EXIT]/[MENU] button to exit anytime.  Skip a Channel 1. After entering the channel editing menu, select the “SKIP” visual-button on screen by pressing [VOL]/[VOL] buttons. 2. Press [OK] button to activate or deactivate it. NOTE: this function “temporarily” removes the channel from the program list. Users can restore the channels by deactivating the function.
  • Page 24  III.2.3. Automatic Channel Search To search the available channels automatically. 1. Browse the TV menu screen using [CH▲]/[CH▼] buttons to highlight the automatic search option. NOTE: you can also press [AUTO SCAN] button to enter Automatic Channel Search while enjoying DVB-T TV/Radio. 2.
  • Page 25 NOTE: you can also press [INFO] button to enter Channel Information while enjoying DVB-T TV/Radio. 2. Press [OK] button to display the channel information. 3. Press [EXIT]/[MENU] button to exit  III.2.6. Subtitle To activate or deactivate the subtitle function. ...

  • Page 26: Trouble Shooting Q&A

    4 Trouble Shooting Q&A Most of the troubleshooting issues can be easily solved. The common cases and their respective solutions are listed in the table below. If the problem persists, please contact the after sales service. Problem Possible Reason Solution The power cord is not properly inserted into the Check the power wire connection.

  • Page 27: Specification

    5 Specification Features DVB-T Reception Best in class performance of DVB-T TV reception (Diversity-2) Multimedia playback MP3, MPEG4, JPEG multimedia playback through USB device Advanced functions Support TV-recording (record on USB device) RF Input Passive and active antenna supported. Antenna F-type antenna Frequency range VHF (170-230 MHz) and UHF band (470-862 MHz)
