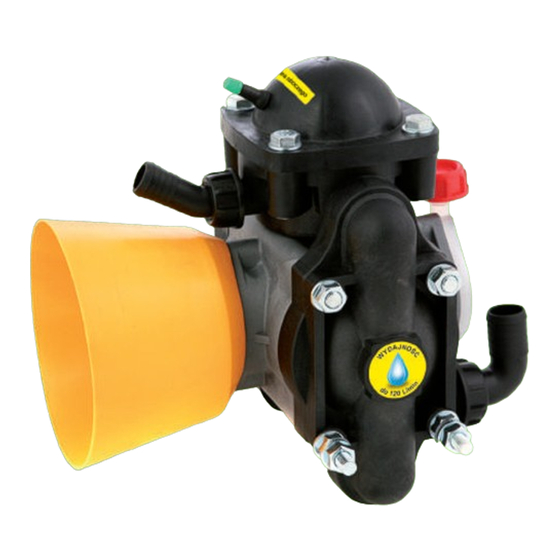

Summary of Contents for AGROPLAST P-100

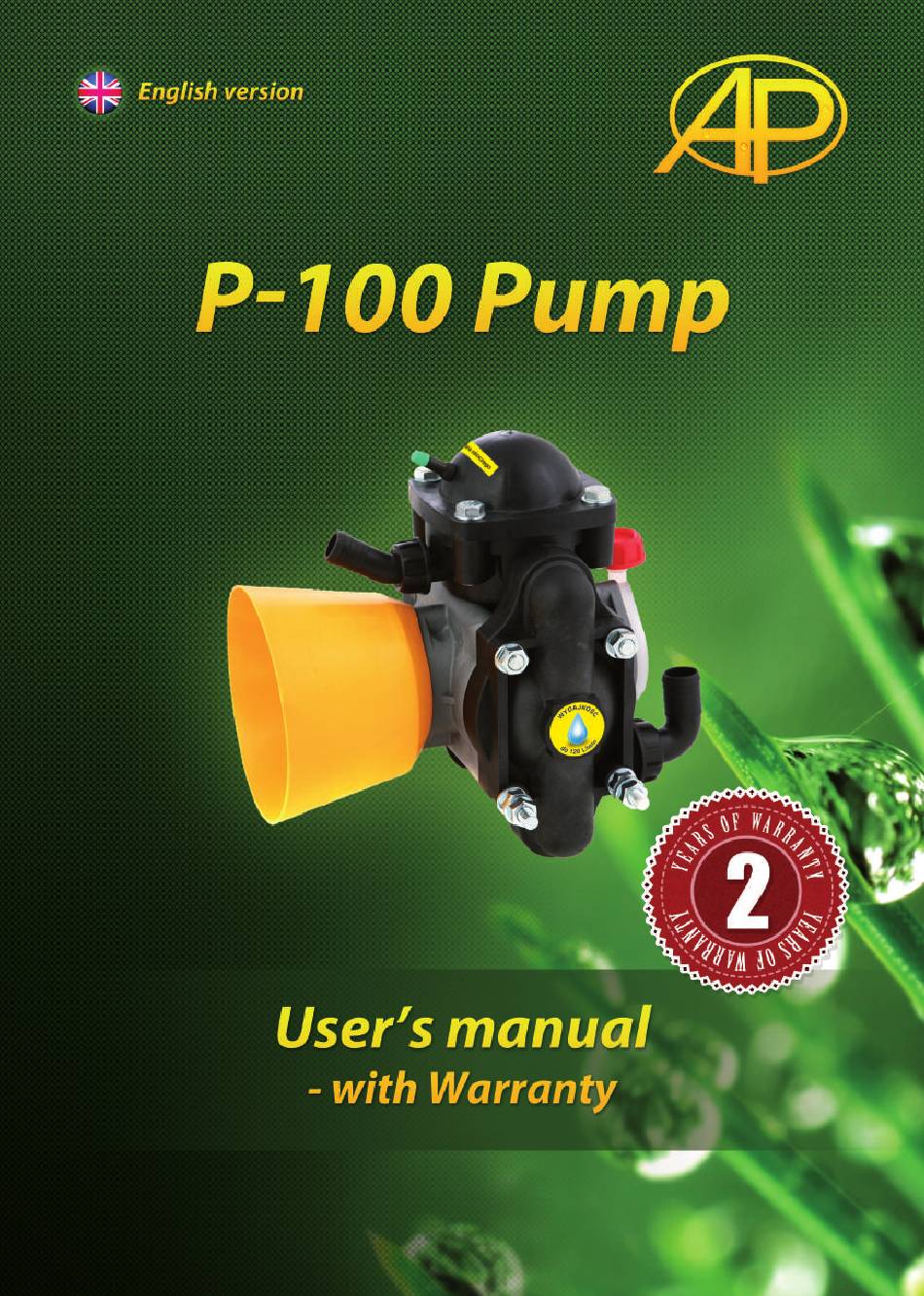

- Page 1 SPIS TREŚCI 1...
- Page 2 2 TABLE OF CONTENTS TABLE OF CONTENTS Warranty regulations and introduction Pump Construction Servicing and the conditions of safe usage Replacement of basic elements...
- Page 3 WARRANTY REGULATIONS AND INTRODUCTION 3 DEAR CLIENTS, We would like to thank you for having bought P-100 pump from the AGROPLAST offer This appliance has been designed and produced with the use of the most advanced technologies and has undergone...
- Page 4 4 P-100 PUMP – CONSTRUCTION P-100 Pump – Construction Legend: 1. P-100 Pump housing 21. M12x275 stud-bolt cat. no AP21GP 2. Pump head, 22. M12x320 stud-bolt cat. no AP20KT cat. no AP21K32 3. Pressure manifold, 23. Ø 32/90 1 ¼” elbow pipe, cat.
- Page 5 320 mm width 320 mm CHARACTERISTICS OF THE P-100 PUMP: the use of needle bearing on rotating elements contributes to the prolonged and failure-free pump running and the decrease of the heat production to the minimum aluminum piston working in the iron bushing ensures the best cooperative properties of these ele-...
- Page 6 6 REPLACEMENT OF BASIC ELEMENTS Water that has not been drained off might freeze which might result in pump failure adhere to the servicing schedule of oil exchange every one year, once a year, preferably before beginning the exploitation season, replace the following elements: pump membranes, check valves and the air vessel diaphragm, for the first 16 hours of work, pump’s elements are breaking in and one should not exceed the working pressure of 1 0 Mpa,...
- Page 7 If the need for the disassembling of the shaft arises, first position the center holes on its top front horizontally WARRANTY CARD Name, type Factory no. Purchase date Seller’s stamp, signature Agroplast 22-107 Sawin ul. Lubelska 24 phone: +48 82 567 39 51...
Need help?
Do you have a question about the P-100 and is the answer not in the manual?
Questions and answers
WHAT IS THE AMOUNT OF AIR PRESSURE PUT INTO THE PUMP THROUGH THE AIR VALVE, IN PSI. THANKS.
The recommended air pressure in the air vessel of the AGROPLAST P-100 pump should be 1/3 to 1/2 of its working pressure. The exact PSI value depends on the pump's working pressure, which is not specified in the provided context.
This answer is automatically generated
Здравствуйте, влияет ли объем масла на насосе на подключение, если у меня 700 могу ли я поставить 500 объём . Агропласт польша
The AGROPLAST P-100 pump requires 0.65 L (650 ml) of CB SAE 40 oil or similar. Using 500 ml instead of 700 ml would result in oil below the required amount, which may affect proper operation. The oil level should be between the minimum and maximum marks visible in the observation glass. Therefore, 500 ml is insufficient and should not be used.
