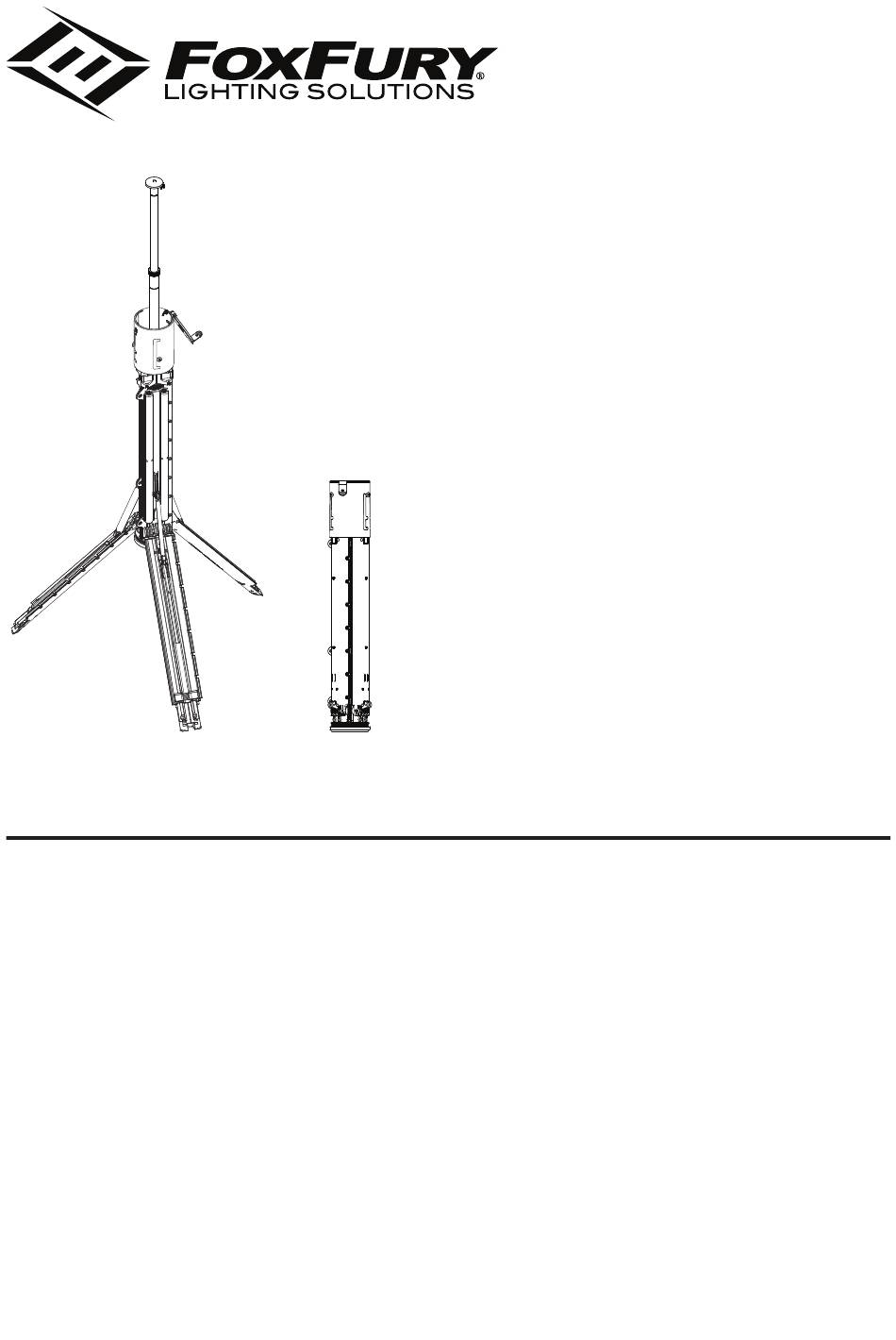

- Page 1 TRIPO-SCOPE ® 650–100 PRODUCT MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Reference Guide Overview Physical Characteristics FEATURES Leveling Leg Extensions and Level Bubble Anchor Strap ACCESSORIES Puck Adaptor (included) Mount Clamps (not included) Horizontal Right Angle Mount (not included) DEPLOYING THE TRIPO-SCOPE ® 6–7 MAINTENANCE WARRANTY 10–11 CONTACT FOXFURY... -
Page 3: Reference Guide
TRIPO-SCOPE M1 REFERENCE GUIDE ® DEPLOYED VIEW SWIVEL ADJUSTMENT KNOB (360º) MOUNTING PLATFORM (3/8"-16 STUD) TRIPO-SCOPE ® TIGHTENING RINGS TRIPO-SCOPE ® POLES LEVEL BUBBLE PROTECTIVE LIGHT CAP LOCKING SLEEVE CARRY STRAP CLIP TRIPO-SCOPE ® BODY TRIPO-SCOPE ® LEG LOCK FOLDING TRIPO-SCOPE ®... -
Page 4: Overview
OVERVIEW The Tripo-Scope M1 (Patent Pending) is the ultimate telescoping tripod that ® reaches great heights [up to 92" (2,336 mm)] while providing a sturdy base. With combined use of the included Puck Adaptor, any Nomad Now, N32 or ® N56 can be mounted on the Tripo-Scope M1. -
Page 5: Features
FEATURES LEVELING LEG EXTENSIONS AND LEVEL BUBBLE On uneven ground, fine adjustments can be made by releasing the Leveling Leg Extensions. The Level Bubble can be used for reference. LEG EXTENSION RELEASE TAB(S) LEVEL BUBBLE LEVELING LEG EXTENSION RELEASED ANCHOR STRAP In case of heavy wind or extreme weather conditions, attach a sand bag, or equivalent weight, to the concealed Anchor Strap (see the "Tripo-Scope ®... -
Page 6: Deploying The Tripo-Scope ® M1
DEPLOYING THE TRIPO-SCOPE ® LEGS LOCKED LEGS RELEASED LEG EXTENSION RELEASE TAB(S) LEVELING LEG EXTENSION RELEASED... - Page 7 Set the Tripo-Scope M1 down vertically , on a flat surface, as shown. Open ® the Protective Light Cap and twist the Locking Sleeve to the right ( ) and slide upwards ( ). While still holding the Locking Sleeve up, twist it back to the left ( ).
-
Page 8: Accessories
TRIPO-SCOPE ACCESSORIES ® PUCK ADAPTOR (INCLUDED) The Puck Adaptor mounts to the Tripo-Scope M1. Thread the hole of the ® Puck Adaptor onto the 3/8"-16 Threaded Stud of the Tripo-Scope M1. Then, ® twist the the Puck Adaptor until it is securely fastened. MOUNT CLAMPS (SET OF TWO (2) NOT INCLUDED) These allow the Tripo-Scope M1 to be mounted to any hard surface such as a... - Page 9 NOTES...
-
Page 10: Warranty
Nomad Mount Clamps ® by someone other than FoxFury) prior to your (set of 2), P/N 850-800 purchase, you are not the Original Purchaser and the product that you purchased is not covered by... - Page 11 Web: FoxFury.com All FoxFury products are designed in Oceanside, CA. All FoxFury products are manufactured with the highest quality USA and foreign parts. Products are assembled in either FoxFury’s controlled plant in Asia or the USA, under strict quality control.
- Page 12 FOXFURY .COM 2/2019...
