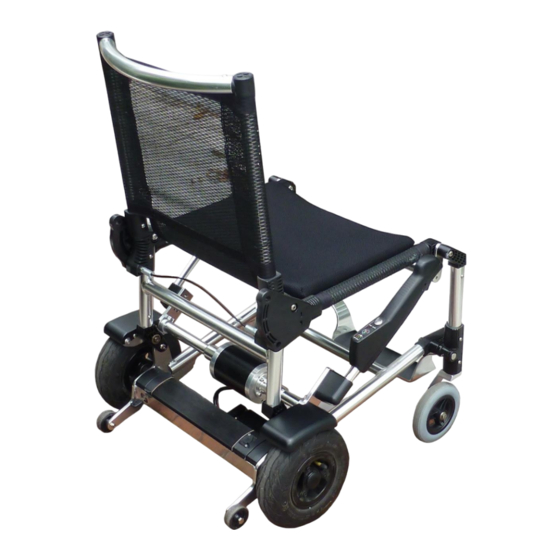

MovingStar 100 User Manual
  1. Manuals
  2. Brands
  3. MovingStar Manuals
  4. Wheelchair
  5. 100
  6. User manual

MovingStar 100 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
U
S
E
R
M
A
N
U
A
L
U
S
E
R
M
A
N
U
A
L

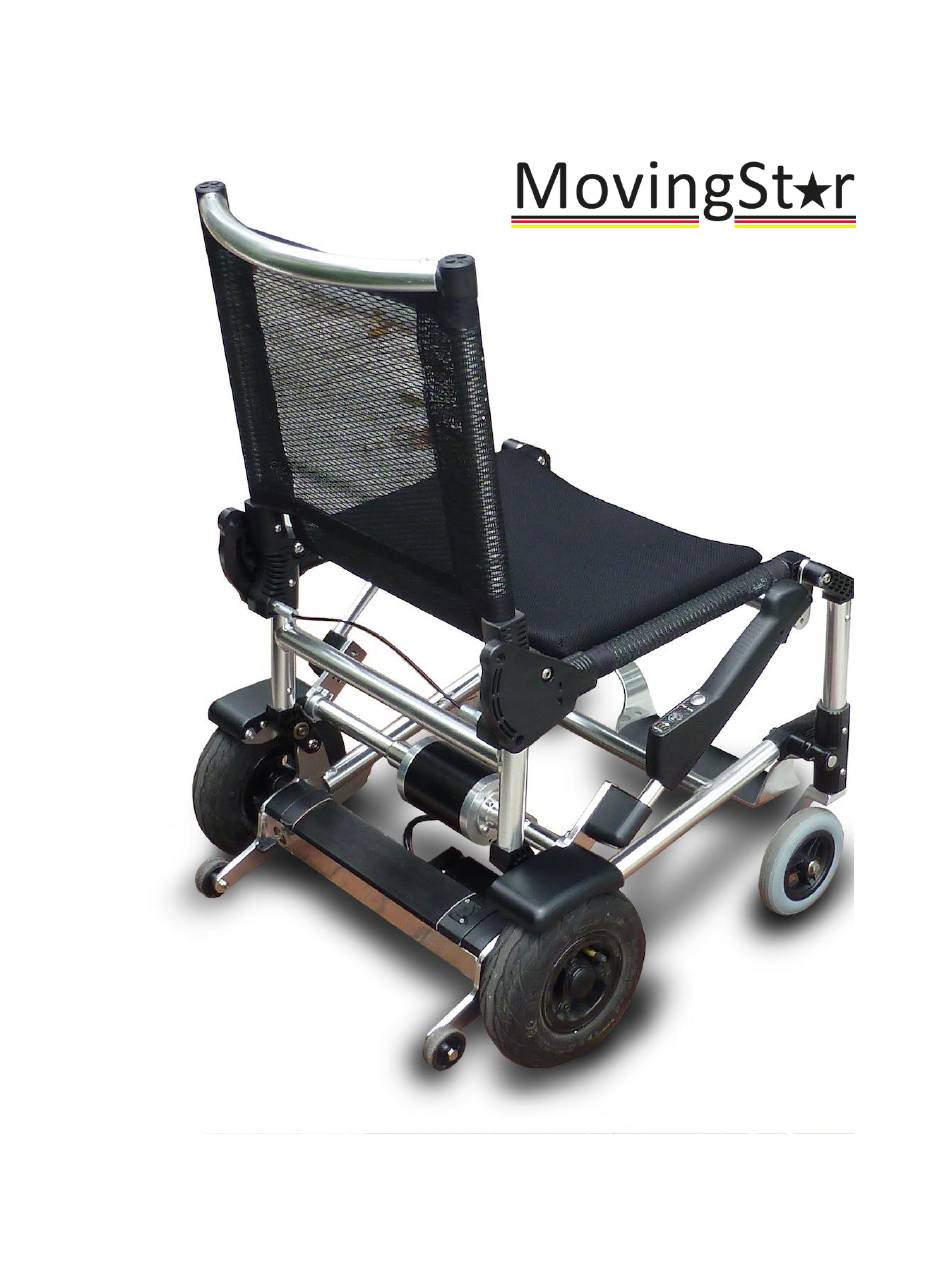

ATTENTION: It is mandatory that all users read this entire manual before operating the
MovingStar. The MovingStar relies on a two-lever control system that is very different from front
wheel steered vehicles. While this system has inherent advantages, it also presents new dangers
and warnings that you should be aware of before your first ride. Pay special attention to the
Warnings on page 2 - 4 as well as all sections containing additional warnings in BOLD CAPITAL
LETTERS.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for MovingStar 100

  • Page 1 ATTENTION: It is mandatory that all users read this entire manual before operating the MovingStar. The MovingStar relies on a two-lever control system that is very different from front wheel steered vehicles. While this system has inherent advantages, it also presents new dangers and warnings that you should be aware of before your first ride.

  • Page 2: Table Of Contents

    How to Unfold for Riding ................7 How to Fold for Travel and Storage ............7 Battery Installation and the Battery Lock Key ........... 8 Getting In and Out of the MovingStar ............0 Power Button and Auto Shutoff ..............9 The Trigger Throttle ..................9 Learning Ride ....................

  • Page 3: Warnings

    Avoid unnecessary stopping or turning on any non-level surface. • The MovingStar requires both hands to operate. Always grip both handles and do not attempt to hold anything in either hand while operating the MovingStar, e.g. beverage, cell phone, etc..
  • Page 4 Do not attempt to push or tow anything with your MovingStar. • The MovingStar is not for use by children. Keep children away from the chair and controls. • Do not wear loose clothing such as scarves or robes, OR carry anything that hangs such as leashes or purses which could get caught in the wheels or other moving parts, or obstruct the control handles when operating.

  • Page 5: Safety Guidelines And Operating Conditions

    MovingStar build speed on descent. Avoid making turns on grades. If there is a sharp turn on the hill, find an alternate route or walk the MovingStar. Do not attempt any grade in wet conditions. If you are uncertain about the terrain, get up and walk behind your MovingStar by pushing on the Seat Back Bar.

  • Page 6: Movingstar Diagram

    MovingStar Diagram Seat Back Bar Release Cable Right Control Control Power Left Control Lever Panel Button Lever Cross Tube Trigger Throttle Locking Pins Motor Battery Lock Foot Plate Right Front Battery Caster Wheel (no air needed) Charge Port Right Rear Wheel...

  • Page 7: Charging The Battery

    Weighing only 41 pounds (18.5kg) and folding to 10 inches high (25cm), your MovingStar is easy to load into almost any car. It was made in a state of the art factory in Taiwan where the best production technicians and engineers make sure that each MovingStar is built to perfection.

  • Page 8: How To Unfold For Riding

    How to Fold for Travel and Storage Pull the Release Cable and lower the Seat back Bar. It helps to rotate the MovingStar slightly as you lower the seat back bar so that the Front Caster Wheels swivel together until they lay flat on the ground.

  • Page 9: Battery Installation And The Battery Lock Key

    Getting In and Out of the MovingStar To sit down in the MovingStar Swing the Foot Plate back by pushing it back with your heels as shown by the lower arrow in Fig. 5. This makes getting in and out easier by placing your feet beneath you as you sit down or get up from the chair.

  • Page 10: Power Button And Auto Shutoff

    Power Button and Auto Shutoff See Fig. 7: Use the power button to switch the MovingStar on and off. When switched on the lights on the control panel will be active. The green light for the slow speed mode will be active automatically.

  • Page 11: Learning Ride

    For learning find a large, level, open area with no traffic or obstacles. Each time the power is turned on (see Fig. 7), the MovingStar will be in the LOW speed range. The LOW speed range limits the motor speed to very slow speed for learning and indoor use. In low Range everything happens in slow motion to allow time for you to learn the method of braking and steering the MovingStar.

  • Page 12: Control Panel And Speed Range Selection

    Button to put the MovingStar in reverse mode. The reverse light will come on indicating that your MovingStar is now in reverse mode. Press both levers down and pull the Trigger Throttle as if you were going to go straight forward –but instead, the MovingStar will back up at a very slow speed only.

  • Page 13: Carrying And Storing Your Movingstar

    Carrying and Storing Your MovingStar To move your MovingStar without riding in it, it is always easiest to roll it in front of you with the MovingStar in its unfolded position, by pushing on the Seat Back Bar. In fact your MovingStar makes a good rolling walker.

  • Page 14: Loading The Movingstar Into A Car

    Loading the MovingStar into a Car Your MovingStar fits in the trunk of most cars. There are a few tips to make loading it easier, which are the same whether you are loading into a hatch back, an SUV, or a sedan car trunk.

  • Page 15: Adjusting To Fit You

    Adjusting to Fit You Your MovingStar is designed as one size fits all. However, if you feel that you are reaching too far down to operate the levers, you can adjust them up. Or, if you feel that you’d prefer the levers further away, you can adjust them down.

  • Page 16: Specifications

    SPECIFICATIONS Overall Weight 41Lbs (18.5Kg) (including Li- ion battery) Dimension L x W x H 31(785) x 25(645) x 37(935) in. (mm) Folded L x W x H 38(955) x 25(645) x 10(250) in. (mm) Seat Dimensions L x W 13(330) x 16.5(420) in.

  • Page 17: Questions & Answers And Trouble Shooting

    • My MovingStar won’t lean against the wall on its (little) rear Anti Tip Wheels. 1. Set the MovingStar on its side with the trigger handle facing up and it will stand by itself. See section entitled Carrying and Storing Your MovingStar, Page 12.
