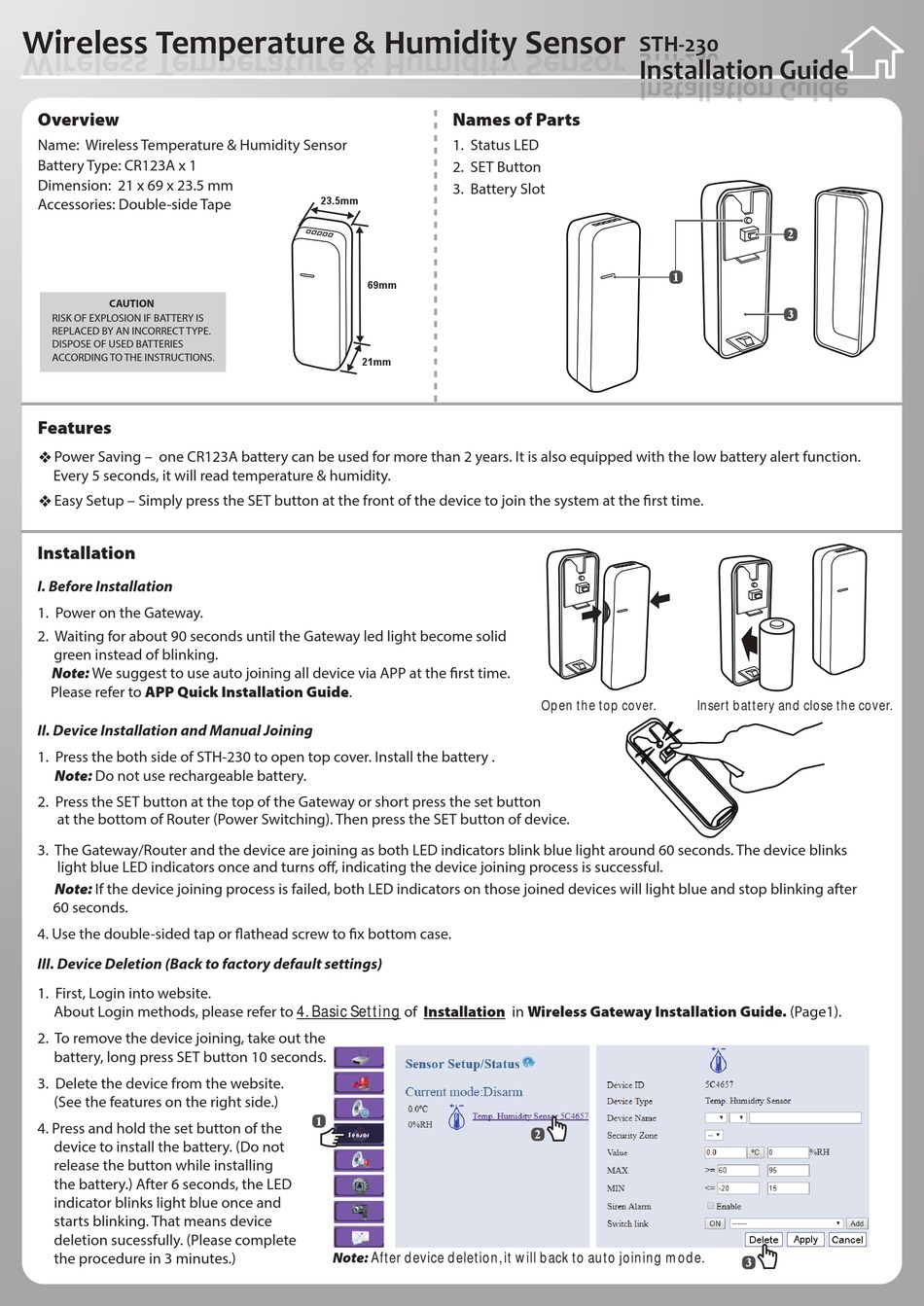

UIS STH-230 Installation Manual

Wireless Temperature & Humidity Sensor
W i r e l e s s T e m p e r a t u r e & H u m i d i t y S e n s o r W i r e l e s s T e m p e r a t u r e & H u m i d i t y S e n s o r

Overview

Name: Wireless Temperature & Humidity Sensor
Battery Type: CR123A x 1
Dimension: 21 x 69 x 23.5 mm
Accessories: Double-side Tape
CAUTION
RISK OF EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.

Features

Power Saving – one CR123A battery can be used for more than 2 years. It is also equipped with the low battery alert function.
Every 5 seconds, it will read temperature & humidity.
Easy Setup – Simply press the SET button at the front of the device to join the system at the rst time.

Installation

I. Before Installation
1. Power on the Gateway.
2. Waiting for about 90 seconds until the Gateway led light become solid
green instead of blinking.
Note: We suggest to use auto joining all device via APP at the rst time.
Please refer to APP Quick Installation Guide.
II. Device Installation and Manual Joining
1. Press the both side of STH-230 to open top cover. Install the battery .
Note: Do not use rechargeable battery.
2. Press the SET button at the top of the Gateway or short press the set button
at the bottom of Router (Power Switching). Then press the SET button of device.
3. The Gateway/Router and the device are joining as both LED indicators blink blue light around 60 seconds. The device blinks
light blue LED indicators once and turns o , indicating the device joining process is successful.
Note: If the device joining process is failed, both LED indicators on those joined devices will light blue and stop blinking after
60 seconds.
4. Use the double-sided tap or athead screw to x bottom case.
III. Device Deletion (Back to factory default settings)
1. First, Login into website.
About Login methods, please refer to 4. Basic Setting of Installation in Wireless Gateway Installation Guide. (Page1).
2. To remove the device joining, take out the
battery, long press SET button 10 seconds.
3. Delete the device from the website.
(See the features on the right side.)
4. Press and hold the set button of the
device to install the battery. (Do not
release the button while installing
the battery.) After 6 seconds, the LED
indicator blinks light blue once and
starts blinking. That means device
deletion sucessfully. (Please complete
the procedure in 3 minutes.)

Names of Parts

1. Status LED
2. SET Button
3. Battery Slot
23.5mm
69mm
21mm
1
Note: After device deletion, it will back to auto joining mode.
STH-230
I n s t a l l a t i o n G u i d e
Installation Guide
I n s t a l l a t i o n G u i d e
1
Open the top cover. Insert battery and close the cover.
2
2
3
3
