Compac WD1500 Instruction Manual

Wheel dolly
Hide thumbs Also See for WD1500:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual See also: Instruction Manual
ESCO #90538
For Sales, Service, and
Parts Contact ESCO at
1-800-352-9852
15270 Flight Path Drive, Brooksville FL, 34604 ● 1-800-352-9852 ● www.esco.net ● sales@esco.net

Advertisement

loading
Need help?

Need help?

Do you have a question about the WD1500 and is the answer not in the manual?

Questions and answers

Larry Warner
February 5, 2025

hydraulic cylinder rebuild kit

0

Related Manuals for Compac WD1500

Summary of Contents for Compac WD1500

  • Page 1 ESCO #90538 For Sales, Service, and Parts Contact ESCO at 1-800-352-9852 15270 Flight Path Drive, Brooksville FL, 34604 ● 1-800-352-9852 ● www.esco.net ● sales@esco.net...

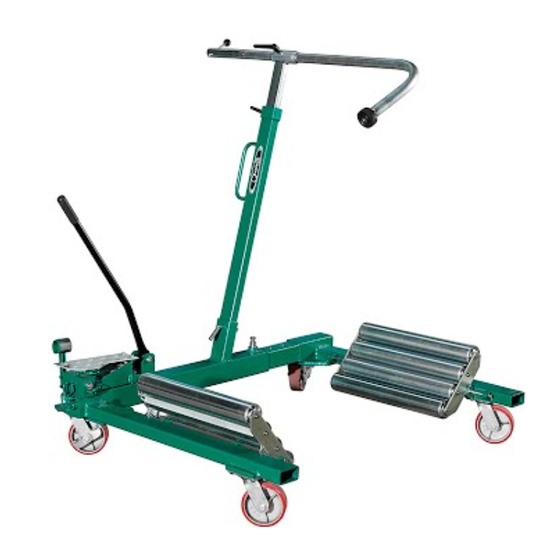

  • Page 2 How to use the wheel dolly: WD1500 is a mobile wheel dolly for demounting and mounting large wheels with an outside diameter of 1250 mm (49") up to 2400 mm (94.5”). The wheel / load is lifted when the 2 x 4 rollers press horizontally on each side of the wheel.
  • Page 3 Safety instructions - LIFTING 1. Make sure that lifting only occurs on a flat and strong surface/floor. If not, lifting with this unit is prohibited due to risk of danger / damages! 2. The wheel/load should be lifted from the floor. 3.
  • Page 4 In such cases the unit should be inspected/repaired by a skilled person. More information on spare parts, etc is available on www.compac.eu under ”Services”. The manufacture is not liable for wrong use, changes to the construction, use of other spare parts than original or adjustments/repairs by unauthorised persons.
  • Page 5 Type: Use only hydraulic oil with a gradation (viscosity) of AWS22. Compac recommends Castrol. In case the hydraulic unit has a lack of oil or has been taken apart in order to replace the seals then fill up with the correct oil quantity. Activate the pump handle and add oil slowly through the filling hole at the plug.
  • Page 6 3458A 3461A...
