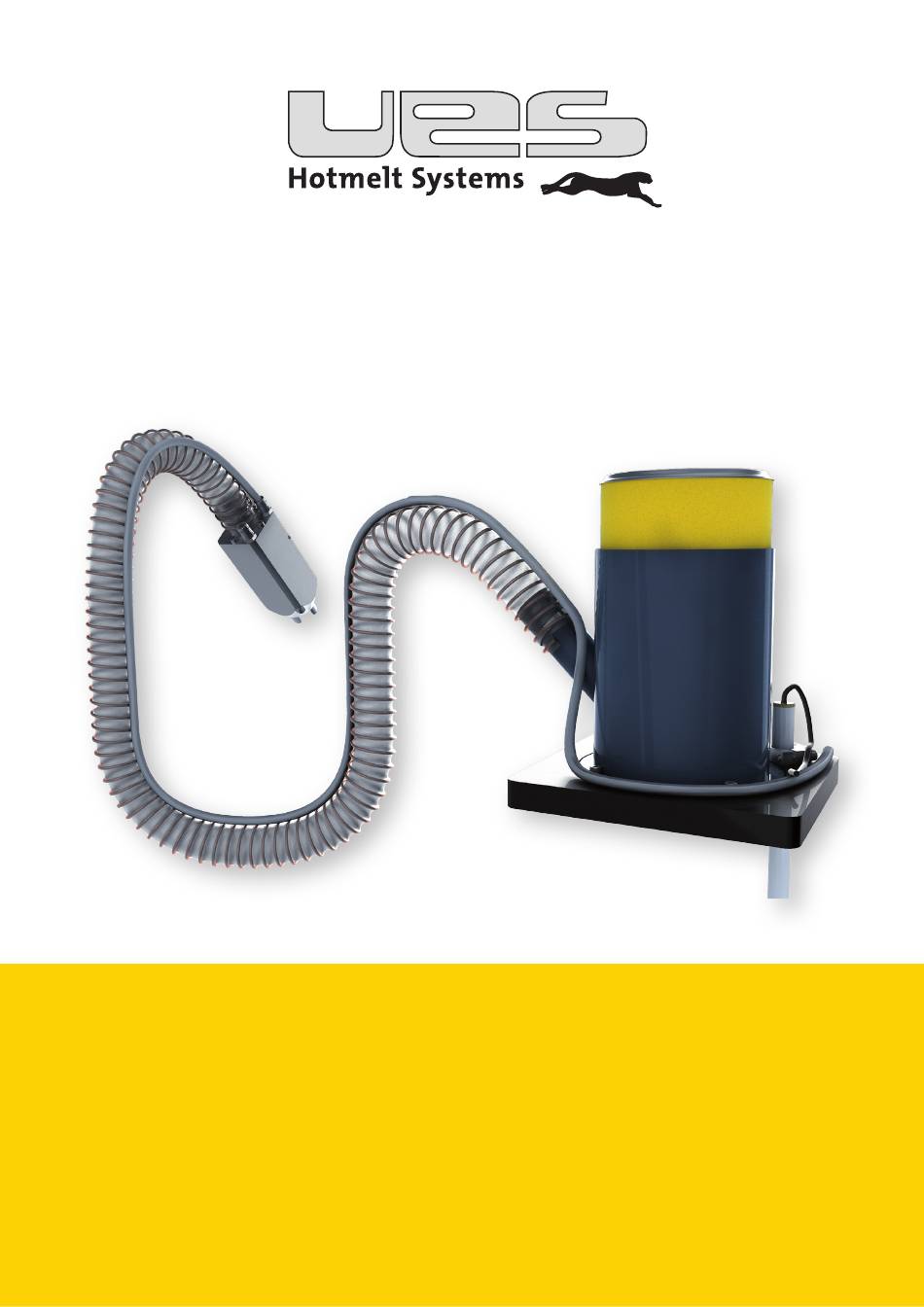

- Page 1 Operating Manual PowerFill Automatic Granules Feeder for Third Party Systems...
-
Page 3: Table Of Contents
Functional description ................................7 Versions ....................................7 Part list ......................................7 Compressed air supply ................................7 Technical Data ..................................7 Commissioning ..................................8 Maintenance .....................................9 Mechanical failures ..................................9 Spare parts ....................................9 Optional special functions ..............................10 Circuit diagram special functions ............................11 UES AG PowerFill Operating Manual... -
Page 4: Introduction
Operation manuals and handbooks of the UES AG are protected by copyright. Any copying, duplication (also extracts), translations etc. are not allowed without prior consent of the UES AG. Further copies of this operation manual and other handbooks can be supplied directly from the factory upon request. -
Page 5: Safety Instructions
The recommended safety procedures when dealing with production- and or packing machines are to be taken from the manual delivered with these machines. When installing, operating and maintaining the unit the safety measures referring to the main machine which the unit is built into must be taken into consideration. UES AG PowerFill Operating Manual... -
Page 6: Safety Symbols
Risk of entrapment if incautiously operated. Caution, possible danger of uncontrolled release/leakage of hot liquids! Disconnect power plug Disconnect power supplier! before opening! Wear safety gloves! Wear full suit! Use safety glasses! Use face shield! PowerFill Operating Manual UES AG... -
Page 7: Functional Description
Functional description The automatic granules feeder “PowerFill” is mounted on the tank opening of the hot glue system instead of the filler cap. A filling level sensor identifies when glue must be replenished, and starts the PowerFill. A lance sucks the granules out from the storage tank. -
Page 8: Commissioning
® • Remove the tank lid and replace it by the baseplate of the PowerFill. Use the two supplied screws to tighten the plate firmly! • Attach the conveying hose to the nozzle of the funnel by means of a hose clamp. The lance is mounted at the opposite end. -
Page 9: Maintenance
Controler Box Interpreter Set Screw Sensor Power Supply Ground Connection Power Plug Solenoid Valve Clamps 1 to 14 UES AG PowerFill Operating Manual... -
Page 10: Spare Parts
Tap the ready-contact of the hotmelt system and link it to X1, X4 and X5. As soon as the unit signals availibility the PowerFill is ready to use. For a superior control (SPS) tap the contact “unit ready” from the clamps X1, X6 and X7. -
Page 11: Circuit Diagram Special Functions
Circuit diagram special functions UES AG PowerFill Operating Manual... - Page 12 UES AG Breuershofstr. 48 D-47807 Krefeld Tel.: +49-2151-72950 Fax: +49-2151-729578 info@ues-ag.net www.ues-ag.net...
