  • Page 2: Table Of Contents

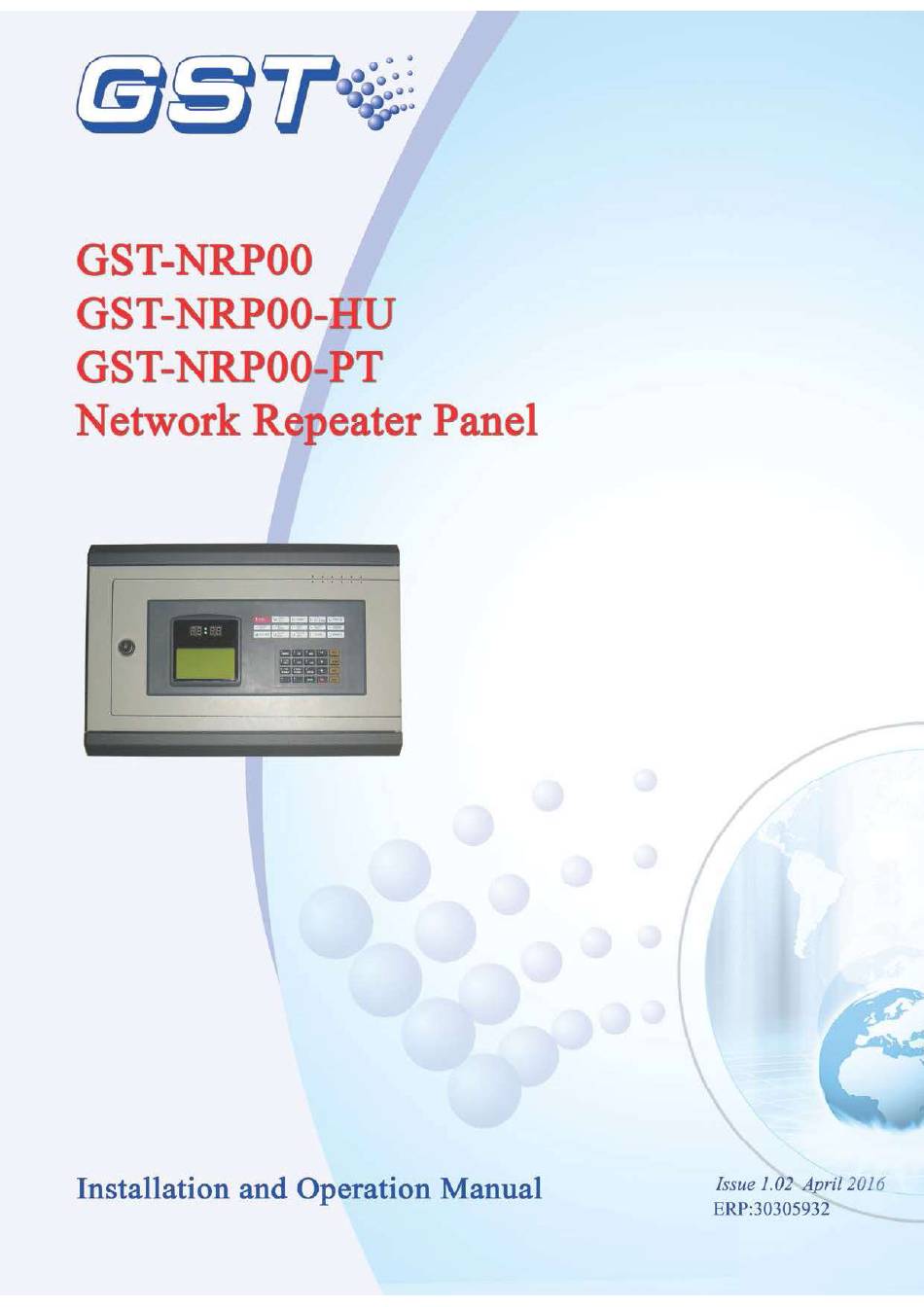

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual CONTENTS Installation Precautions ....................1 Chapter 1 Product Introduction...................2 Chapter 2 Technical Specifications ................3 2.1 Electrical Specifications..................3 2.2 Communication Loop Parameters ................3 2.3 Dimensions......................3 Chapter 3 Structure ......................4 3.1 Appearance and Internal Structure ...............4 3.1.1...
  • Page 3 GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual 6.3.6 User Mode....................19 6.4 Instructions for System Administrator (Manager Password Required)....20 6.4.1 Modifying System Time................21 6.4.2 Modifying Password................21 6.4.3 Network Setup..................22 6.4.4 Setting Zone Start Number ..............23 6.4.5 Initialization of System ................23 Chapter 7 Troubleshooter ..................24...

  • Page 4: Installation Precautions

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual Installation Precautions Adherence to the following will aid in problem-free installation with long-term reliability: Do not attempt to install, service, or operate this unit until this manual is read and understood. This equipment must be installed in accordance with these instructions and the appropriate national, regional and local regulations specific to the country and location of the installation.

  • Page 5: Chapter 1 Product Introduction

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual Chapter 1 Product Introduction GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel is simple installation, operation, and easy maintenance. It is used in fire alarm system with the following features: The LCD can display 8 lines in total and 18 characters each line, assisting the 15 LEDs to display important information.

  • Page 6: Chapter 2 Technical Specifications

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual Chapter 2 Technical Specifications 2.1 Electrical Specifications Voltage: 20VDC 27VDC Current is less than 350mA normally and less than 500mA in fire condition. Standby power consumption does not exceed 9W and maximum power consumption does not exceed 13W.

  • Page 7: Chapter 3 Structure

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual Chapter 3 Structure 3.1 Appearance and Internal Structure The network repeater panel is flush mounted. Its appearance and internal structure are shown in Fig. 3-1 and 3-2. Fig. 3-1 1 Clock 2 LCD...

  • Page 8: Description Of Keys

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual the fault condition is removed. DISABLE: Yellow. It illuminates when the repeater panel receives, from FACPs in network, disabled messages of connected devices, FP.E. output or SOUNDER CIRCUIT OUTPUT. It goes out when such status is canceled.

  • Page 9: Configuration

    This part is used to indicate and display different status of the system, and enables relative operations through keypad (browsing, setting and etc). 3.2.2 Optional Components Network Card (P-9940A P-9960A P-9960) The network card is used for connecting GST series FACPs into network. Refer to Appendix 1 for wiring. Page 6...

  • Page 10: Chapter 4 Installation

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual Chapter 4 Installation 4.1 Configuration Inspection Before installation, check the following items: Engineering Configuration Check the configuration according to packing list. The main items to be examined are: installation and operation manual, keys to the repeater panel, etc.

  • Page 11: Connections Of Field Devices

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual Check if the speaker can give two kinds of loud alarm sounds. 4.4 Connections of Field Devices 4.4.1 Connection of Power Supply The input power for the repeater panel is non-polarized 24V, which is converted to 5V by a DC-DC converter module.

  • Page 12: Chapter 5 Display And Disposal Of System Information

    5.1 Normal Information The normal display is shown in Fig. 5-1, which means the system is in working state. Then only POWER ON LED lights. Software GST CO., LTD. version number SYSTEM ALL NORMAL Software V*.* Fig. 5-1 Fig.

  • Page 13: Disposal Of Fire Alarm Signal

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual 001 0f 006 !FIRE! 05:25 // There are six devices with fire alarm signals, and this is the first. Zone: 001 030MCP // The number of zone with fire alarm and type and address of the device in fire alarm.
  • Page 14 GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual Generates fault sound. System fault: The repeater panel would report system fault if its control CPU and circuits are in fault and it cannot work normally. It lights the COMMON FAULT and SYSTEM FAULT LED.

  • Page 15: Disposal Of Fault Message

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual 001 0f 004 FAULT10:18 // There are four devices reporting fault, and this is the first. Zone:003-011Optical // The number of the zone with the fault message, the address and type of the device with the fault message.

  • Page 16: Chapter 6 Description Of System Operation

    The repeater panel is locked by default when powering up. If some operations are needed, the LCD will display a screen requiring proper password. Inputting the correct password and pressing ENTER, you can continue to operate as the keypad is unlocked. See Fig. 6-1. GST CO., LTD. 8 digits Please Input Password ******** Fig.

  • Page 17: User Operation Instruction (No Password Requirement)

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual GST CO., LTD. Press ENTER confirm Fig. 6-2 6.2 User Operation Instruction (No Password Requirement) 6.2.1 Changing Time Display The clock is usually displayed in hour and minute. In normal monitoring state, pressing ENTER, month and date are displayed.
  • Page 18 GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual ! FIRE! // Fire alarm message TIME: 10:23 14/08 // Date and time of the event Zone: Name // Zone number, zone name 121 Optical // Device address and type 6.2.2.5 Browsing fault messages You can view fault messages by pressing VIEW FAULT when the screen is displaying non-fault messages.

  • Page 19: Mute

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual Zone Fully Disabled // Current zone are completely disabled. 002 of 002 Disable 12:01 Zone 006 Z-006 016/030 Zone Part Disabled Fig. 6-6 002 of 002 Disable 12:01 // There are devices from 2 zones that are disabled and this is the second zone.

  • Page 20: Instructions For Operator (Operator Password Required)

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual 6.3 Instructions for Operator (Operator Password Required) 6.3.1 Resetting the System Pressing RESET can reset the repeater panel and all the control modules, outputs and detectors connected to the network FACPs, but will leave the disabled devices as they are.
  • Page 21 GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual In the above screen, you can operate as follows: Enter 3-digit zone number or “*” at the cursor position after letter “Z”. Enter 3-digit device code or “*” at the cursor position after letter “C”.

  • Page 22: User Mode

    Entering 1 in Fig. 6-12 will enter the screen for setting up LCD contrast, as shown in Fig. 6-13. In this screen, “ ” and “ ”are used to adjust LCD contrast. GST CO., LTD. *LCD Contrast* Fig. 6-13 Entering 2 in the screen of Fig. 6-12 will enter the screen for setting up display mode, as shown in Fig.

  • Page 23: Instructions For System Administrator (Manager Password Required)

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual Entering 3 in the screen of Fig. 6-12 will enter the screen for manual start of system devices, as shown in Fig. 6-15. The FACP provides two modes, starting a single device and starting multiple devices. The method of operation and the use of “*” is the same as disablement operation.

  • Page 24: Modifying System Time

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual 6.4.1 Modifying System Time Inputting “1” in the screen of Fig. 6-17, the system enters Time/Date setting screen. See Fig. 6-18. After inputting time on highlighted position and pressing TAB, the next cell is highlighted.

  • Page 25: Network Setup

    Confirm Password ******** Fig. 6-21 Input password again. If the two passwords are the same, the LCD will display the window shown in Fig. 6-22, meaning the modification is successful. GST CO., LTD. Success Fig. 6-22 6.4.3 Network Setup Inputting “3” on the screen in Fig. 6-17, the screen shown in Fig. 6-23 will be displayed.

  • Page 26: Setting Zone Start Number

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual You can set the repeater panel to display network message or not by entering number 2, as shown in Fig. 6-25. *Display Mode* 1 Disable 2 Enable Fig. 6-25 6.4.4 Setting Zone Start Number Inputting “4”...

  • Page 27: Chapter 7 Troubleshooter

    Network Repeater Panel Installation and Operation Manual Chapter 7 Troubleshooter The FACP shall only be repaired by specially trained GST technical service personnel. Please disconnect the power before repair! Possible off-normal conditions and their solution are listed in Table 7-1.

  • Page 28: Appendix 1 Internal Connection Diagram

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual Appendix 1 Internal Connection Diagram P-9940A XS12 XT16 XT15 XT14 XS10 Optional accessories GND XS3 Main Board MB-010 Switch Board SB-010 LCD Screen SC-200 Network Card P-9940A Speaker SP-200 DC-DC Converter PB-010...
  • Page 29 GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual P-9960 XS12 XT16 CAN_L CAN_H XT15 XT14 XS10 Optional accessories GND XS3 Main Board MB-010 Switch Board SB-010 LCD Screen SC-200 Network Card P-9960 Speaker SP-200 DC-DC Converter PB-010 Terminal Board TB-010...

  • Page 30: Appendix 2 Device Type List

    GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual Appendix 2 Device Type List Nodefine Undefined MultiDet Multi-sensor detector Heat Heat detector Optical Photoelectrical smoke detector User Def User defined device Gas Det Gas detector Beam Det Infrared beam detector FlameDet...
  • Page 31 GST-NRP00/GST-NRP00-HU/GST-NRP00-PT Network Repeater Panel Installation and Operation Manual User Def User defined device User Def User defined device Net Unit Net unit Repeater Repeater panel ZoneValv Signal valve Flow SW Waterflow indicator PS.DIFF Foam pump User Def User defined device...

  • Page 32: Appendix 3 Operation Menu

    SILENCE To silence the sounders and bells [Operator password required] EVAC To start all sounders and bells [Operator password required] MUTE To silence the sound of FACPs and GST-NRP01 repeater panels in network. VIEW FAULT To view fault messages if the screen is not displaying them.
