Summary of Contents for BAT BATmode S

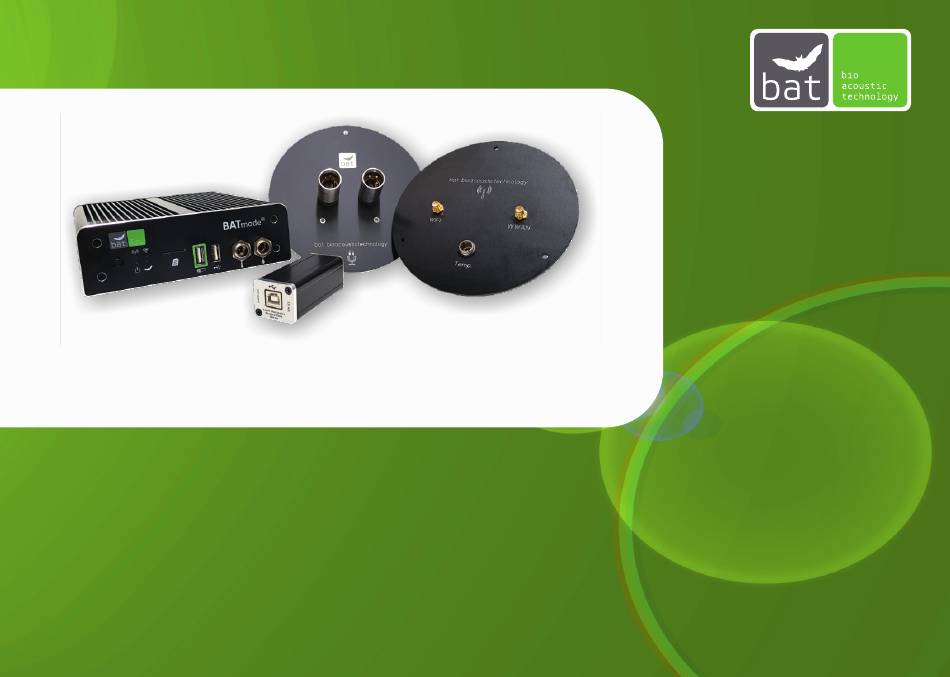

- Page 1 BATmode S / S+ QUICKSTART GUIDE Set Up and First Start Up...
-
Page 2: Safety Instructions
Ensure that nobody can stumble on installed and connected wires. Stumbling can harm persons and damage system parts. Only use accessories supplied or authorized by bat bioacous ctechnology. The use of unauthorized accessories may damage the device. Please contact our support if the BATmode-System shows any damage or does not work properly. -
Page 3: Table Of Contents
Table of Contents SAFETY INSTRUCTIONS ..............Learn about your device ..............LED Status Indicators ............... Antenna Disc and UltraSoundGate ........... Microphones ..................Connect ................... Remote Access via WIFI ..............Remote Access via LAN ..............First Start Up ................... Mobile Set Up .................. Daily Status SMS................ -
Page 4: Learn About Your Device
USB-Port for UltraSoundGate (monitored) 2 3 4 5 USB 2.0-Port e.g. for keyboard and mouse Temperature Sensor Input (only BATmode S+) Precipita on Sensor Input (only BATmode S+) - Back View BATmode S/S+ - Cellular Antenna Connector Hea ng Output... -
Page 5: Led Status Indicators
LED Status Indicators How to interpret the LED status indicators of your BATmode correctly: Power LED (orange) WIFI Hotspot LED (green) Device on WIFI-Hotspot on Off Device off Off WIFI-Hotspot off Status LED (blue) Mobile Service LED (green) BATcontrol not started Mobile connec on connected Off... -
Page 6: Antenna Disc And Ultrasoundgate
WIFI Antenna Connector Temperature Sensor Connector Cellular Antenna Connector BATmode S Systems do not use an Antenna Disc. Instead, please connect the enclosed magne c base antenna for mobile connec on to the cellular antenna connector of the BATmode S. -
Page 7: Microphones
Microphones Microphone Disc GM50 - Front View - Microphone XLR Connector (UltraSoundGate) Screws for removing the moun ng plate Reference Signal Speaker Connector (UltraSoundGate) Microphone Capsule Reference Signal Speaker GM50 The Microphone Disc GM50 can either be used with the enclosed moun ng plate or with an op onal tripod. - Page 8 Microphones Microphone Disc GM90 - Front View - Microphone XLR Connector (UltraSoundGate) Hea ng Connector Windscreen made of foam Microphone Capsule Reference Signal Speaker Do not remove the windscreen foam, - Back View - as this has an essen al influence on the calibra on of your microphone disc! Be careful not to touch the microphone capsule and to protect it from moisture!
- Page 9 Tower Microphone TM10 Microphone XLR Connector (UltraSoundGate) Op onally available movable tripod for tower wall moun ng Microphone Capsule Tower Microphone TM20 Microphone XLR Connector (UltraSoundGate) Op onally available movable tripod for tower wall moun ng Microphone Capsule and Reference Signal Speaker Be careful not to touch the microphone capsule and to protect it from moisture!
-
Page 10: Connect
Connect How to connect all components of your BATmode S+ System correctly: - BATmode S+ - mode - Power Adapter - WWAN WIFI - UltraSoundGate 116Hnbm - - Backup-S ck - - Monitor - - Microphone - - Keyboard / Mouse -... - Page 11 How to connect all components of your BATmode S System correctly: - BATmode S - mode WWAN - UltraSoundGate 116Hnbm - - Power Adapter - - Backup-S ck - - Microphone - - Monitor - Depending on the selected microphone,...
-
Page 12: Remote Access Via Wifi
WIFI IP of your BATmode in Computer and press Connect Default WIFI IP: „192.168.137.1“ Step 3 Insert the Username „BAT“ and the Windows Password and press Default Windows Password: „12345“ WIFI connec on is only available for BATmode S+. -
Page 13: Remote Access Via Lan
BATmode (RJ45). Step 2 Open the Windows program Remote Desktop Connec on insert „batmode“ in Computer and press Connect Step 3 Insert the Username „BAT“ and the Windows Password and press Default Windows Password: „12345“... -
Page 14: First Start Up
First Start Up Star ng of the BATmode System and the BATcontrol control so ware: Step 1 Start the BATmode System. Step 2 Use mouse, keyboard and monitor or connect your laptop via WIFI or LAN as described on page 12 and 13. The control so ware BATcontrol starts automa cally. - Page 15 To stop data acquisi on click on the Start-/ manual. Otherwise validity of collected data may expire. Stop-Bu on or close the recording so ware. The external sensors for temperature and precipita on acquisi on are only available for BATmode S+.
-
Page 16: Mobile Set Up
Mobile Set Up How to set up your BATmode for SMS and mobile Internet connec on: Step 1 Insert the Mini-SIM card in the SIM card slot (For this, the BATmode must be turned off). Step 2 An ac vated PIN will prevent the BATmode Use the Mobile se ngs in Windows to remove system to restore a mobile connec on a possibly ac vated PIN from your SIM card. -
Page 17: Daily Status Sms
Daily Status SMS Se ngs in BATcontrol Enable Daily Status SMS and insert the phone number of the receiver of the Daily Status SMS in Receiver Number(s) Use the interna onal format: e.g. +4915221918574. Use ; to separate mul ple receiver numbers. Select the daily transmission me and the desired format. -
Page 18: Remote Sms
Remote SMS Se ngs in BATcontrol Android-App Download from the Google Play Store our free Enable the SMS Remote checkbox. Android App BATconnect SMS for SMS remote Add the mobile number of the command control of your BATmode systems. sending device to the Security Number(s) Use these SMS commands to control your BATmode systems via text SMS System response... - Page 19 System will reboot Reboot! Shutdown! System will shut down System will send Status SMS Send status! System will send Status Mail Send Mail! Send Mail to max(at)moritz.de Systen will send Status Mail to max@moritz.de WIFI-Hotspot will start Start WIFI-Hotspot! Stop WIFI-Hotspot! WIFI-Hotspot will stop Mobile Connec on will be connected Connect WWAN!
-
Page 20: Mybat
myBAT Use the mybat cloud service to monitor your BATmode systems from anywhere in the world. Step 1 Ac vate myBAT in BATcontrol on your BATmode. Step 2 Sign Up by using your Purchase-Code on: Purchase-Code: h ps://www.mybat.bioacous ctechnology.de Step 3 MAC adress of this BATmode: Assign your BATmodes to your account by using the MAC addresses of your BATmode systems. -
Page 21: Set Up
Internet and WIFI as remote access op ons. For more detailed explana ons of the individual se ngs, please refere to the manual. WIFI is only available for BATmode S+ systems. Test all planned remote access paths before installa on in the wind turbine. -
Page 22: Installation
Installa on The following points should be clarified in advance of the installa on: Power supply Installa on loca on of the disc(s) Mobile coverage at the installa on site Installa on loca on of the BATmode/BATbox Cabling/cable length Internet via turbine network possible With this checkliste you only have to climb once in the nacelle of the turbine and have everything necessary with you. - Page 23 Notes...
- Page 24 GmbH Hohe Straße 2 D-90610 Winkelhaid www.bioacoustictechnology.de info@bioacoustictechnology.de +49 (0) 1522 / 1918574 The detailed manual is always available on the Internet as up to date PDF download www.bioacoustictechnology.de/downloads Product illustrations similar. Misprints, errors, innovations Version: 11/18 and changes reserved.
