- Page 1 ZICOM Z.HA.HO.GSM.ATOUCH.KIT GSM/SMS RFID Touch Alarm System User Manual...
-
Page 2: Table Of Contents

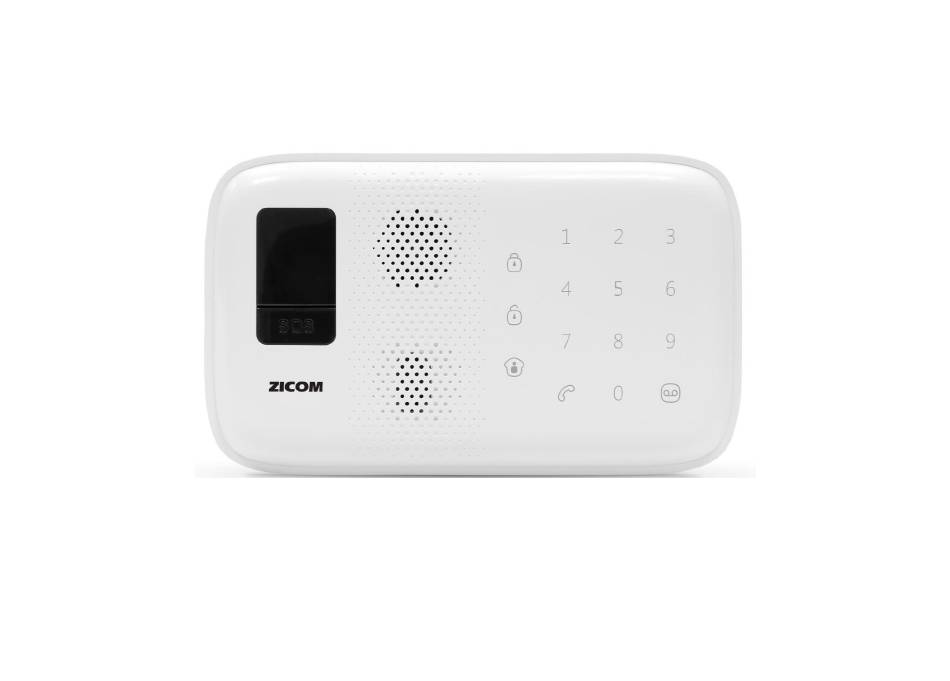

Foreword Table Contents Dear Customers, In the Box ....................... 1~3 Control Panel ......................1 Thank you for choosing our product. This product is a totally D.I.Y. wireless home Accessories ....................... 3 security solution. It features automatic connection to various accessories, putting your How It Works ....................... - Page 3 In the Box Key Operation 1. SOS: System will alarm immediately when this button is pressed. Arm: Press to arm your system. Now all the sensors are guarding. Control Panel Disarm: Enter the password (default setting: 1234) and press to disarm your system.
-
Page 4: Accessories
Accessories How It Works This alarm system has the following accessories included in the box. Operation Function Disarm Turn off siren Turn on siren Two-way talk Hang up You can record an alarm voice message by the following steps: Enter disarm password (default setting: 1234), and then press ®... -
Page 5: Remote Control
Door/Window Contact Accessories Remote Control The contact contains a transmitter and a magnet. It can be mounted on doors, windows and any other objects that can be opened or closed. When the transmitter and magnet are separated over 2 cm, the contact will send a signal to the control panel to trigger an alarm. -
Page 6: Pir Motion Detector
PIR Motion Detector Working Mode The detector adopts digital dual-core fuzzy logic control processing technology and intelligent Testing Mode analyze algorithm. When human body’s infrared spectrum is detected, it will send alarm signal After a 1 minute self-test, the detector enters a testing mode. It detects once in every 10 to the control panel. -
Page 7: Zone Mode Of Sensor
How to set: Pet-Immune Function This sensor adopts a special design to improve detection accuracy. Pets less than 25kgs Open the rear cover of the detector; change the array of jumpers on the zone setting to will not trigger the alarm. the corresponding position as below (Mind the direction of D0-D3): Zone Mode of Sensor Sensors can be placed in different zones for different requirements. -
Page 8: Getting Started
Step 4. Be Familiar with the Alarm System Getting Started Now you can tap [©], [§], [®] to arm/disarm/home arm your system remotely Tap app will skip to messages interface automatically After sending the SMS, you will receive a Step 1. Insert SIM Card phone call from the control panel to leave a 10-second voice memo. - Page 9 Store Emergency Numbers & SMS Numbers Exit & Entry Delay Time Emergency numbers are the phone numbers that will receive calls from the control If you don’t want to carry remote controls, you can set the exit or entry delay. Suppose panel when the alarm goes off.
-
Page 10: Setting Through Sms
Setting through SMS For example: 1. Send “5” to the SIM card number of the control panel. If you use a non-smart phone, you can set your system by sending the related SMS command codes to the SIM card in the control panel. Item SMS Command Code SMS menu... -
Page 11: Installation
Installation Mode Installation There are possibilities to trigger an alarm when mounting the sensors. You can press the button for 3 times on the control panel to enter the 10-minute installation mode. Sensor Placement During this period, system only beeps 3 times when the sensor is triggered. You can also press button on the control panel to exit this mode. -
Page 12: Mounting The Door/Window Contact
Mounting the PIR Motion Detector Mounting the Door/Window Contact lmportant: Avoid installing the motion detector directly towards windows and near heat Make sure the contact works properly before installation. sources, such as heat extraction units, air-condition, micro-wave oven, refrigerator etc; Step 1: Choose a suitable installation location Avoid placing two motion detectors in the opposite of each other;... -
Page 13: Pairing/Deleting Accessory
Pairing/Deleting Accessory Pair New Wireless Siren Siren is sold separately. 1. Make siren enter pairing state (please refer to relevant user manual). The included accessories have been paired with the control panel by default, if you want 2. Press {£) on the control panel to send out a pairing signal to the siren. -
Page 14: Reload The Batteries Of Accessories
Reload the Batteries of Accessories Arm & Disarm by Free Phone Call Remote Control Arming the alarm system can be done by calling the SIM card telephone numbers in the control panel. Hanging up the call after you hear the dialing tone, and then you will be called by the control panel;... -
Page 15: Specifications
Door/Window Contact Specifcations Power Supply Static DC 3V (CR2032 lithium battery x 2pcs) Current Alarm Current Control Panel <5 uA Transmitting Distance <9 mA Power Supply DC 12V 500 mA Radio Frequency <80 m (open area/no interference) Battery 3.7V 1200 mAh 18650 lithium battery Housing Material 315 MHz or 433.92 MHz GSM Frequency Standby... - Page 16 Zicom Electronic Security Systems Ltd.| Address: 501, 5 Floor, Silver Metropolis, Goregoan (E), Mumbai–400 063, India. -270-4567 Website: www.zicom.com | Toll Free : 1-800...
