SCHÜTZ ECOBULK WITH IMPELLER

Operating manual

Version 1.3 | September 2018

Table of Contents

Need help?

Do you have a question about the ECOBULK WITH IMPELLER and is the answer not in the manual?

Questions and answers

Summary of Contents for SCHÜTZ ECOBULK WITH IMPELLER

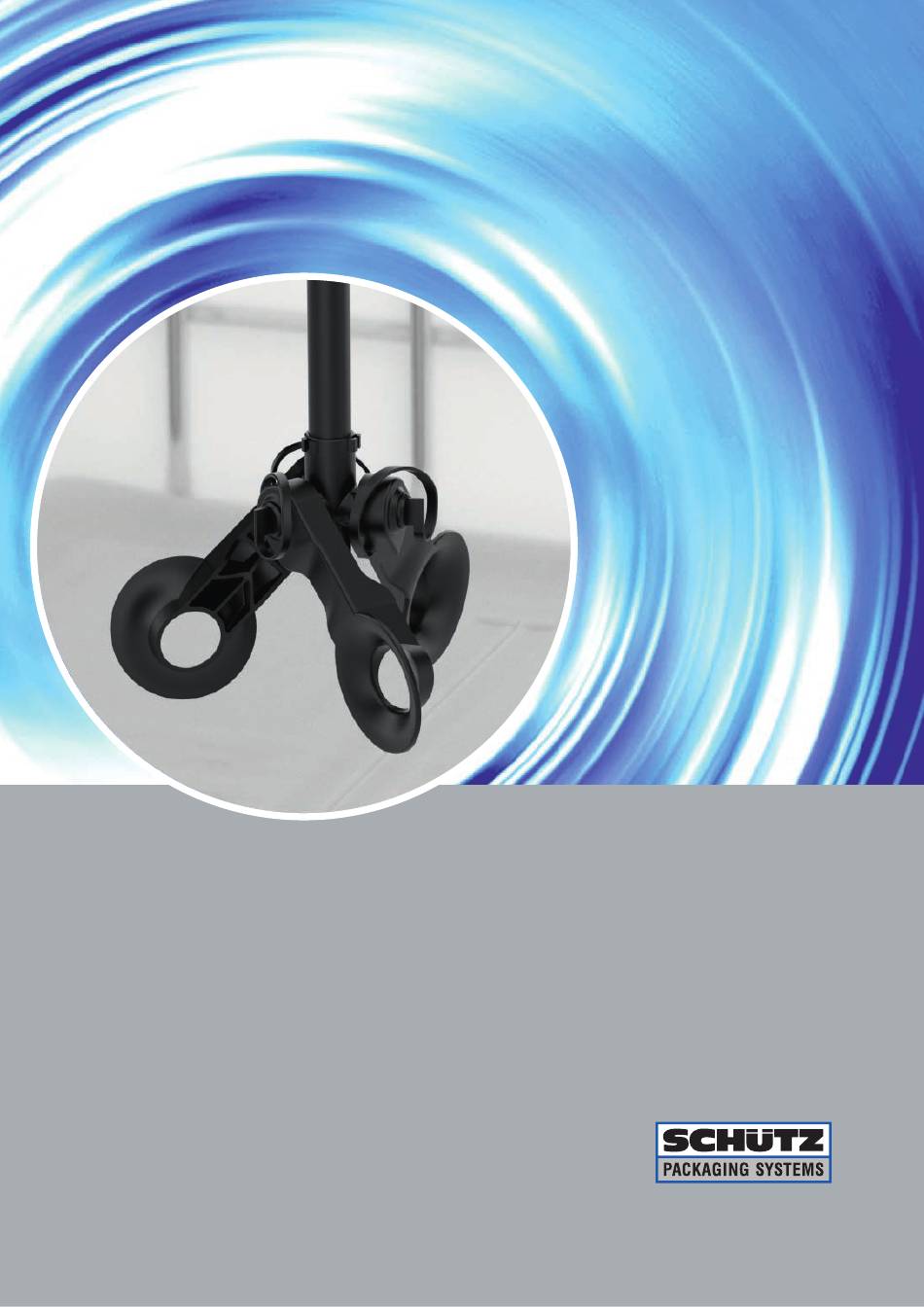

Page 1 SCHÜTZ ECOBULK WITH IMPELLER Operating manual Version 1.3 | September 2018...
Page 2: Table Of Contents
CONTENTS / PRODUCT DESCRIPTION Contents PRODUCT DESCRIPTION SCHÜTZ IBCs with stirrer ......................2 REQUIRED EQUIPMENT Drive ............................4 Steel shaft ..........................5 INFORMATION FOR FILLERS Delivery condition / Filling / Transport .................. 6 INFORMATION FOR EMPTIERS Assembling the drive ......................8 Stirring ............................
Page 3 PRODUCT DESCRIPTION System components ECOBULK F illing opening with DN 150 or DN 225 z screw cap and IMPELLER O ptional additional 2" filling opening in z the bottle (S56x4 thread) with a seal cap O utlet valve DN 50/DN 80 z with optional camlock adapter IMPELLER...
Page 4: Required Equipment
REQUIRED EQUIPMENT Drive The SCHÜTZ IMPELLER can be attached to practically every standard transverse or gantry-mounted agitator drive, allowing most existing drive systems to be used: A s a rule, but depending on the product, speeds of up to 200 rev/min should be used z in a bucket agitator.
Page 5: Steel Shaft
REQUIRED EQUIPMENT Top connector Steel shaft The IMPELLER is connected to the agitator drive with a steel shaft; the length and adapter of this shaft must be configured to fit the drive that is being used: T he top adapter and the overall length z of the steel shaft are defined by the specifications of the drive that is being...
Page 6: Information For Fillers
INFORMATION FOR FILLERS Delivery condition SCHÜTZ supplies the IMPELLER ex-works in a ECOBULK model MX/SX/HX: D epending on requirements and container configuration the IMPELLER z is packaged or unpackaged. Please refer to the assembly instructions. Filling Through the screw cap The IMPELLER is delivered wrapped in foil inside the IBC! Completely unscrew the screw cap.
Page 7 INFORMATION FOR FILLERS Filling Filling using the optional 2" opening The IMPELLER is delivered unwrapped inside the IBC! The screw cap on the opening with the installed IMPELLER is sealed ex-works and remains unopened. Remove the sealing cap of the separate 2‘‘ filling opening on the front upper side of the IBC, unscrew the plug, remove it and fill the IBC through this opening.
Page 8: Information For Emptiers
INFORMATION FOR EMPTIERS Attaching the drive Before using the IMPELLER the steel shaft must be attached to the drive by pushing it into the PE shaft. The length of the IMPELLER shaft has been designed so that it reaches the lowest point in the inner bottle in either the ECOBULK 1,000 or 1,250 litre version.
Page 9 INFORMATION FOR EMPTIERS Without steel shaft With inserted steel shaft Top end position approx. 35 mm Stopper in the screw cap Bottom end position Safety instructions During handling there is always the risk that body parts can get caught; there is a particular risk of injury to hands and fingers by the rotating shaft.
Page 10: Stirring
INFORMATION FOR EMPTIERS Stirring The specific viscosity and other properties of the filling product determine the speed and duration of the stirring process. The optimum speed for each product must be determined by the user; alternatively, ask the maker of the drive for guidance. The process data (speed and duration) recorded during stirring with a similar steel stirrer can be used as a rough guideline.
Page 11: Discharge
INFORMATION FOR EMPTIERS I n case of multi-phase liquids the conductivity of the continuous liquid phase has to exceed 10.000 pS/m. NOTE: Water soluble liquid phases usually fulfil this requirement. M ulti-phase insulating liquids with a conductivity of the continuous liquid phase less than 10.000 pS/m must not be stirred without protective measures, such as inerting.
Page 12: Returns
INFORMATION FOR EMPTIERS Returns Empty ECOBULK containers with used IMPELLERs are collected by the SCHÜTZ TICKET SERVICE and are reconditioned or recycled in an environmentally-friendly process: P repare empty containers for collection. z T ightly close the IBC; the IMPELLER remains inside the IBC. z O rder the collection by the SCHÜTZ TICKET SERVICE –...
