Summary of Contents for FUYU AMC4030

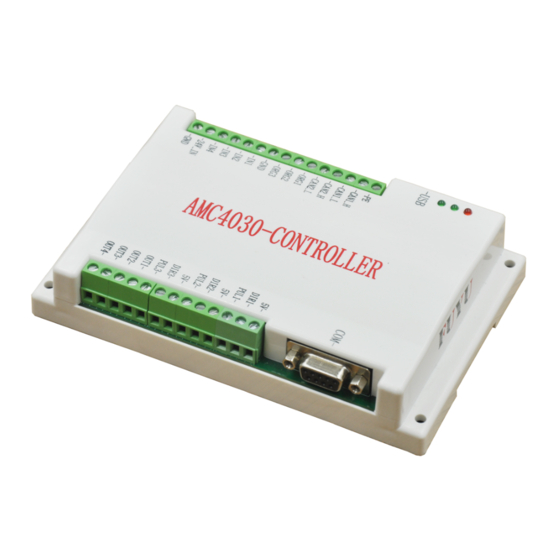

- Page 1 User Manual of AMC4030 Motion Controller AMC4030 Motion Controller User Manual （Version 0.2） CHENGDU FUYU TECHNOLOGY CO.,LTD.
-
Page 2: Related Documents
Why To Use This Manual? By reading this manual, the user can understand the basic structure of the AMC4030 motion controller, correctly install it and connect the controller to the motor control system, so as to complete the basic setting or development of the motion control system. -
Page 3: Chapter 1 Product Overview
We adopt ARM as its CPU core control unit, and use a more efficient algorithm to perfect its performance. Its main functions are: The AMC4030 controller can control up to 3-axis motors at the same time (stepper motor or servo motor). -
Page 4: Specifications
User Manual of AMC4030 Motion Controller The AMC4030 controller supports 3-axis linear or circular interpolation motion, and any 2-axis linear or circular interpolation motions. The AMC4030 controller supports backlash compensation Due to its precise and excellent motion control performance, the controller is particularly suitable... -
Page 5: Chapter 2 Instructions For Quick Use
It can also be separated from PC, and build a a stand-alone control system through the HMI human interaction. When the AMC4030 is used as an online motion system, the user can edit various motion control commands through the PC-based software provided by us and realize real-time monitoring of the control system. - Page 6 User Manual of AMC4030 Motion Controller AMP4030 controller，1pc； USB cable，1unit Warranty card，1pc Product Qualified Card，1pc 2.2 AMC4030 Interface definition Signal Descriptions Signal Descriptions CAN Signal Ground Power output DC5V CAN1_H CAN1 High-Level Signal DIR1 X-axis direction...
- Page 7 User Manual of AMC4030 Motion Controller Chart 2-3-1 Axis signal wiring diagram Pulse / direction mode connection diagram: The pulse output waveform is as follows: 2) Connect to IO port...
- Page 8 Max single current is 100mA. 2.4 AMC4030 Software and driver installation When the AMC4030 controller is connected to PC via USB cable, the driver needs to be installed on PC. Please follow the steps below to complete the installation of the driver.
- Page 9 User Manual of AMC4030 Motion Controller （1） Download the driver installation package at the official website address: http://www.fuyuautomation.com/ or contact our sales representative. The file is named as “ CH341SER.rar ”。 （2） Extract the software and run the installation setup, as shown below, click the button 。...
