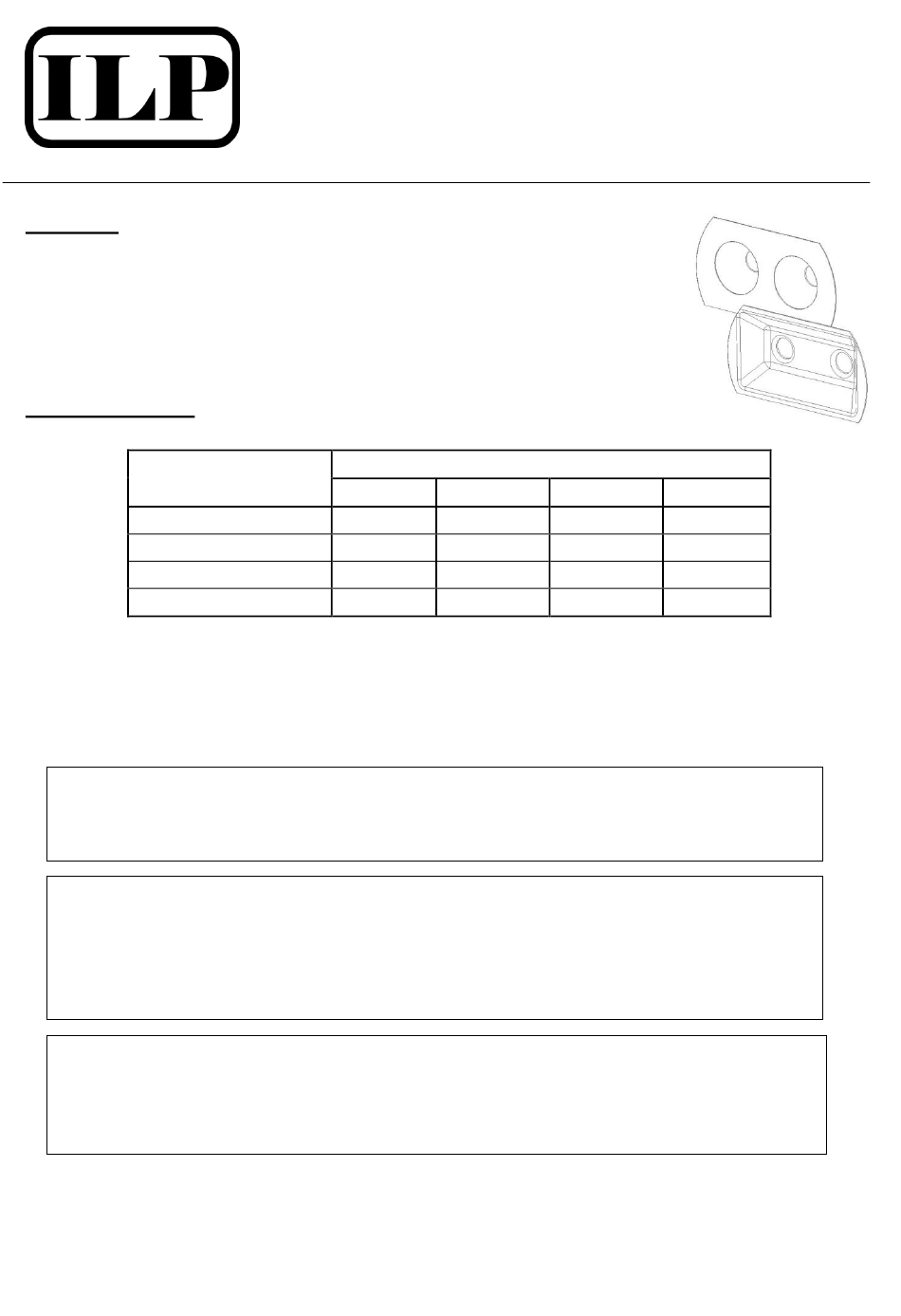

ILP CFS-36W Series Installation Instructions

MODELS:
CFS-36W-U-XX
CFM-52W-U-XX or CFM-85W-U-XX
CFL-110W-U-XX or CFL-150W-U-XX
(Note: Replace XX with 40 or 50 based on CCT of LED, may be followed by BLK, BRZ, or WHT)
Part Number List:
CFS-36W
CFM-52W
CFM-85W
CFL-110W or CFL-150W
(Note: The NEMA 7x6 reflector comes Standard on the Convertaflood. Replacements are available.)

1. Introduction

◼
The CF Family LED Floods use easy replaceable snap-in type reflectors to customize
to your lighting needs.
Warning:
To avoid the risk of fire, explosion, or electric shock, this product shall be installed, inspected,
and maintained by a qualified electrician, in accordance with all applicable electrical codes.
Warning:
To avoid electric shock:
•Allow product to cool before servicing.
•Be certain electrical power is OFF before and during installation or maintenance.
•Luminaire must be connected to a wiring system with equipment-grounding conductor.
Warning:
To avoid LED damage:
•Please do not touch the LED when replacing the reflector. Touching the LED may result in
damage or failure of the LED.
MODEL
NEMA 3X3
N33/M52
N33/L
ILP – Industrial Lighting Products, LLC
519 Codisco Way, Sanford, FL 32771
Phone: (407) 478 3759 Fax: (407) 478 3760
CONVERTAFLOOD REFLECTOR

INSTALLATION INSTRUCTIONS

REFLECTOR PART NUMBERS
NEMA 4X4
- N44/S
N44/M52
- N44/M85
N44/L
www.ilp-inc.com
NEMA 5X5 NEMA 7x6
N55/S N76/S
N55/M N76/M
N55/M N76/M
N55/L N76/L
